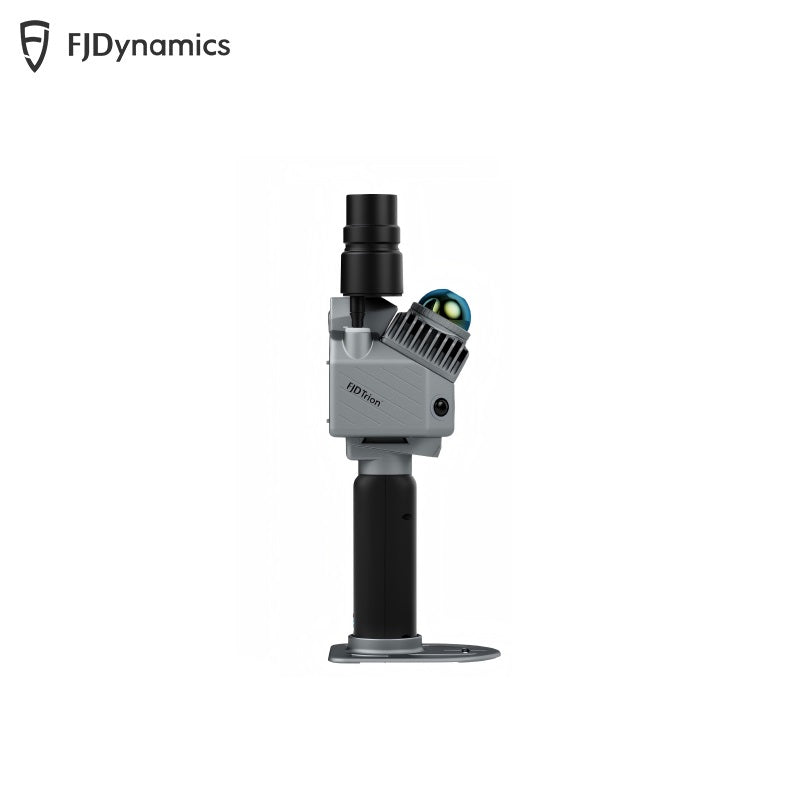

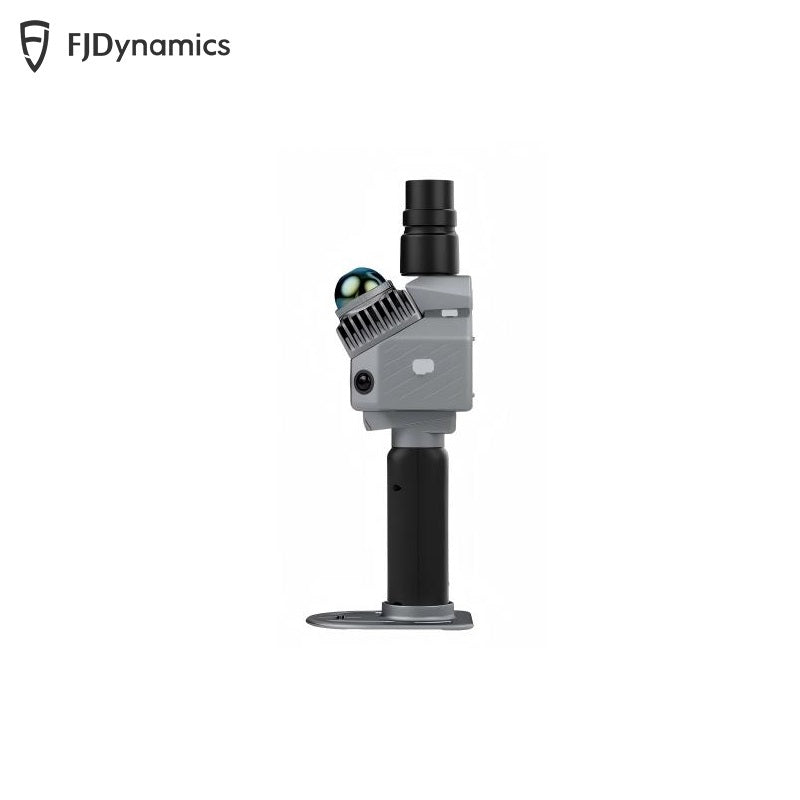

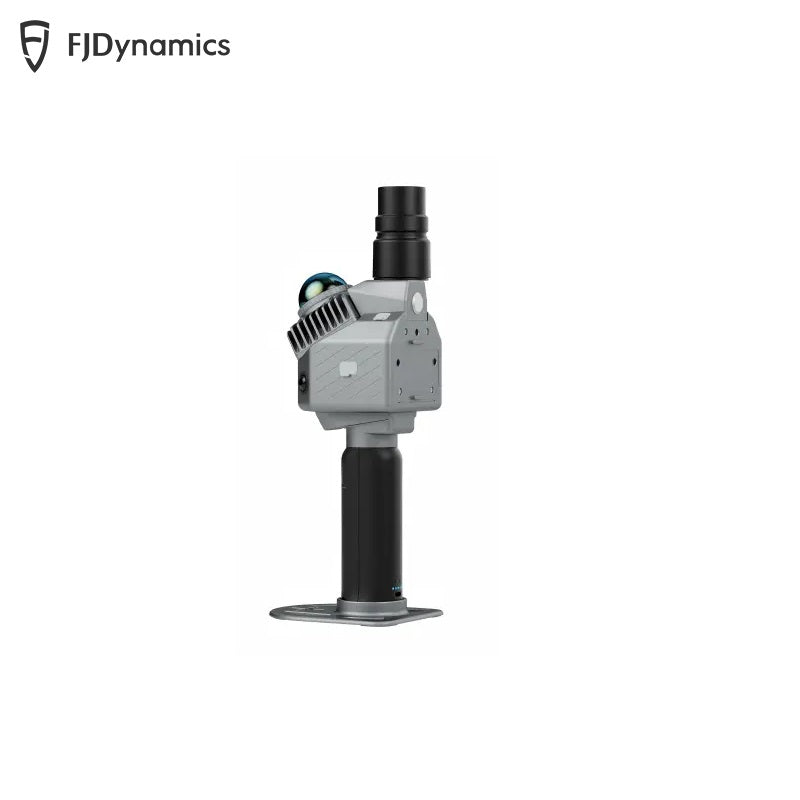

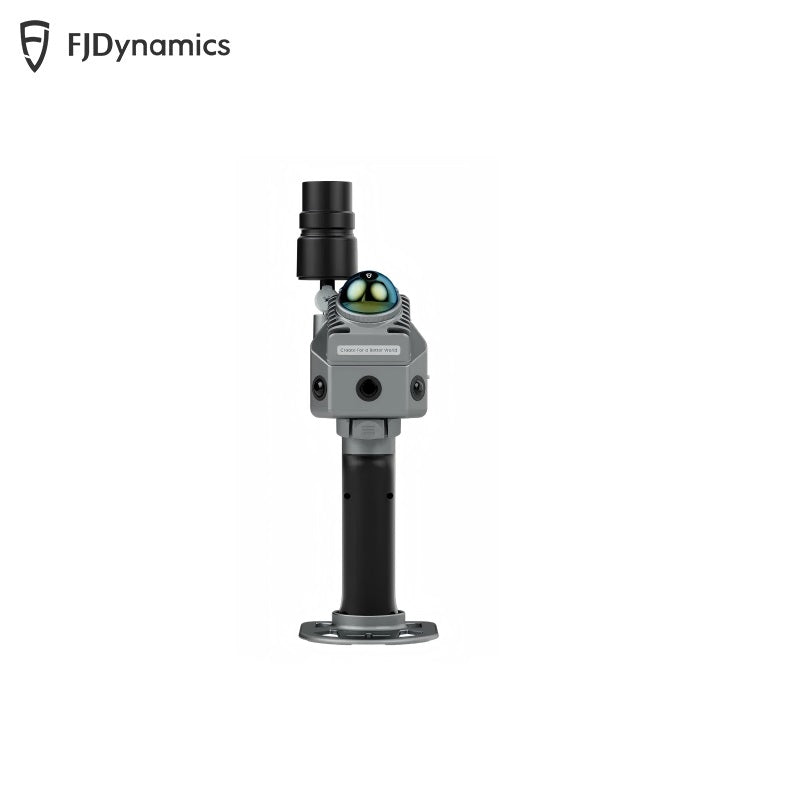

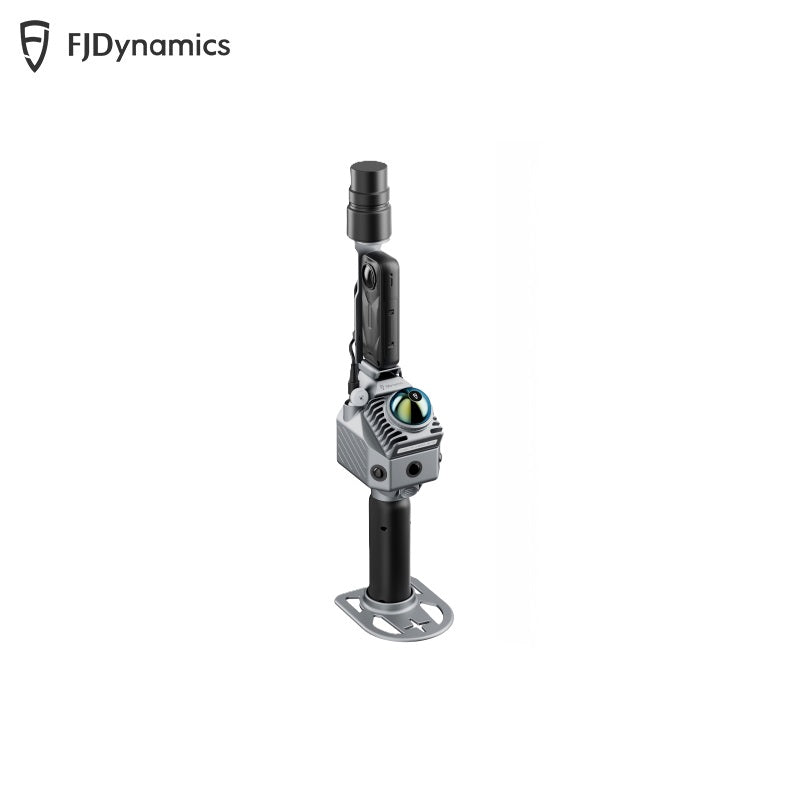

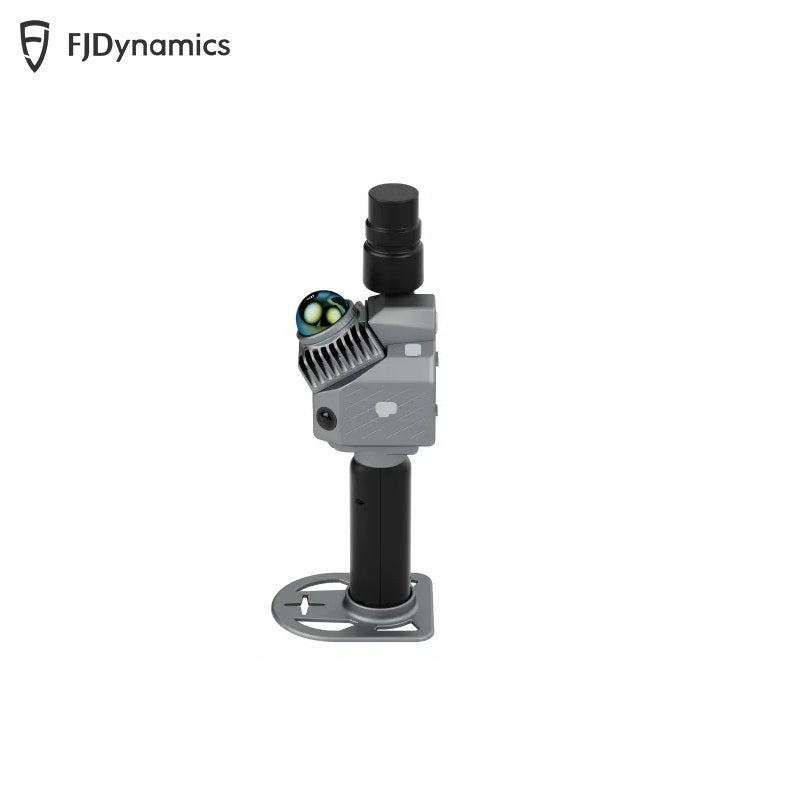

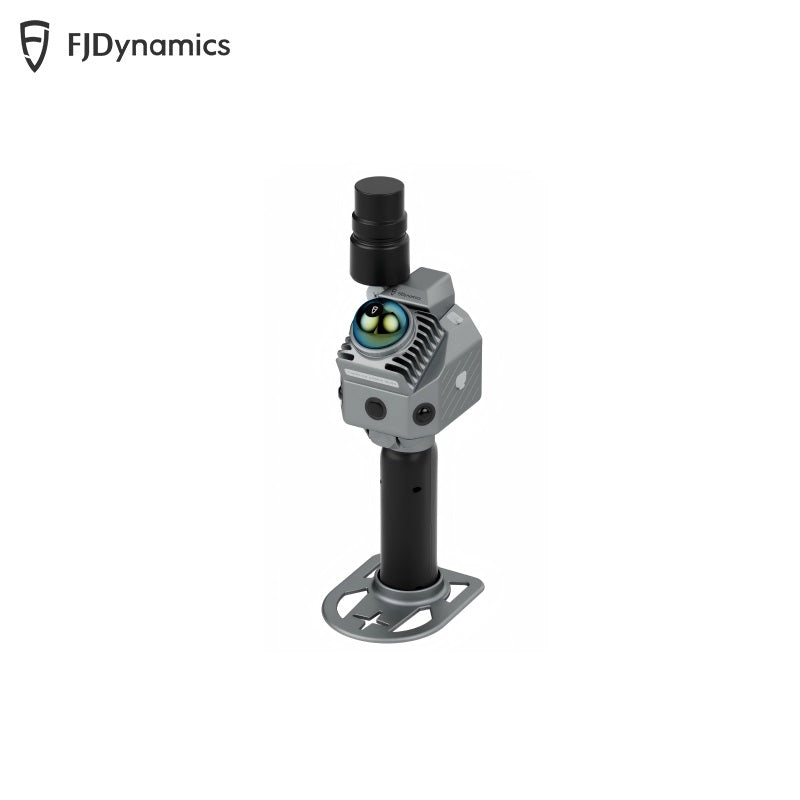

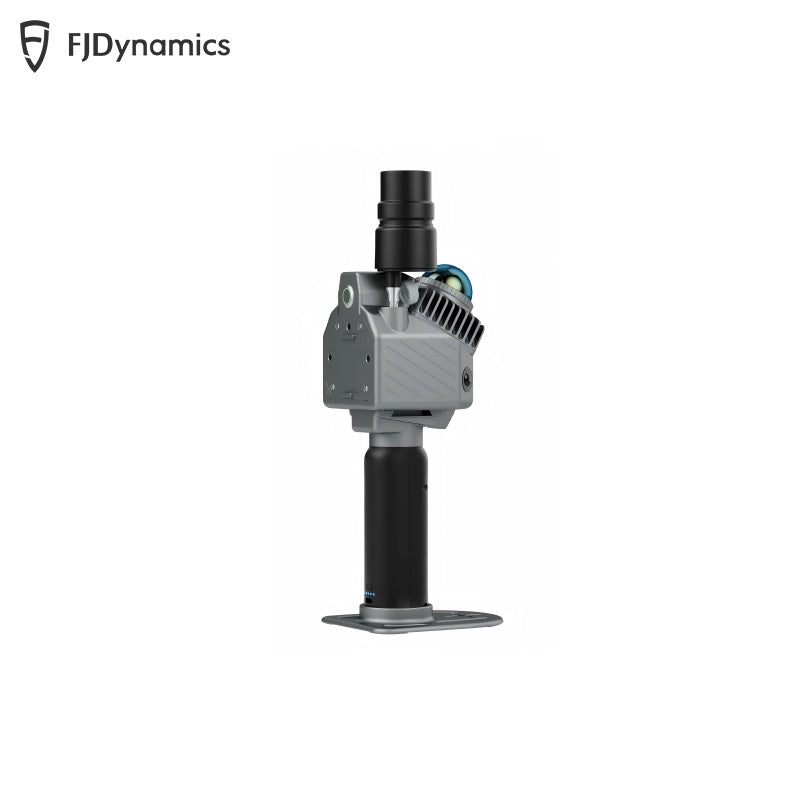

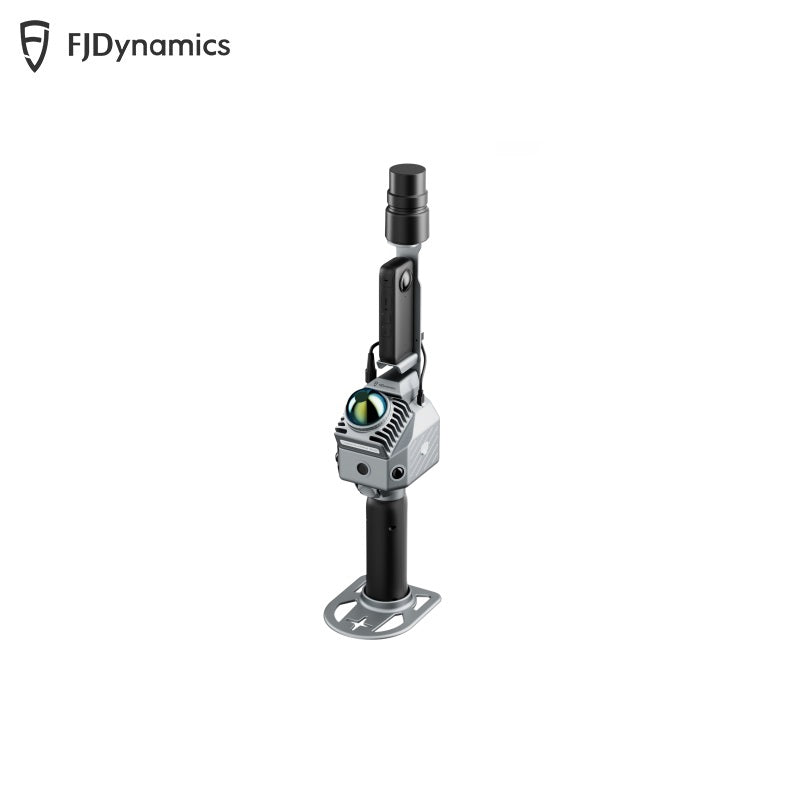

FJDynamics Trion P2 LiDAR Scanner
Regular price
$4,850.00
Unit price
FJDynamics Trion P2 LiDAR Scanner - Standard is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
FJDynamics Trion P2 LiDAR Scanner - Standard is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
| Parameter | Value |
|---|---|
| Thermal Imaging Camera | |
| Pixel Size | 12 μm |
| Spectral Range | 8–14 μm |
| MRAD (Spatial Resolution) | 1.2 |
| NETD | ≤ 40 mK (@ 25°C, F1.0) |
| Power | ≤ 0.55 W |
| Temperature Measurement Distance | Maximum 15 m |
| Temperature Accuracy | ± 2°C or ± 2% of reading |
| LiDAR | |
| Speed | 200,000 pts/s |
| FOV | 360° × 59° |
| Range | 40 m @ 10% reflectivity 70 m @ 80% reflectivity |
| Built-in Camera | |
| FOV (Front Camera) | 70° |
| FOV (Side Camera) | 280° × 149° |
| Resolution (Front Camera) | 2 MP |
| Resolution (Side Camera) | 2 × 48 MP |
| Point Cloud Accuracy | |
| Relative Accuracy* | ≤ 1 cm |
| Absolute Accuracy | ≤ 3 cm |
| General Specifications | |
| Dimensions | 110 × 106 × 280 mm |
| Weight | 700 g (excl. battery and thermal imaging camera) 980 g (incl. battery and thermal imaging camera) |
| Storage | 512G (1TB expandable) |
| Operating Temperature | -20°C ~ 50°C |
| Charging Storage Temperature | -40°C ~ 60°C |
| Charging Ingress Protection | IP54 |
| Electrical Specifications | |
| Battery Life | 4H (1 set of 2 batteries, including thermal camera) |
| Power Consumption | 15 W (excluding thermal camera) 16 W (including thermal camera) |
| Charger | 67W Fast Charging |
FJDynamics-Trion_P2-Drawing.pdf
