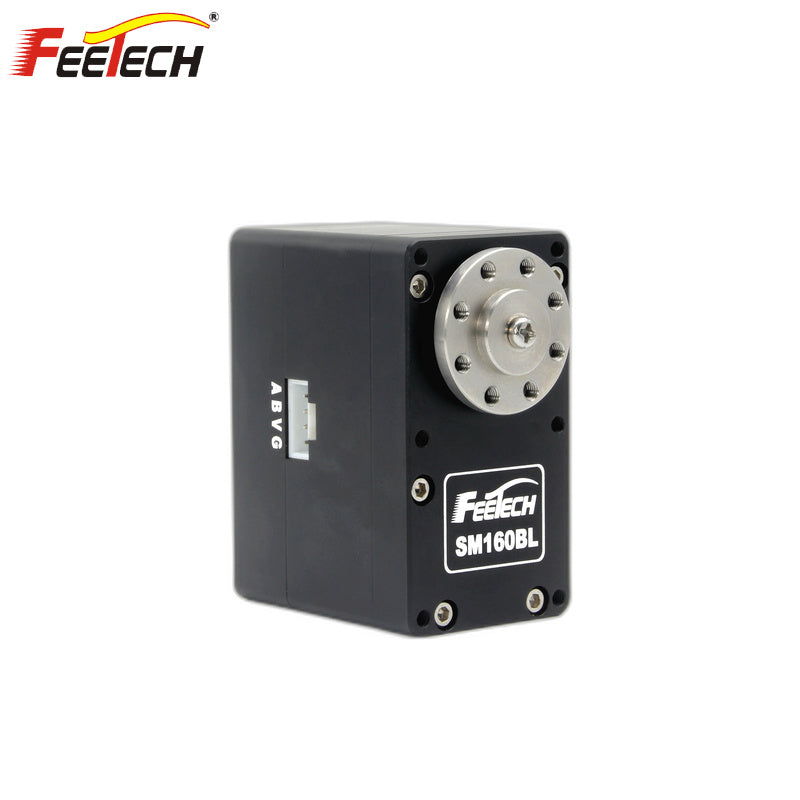

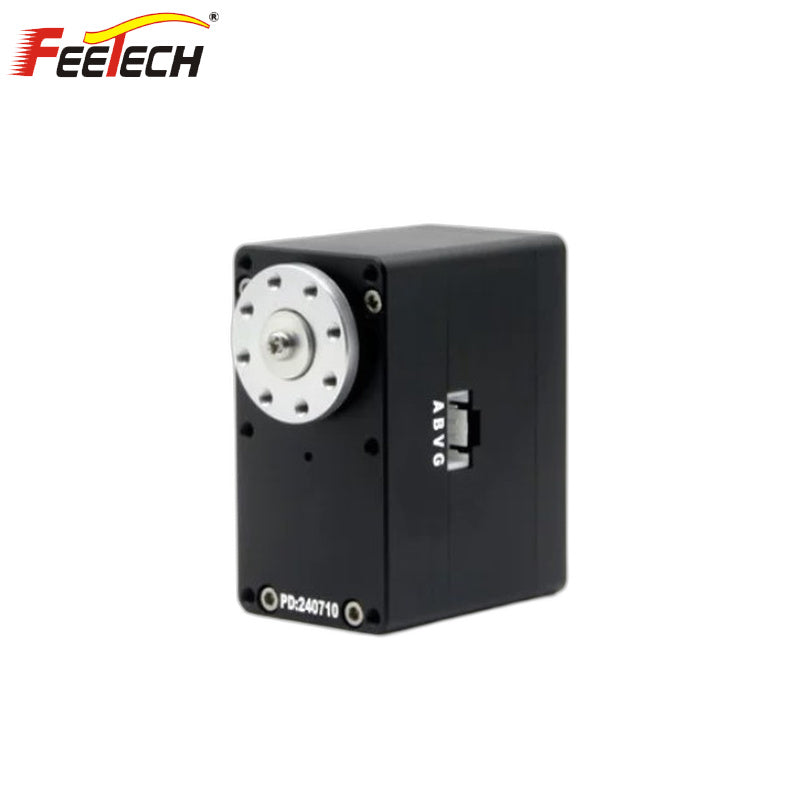

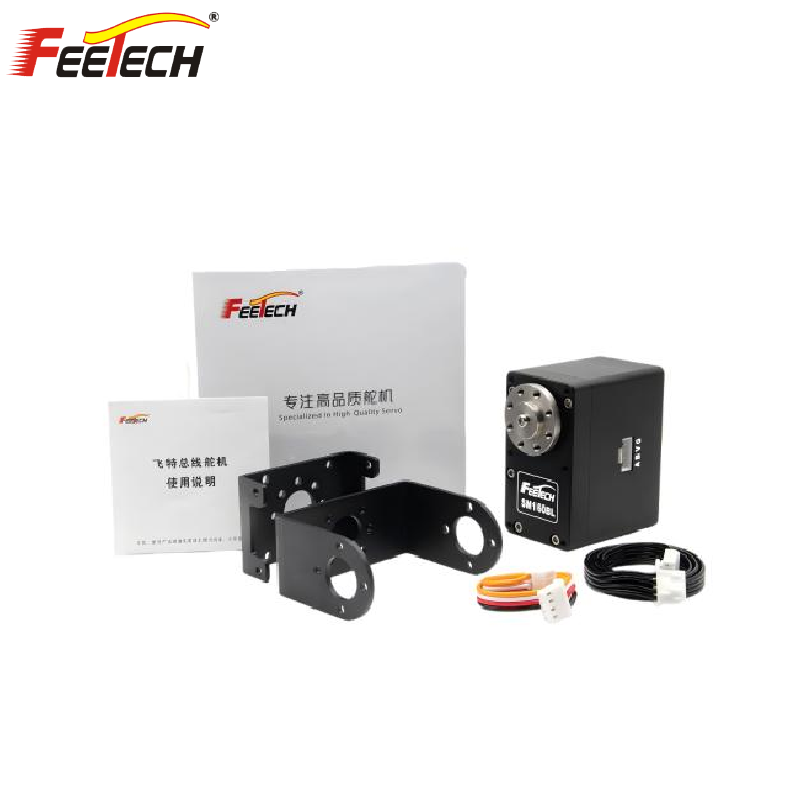

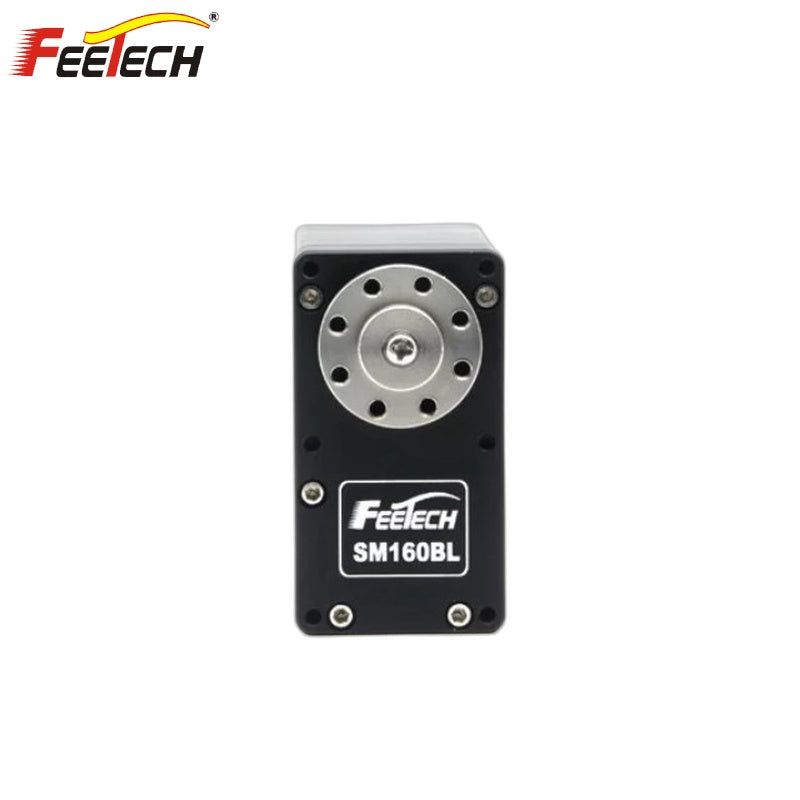

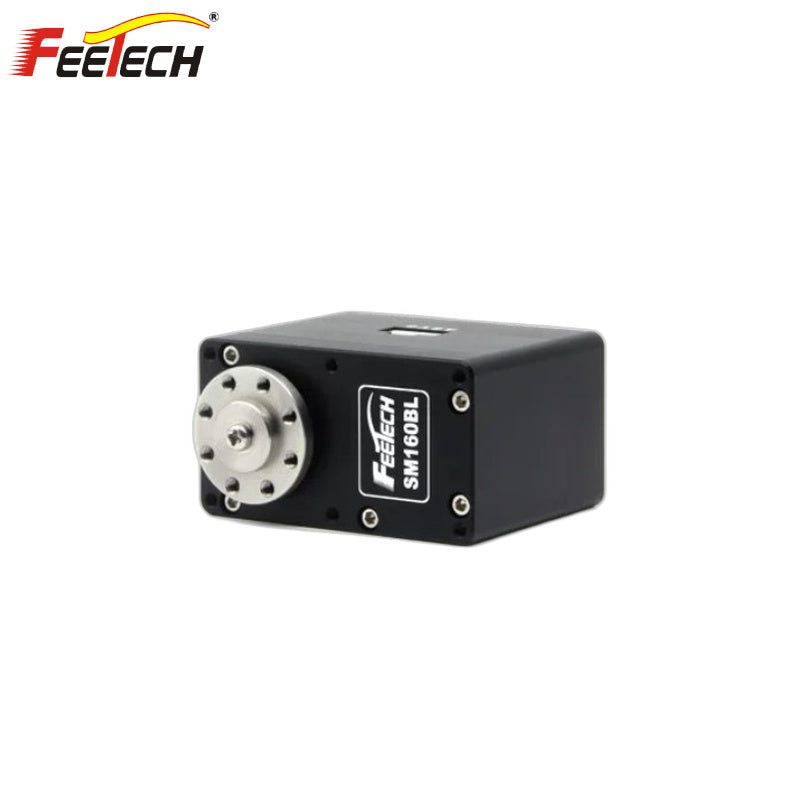

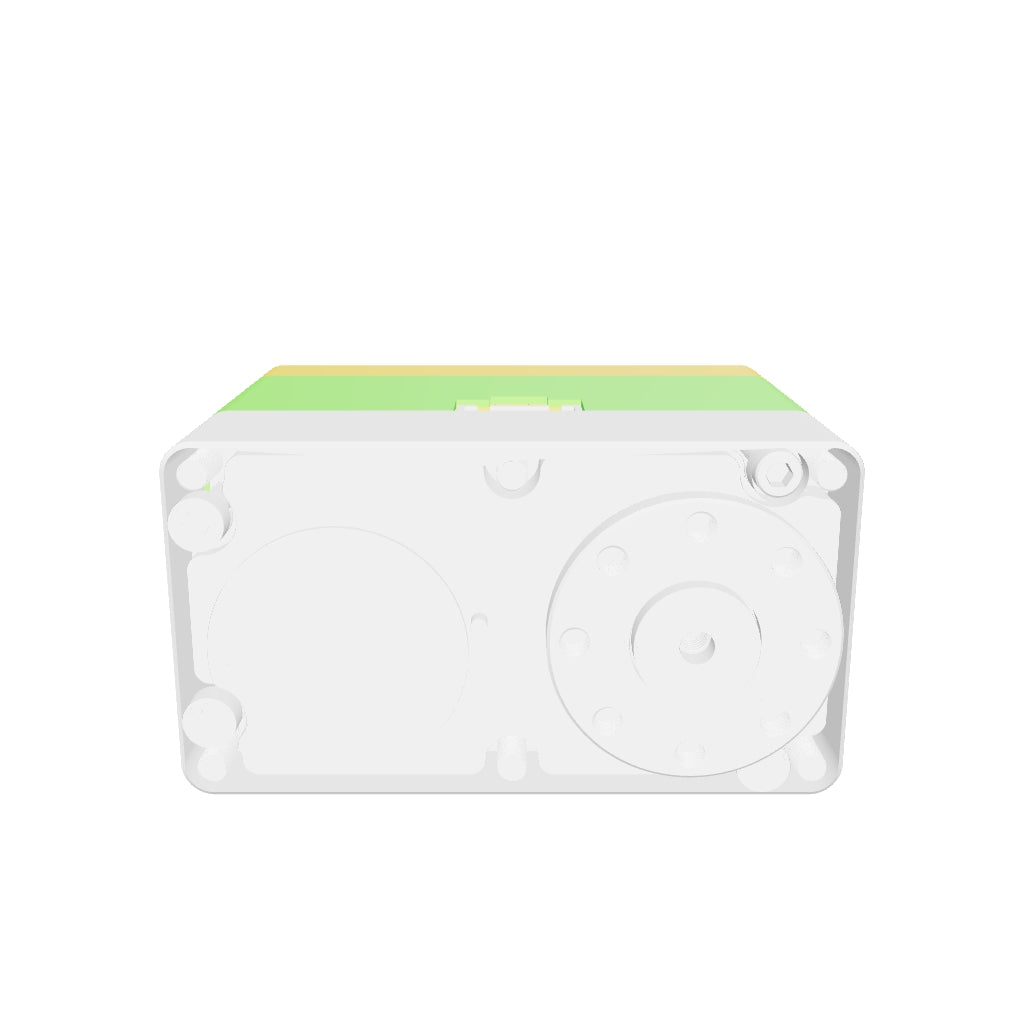

FEETECH SM160B Servo Motor

$385.00

Version

SM-160B-C001

Delivery and Shipping

We automatically select the most cost-effective carrier from China for each destination country
Shipping rates are dynamically calculated based on real-time quotes
Final rates may vary due to promotional offers or carrier adjustments

Humanoid Robots

Robotic Arms

Exoskeletons

Quadruped Robots

AGV Vehicles

ARU Robots

Parameter	Value
Model	SM-160B-C001
Product Name	24V 160kg.cm Serial bus servo
Storage Temperature Range	-30°C ~ 80°C
Operating Temperature Range	-20°C ~ 60°C
Size	A:62mm / B:34mm / C:47mm
Weight	211±3g
Gear Type	Steel
Limit Angle	No limit
Bearing	Ball bearings
Output Shaft	15T/OD7.6mm
Back Lash	≤0.5°
Case Material	Aluminium
Connector Wire	40CM
Motor Type	4 Pole Brushless Motor
Operating Voltage Range	16.8V-25.2V
No-load Speed	0.181sec/60° @24V
No-load Current	250mA @24V
Peak Stall Torque	160kg.cm @24V
Rated Torque	40kg.cm @24V
Idle Current (at stopped)	25mA @24V
Stall Current	9A @24V
Command Signal	Digital Packet
Protocol Type	Half Duplex Asynchronous Serial Communication
ID Range	0-253
Communication Speed	38400bps ~ 1Mbps
Running Degree	360° (0~4096)
Feedback
Load	Supported
Position	Supported
Speed	Supported
Input Voltage	Supported
Current	Supported
Temperature	Supported
