Feetech

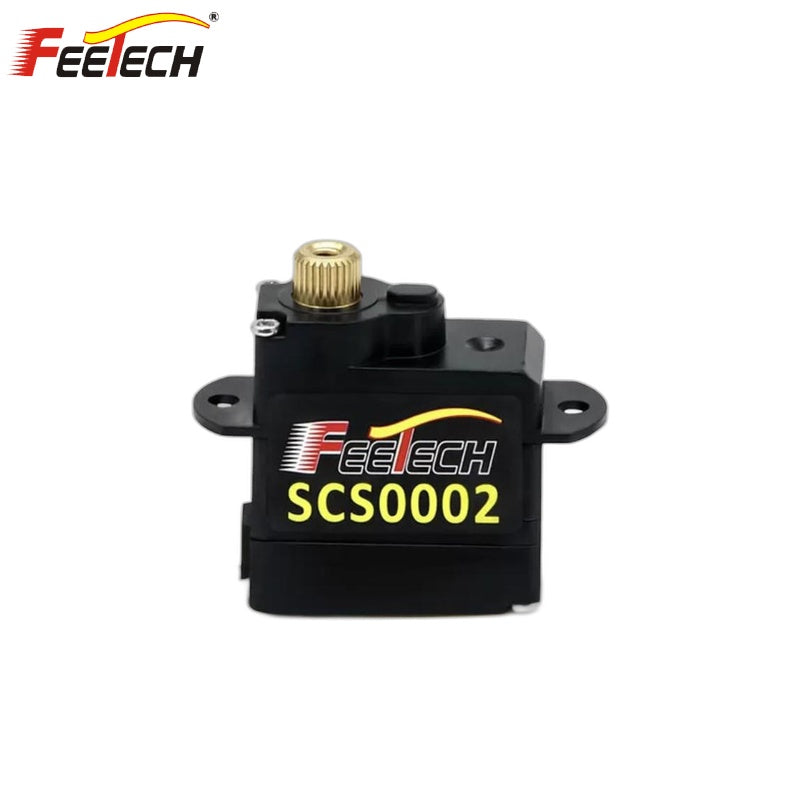

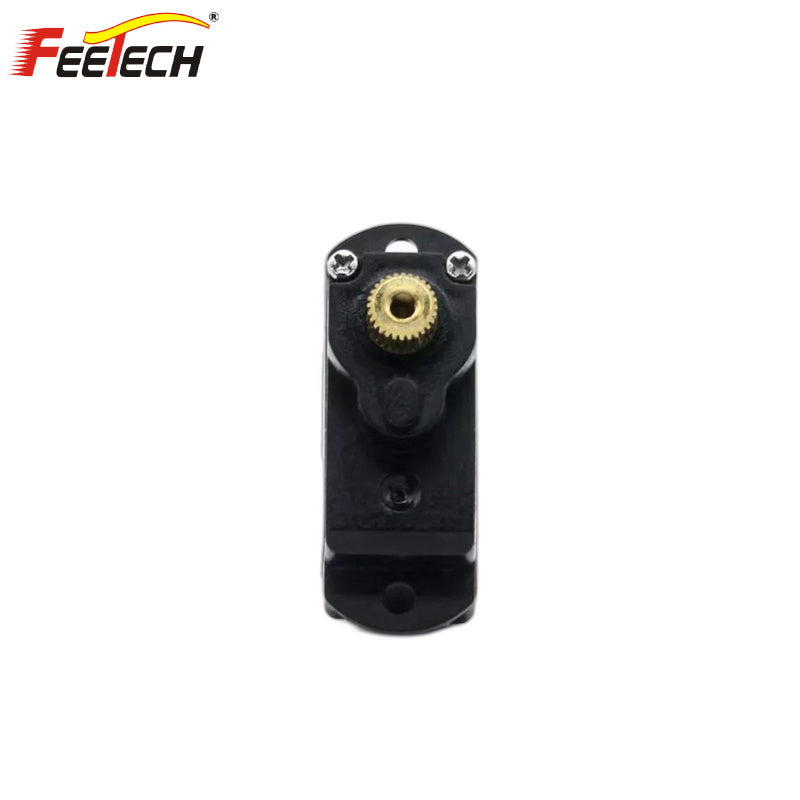

FEETECH SC0002 Servo Motor

$8.00

Version

SC-0002-C001 SC-0005-C001 SC-0037-C001 SC-0043-C001

Delivery and Shipping

We automatically select the most cost-effective carrier from China for each destination country
Shipping rates are dynamically calculated based on real-time quotes
Final rates may vary due to promotional offers or carrier adjustments

Application Scenarios

Humanoid Robots

Robotic Arms

Exoskeletons

Quadruped Robots

AGV Vehicles

ARU Robots

Technical Specifications

Parameter	Value

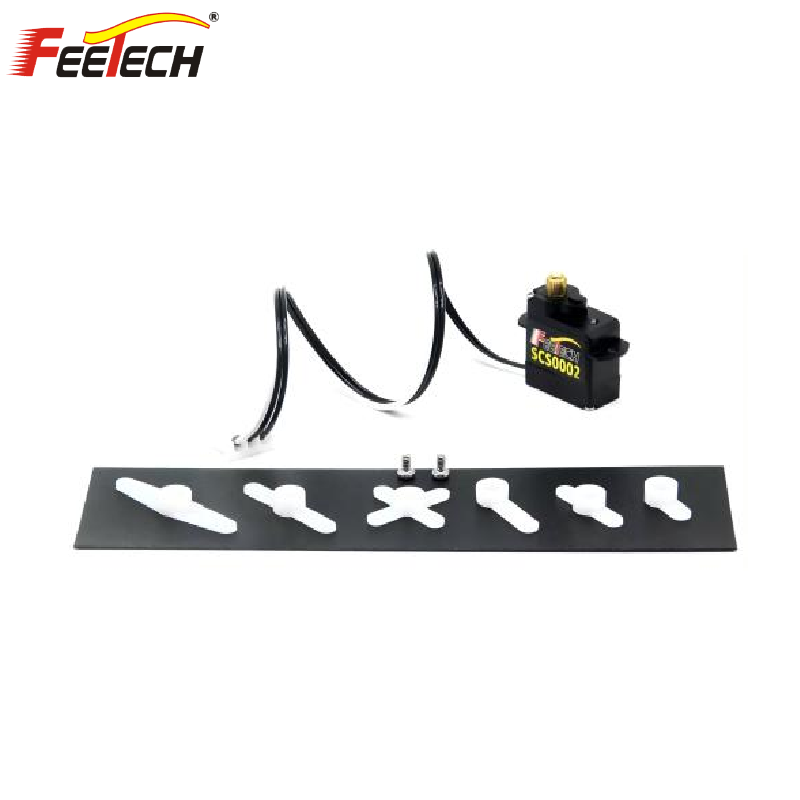

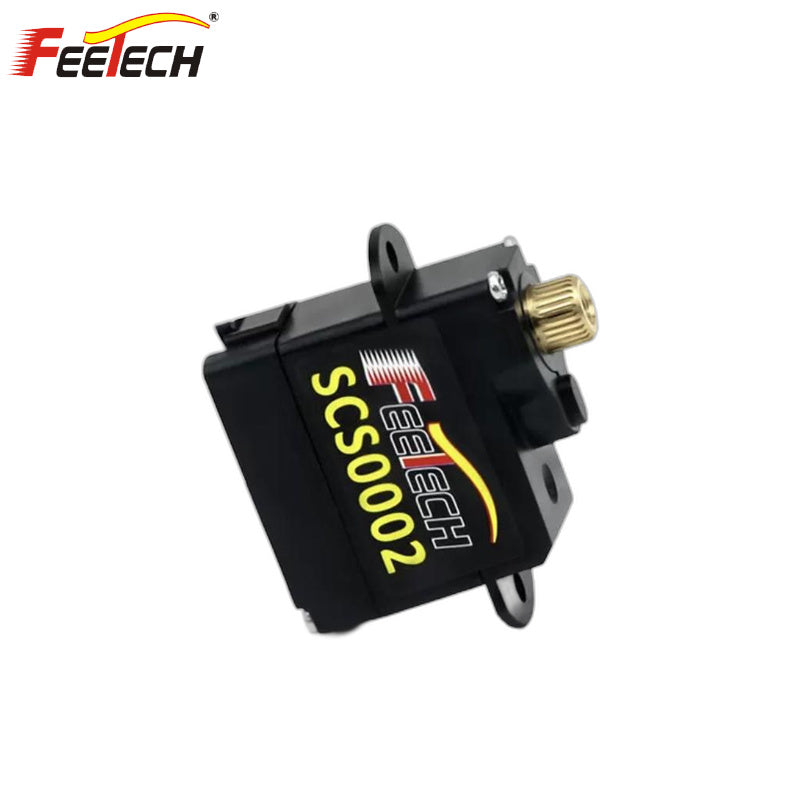

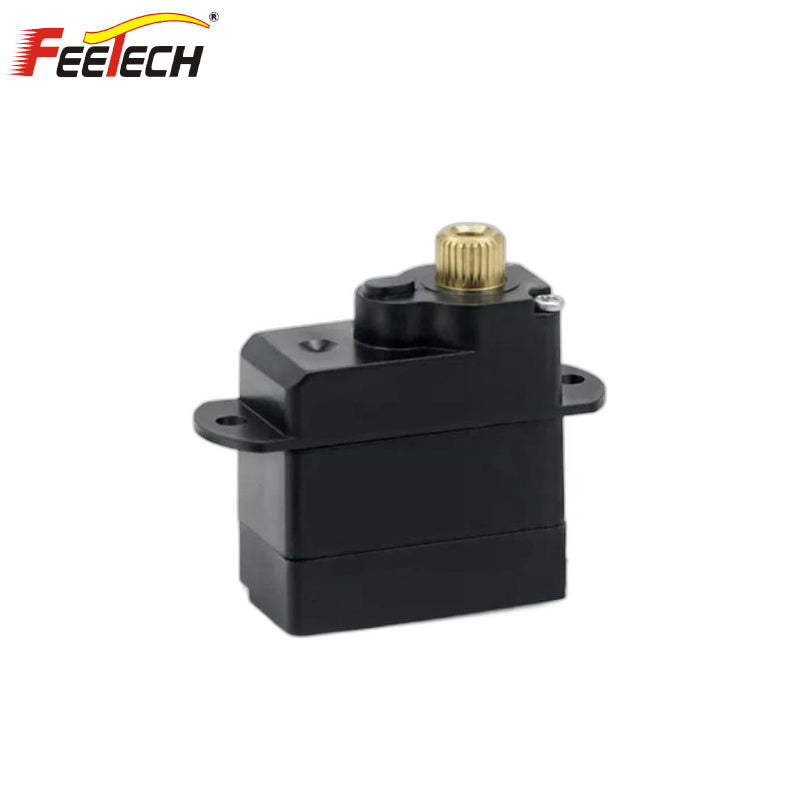

SC-0002-C001
Product Name	6V 2g Serial Control BUS Servo
Storage Temperature Range	-20°C ~ +60°C
Operating Temperature Range	-10°C ~ +50°C
Size	A:16.05mm / B:8.2mm / C:17mm
Weight	4.8±0.5g
Gear Type	Metal teeth POM + Metal gear
Limit Angle	No limit
Bearing	No
Output Shaft	28T/Φ3.9mm
Gear Ratio	1/448
Case Material	ABS
Connector Wire	15cm
Motor Type	Coreless Motor
Operating Voltage Range	4.8V-6V
No-load Speed	0.05sec/60° (200RPM) @6V
No-load Current	90mA @6V
Peak Stall Torque	0.7kg.cm @6V
Rated Torque	0.23kg.cm @6V
Stall Current	110mA @6V
Idle Current	20mA @6V
Command Signal	Digital Packet
Protocol Type	Half duplex Asynchronous Serial Communication
ID Range	0-253
Communication Speed	38400bps ~ 500kbps
Running Degree	270° (0~1023)
Feedback
Load	Supported
Position	Supported
Speed	Supported
Position Sensor Resolution	0.293° (280°/1024)

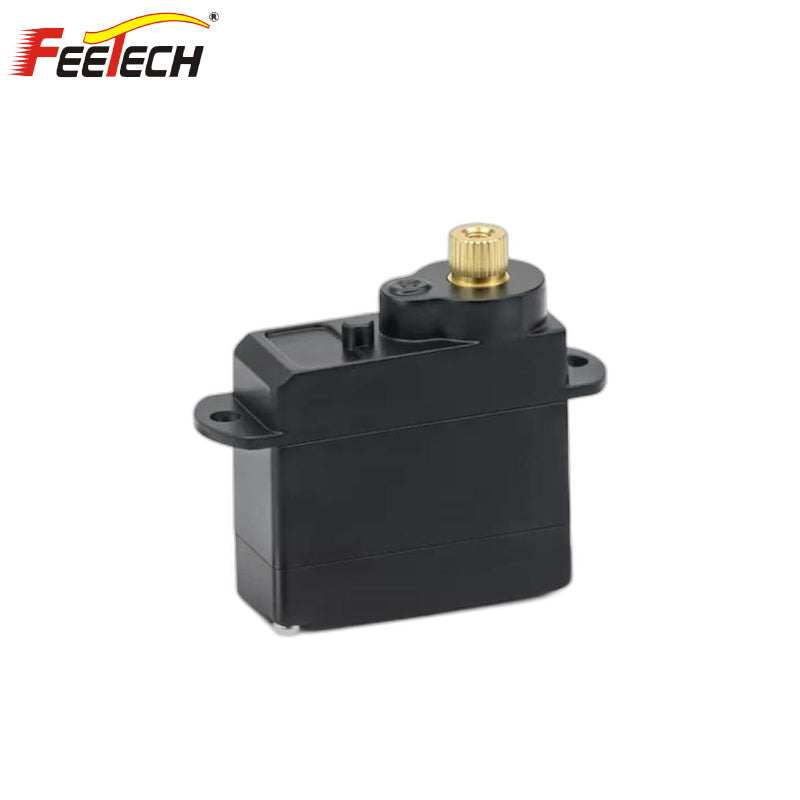

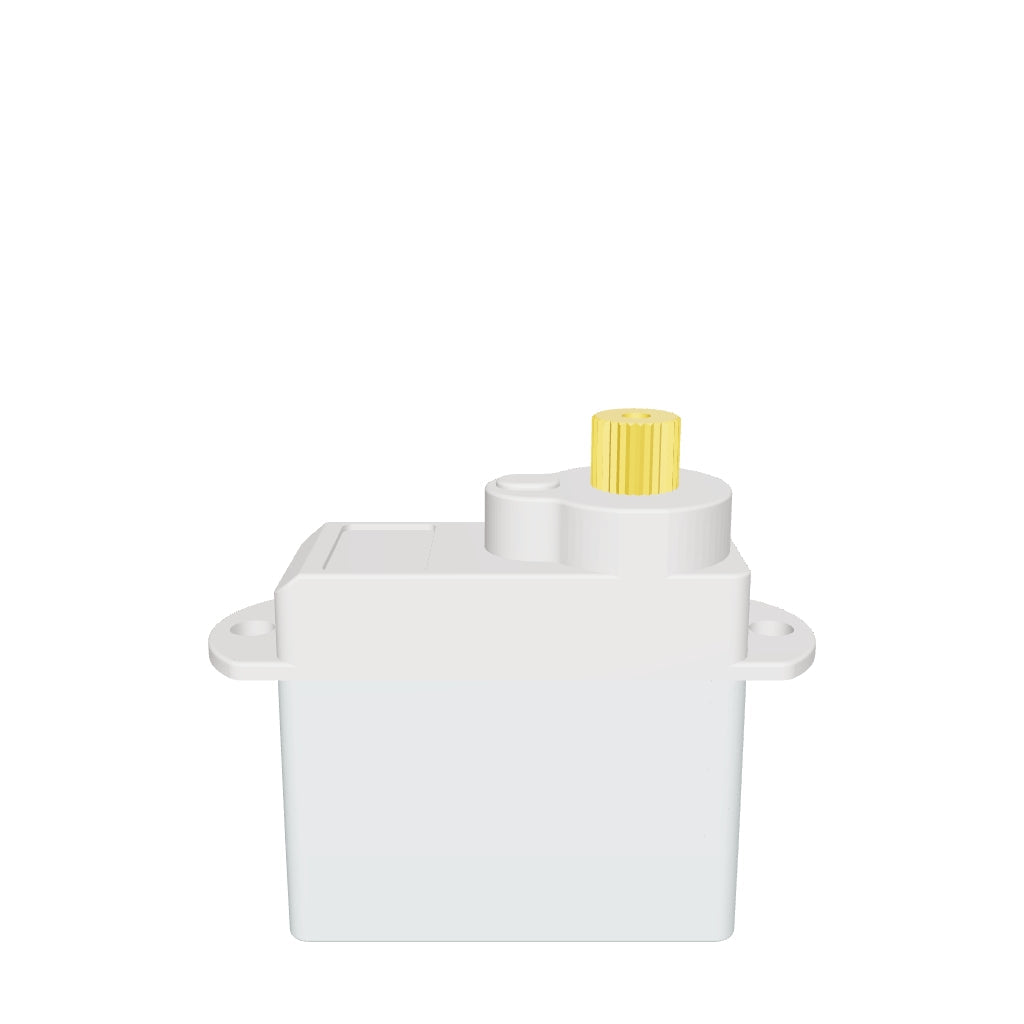

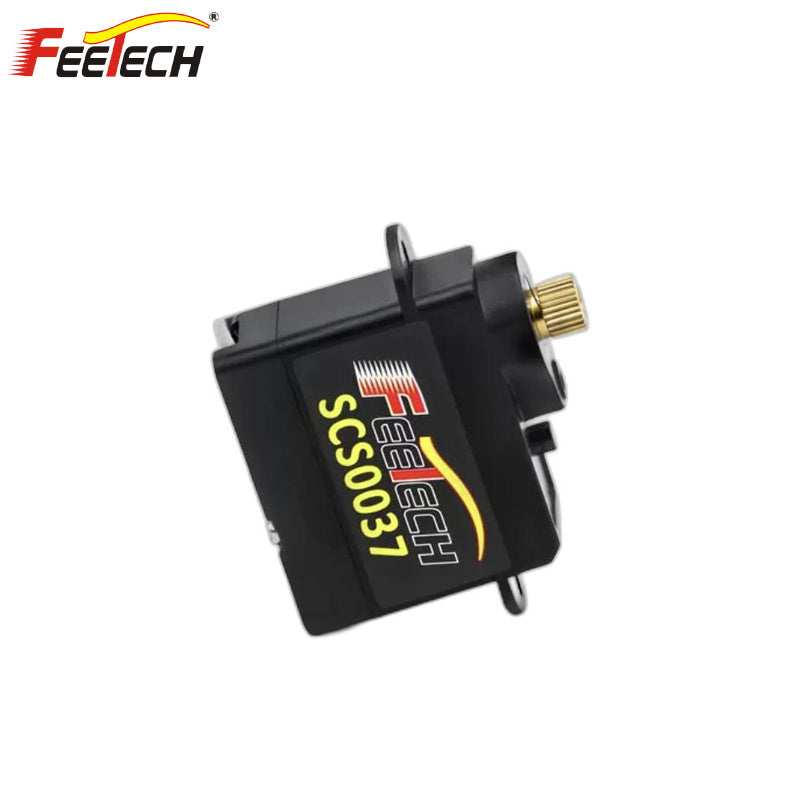

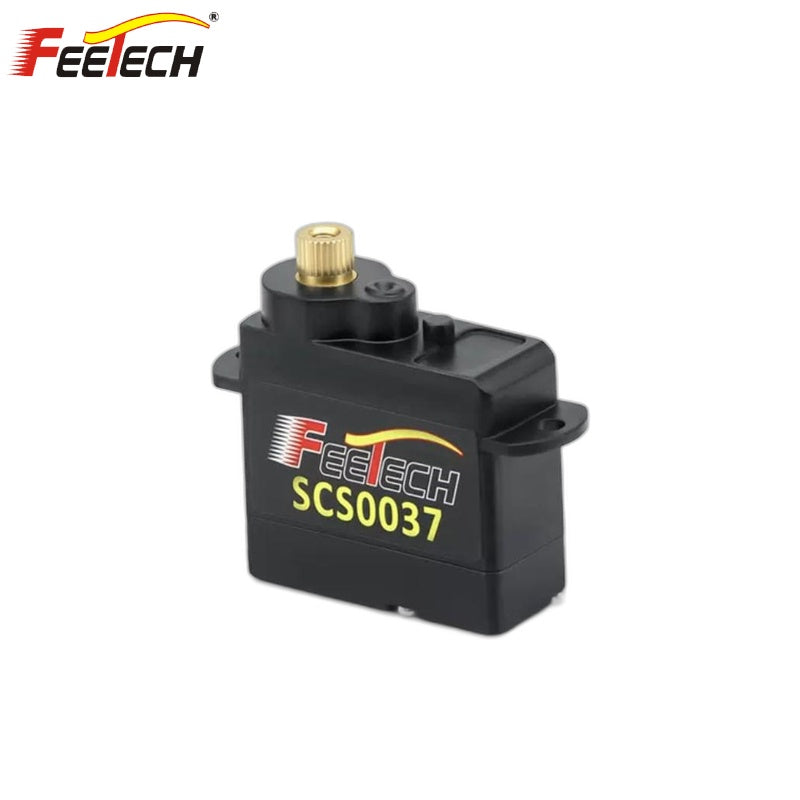

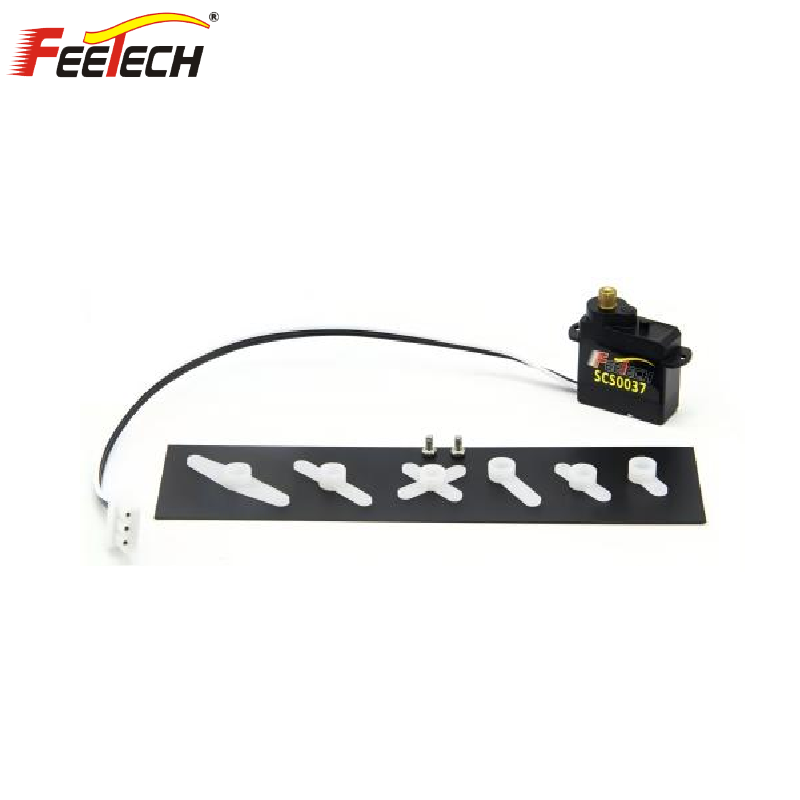

SC-0037-C001
Product Name	6V 3.7g Serial Control BUS Servo
Storage Temperature Range	-20°C ~ +60°C
Operating Temperature Range	-10°C ~ +50°C
Size	A:20.19mm / B:8.5mm / C:17.4mm
Weight	6.1±0.5g
Gear Type	Metal teeth POM + Metal gear
Limit Angle	No limit
Bearing	No
Output Shaft	28T/Φ3.9mm
Gear Ratio	1/378
Case Material	ABS
Connector Wire	15cm
Motor Type	Coreless Motor
Operating Voltage Range	4.8V-6V
No-load Speed	0.054sec/60° (185RPM) @6V
No-load Current	90mA @6V
Peak Stall Torque	1.8kg.cm @6V
Rated Torque	0.6kg.cm @6V
Stall Current	250mA @6V
Idle Current	6mA @6V
Command Signal	Digital Packet
Protocol Type	Half duplex Asynchronous Serial Communication
ID Range	0-253
Communication Speed	38400bps ~ 500kbps
Running Degree	270° (0~1023)
Feedback
Load	Supported
Position	Supported
Speed	Supported
Position Sensor Resolution	0.293° (280°/1024)

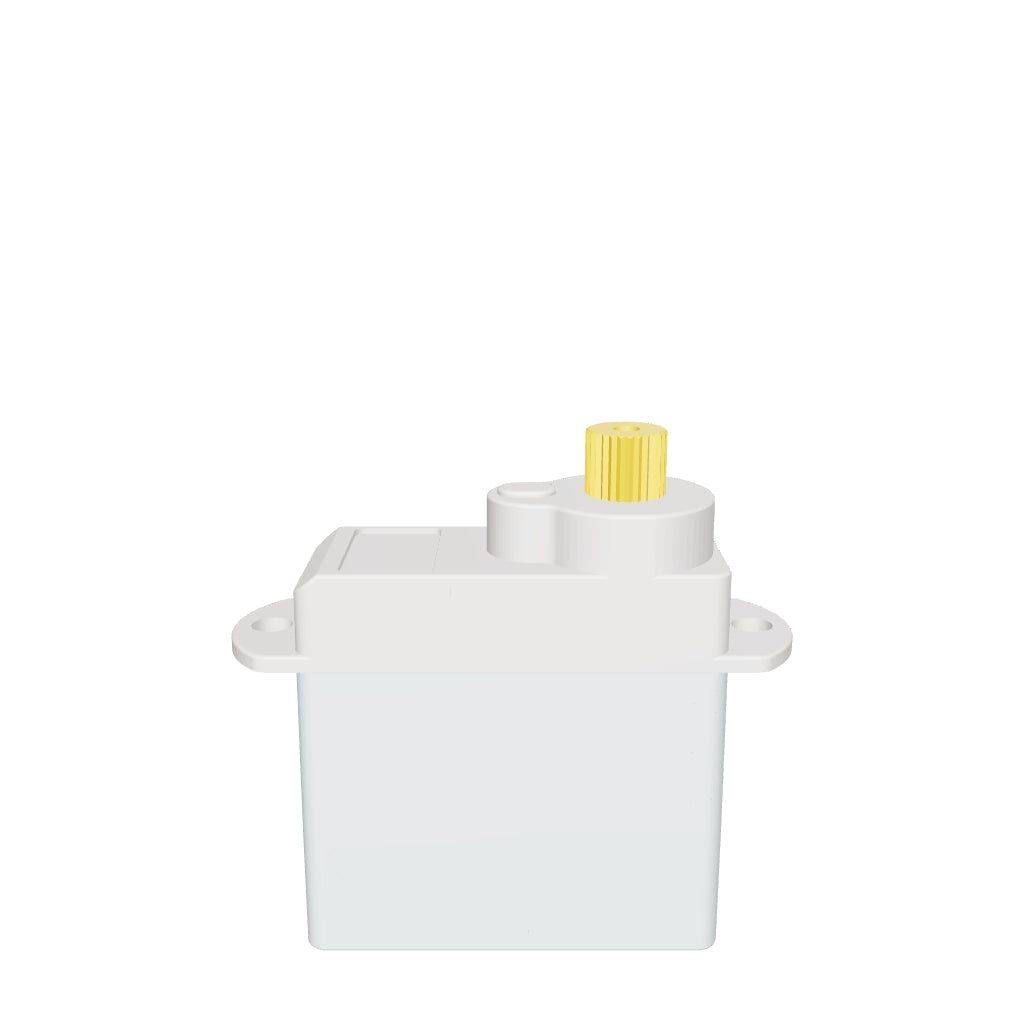

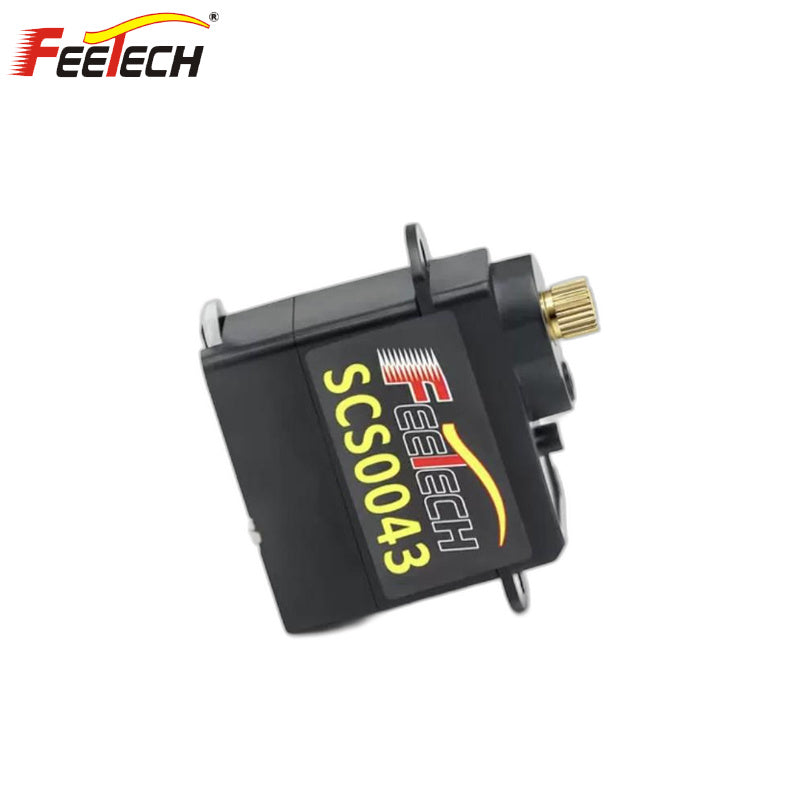

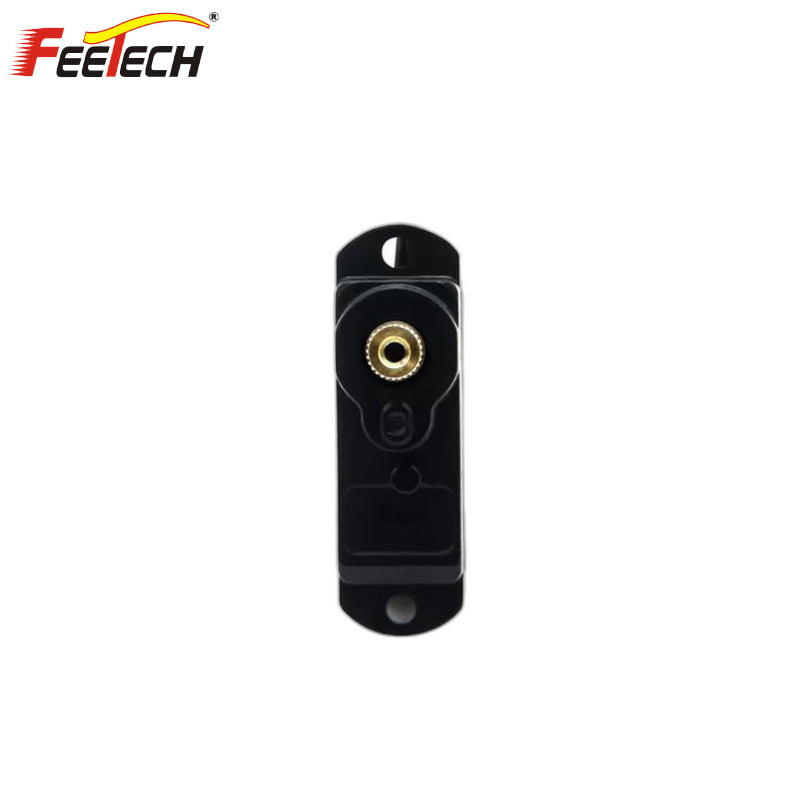

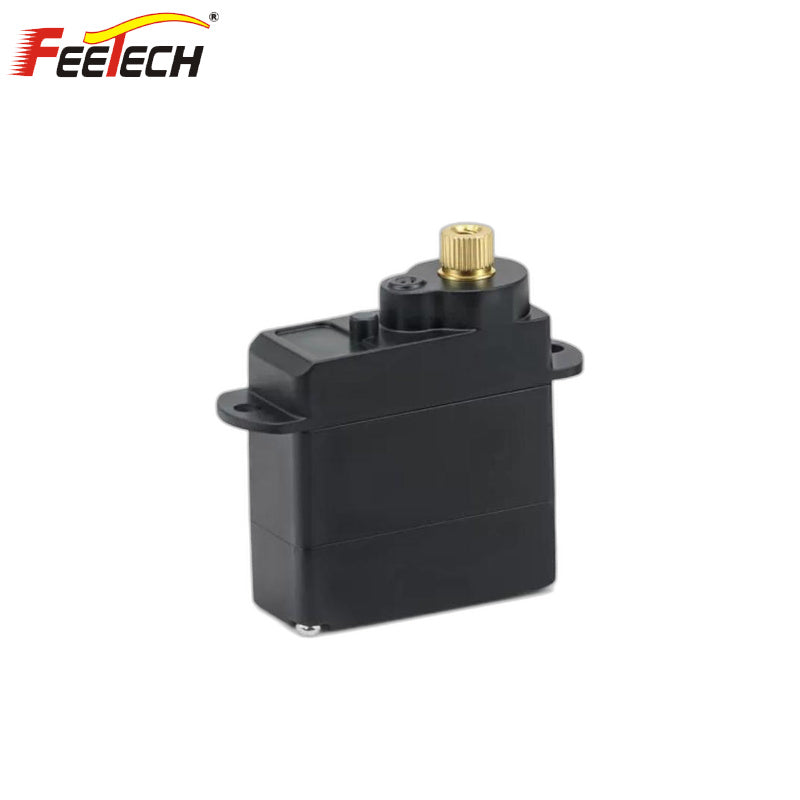

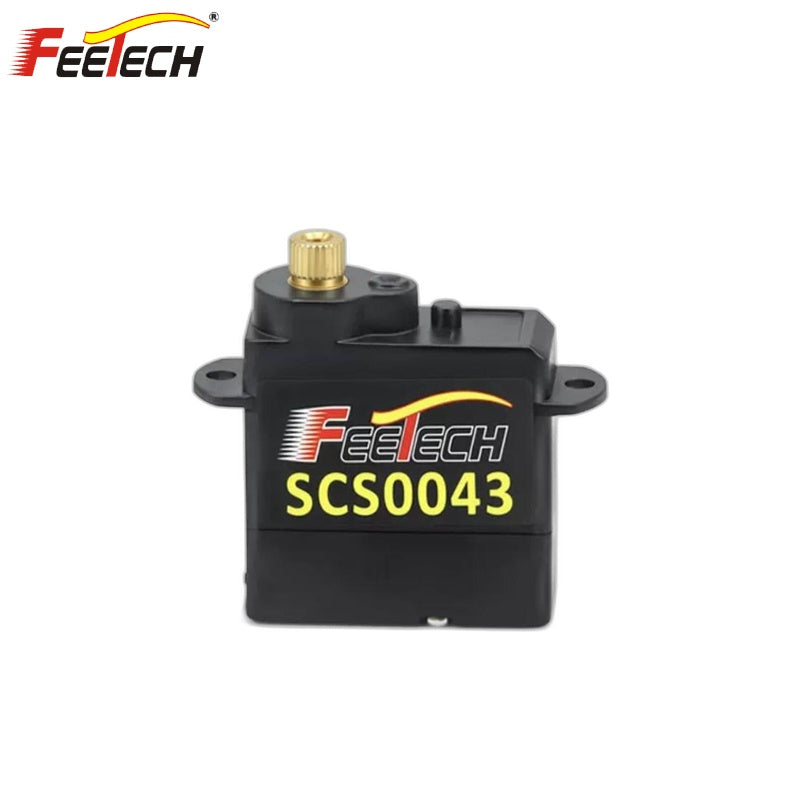

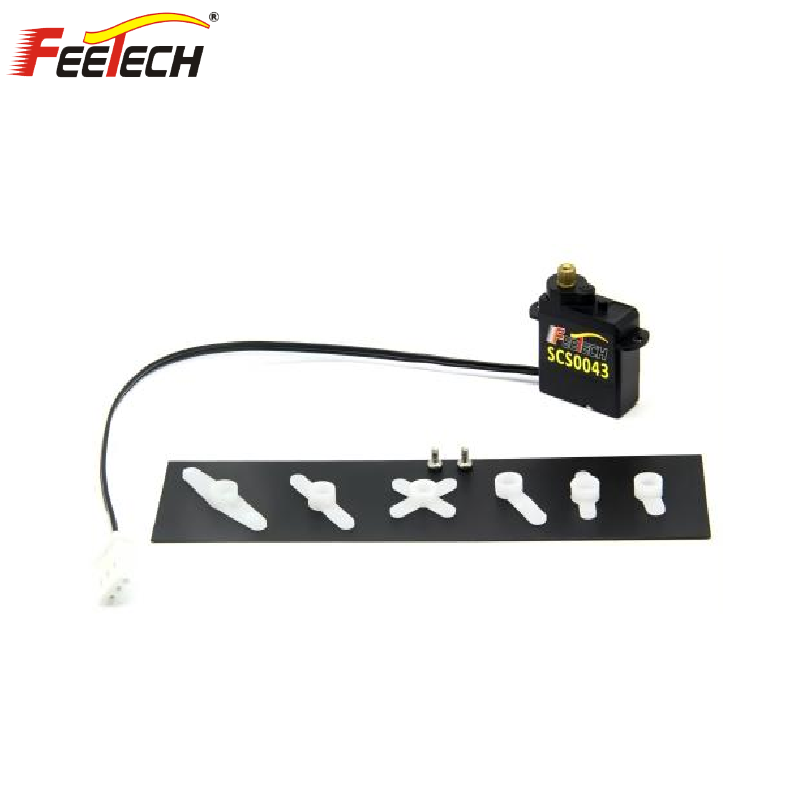

SC-0043-C001
Product Name	6V 4.3g Serial Control BUS Servo
Storage Temperature Range	-20°C ~ +60°C
Operating Temperature Range	-10°C ~ +50°C
Size	A:20.3mm / B:8.5mm / C:19.39mm
Weight	6.6±0.5g
Gear Type	Metal teeth POM + Metal gear
Limit Angle	No limit
Bearing	No
Output Shaft	28T/Φ3.9mm
Gear Ratio	1/378
Case Material	ABS
Connector Wire	15cm
Motor Type	Coreless Motor
Operating Voltage Range	3.7V-6V
No-load Speed	0.06sec/60° (160RPM) @6V
No-load Current	90mA @6V
Peak Stall Torque	2.2kg.cm @6V
Rated Torque	0.7kg.cm @6V
Stall Current	300mA @6V
Idle Current	6mA @6V
Command Signal	Digital Packet
Protocol Type	Half duplex Asynchronous Serial Communication
ID Range	0-253
Communication Speed	38400bps ~ 500kbps
Running Degree	270° (0~1023)
Feedback
Load	Supported
Position	Supported
Speed	Supported
Position Sensor Resolution	0.293° (280°/1024)

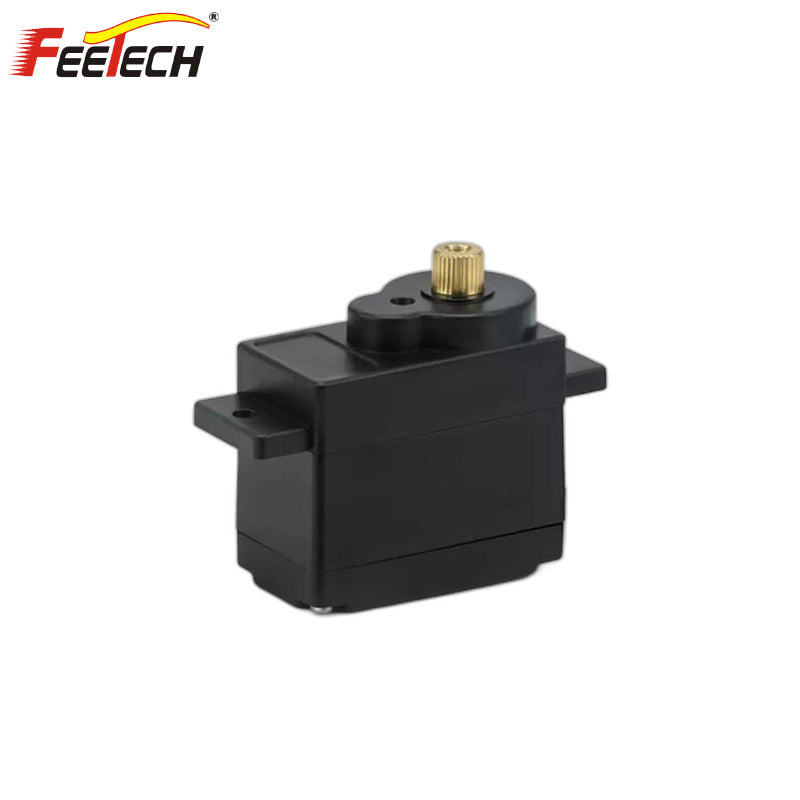

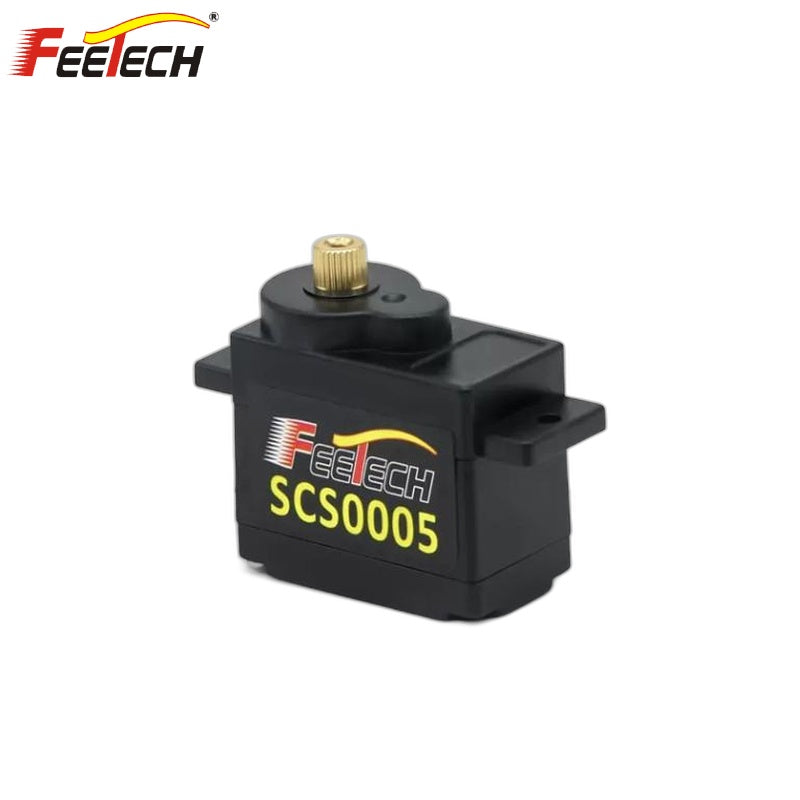

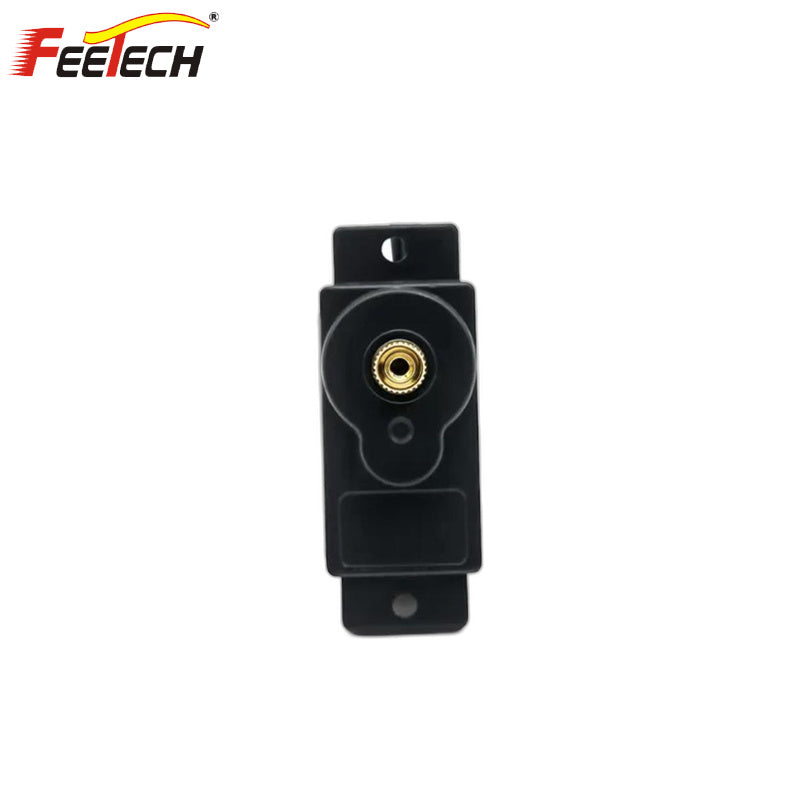

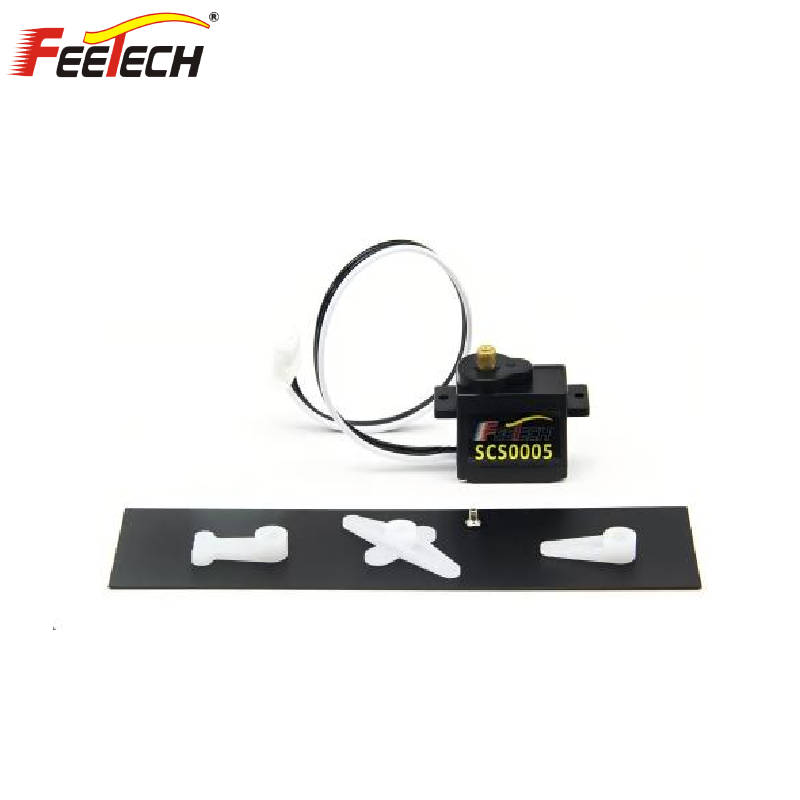

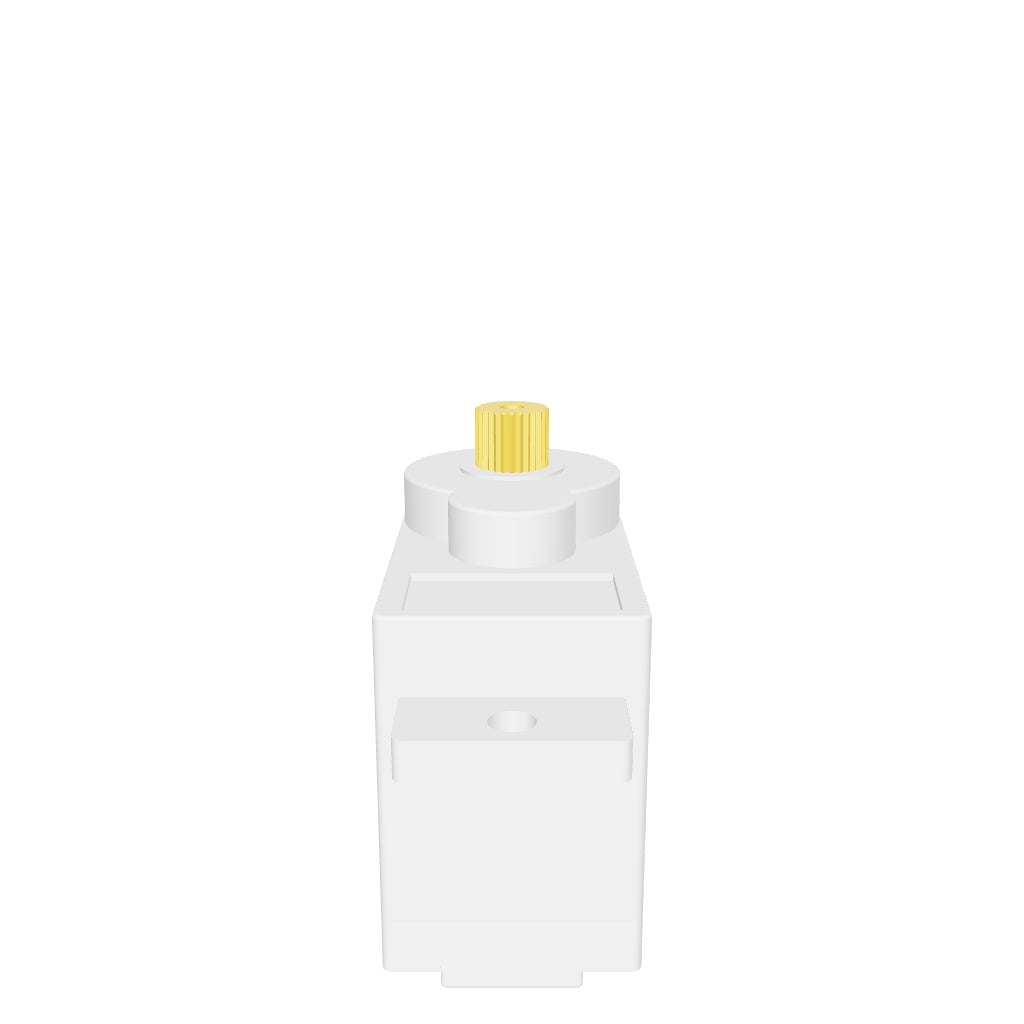

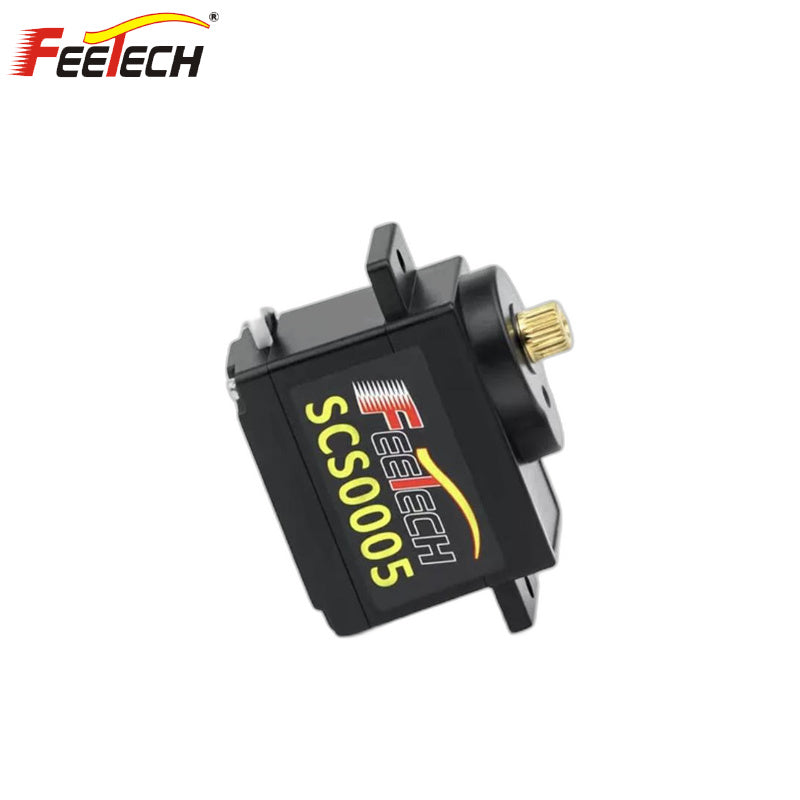

SC-0005-C001
Product Name	6V 5g Serial Control BUS Servo
Storage Temperature Range	-20°C ~ +60°C
Operating Temperature Range	-10°C ~ +50°C
Size	A:21.6mm / B:11.7mm / C:20.5mm
Weight	8.8±0.5g
Gear Type	Metal teeth POM + Metal gear
Limit Angle	No limit
Bearing	No
Output Shaft	28T/Φ3.9mm
Gear Ratio	1/320
Case Material	ABS
Connector Wire	15cm
Motor Type	Coreless Motor
Operating Voltage Range	3.7V-6V
No-load Speed	0.059sec/60° (170RPM) @6V
No-load Current	200mA @6V
Peak Stall Torque	1.8kg.cm @6V
Rated Torque	0.6kg.cm @6V
Stall Current	230mA @6V
Idle Current	20mA @6V
Command Signal	Digital Packet
Protocol Type	Half duplex Asynchronous Serial Communication
ID Range	0-253
Communication Speed	38400bps ~ 500kbps
Running Degree	270° (0~1023)
Feedback
Load	Supported
Position	Supported
Speed	Supported
