Eyevolution | SKU:

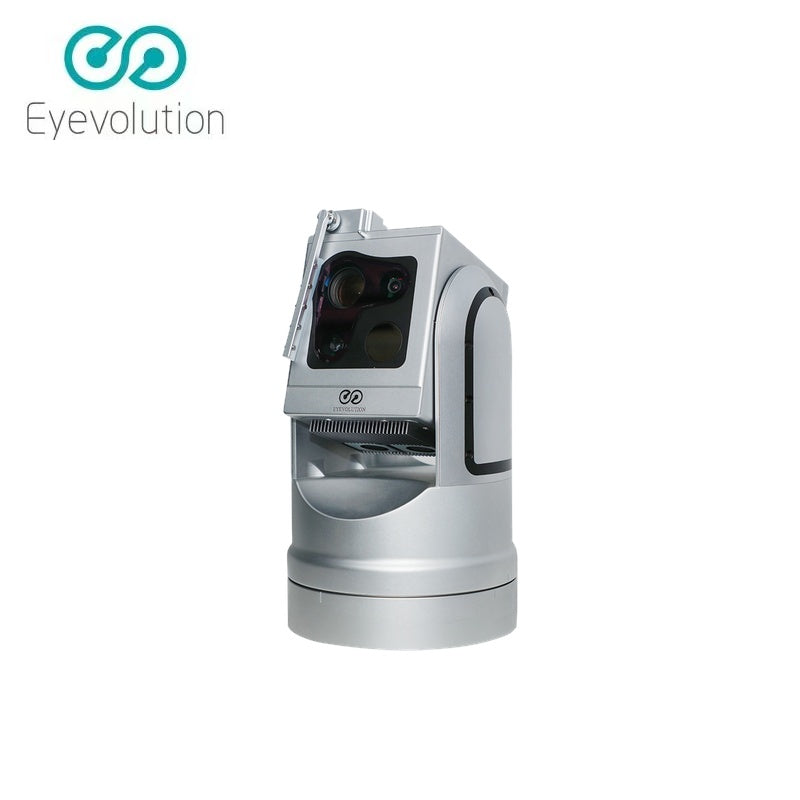

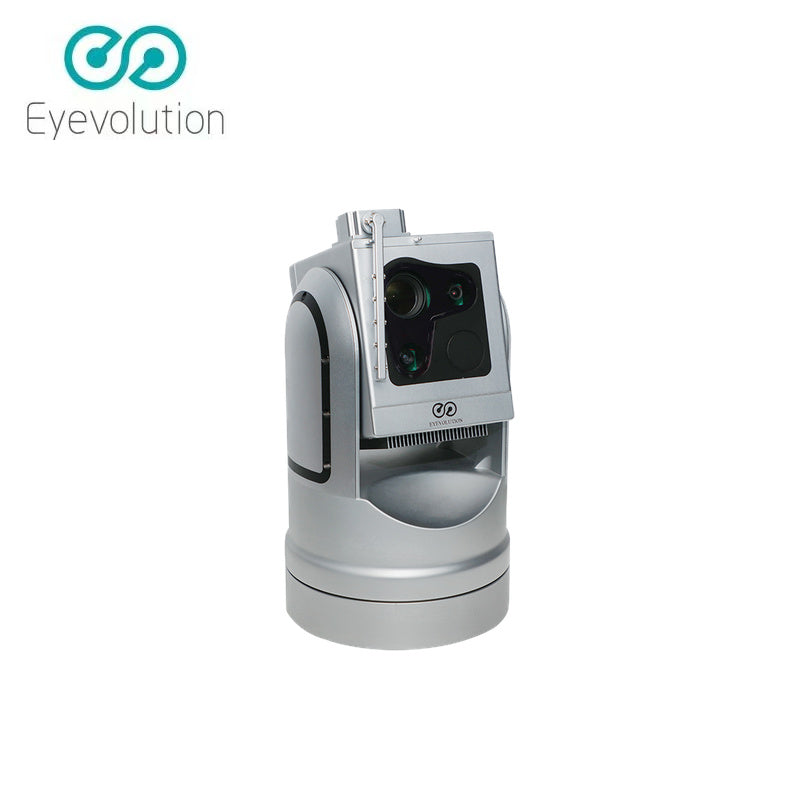

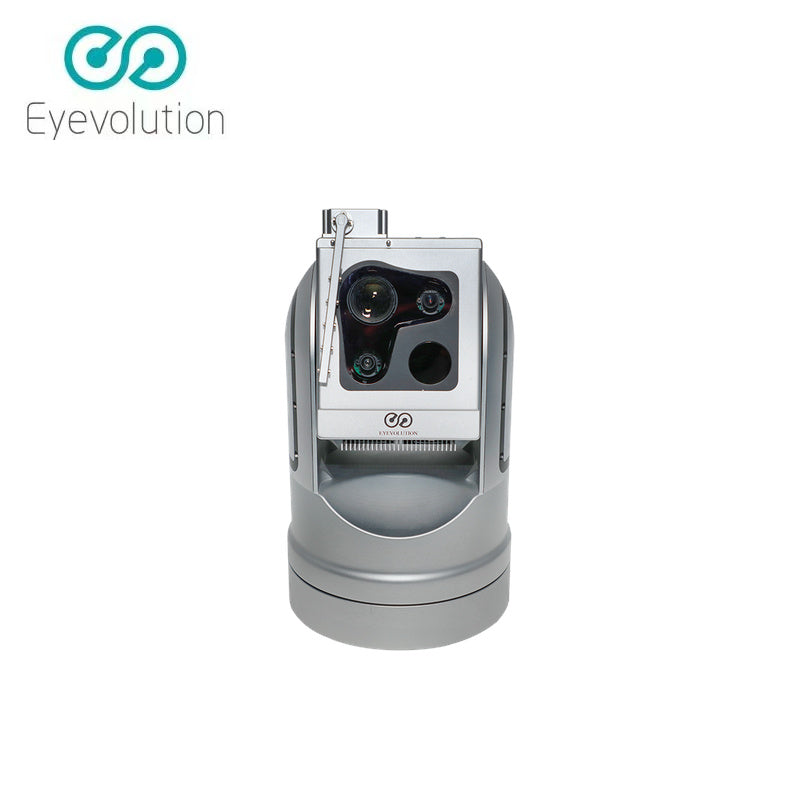

Eyevolution E202 Camera
Regular price
$49,000.00
Unit price
Eyevolution E202 Camera - E202 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
Eyevolution E202 Camera
Regular price
$49,000.00
Unit price
Eyevolution E202 Camera - E202 is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Single Eagle Eye Dimensions | 23 cm × 23 cm × 36.8 cm |
| Weight | 12 kg |
| Power Consumption | 30 W (avg), 100 W (peak) |
| Pan‑Tilt Range (2‑axis) | ‑25° ~ +90° (Pitch), 360° continuous (Yaw) |
| Max Motion Speed | 360°/s |
| Angular Resolution | 0.0056° |
| Visible Light Camera Resolution | 2560×1440, 1920×1080, 1920×1080 |
| Infrared Thermal Imager | 640 × 512 |
| High‑Definition Image Observation Pixels | > 1 billion |
| Observation Distance | 0.5 m ~ 2 km |
| Observation Range (no blind spot) | Beyond 1 m |
| Full‑Range HD Observation Cycle | < 1 hour |
| Ranging Accuracy Error | 0.5% |
| Visual Observation Frame Rate | 25 Hz |
| Infrared Observation Frame Rate | 25 Hz |
| Multi‑Sensor Sync Error | < 50 µs |
| Stabilization | Self‑stabilization, maintains image stability under vibration |
| Interfaces | Interconnect (for multiple units), Power (DC 24 V, 5 A), Ethernet (data & remote control), Custom |
