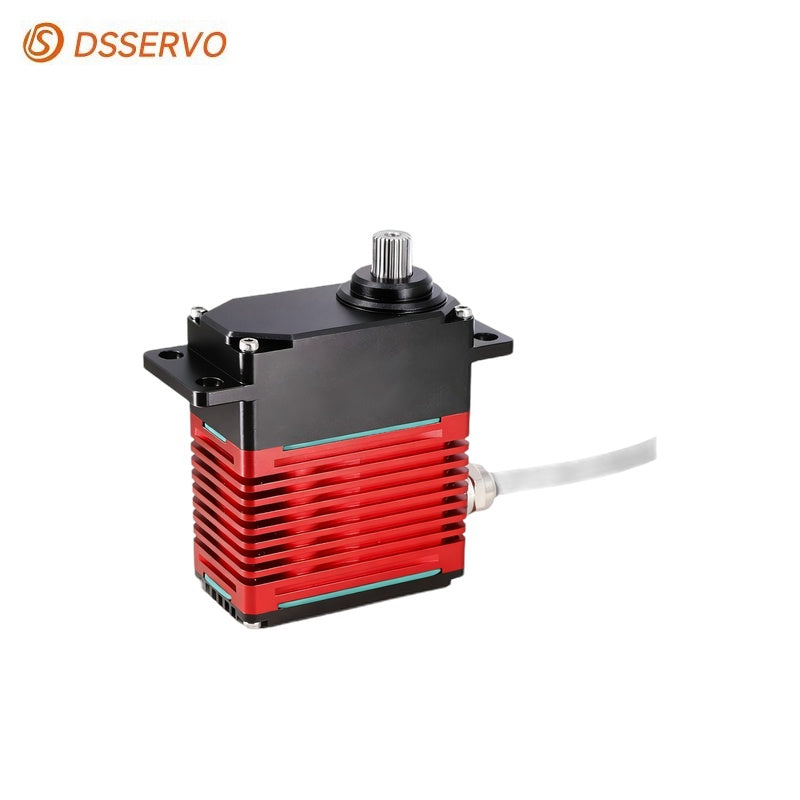

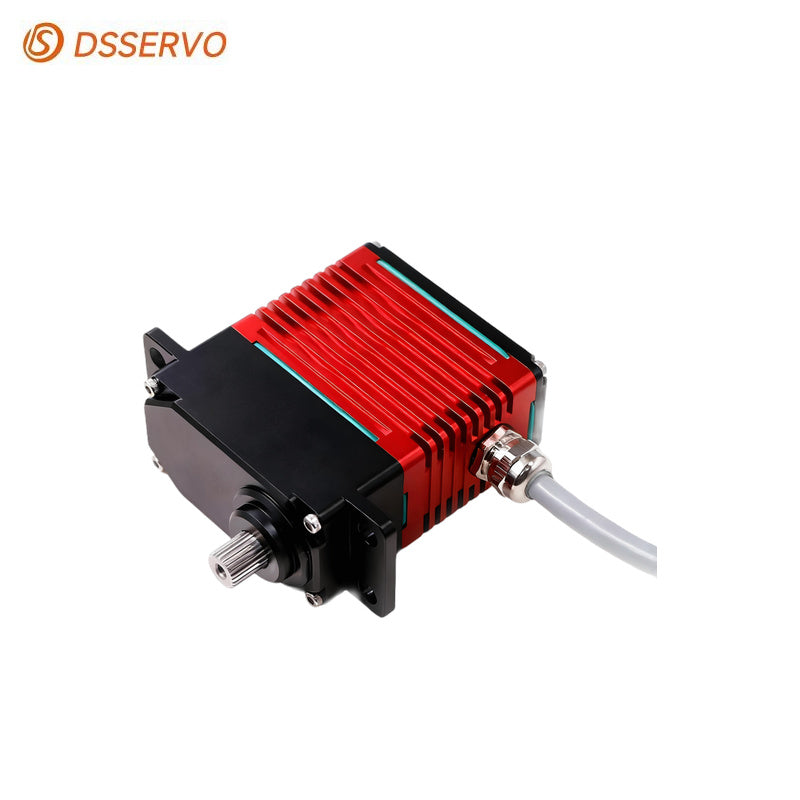

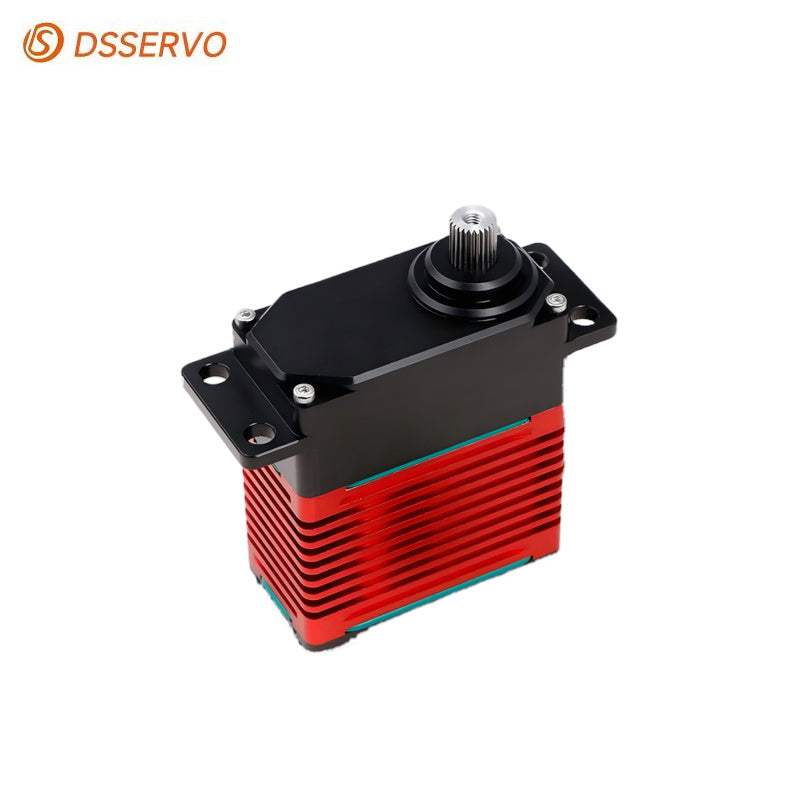

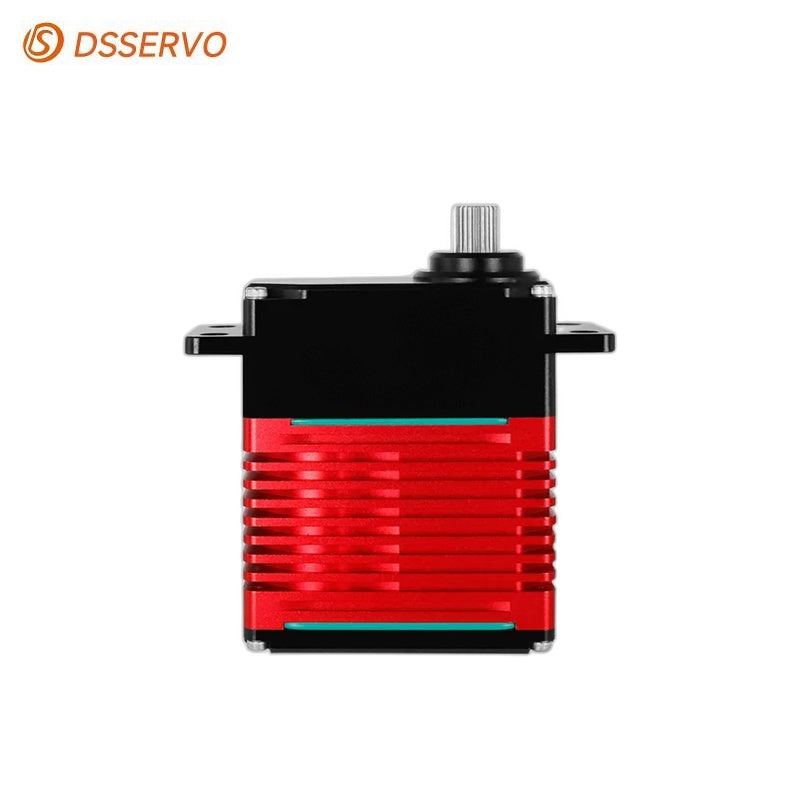

DSSERVO DES150 Servo Motor
Regular price
$370.00
Unit price
DSSERVO DES150 Servo Motor - DES150 / 12V is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
DSSERVO DES150 Servo Motor
Regular price
$370.00
Unit price
DSSERVO DES150 Servo Motor - DES150 / 12V is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Storage Temperature Range | -50°C ~ +80°C |
| Operating Temperature Range | -40°C ~ +75°C |
| Operating Voltage Range | 16.8 ~ 33.6V |
| Size | 64 × 32.8 × 76.5 mm |
| Weight | 450g |
| Gear Ratio | 223 |
| Bearing | Double bearing |
| Connector Wire Length | 500 ± 5 mm |
| Idle Current (at stopped) | 50mA |
| Operating Speed (at no load) | 0.22 sec/60° @ 16.8V / 0.19 sec/60° @ 24V / 0.16 sec/60° @ 33.6V |
| Stall Torque (at locked) | 135 kg·cm @ 16.8V / 150 kg·cm @ 24V / 185 kg·cm @ 33.6V |
| Rated Torque | 45 kg·cm @ 16.8V / 65 kg·cm @ 24V / 80 kg·cm @ 33.6V |
| Stall Current (at locked) | 3A @ 16.8V / 4A @ 24V / 5.5A @ 33.6V |
| Running Current (at no load) | 300mA @ 16.8V / 350mA @ 24V / 400mA @ 33.6V |
| Control System | PWM (Pulse Width Modulation) |
| Pulse Width Range | 500 ~ 2500 µsec |
| Neutral Position | 1500 µsec |
| Running Degree | 200° (500~2500 µsec) |
| Motor Type | Brushless Motor |
| Encoder Type | Magnetic Encoder |
| Dead Band Width | 2 µsec |
| Angle Accuracy | ±0.25° |
| Operating Frequency | 50 ~ 330Hz |
| Rotating Direction | Counterclockwise (500~2500 µsec) |
