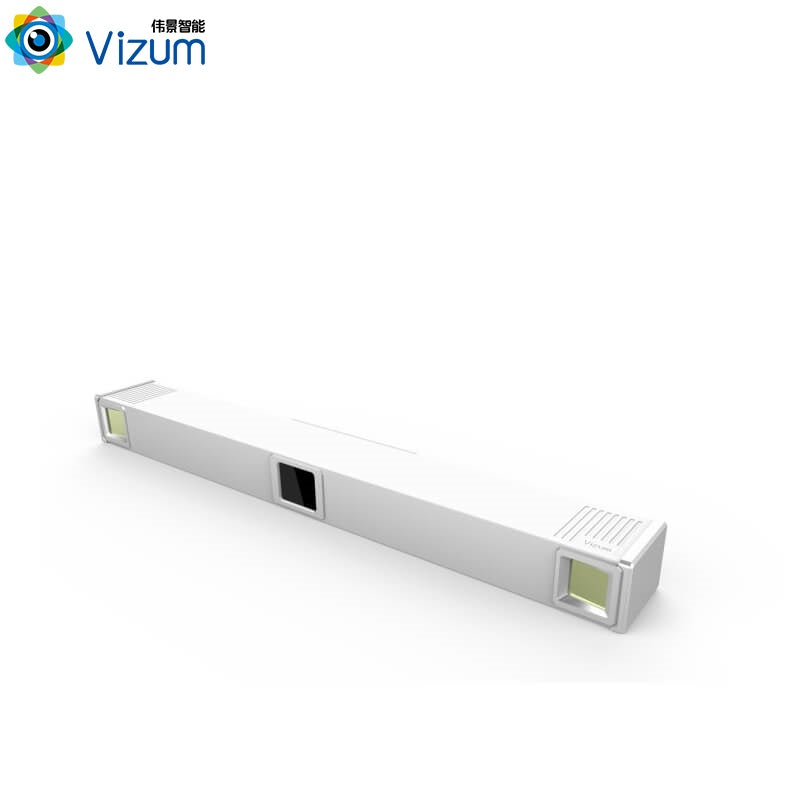

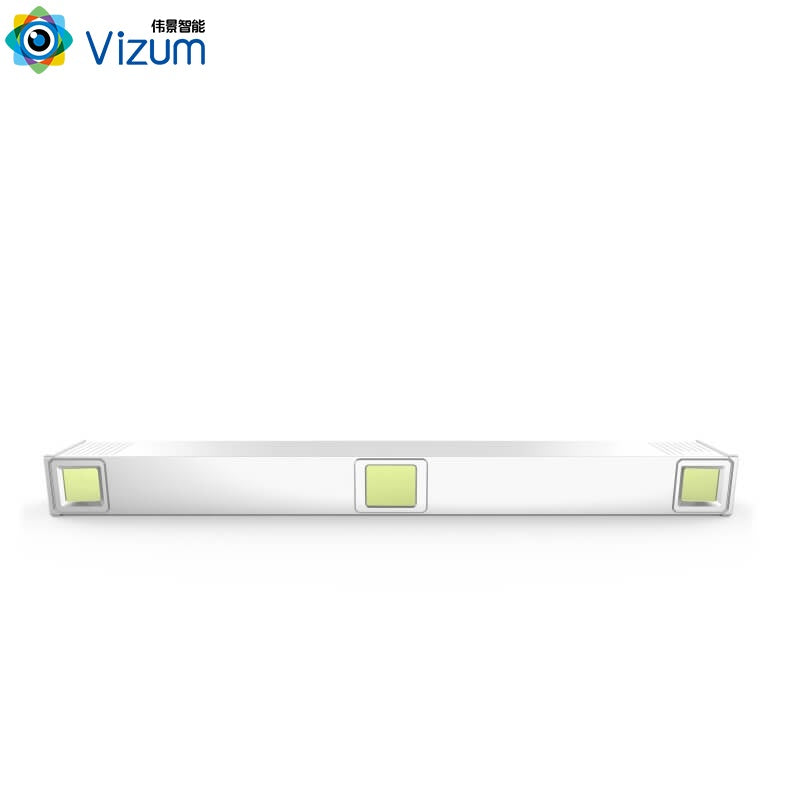

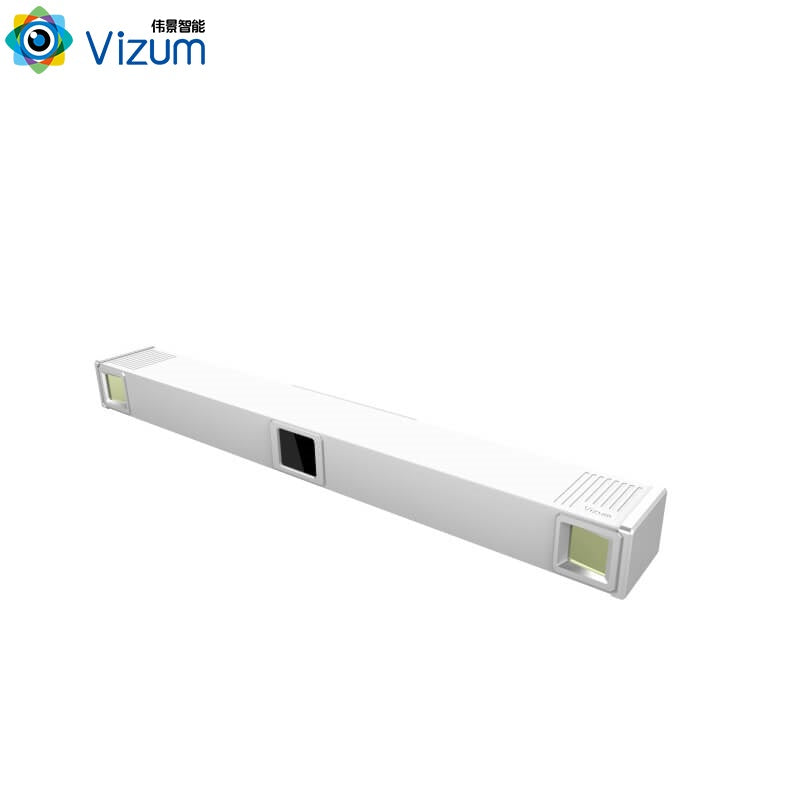

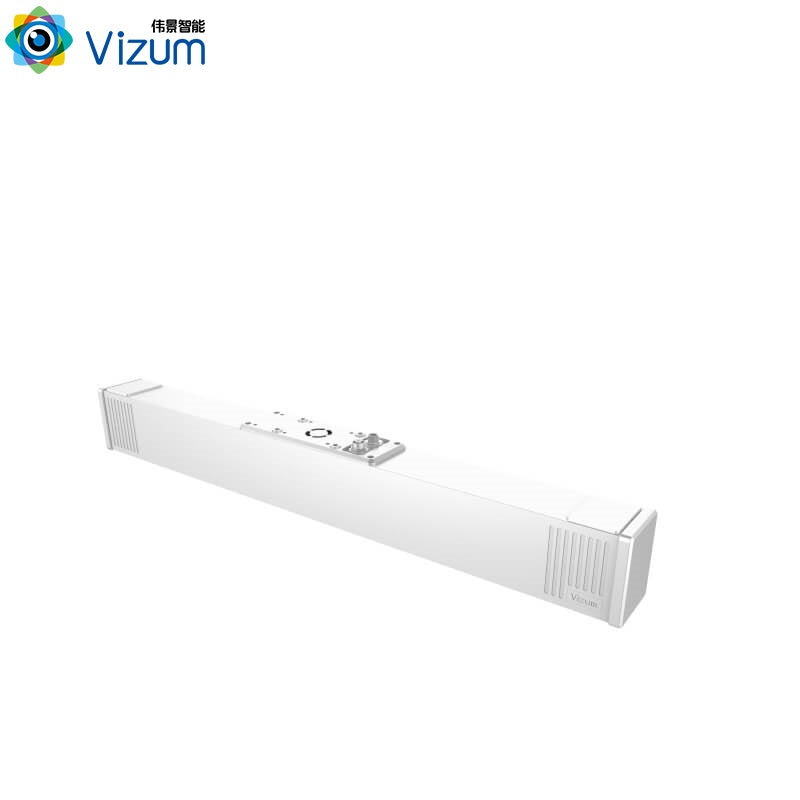

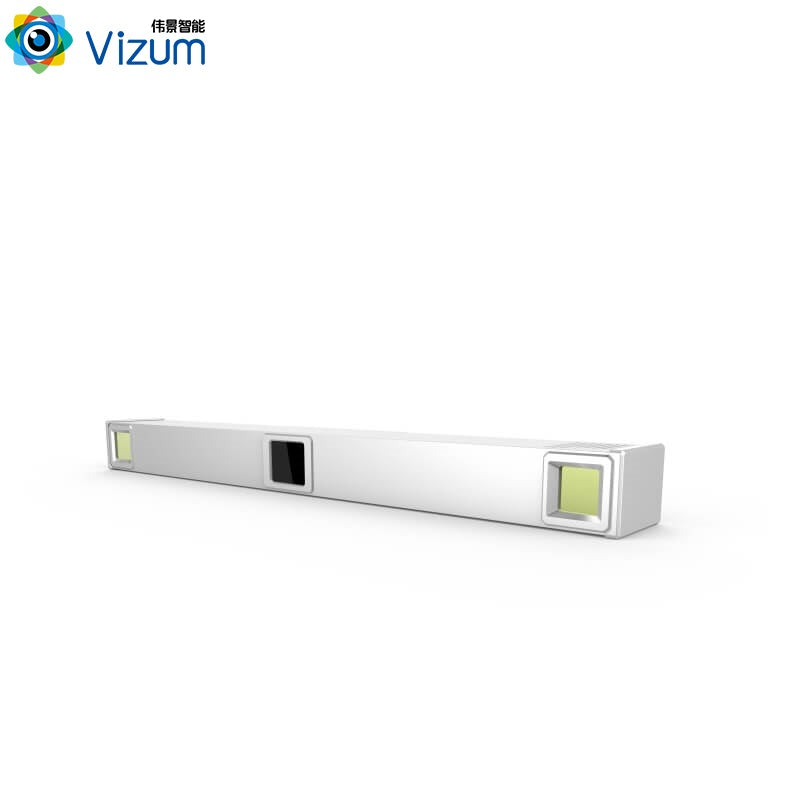

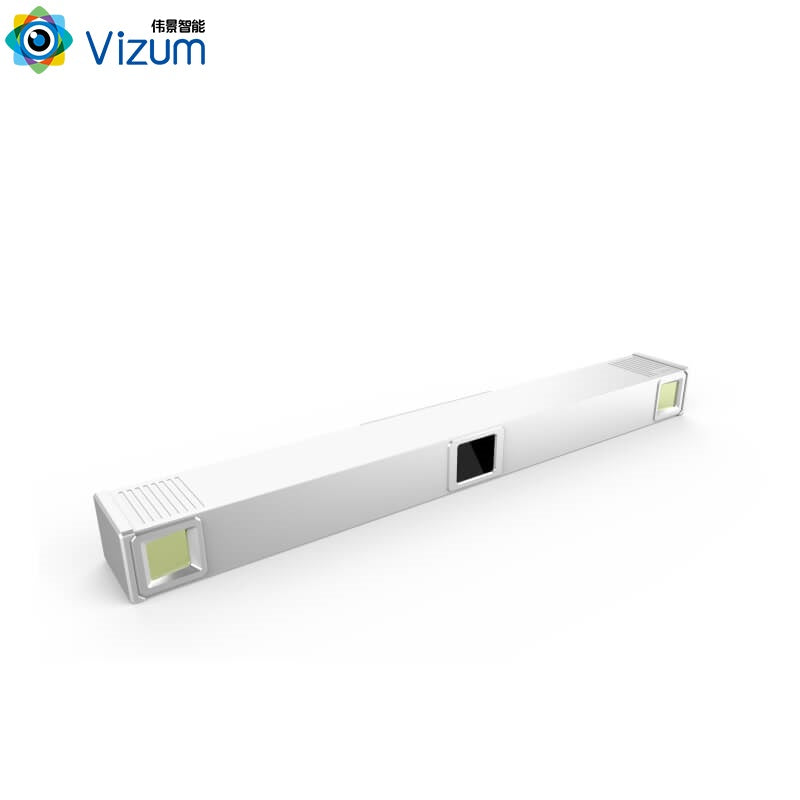

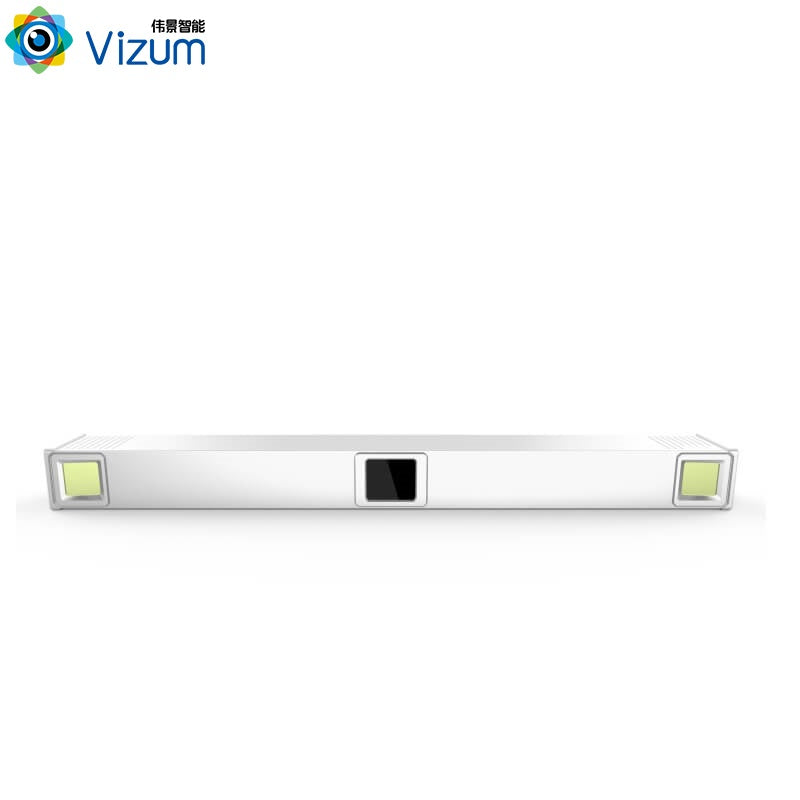

Vizum ViEye 620PD 3D Camera
Regular price
$4,000.00
Unit price
/
Unavailable
Vizum ViEye 620PD 3D Camera - VZ-LI-1920-620M23K is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
Vizum ViEye 620PD 3D Camera
Regular price
$4,000.00
Unit price
/
Unavailable
Product Information
Technical Specifications
| Parameter | Value | Value | Value | Value |
|---|---|---|---|---|
|
Model
|
VZ-LI-1920-620M23K |
VZ-LI-1920-620L3K | VZ-AR-1920-620M23K | VZ-AR-1920-620L3K |
|
Camera Type
|
Dynamic Camera |
Dynamic Camera | Static RGBD Camera | Static RGBD Camera |
|
Working Range
|
1200~2500mm
|
2300~3600mm
|
1200~2500mm
|
2300~3600mm
|
|
Working Distance
|
1200mm/1700mm/2500mm
|
2300mm/2800mm/3600mm
|
1200mm/1700mm/2500mm
|
2300mm/2800mm/3600mm
|
|
Field of View Y（mm）
|
1811/2567/3737
|
2049/3071/3848
|
1130×1768/1598×2475/
2051×3678
|
1476×2370/1625×2879/1949×3721
|
|
Z-Axis Accuracy （mm）
|
0.61/0.90/1.14
|
1.08/1.54/2.39
|
0.49/0.78/1.45
|
1.12/1.54/2.17
|
|
Y-Axis Resolution
|
1920 (2048 optional)
|
1920 (2048 optional)
|
1920 (2048 optional)
|
1920 (2048 optional)
|
|
Maximum Frame Rate
|
3000 Line/s
|
3000 Line/s
|
3000 Line/s
|
3000 Line/s
|
|
Baseline Length
|
620mm
|
620mm
|
620mm
|
620mm
|
|
Dimensions
|
690×90×64mm
|
690×90×64mm
|
690×90×64mm
|
690×90×64mm
|
|
Weight
|
2600g
|
2600g
|
2600g
|
2600g
|
|
Resistance to Environmental Light Intensity
|
480000Lux
|
480000Lux
|
480000Lux
|
480000Lux
|
|
Front-end Processing
|
Output the results directly, without the need for additional hardware platforms for calculation
|
Output the results directly, without the need for additional hardware platforms for calculation
|
Output the results directly, without the need for additional hardware platforms for calculation
|
Output the results directly, without the need for additional hardware platforms for calculation
|
|
Intelligent Development Platform
|
Vizum FH®Platform
|
Vizum FH®Platform
|
Vizum FH®Platform
|
Vizum FH®Platform
|
|
Data Interface
|
Gigabit Ethernet
|
Gigabit Ethernet
|
Gigabit Ethernet
|
Gigabit Ethernet
|
|
Communication Method
|
SDK Function Call (C++), Modbus Tcp
|
SDK Function Call (C++), Modbus Tcp
|
SDK Function Call (C++), Modbus Tcp
|
SDK Function Call (C++), Modbus Tcp
|
|
Supported Systems
|
Windows（7、10、11）、Linux
|
Windows（7、10、11）、Linux
|
Windows（7、10、11）、Linux
|
Windows（7、10、11）、Linux
|
|
Light Source
|
Blue Light (450nm), Red Light (638nm), Infrared (808nm, 850nm, 940nm) Optional
|
Blue Light (450nm), Red Light (638nm), Infrared (808nm, 850nm, 940nm) Optional
|
Blue Light (450nm), Red Light (638nm), Infrared (808nm, 850nm, 940nm) Optional
|
Blue Light (450nm), Red Light (638nm), Infrared (808nm, 850nm, 940nm) Optional
|
|
Voltage / Power Consumption
|
24V/30W
|
24V/30W
|
24V/30W
|
24V/30W
|
|
Working Temperature
|
-20°C ～70°C
|
-20°C ～70°C
|
-20°C ～70°C
|
-20°C ～70°C
|
|
IP Class
|
IP65
|
IP65
|
IP65
|
IP65
|
|
Factory Intrinsic Parameter Calibration
|
Yes
|
Yes
|
Yes
|
Yes
|
ViEye_620PD_3D_Camera.pdf
