Unitree | SKU:

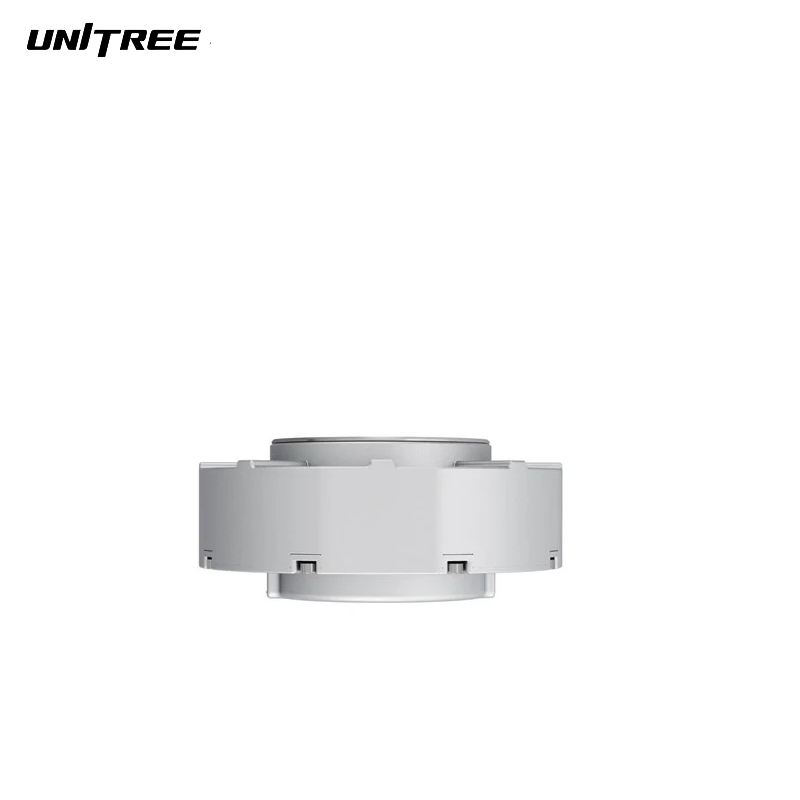

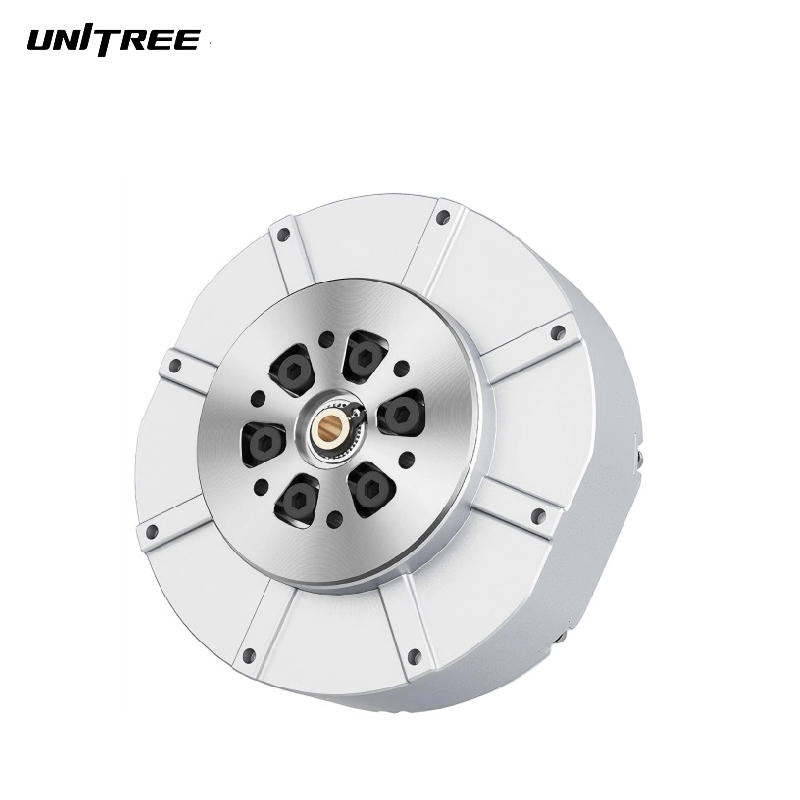

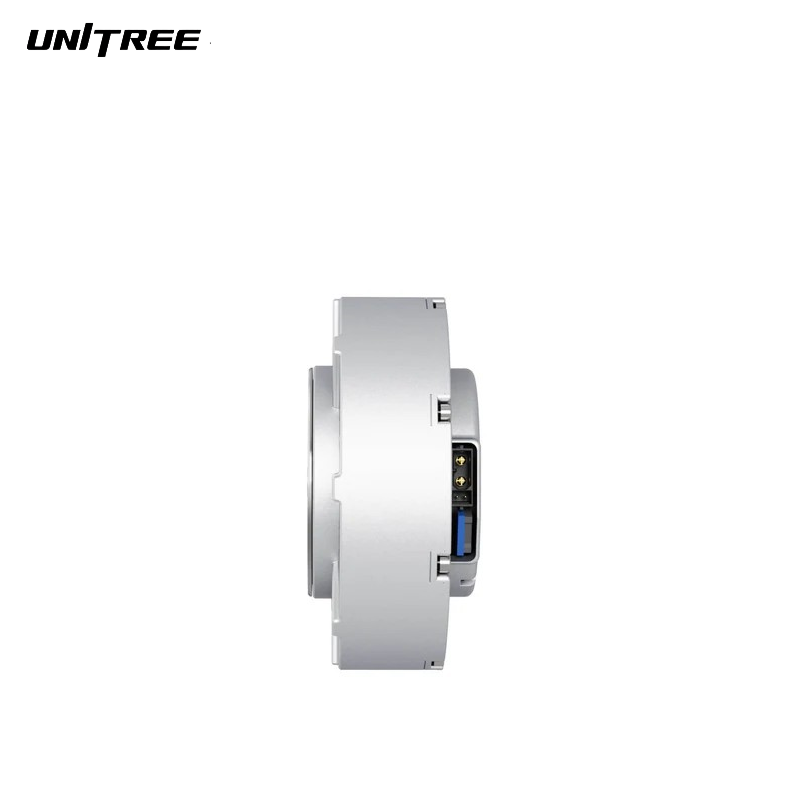

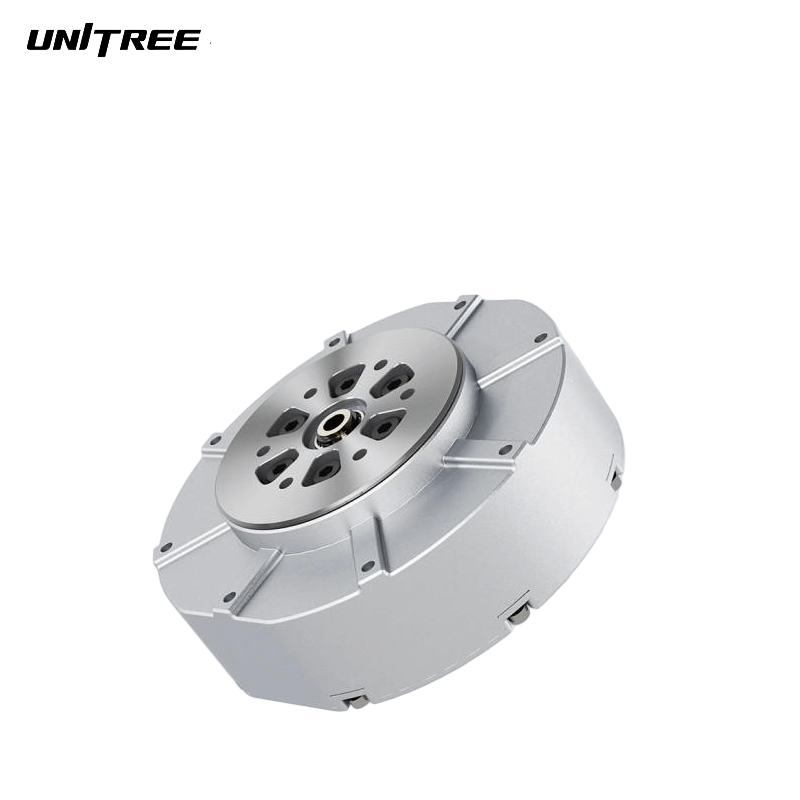

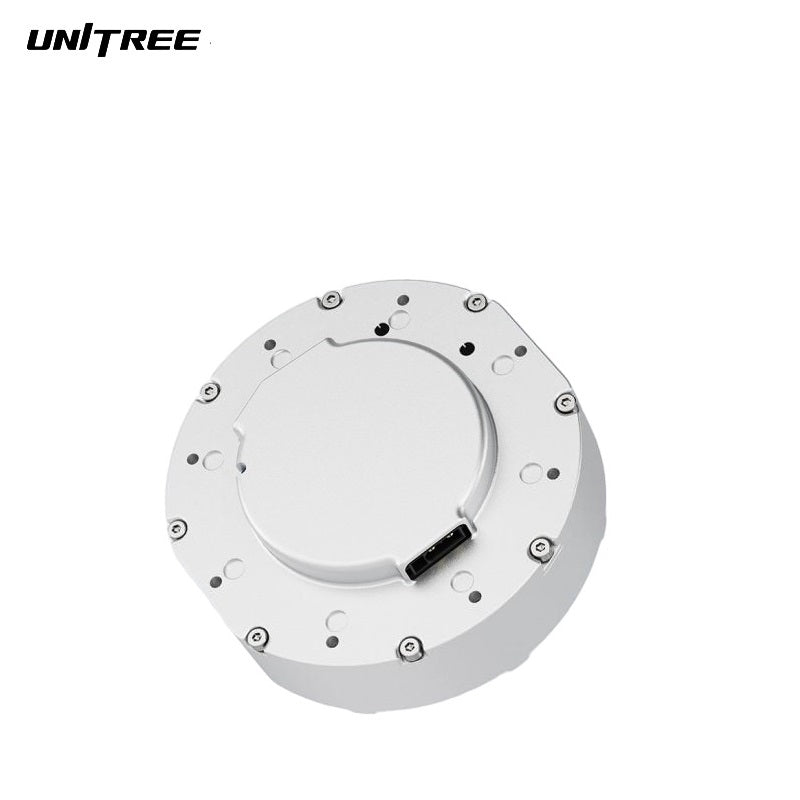

Unitree GO-M8010-6 Motor
Regular price
$280.00
Unit price
/
Unavailable
Unitree GO-M8010-6 Motor - GO-M8010-6 Motor is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
Unitree GO-M8010-6 Motor
Regular price
From
$20.00
Unit price
/
Unavailable
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Model |
GO-M8010-6
|
| Weight | About 530g |
| Maximum Current | 40A |
| Maximum Rotational Speed | 30rad/s(@24VDC) |
| Reduction Ratio | 1:6.33 |
| Size |
96.5x92.5x42.3mm |
| Maximum Torque |
23.7NM |
| Torque Constant | 0.63895Nm/A |
| Communication Mode | RS-485 |
| Communication Baud Rate | 4Mbps |
| Communication Control Frequency | 6000Hz |
| Motor Encoder Resolution | 15bit |
| Operation Environment | -5°C~40°C |
| Working Voltage | 12V~30VDC 24VDC recommend |
| Motor Perceptual Feedback | Torque, Angle, Angular Velocity, Angular Acceleration, Temperature |
| Motor Control instruction | Torque, Angle, Angular Velocity, Stiffness, Damping |
GO-M8010-6_instalation_drawing.pdf
