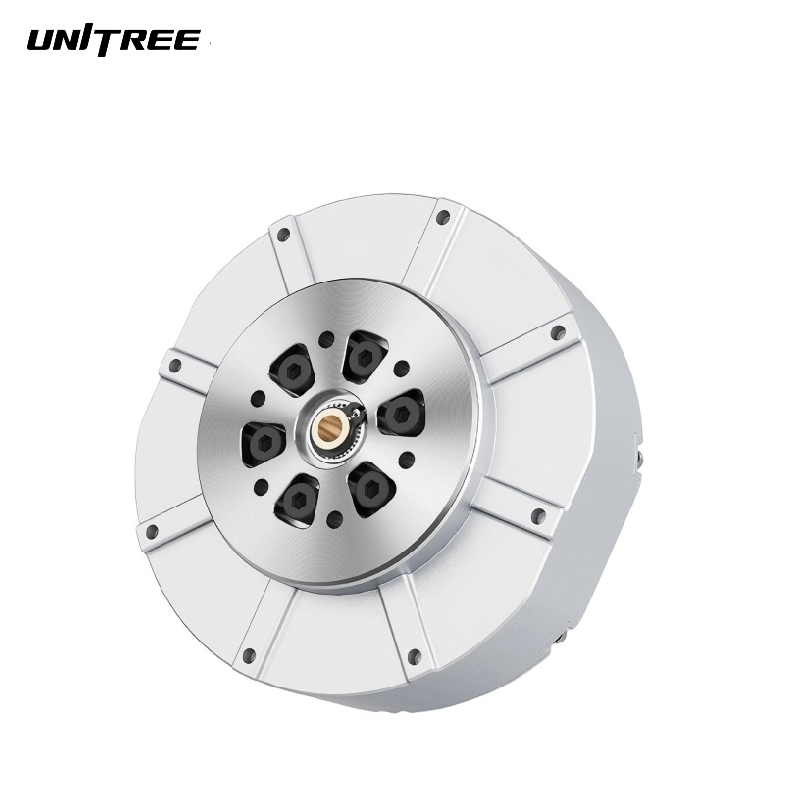

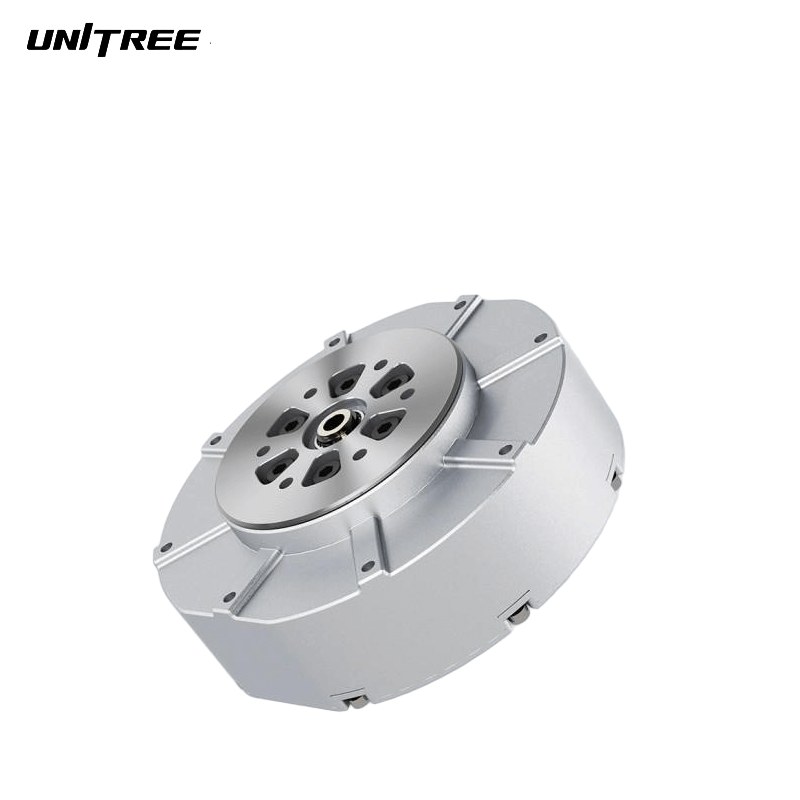

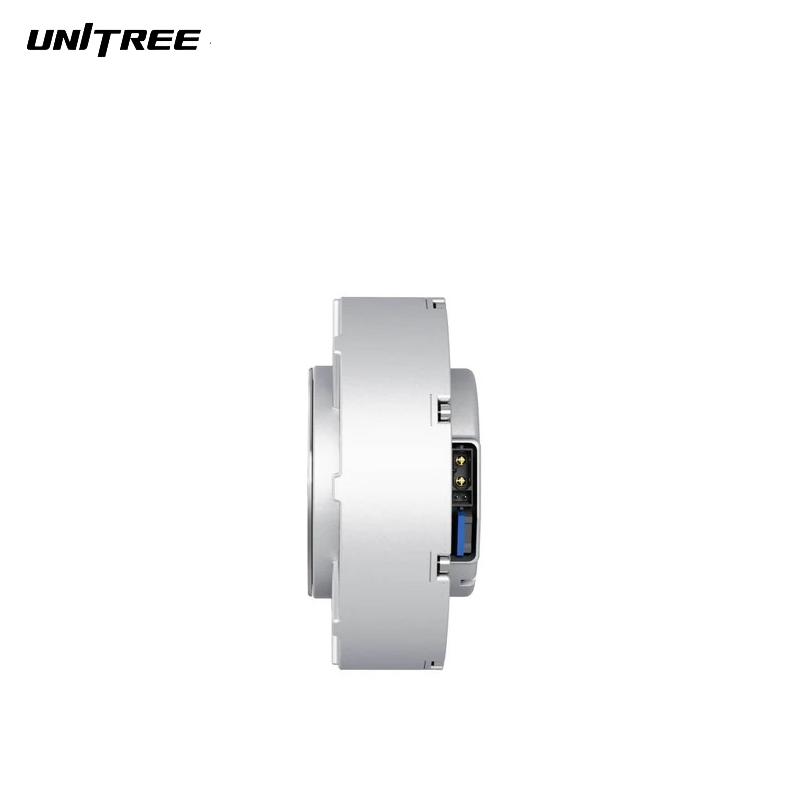

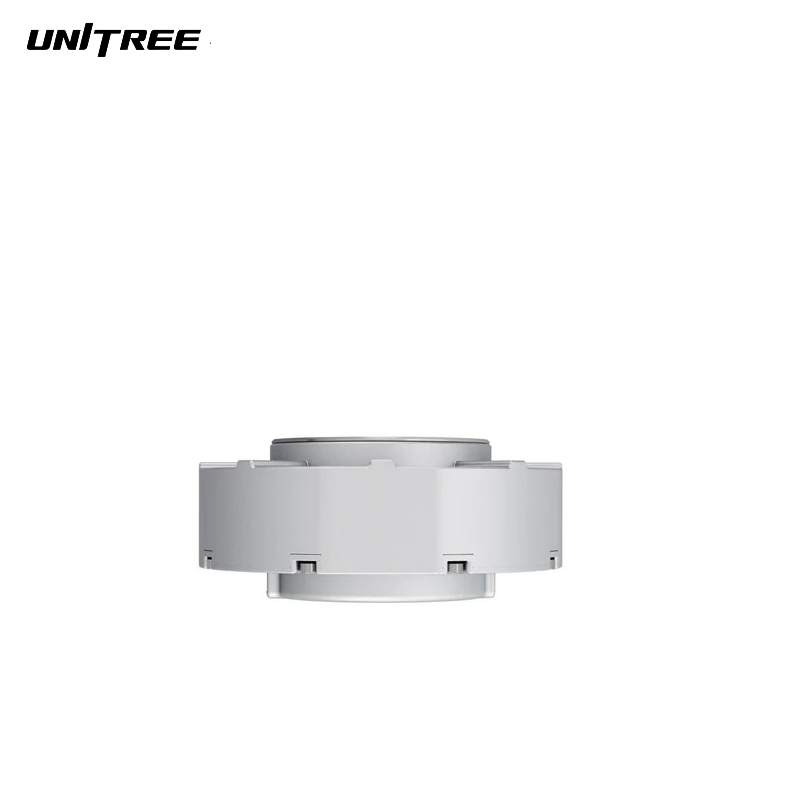

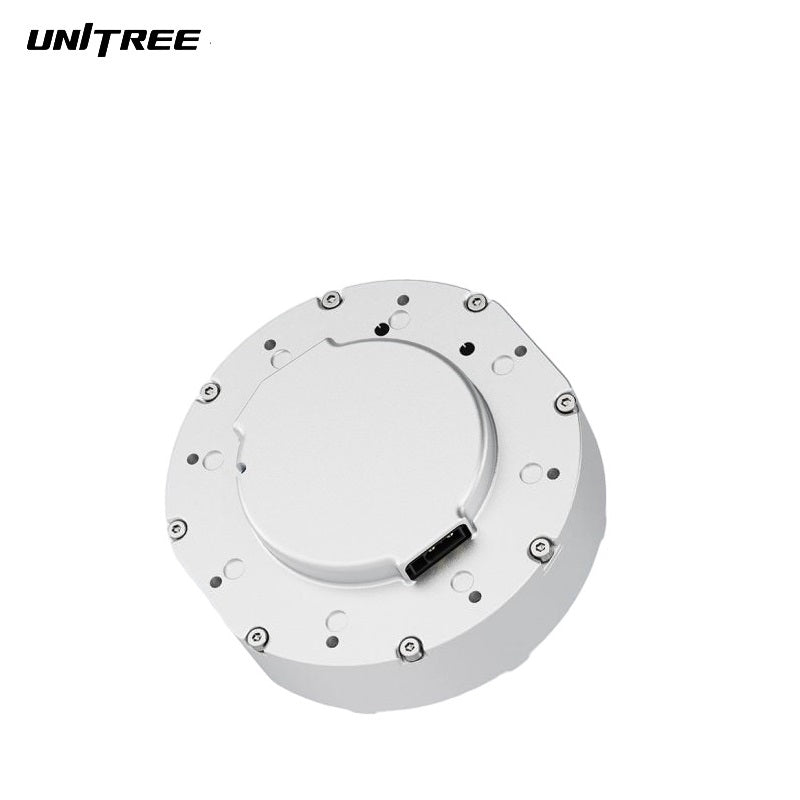

Unitree GO-M8010-6 Motor
Unitree GO-M8010-6 Motor
Unitree GO-M8010-6 Motor
Unitree GO-M8010-6 Motor
Unitree GO-M8010-6 Motor
Unitree GO-M8010-6 Motor
Unitree GO-M8010-6 Motor
Unitree GO-M8010-6 Motor
Unitree GO-M8010-6 Motor
Unitree GO-M8010-6 Motor

Unitree GO-M8010-6 Motor

$280.00
$280.00
Version: GO-M8010-6 Motor
Subtotal: $280.00
Unitree GO-M8010-6 Motor

Unitree GO-M8010-6 Motor

$280.00
Unitree GO-M8010-6 Motor
Unitree GO-M8010-6 Motor
Unitree GO-M8010-6 Motor
Unitree GO-M8010-6 Motor
Unitree GO-M8010-6 Motor
Unitree GO-M8010-6 Motor
Unitree GO-M8010-6 Motor
Unitree GO-M8010-6 Motor
Unitree GO-M8010-6 Motor
Unitree GO-M8010-6 Motor

Unitree GO-M8010-6 Motor

$280.00
Version: GO-M8010-6 Motor
Description
Description
x

Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value
Model
GO-M8010-6
Weight About 530g
Maximum Current 40A
Maximum Rotational Speed 30rad/s(@24VDC)
Reduction Ratio 1:6.33
Size 96.5x92.5x42.3mm
Maximum Torque

23.7NM
Torque Constant 0.63895Nm/A
Communication Mode RS-485
Communication Baud Rate 4Mbps
Communication Control Frequency 6000Hz
Motor Encoder Resolution 15bit
Operation Environment -5°C~40°C
Working Voltage 12V~30VDC 24VDC recommend
Motor Perceptual Feedback Torque, Angle, Angular Velocity, Angular Acceleration, Temperature
Motor Control instruction Torque, Angle, Angular Velocity, Stiffness, Damping



GO-M8010-6_instalation_drawing.pdf
