Unitree | SKU:

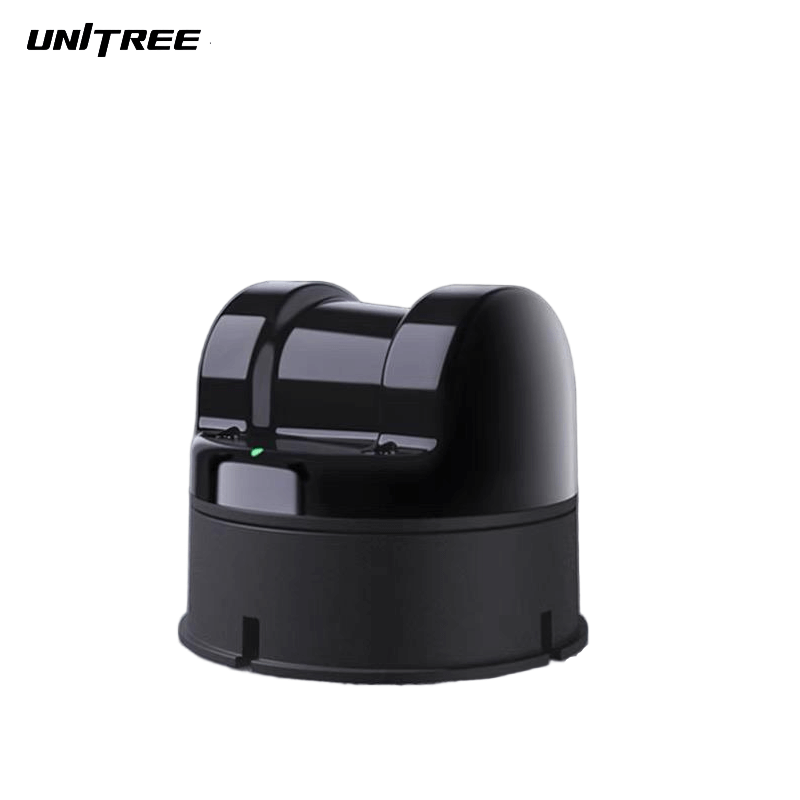

Unitree 4D LiDAR L2
Regular price
$320.00
Unit price
/
Unavailable
Unitree 4D LiDAR L2 - 4D LiDAR L2 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
Unitree 4D LiDAR L2
Regular price
$320.00
Unit price
/
Unavailable
Product Information
Technical Specifications
| Parameter | Value |
|---|---|
| Model |
Unitree L2 |
| Scanning distance |
30m(@90% reflectivity) 15m(@10% reflectivity) |
| FOV | 360° × 96° |
| Power | 10W |
| Size mm | 75×75×65 |
| Weight |
230g |
| Operating | Indoor/outdoor |
| Technology | Laser TOF |
| Measurement accuracy | ≤ 2.0cm |
| Nearbyblind area | 0.05m |
| Sampling frequency | 128000points/s |
| Effective frequency | 64000points/s |
| Circumferential scanning frequency |
5.55Hz（Customizable adjustment） |
| Vertical scanning frequency |
216Hz |
| Communication interface |
ENET UDP/TTL UART |
| IMU |
3-axis acceleration +3-axis gyroscope |
| Human eye safety level |
Class 1(IEC60825-1:2014) Human eye safety |
| 4D data |
3D position +1D grayscale(supports 2D mode) |
| Anti-glare capability |
>100KIux |
| Distance resolution |
4.5mm |
