RUICOM | SKU:

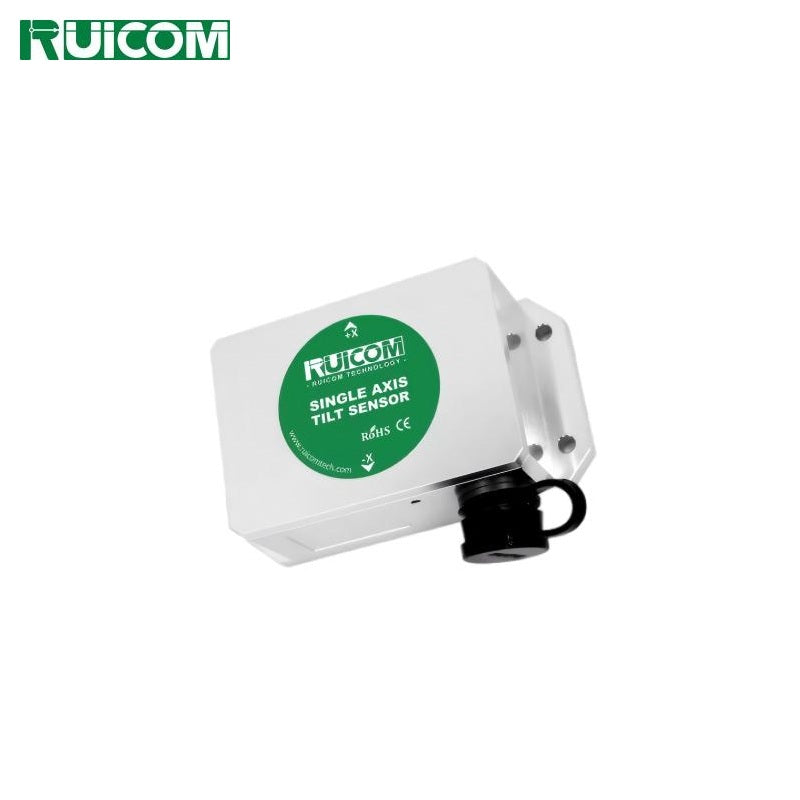

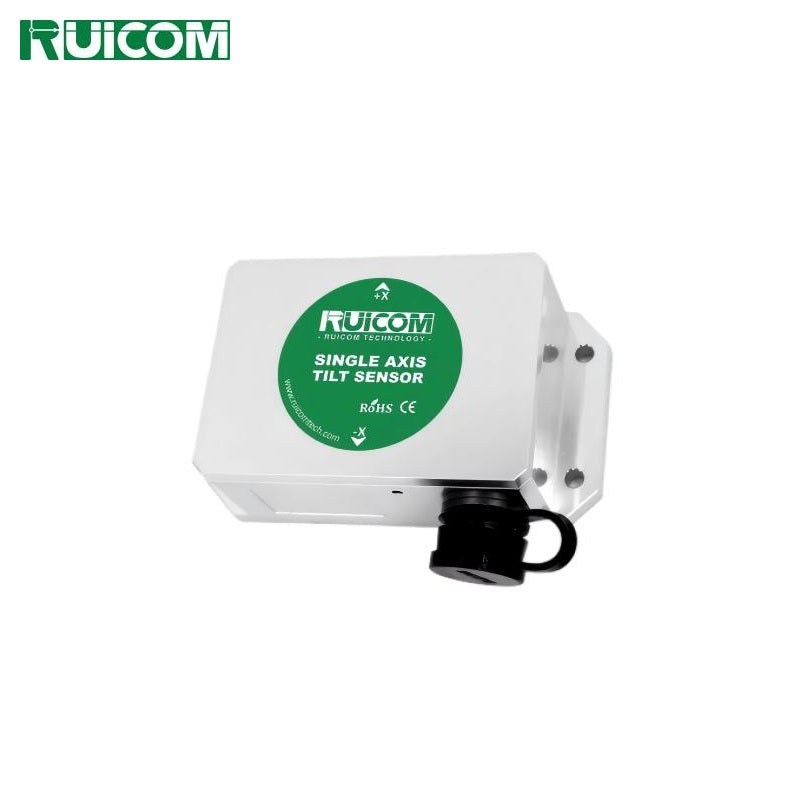

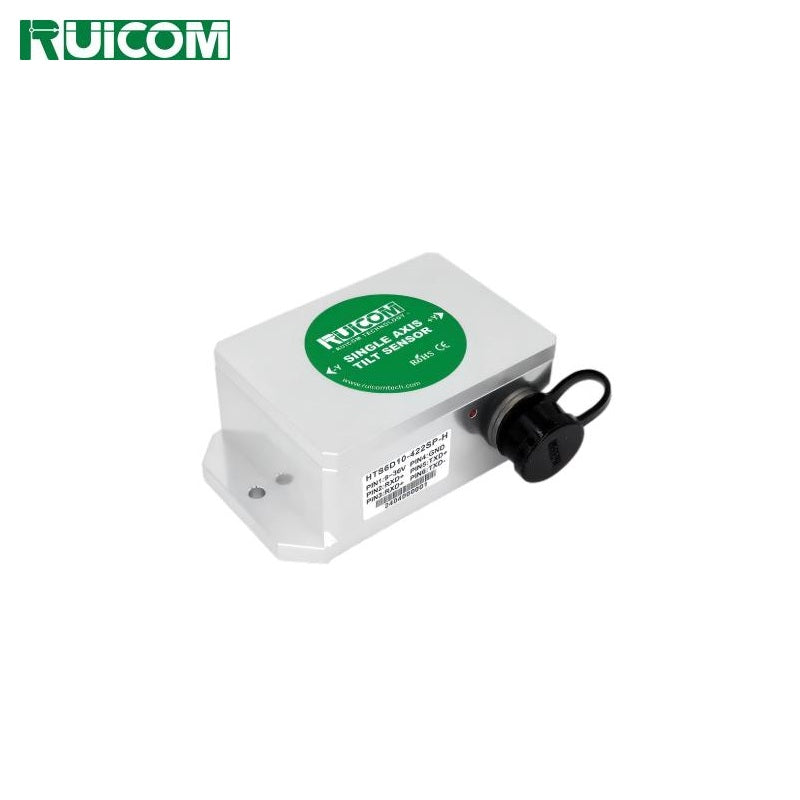

RUICOM HTS6 (CAN2.0A Output) Sensor
Regular price
$500.00
Unit price
RUICOM HTS6 (CAN2.0A Output) Sensor - HTS6(Can Open) / X / ±10° is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
RUICOM HTS6 (CAN2.0A Output) Sensor
Regular priceFrom
$500.00
Unit price
RUICOM HTS6 (CAN2.0A Output) Sensor - HTS6(Can Open) / X / ±10° is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Measurement Range | ±10° / ±35° |
| Measurement Axis | Single/Dual-Axis |
| Output Signal | CANopen / CAN2.0A (Optional) |
| Resolution¹ | 0.001° |
| Measurement Accuracy² (@25℃) | 0.005°(RMS) / 0.01°(RMS) |
| Long-Term Stability | 0.01° / 0.02° |
| Zero Temperature Coefficient⁴ (-40~85℃) | ±0.002°/℃ |
| Sensitivity Temperature Coefficient⁵ (-40~85℃) | ≤50ppm/℃ |
| Power-On Startup Time | 0.5S |
| Response Frequency | 20Hz |
| Output Rate | 5Hz / 15Hz / 35Hz / 50Hz (Configurable) |
| Electromagnetic Compatibility (EMC) | Compliant with EN61000 and GB/T17626 |
| MTBF (Mean Time Between Failures) | ≥99999 h/time |
| Insulation Resistance | ≥100 MΩ |
| Shock Resistance | 100g @ 11ms, Triaxial (Half-Sine Wave) |
| Vibration Resistance | 10grms, 10~1000Hz |
| Protection Rating | IP67 |
| Cable | Standard 1m -7P*6.8mm Aviation Plug / Wear-Resistant / Wide-Temperature Shielded Cable, Cable Weight ≤110g |
| Weight | ≤250g (Excluding Cable) |
