RUICOM | SKU:

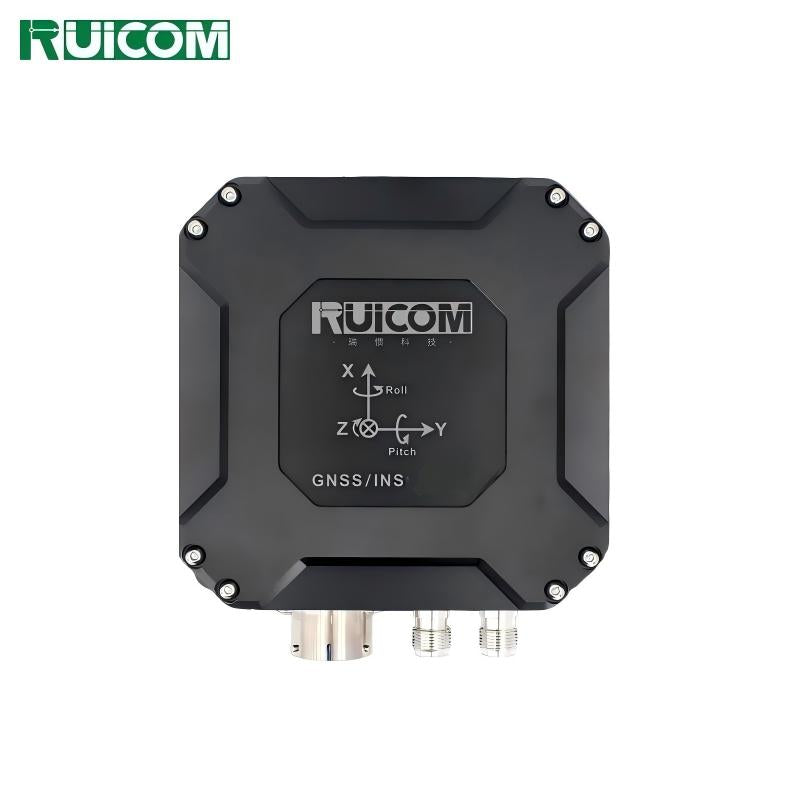

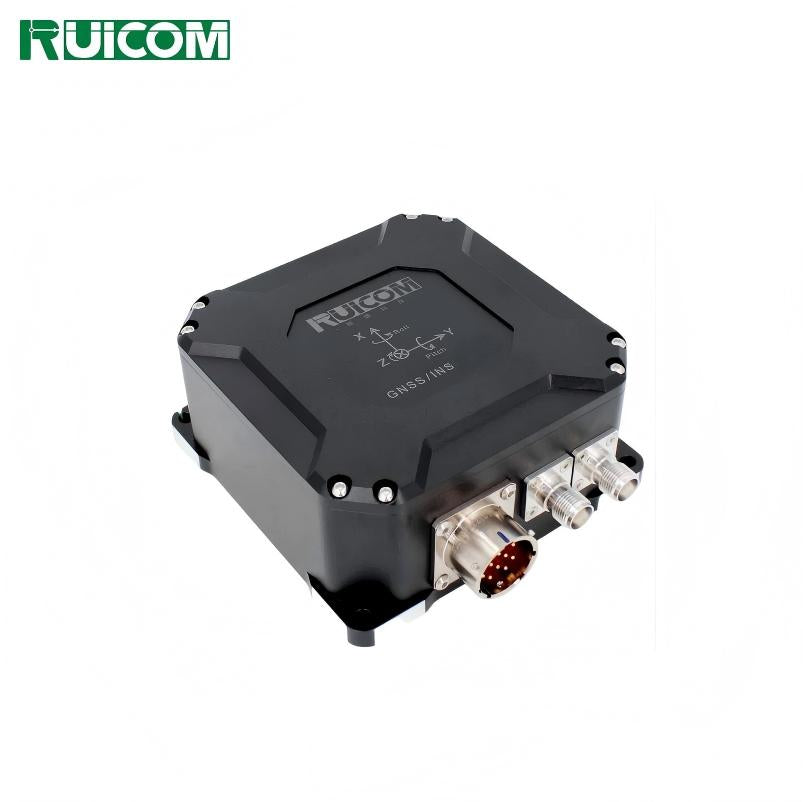

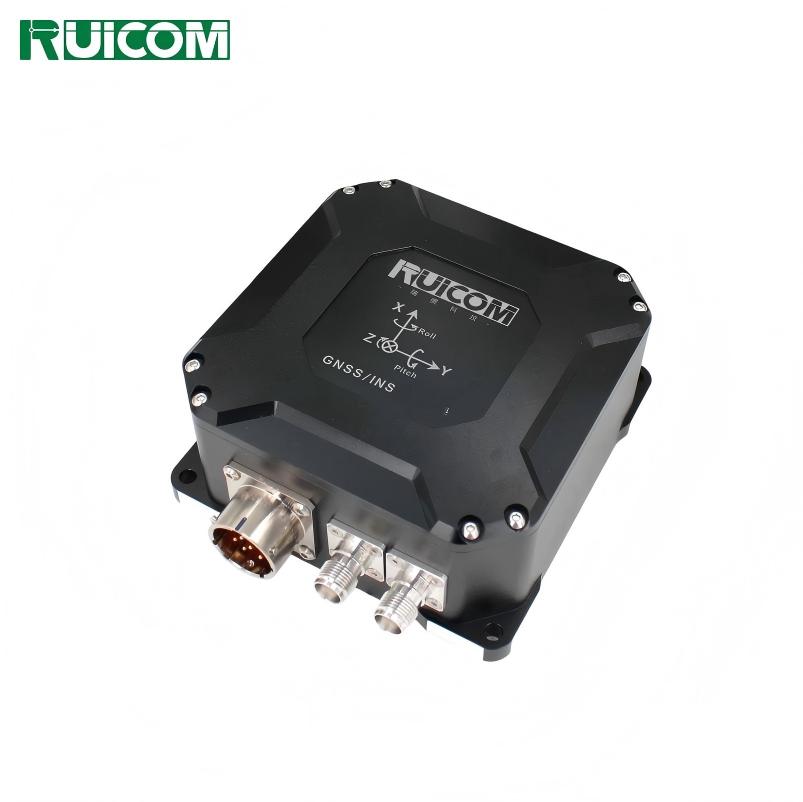

RUICOM GNS600 Sensor
Regular price
$5,030.00
Unit price
RUICOM GNS600 Sensor - GNS600 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
RUICOM GNS600 Sensor
Regular price
$5,030.00
Unit price
RUICOM GNS600 Sensor - GNS600 is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Measurement range (Roll/Pitch/Yaw) | Roll ±180° Pitch +90° Yaw ±180° |
| Roll/Pitch accuracy (1σ, GPS locked) | 0.2° |
| GPS loss lock accuracy (with odometer) | Position drift: 0.2% (CEP) Heading drift (1min): 0.15° |
| Accelerometer | |
| Range | 4g |
| Bias stability (Allan) | 0.2mg |
| Full temperature bias | 1.7mg |
| Scale factor repeatability | 200ppm |
| Resolution | 0.1mg |
| Nonlinearity | 0.1% |
| Bandwidth | 200Hz |
| Gyroscope | |
| Range | 300°/s |
| Bias instability (Allan) | 10°/h |
| Bias stability (1s smoothing) | 15°/h |
| Bias repeatability | 15°/h |
| Full temperature bias | 0.1°/s |
| Scale factor nonlinearity | 200ppm |
| Scale factor repeatability | 200ppm |
| Resolution | <0.01°/s |
| Acceleration sensitivity | <0.0028°/s/g |
| Angle random walk | 0.15°/√hr |
| System latency | <2ms |
| GNSS Board | |
| Position accuracy (CEP) | 1.2m 2cm+1ppm (RTK) |
| Velocity accuracy (1σ) | 0.03m/s |
| Heading accuracy (1σ) | 0.08° (baseline 2m) |
| Frequency bands | GPS L1/L2/L2C BeiDou B1/B2 |
| Electrical Interface | |
| Input voltage | VCC 12~36V |
| Operating current | 0.55A |
| Connector type | 12-pin aviation plug |
