RUICOM | SKU:

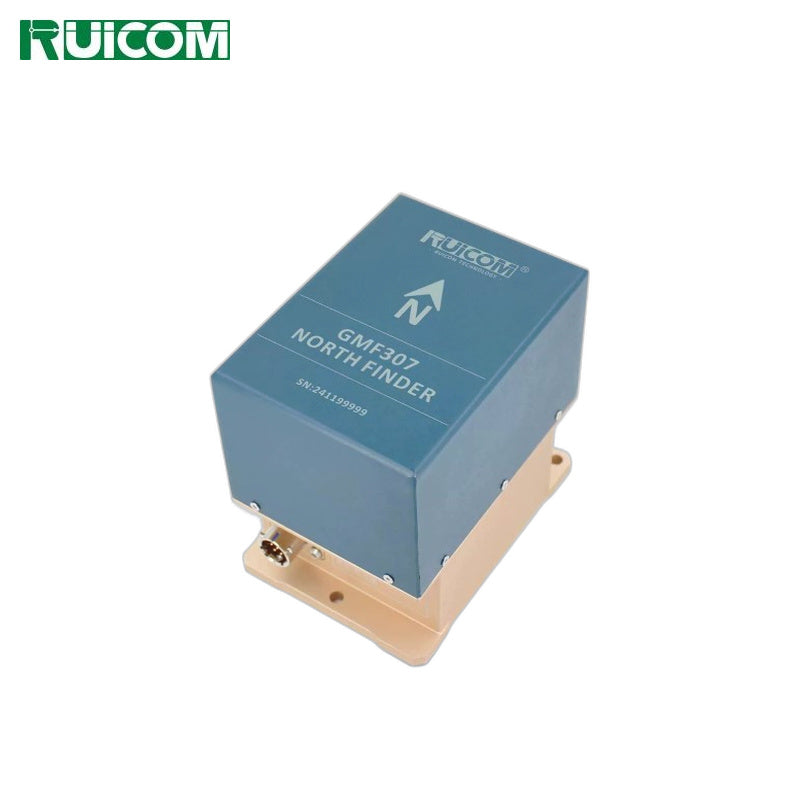

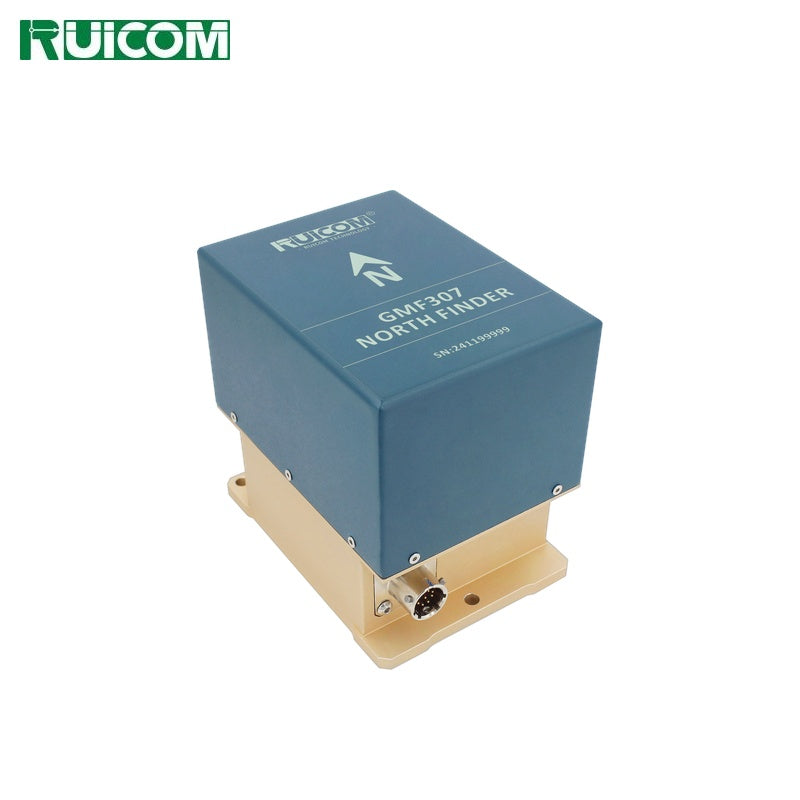

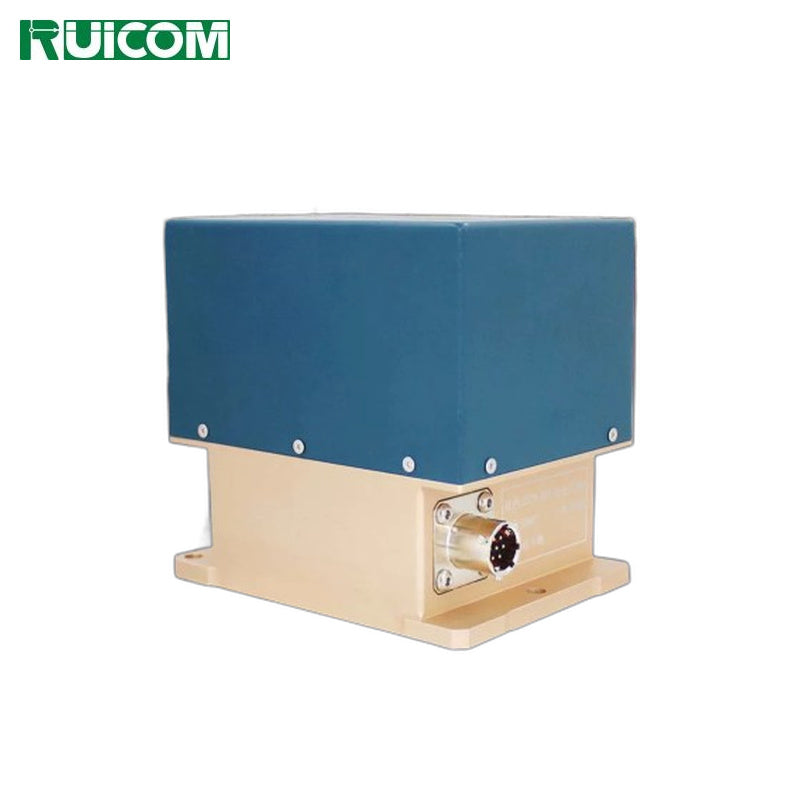

RUICOM GMF307 Sensor
Regular price
$9,050.00
Unit price
RUICOM GMF307 Sensor - GMF307 / RS232 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
RUICOM GMF307 Sensor
Regular price
$9,050.00
Unit price
RUICOM GMF307 Sensor - GMF307 / RS232 is backordered and will ship as soon as it is back in stock.
Product Information
Technical Specifications
| Parameter | Value |
|---|---|
| Model | GMF307 |
| North-seeking time | 3min / 2min (configurable) |
| Tilt range for north-seeking | ±15° |
| North-seeking accuracy (1σ) | 0.5° |
| Roll/pitch measurement accuracy (±15°) | 0.55° |
| Roll/pitch resolution | 0.2° |
| Heading hold (Allan) | 1.2°/h (angular rate <325°/s) |
| Power supply | 9.5~36VDC (wire gauge >0.3mm², power line and ground line) |
| Operating current | Typical 0.5A, max inrush current 1A |
| Interface | RS232 / RS422 / RS485 / TTL (customizable) |
| Operating temperature | -20°C ~ +50°C |
| Storage temperature | -40°C ~ +60°C |
| Humidity | Relative humidity <95% |
| Operation mode | Automatic self-check after power-on, automatic north-seeking after successful self-check, send north-seeking result to host computer |
| Insulation resistance | ≥10 MΩ (under standard atmospheric conditions) |
| MTBF | ≥10000 hours |
| MTTR | ≤30 min |
| Material | Stainless steel + Aluminum alloy |
| Weight | ≤1.1kg (excluding cable) |
