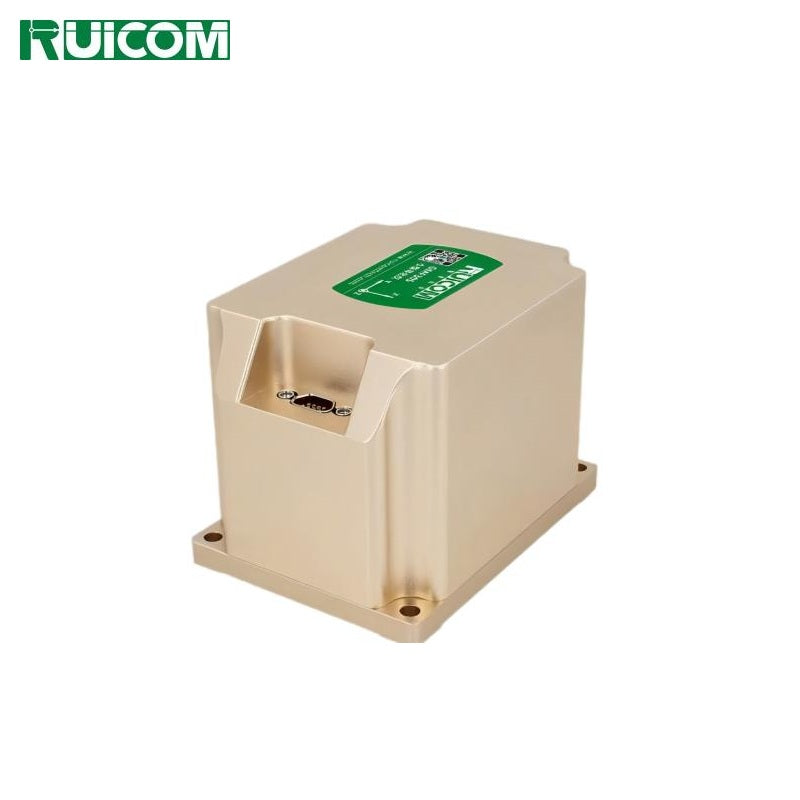

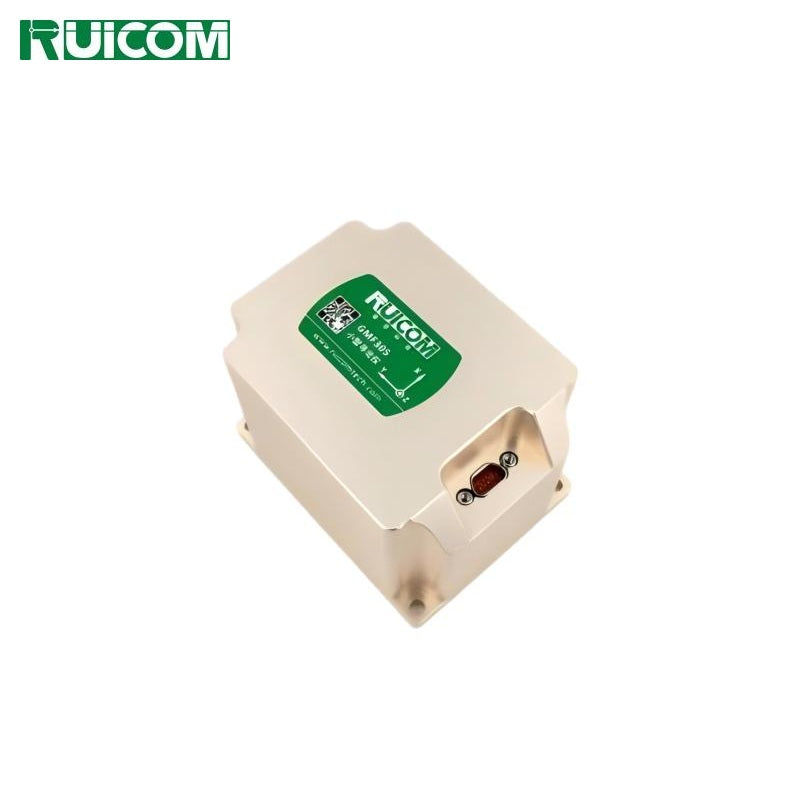

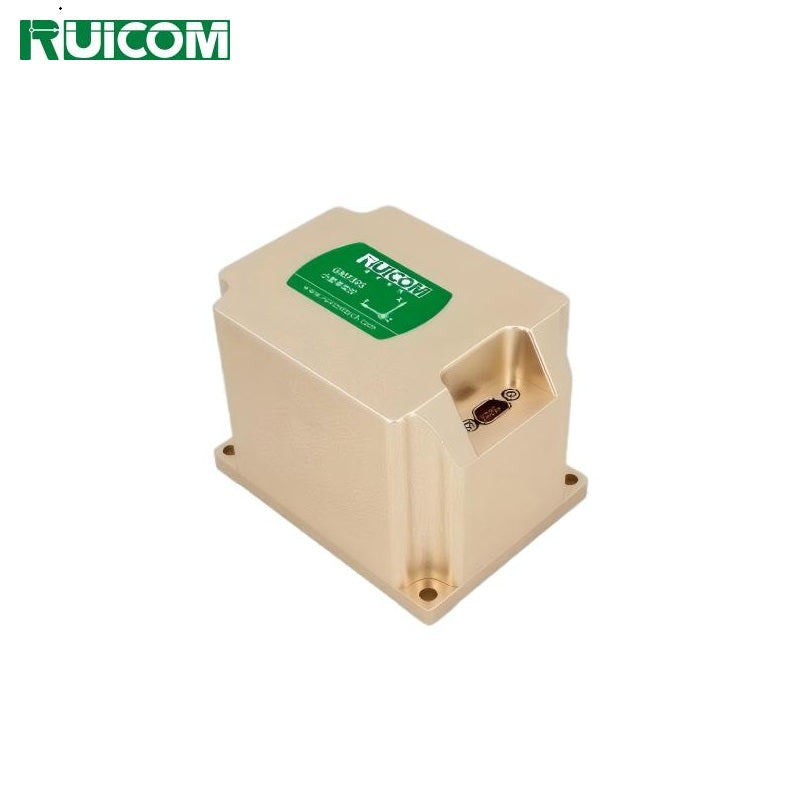

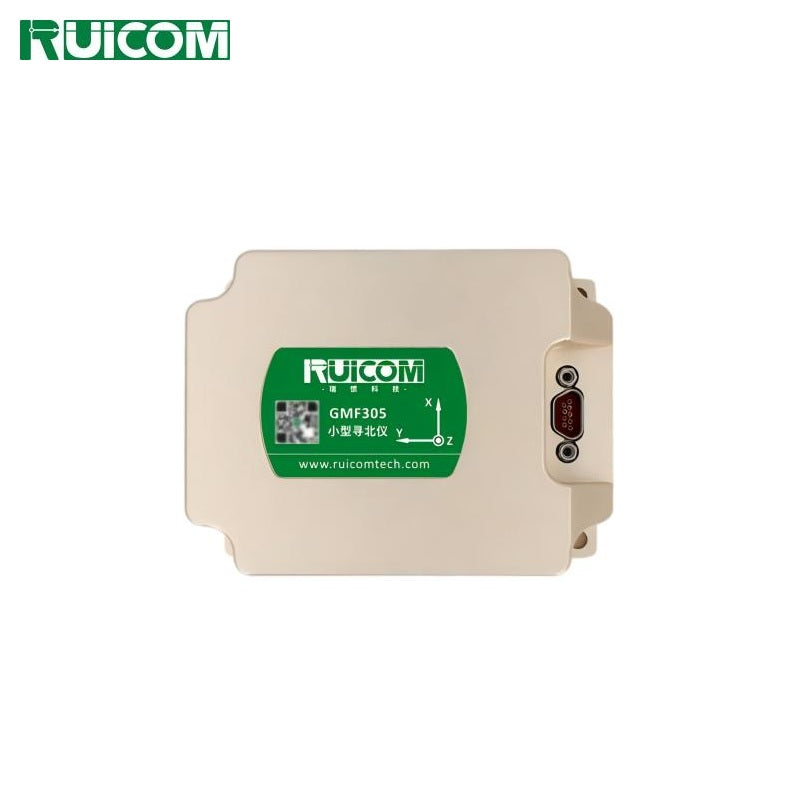

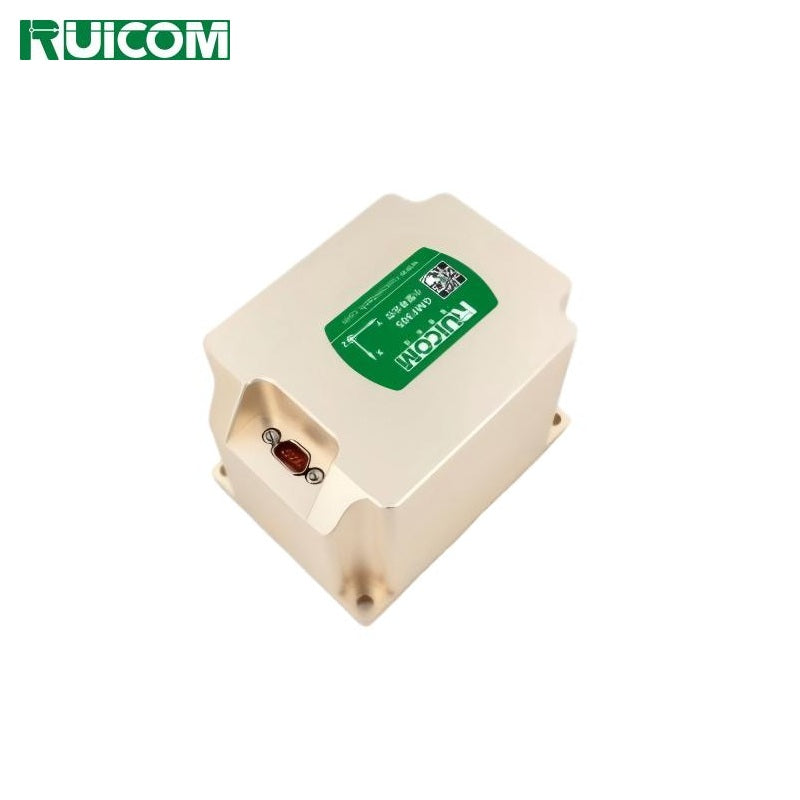

RUICOM GMF305 Sensor

$8,050.00
Version
Output signal

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information


Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value
North Seeking Time GMF305: ≤3 min/ GMF305P: ≤3 min
North Seeking Accuracy (1σ) GMF305: 0.5° / GMF305P: 0.1°
Leveling Accuracy GMF305: ≤0.05° (1σ) / GMF305P: ≤0.05° (1σ)
Heading Hold Accuracy (Static) GMF305: 0.5 °/h / GMF305P: 0.5 °/h
Roll & Pitch Measurement Accuracy (<60°) GMF305: 0.1° (1σ) / GMF305P: 0.1° (1σ)
Power Supply 9~36 VDC (Note: Power wire gauge > 0.3 mm², power line and ground line)
   Operating Current Typical value: 0.16 A, Maximum inrush current: 0.5 A
   Interface RS232 / RS422 / RS485
Operating Temperature -20°C ~ +50°C
Storage Temperature -40°C ~ +60°C
Humid & Thermal Environmental Conditions Relative Humidity < 95%
Operating Mode Automatically performs self-check upon power-on, automatically starts north seeking after successful self-check, and sends north seeking results to the host computer upon completion of north seeking.
   Insulation Resistance The insulation resistance between each independent circuit of the gyro north finder, and between the circuits and the housing, shall be no less than 10 MΩ under standard atmospheric conditions.
MTBF ≥10,000 hours
MTTR ≤30 min
Housing Dimensions L 80 × W 60 × H 59 mm
Weight ≤500 g (excluding cable)
