RUICOM

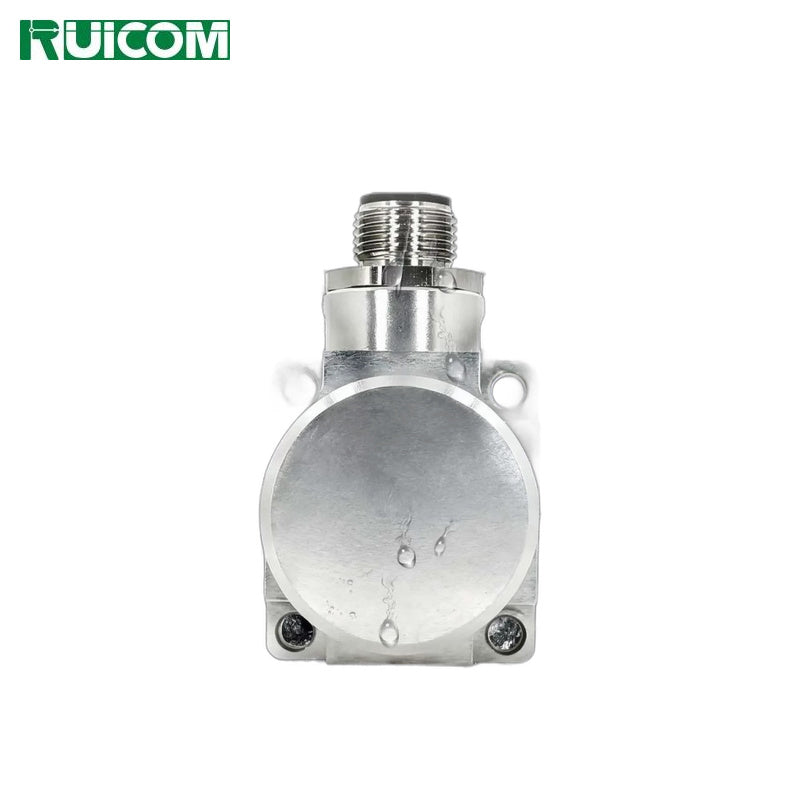

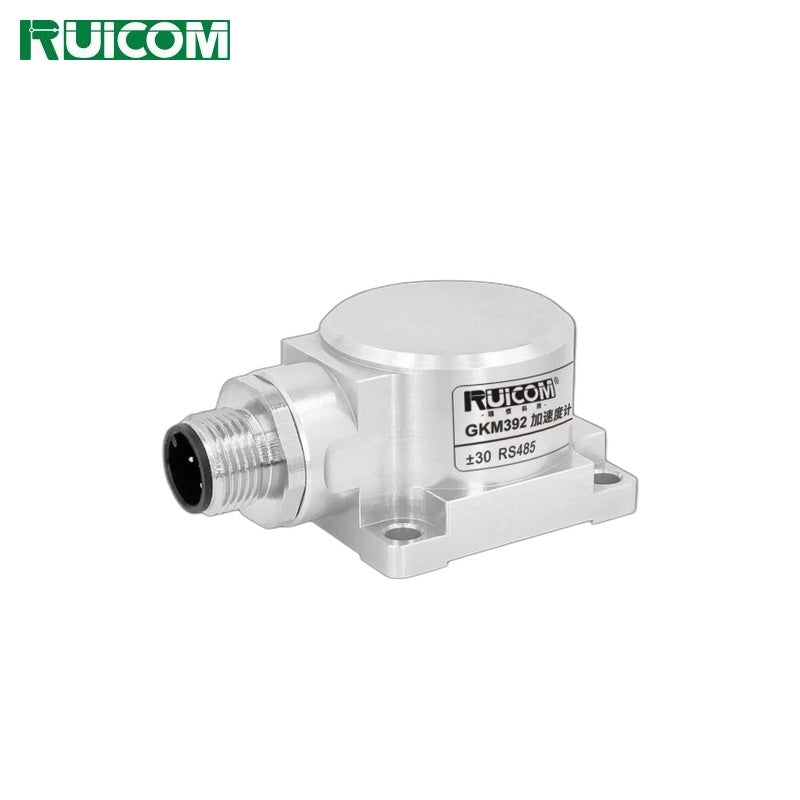

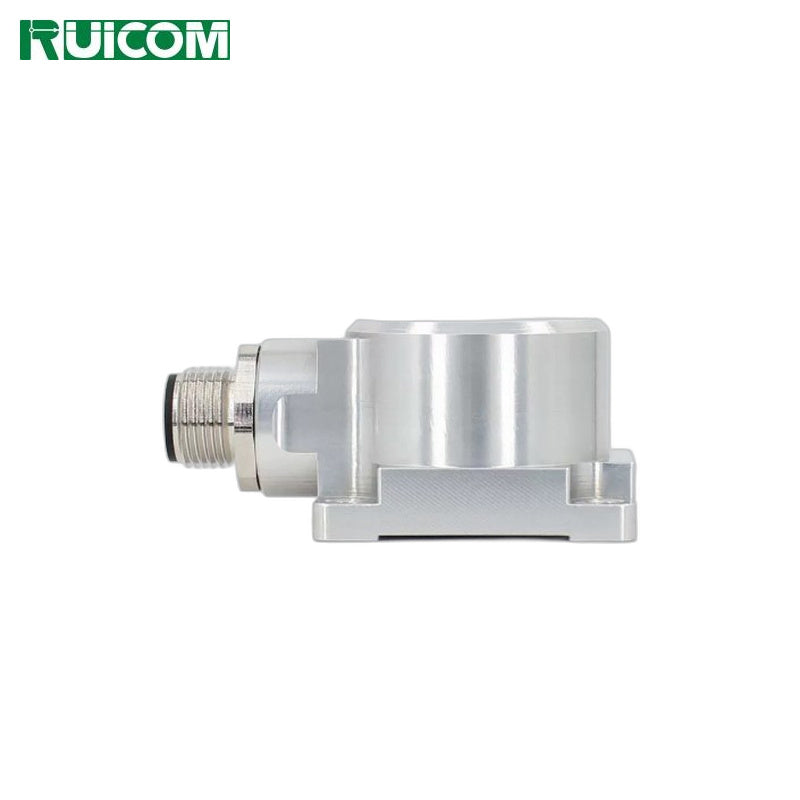

RUICOM GKM392 Sensor

$380.00
Version
Signal output
Measurement range

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information

Technical Specifications

Parameter ±2g ±4g ±8g ±10g ±20g ±40g
Bias calibration (mg) <1 <1 <1 <1 <1 <1
Measurement axis X, Y, Z X, Y, Z X, Y, Z X, Y, Z X, Y, Z X, Y, Z
Power on/off repeatability (mg, max) <2 <2 <2 <2 <2 <2
Bias temperature coefficient (%/°C, typical) 0.01 0.01 0.01 0.01 0.01 0.01
Resolution/Threshold @1Hz (mg, max) <1 <1 <1 <1 <1 <1
Nonlinearity (%FS, max) <1 <1 <1 <1 <1 <1
Bandwidth (3dB) (Hz) 500 500 500 500 500 500
Cross-axis sensitivity (%) 1 1 1 2 2 2
Transverse vibration sensitivity ratio (%) 1 1 2 5 5 5
Noise density (μg/√Hz) 21 21 21 86.6 86.6 86.6
Resonant frequency (kHz) 2.4 2.4 2.4 5.5 5.5 5.5
68 protocol auto output rate 5Hz, 10Hz, 25Hz, 50Hz, 100Hz, 200Hz, 500Hz, 1000Hz
MODBUS auto output rate 10Hz, 25Hz, 50Hz
Output interface RS232 / TTL / RS485
Communication protocol Serial communication protocol & MODBUS RTU protocol
Input voltage (VDD_VSS) 9-36 VDC
Operating current consumption <60mA @12VDC
Protection level IP67
Material (product) Aerospace aluminum
Material (magnetic mount) Stainless steel
Weight (product net) ≤116g
Weight (magnetic mount) ≤50g
Dimensions (product) L36 × W32 × H24 mm
Dimensions (magnetic mount) L36 × W32 × H8.1 mm
