RUICOM

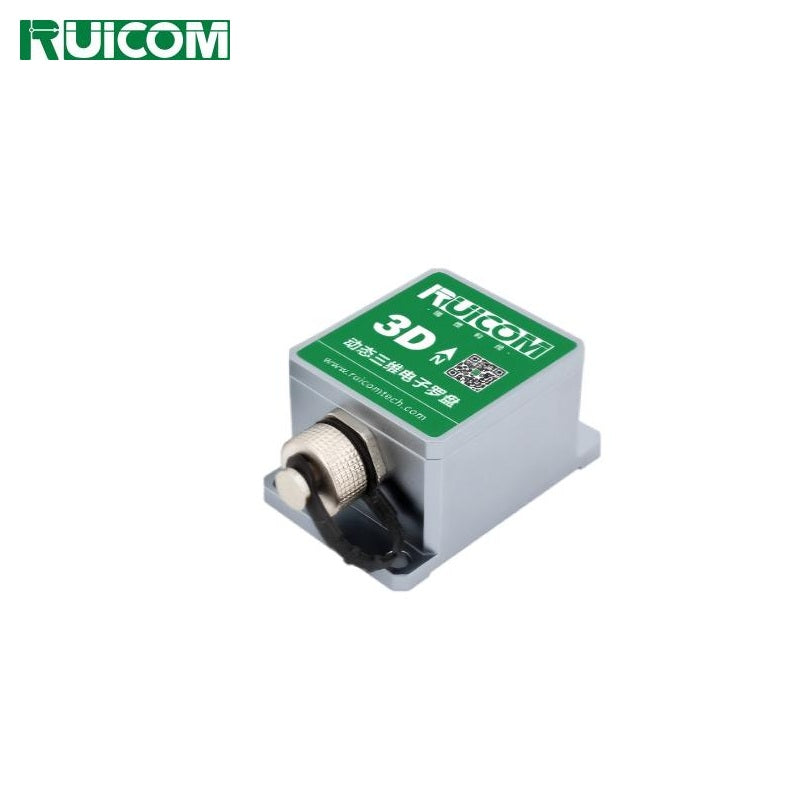

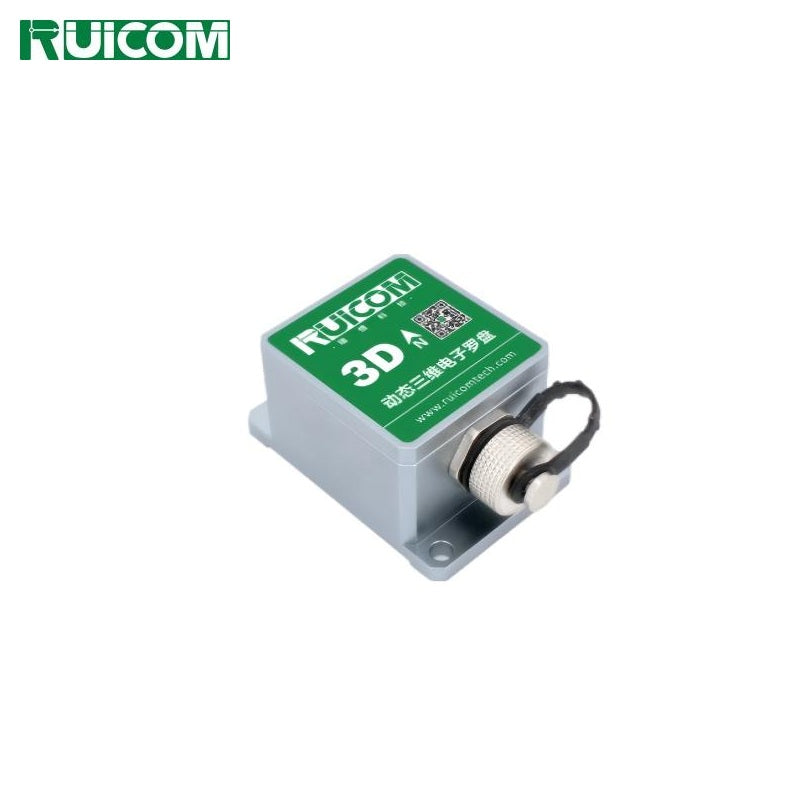

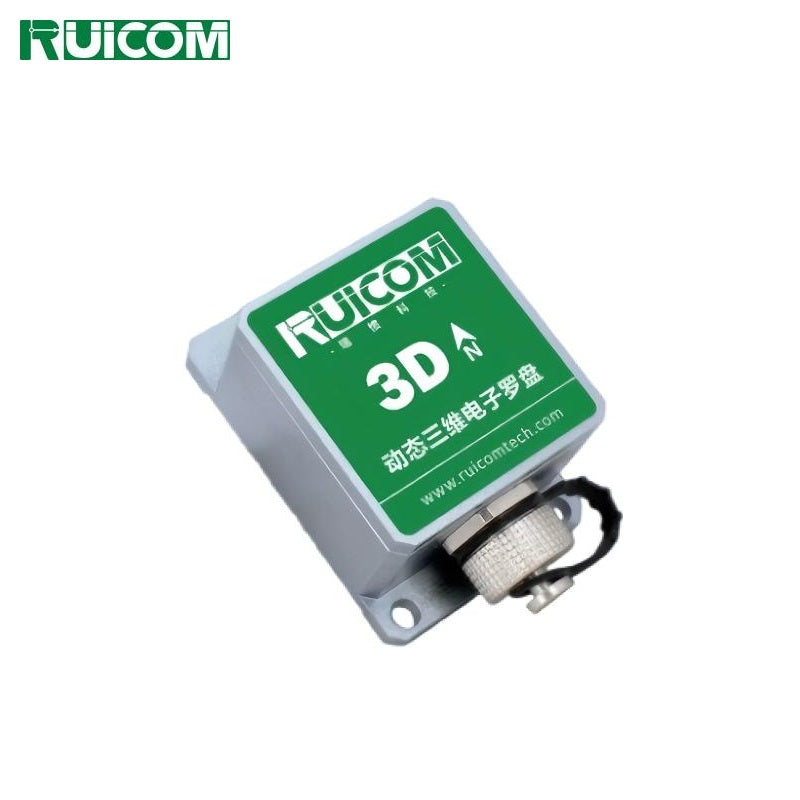

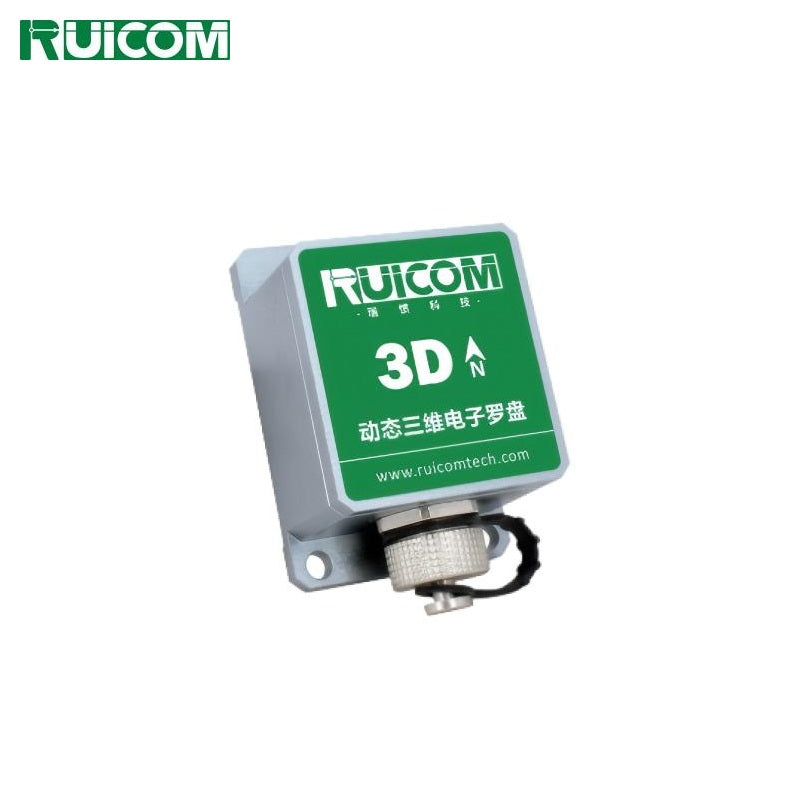

RUICOM GDM350/GDM360 Sensor

$165.00
Version

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information


Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value
Heading & Attitude:
Heading Accuracy 0.8°
Heading Resolution 0.1°
Pitch Measurement Range ±90°
Roll Measurement Range ±180°
Inclination Accuracy Static: 0.2°, Dynamic: 0.5°
   Inclination Resolution 0.1°
   Tilt Compensation Range Roll: ±180°, Pitch: < 85°
Calibration:
Hard Iron Calibration Supported
Soft Iron Calibration Supported
Magnetic Interference Calibration Method 1 full in-plane rotation (2D calibration)
   Interface Characteristics:
Start-up Delay < 50 ms
Output Update Rate 5~100Hz (Configurable)
Baud Rate 4800 to 115200 baud
Output Format Binary High-performance Communication Protocol
Physical Characteristics:
RS232/RS485/TTL Interface Connector Aviation Plug Connector
Bare Board Wiring 4PIN 30cm Terminal Wire
Power Supply:
Supply Voltage (Default) DC +5V; (Custom) DC 9~36V
Maximum Operating Current 45mA
Ideal Mode Current 35mA
Sleep Mode Current TBD
Environmental Specifications:
Operating Temperature Range -40 ~ +85℃
Storage Temperature Range -40 ~ +85℃
High-g Vibration Resistance 2500g
Electromagnetic Compatibility Compliant with EN 61000 and GB/T 17626
MTBF ≥ 98000 hours
Shock Resistance Insulation resistance
Shock Resistance 100g@11ms, Triaxial (Half-sine Wave)
Operational Vibration Resistance 10grms, 10~1000Hz
Weight:
Weight Bare Board: ≤25g; Enclosed Housing: ≤135g (Cable excluded)
