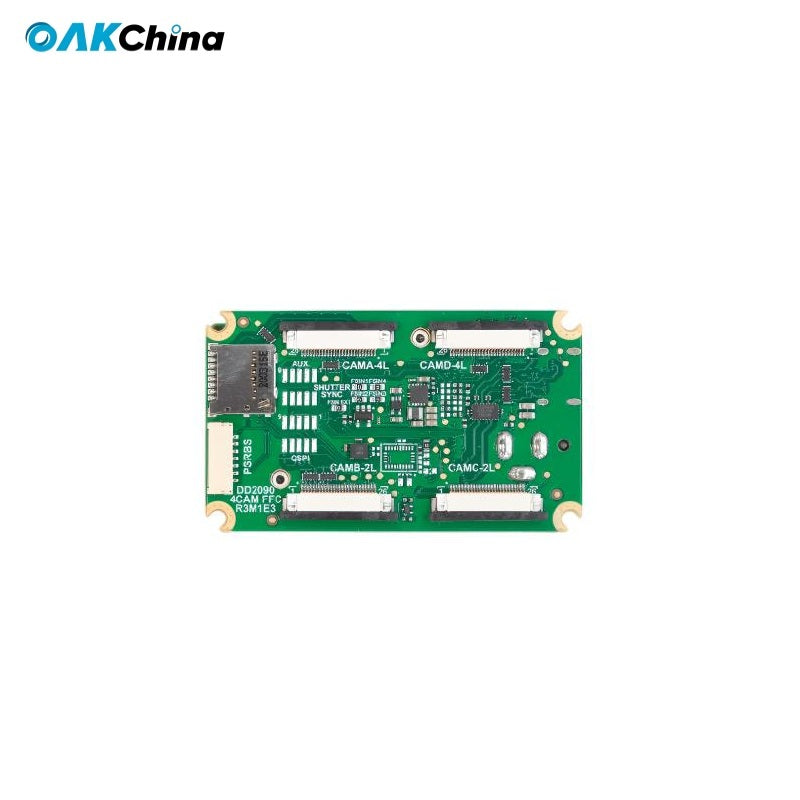

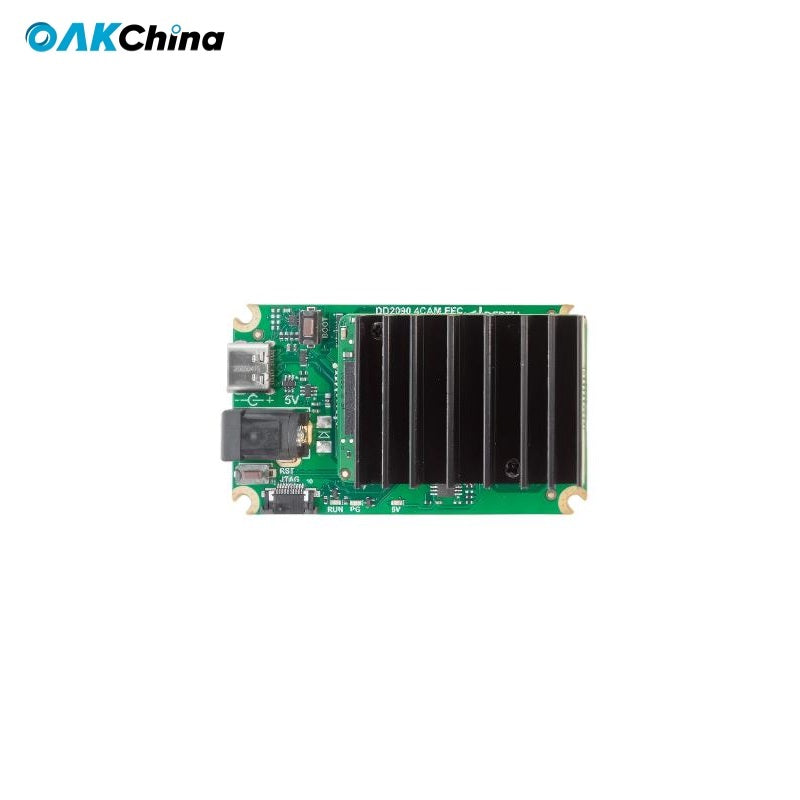

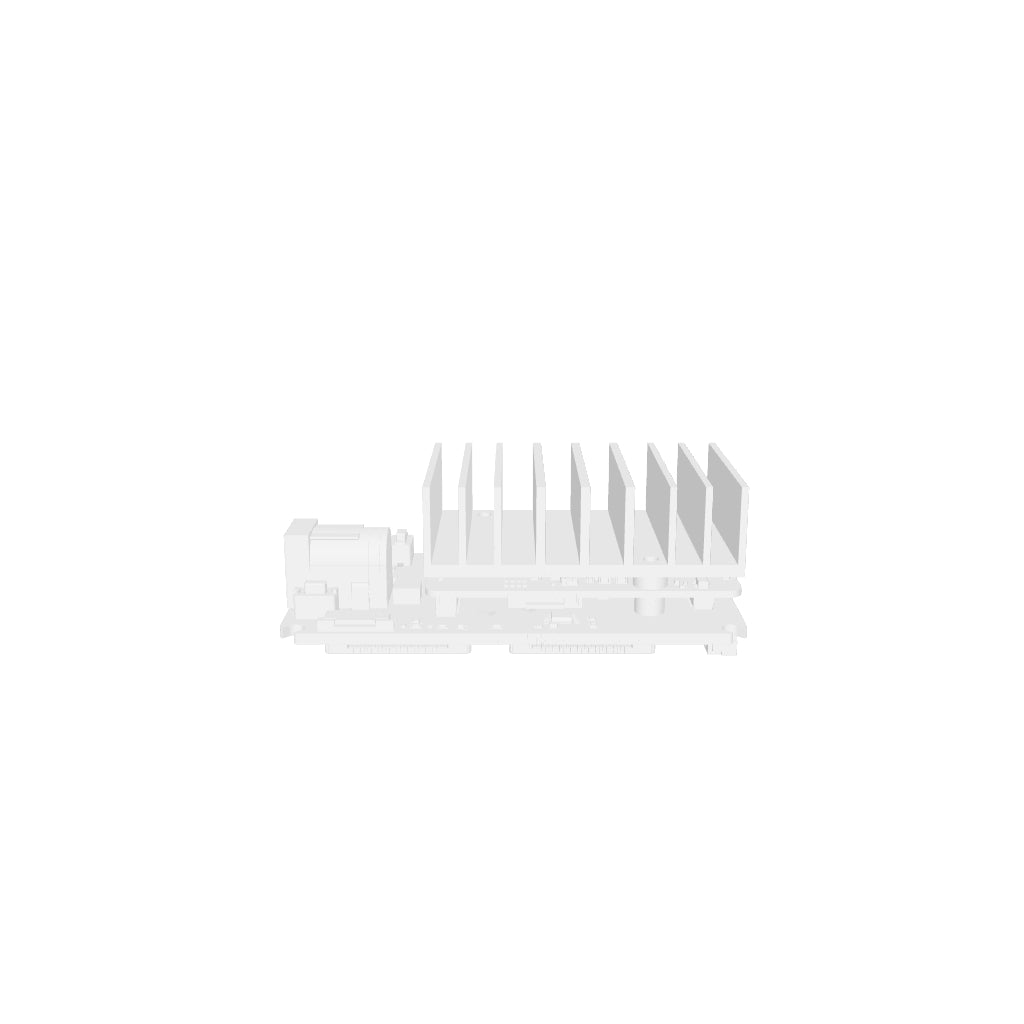

OAKChina OAK-FFC-4P Camera

$575.00
Version

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information


Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value
General Specifications:
Product Model OAK-FFC-4P
Structural Form Split type, FFC flexible cable connection

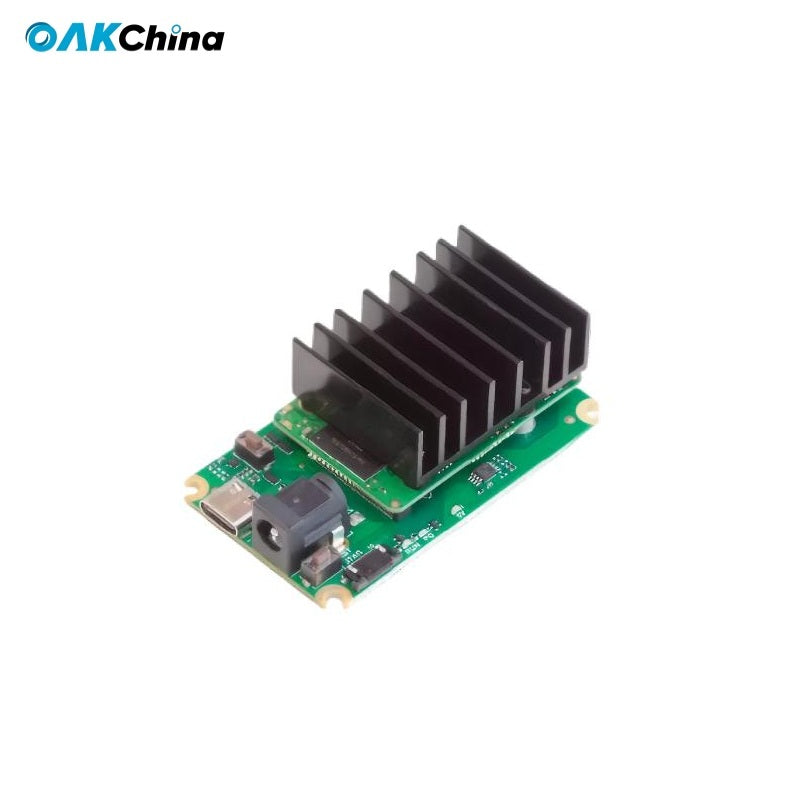

Overall Dimension 62×38×22 mm (PCBA + heat sink)
Net Weight 41g (PCBA + heat sink)
Operating Temperature Range -20℃ ~ 60℃
Processing & Performance:
Core Chipset RVC2 edge AI chipset
Edge AI Computing Power 4T total computing power, 1.4T available for AI reasoning
RVC2 Chipset Max Power 4.5W
Video Encoding Format H.264, H.265, MJPEG; 4K@30FPS, 1080P@60FPS
Camera & Depth Sensing:

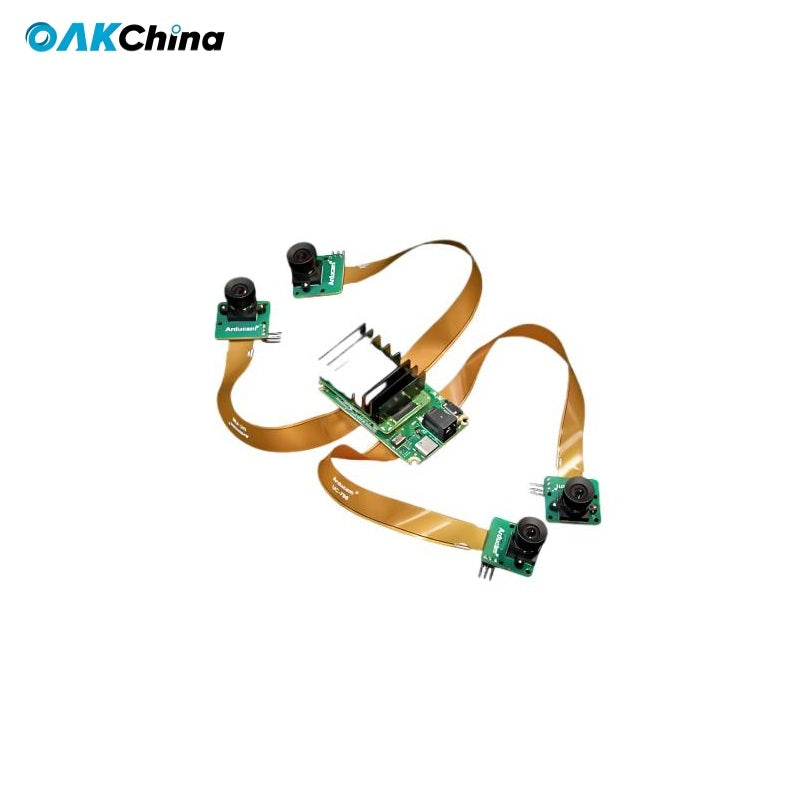

Camera Access Support 4 independent MIPI camera modules; 2×2-lane MIPI + 2×4-lane MIPI interface
Binocular Depth Baseline Customizable (adjustable distance between left and right cameras)
Extended Disparity Mode Supported (activated via StereoDepth node)
Minimum Sensing Distance (800P) 882.5×baseline÷95
Minimum Sensing Distance (400P) 441.25×baseline÷95
Minimum Sensing Distance (800P, Extended Mode) 882.5×baseline÷190
Minimum Sensing Distance (400P, Extended Mode) max(441.25×baseline÷190, 19.6)
Maximum Sensing Distance baseline÷2×tan[(90−71.9/1280)×π/180]
System & Electrical:
External Communication Interface USB 2.0 / USB 3.0
Onboard IMU BNO086
Working Power Consumption 2.5W ~ 3W (average)
