OAKChina | SKU:

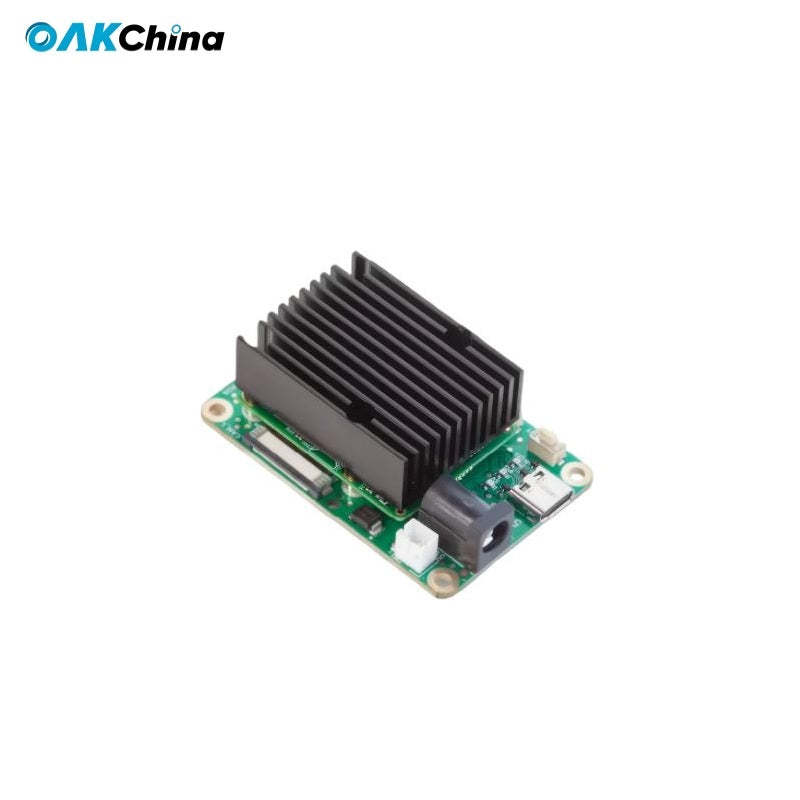

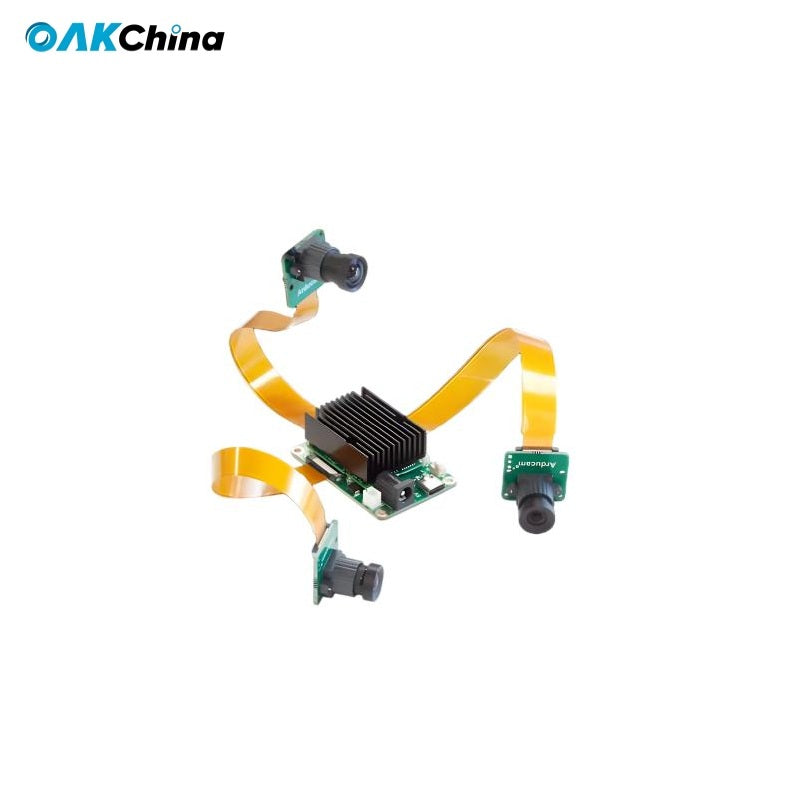

OAKChina OAK-FFC-3P Camera
Regular price
$70.00
Unit price
OAKChina OAK-FFC-3P Camera - B0413 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
OAKChina OAK-FFC-3P Camera
Regular priceFrom
$70.00
Unit price
OAKChina OAK-FFC-3P Camera - B0413 is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| RGB camera: | |
| Image Sensor (Sensor) | IMX477 |
| Field of View (DFOV / HFOV / VFOV) | 75° (Horizontal) |
| Resolution | 12MP (4032 × 3040) |
| Maximum Frame Rate | 60 FPS |
| Effective Focal Length (EFL) | 3.9 mm |
| Aperture (F-Number, F.NO) | F2.8 |
| Fixed Focus Range (FF) | 10 cm – ∞ |
| Optical Format (Sensor Size) | 1/2.3" |
| Optical Distortion | <1.0% |
| Pixel Pitch (Pixel Size) | 1.55 μm × 1.55 μm |
| Shutter Type | Rolling Shutter |
| Binocular camera: | |
| Image Sensor (Sensor) | OV9282 |
| Field of View (DFOV / HFOV / VFOV) | 75° (Horizontal) |
| Resolution | 1MP (1280 × 800) |
| Maximum Frame Rate | 120 FPS |
| Effective Focal Length (EFL) | 2.8 mm |
| Aperture (F-Number, F.NO) | F2.8 |
| Fixed Focus Range (FF) | 20 cm – ∞ |
| Optical Format (Sensor Size) | 1/4" |
| Optical Distortion | <1.5% |
| Pixel Pitch (Pixel Size) | 3 μm × 3 μm |
| Shutter Type | Global Shutter |
