OAKChina | SKU:
OAKChina OAK-D-SR Camera
Regular price
$500.00
Unit price
OAKChina OAK-D-SR Camera - OAK-D-SR is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
OAKChina OAK-D-SR Camera
Regular price
$500.00
Unit price
OAKChina OAK-D-SR Camera - OAK-D-SR is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Imaging & Depth: | |
| Depth Technology | Binocular Vision |
| Stereo Baseline | 2.0 cm |
| Theoretical Measurement Range | 0.2 - 3 m |
| Resolution | 1 MP (1280 x 800) |
| Maximum Frame Rate | 120 FPS (800P) |
| Shutter | Global Shutter (Stereo Camera) |
| AI & Processing: | |
| Core Chip | Myriad X VPU |
| Neural Network Computing Power | 4 TOPS (1.4 TOPS for AI) |
| Supported Neural Network Types | Almost All Mainstream Neural Network Frameworks |
| Motion & Sensors: | |
| Inertial Measurement Unit (IMU) | BMI270 |
| Optics: | |
| Field of View (FOV) | 89.5 deg D / 80 deg H / 55 deg V |
| Focus Range | FF: 20 cm - infinity (Stereo Camera) |
| Lens Size | 1/4" |
| Image Sensor | OV9782 (Color Stereo Camera) |
| Physical & Electrical: | |

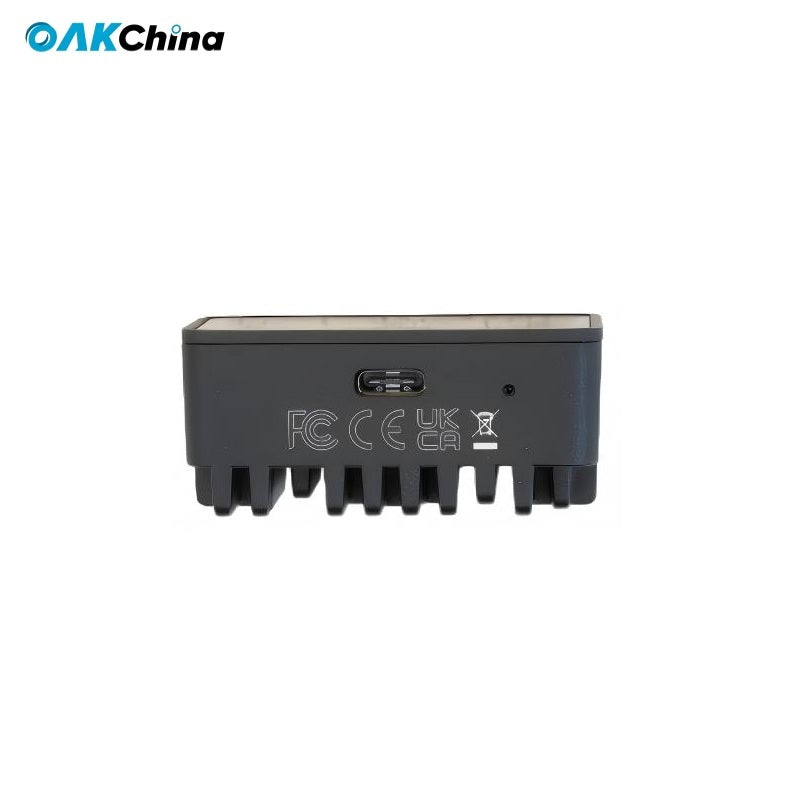

| Connector | USB3.0 |
| Power Consumption | 2 W - 5.5 W |
| Dimensions | 56 x 36 x 25 mm |
| Weight | 72 g |

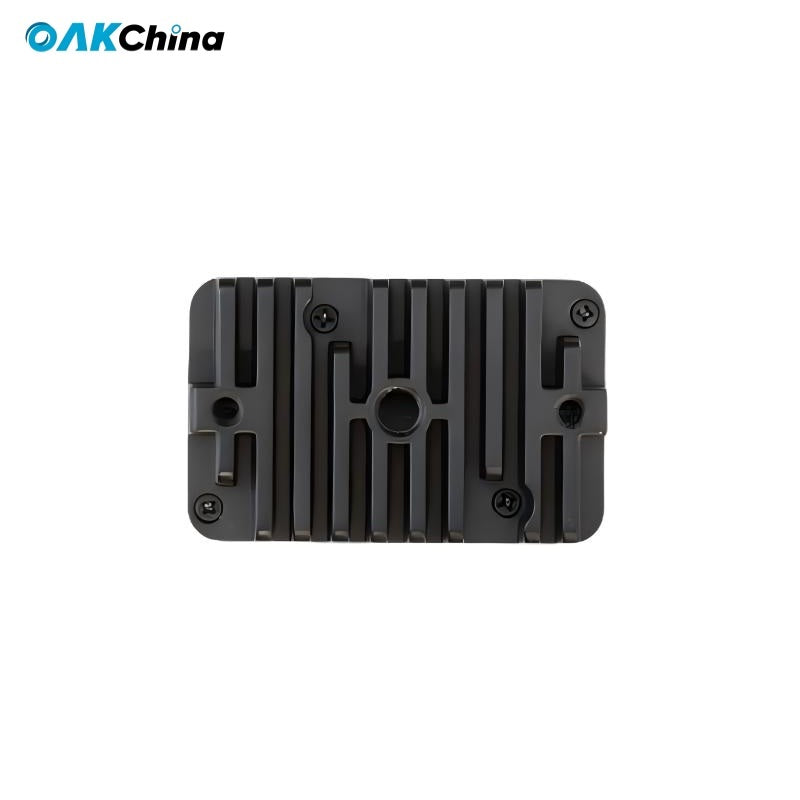

| Mounting Hole | 1/4" Standard Tripod Mount |
