OAKChina | SKU:

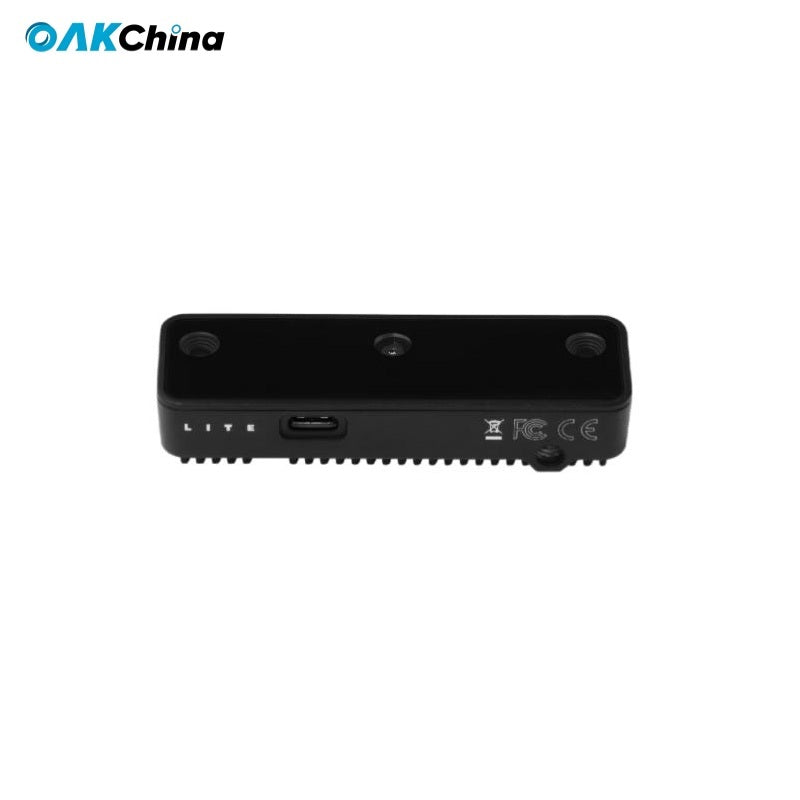

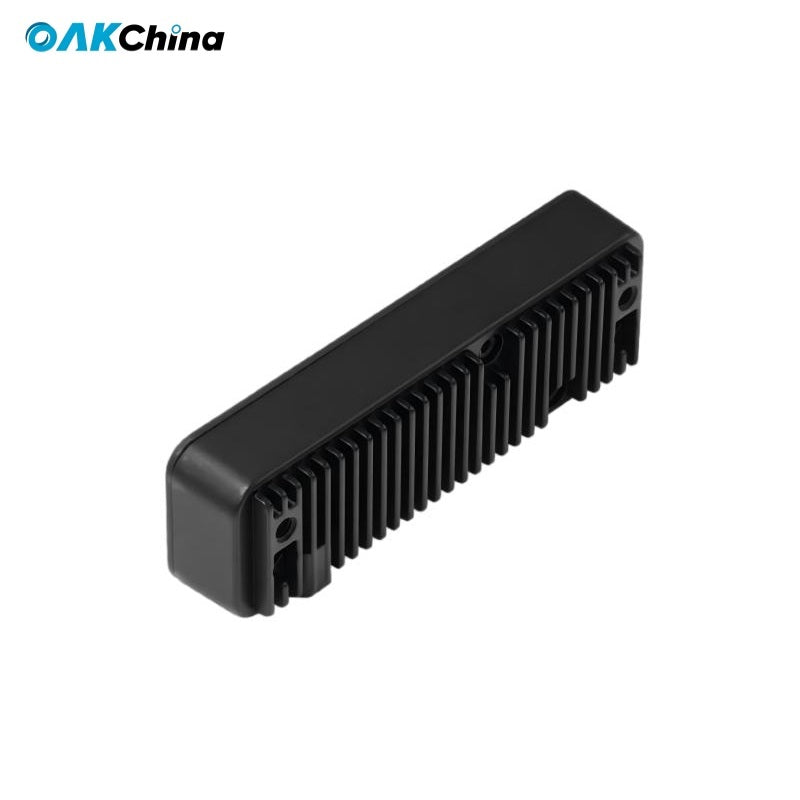

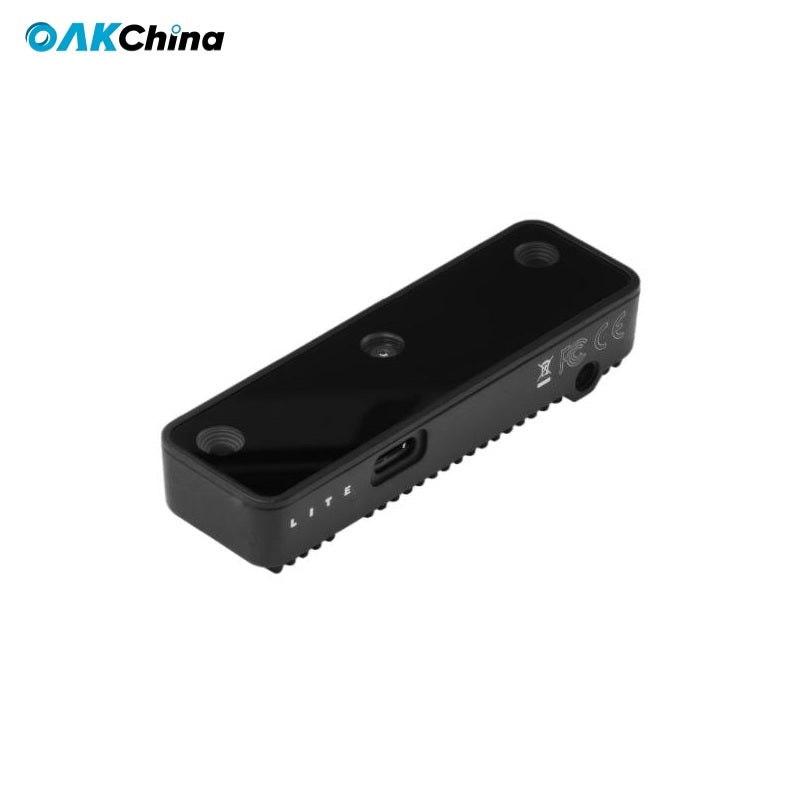

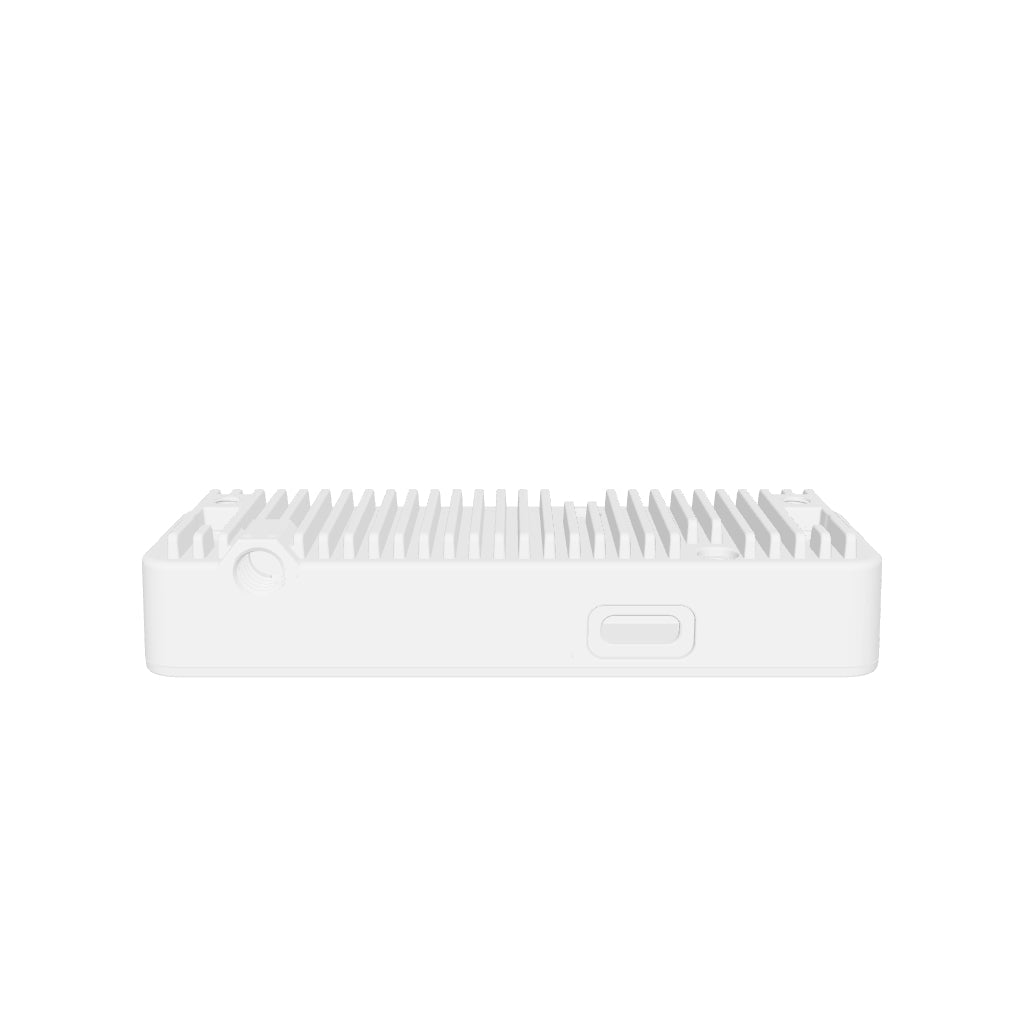

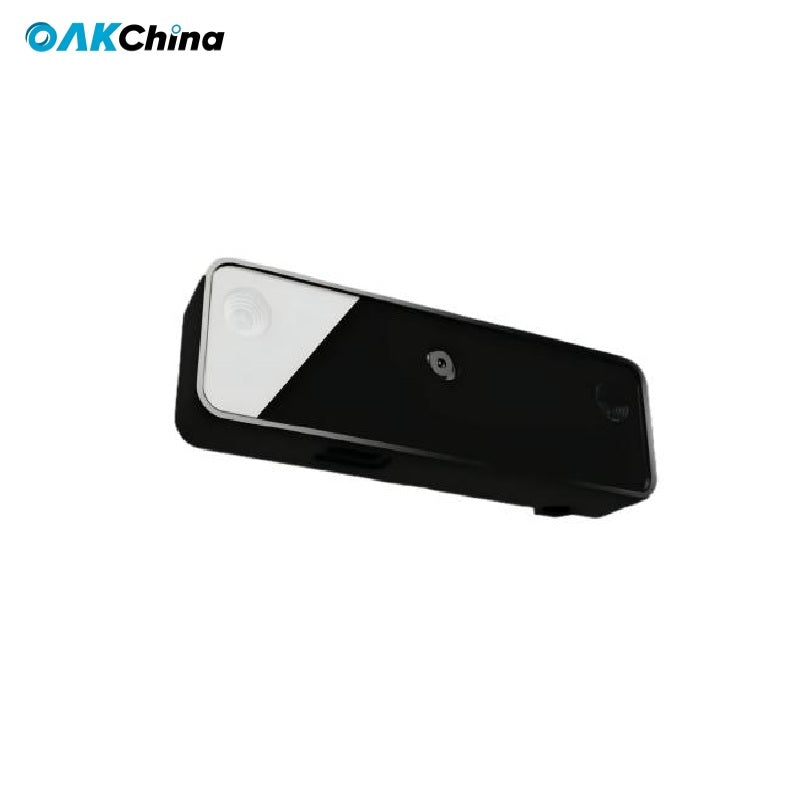

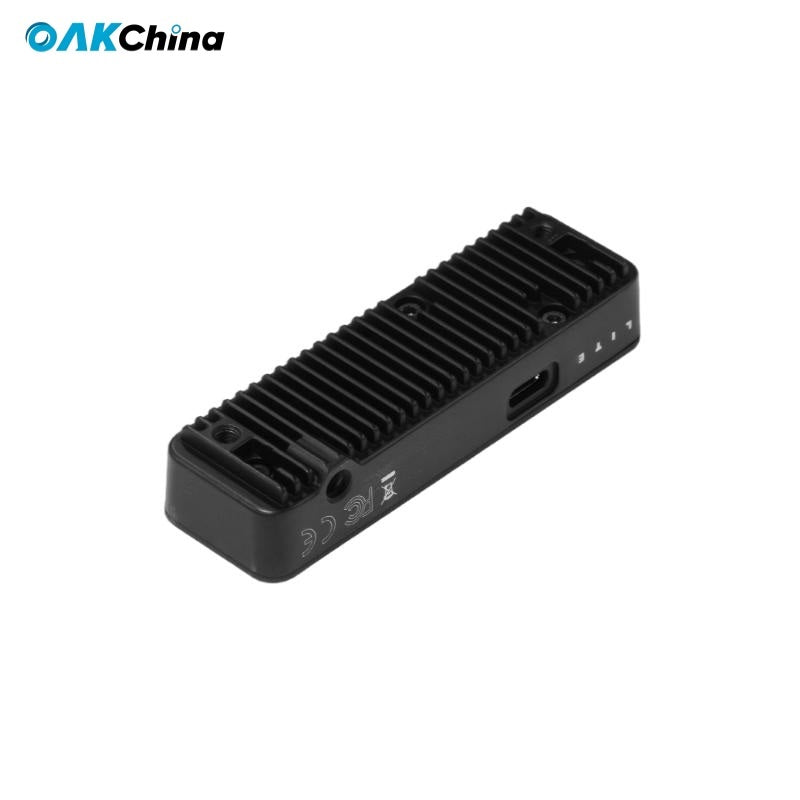

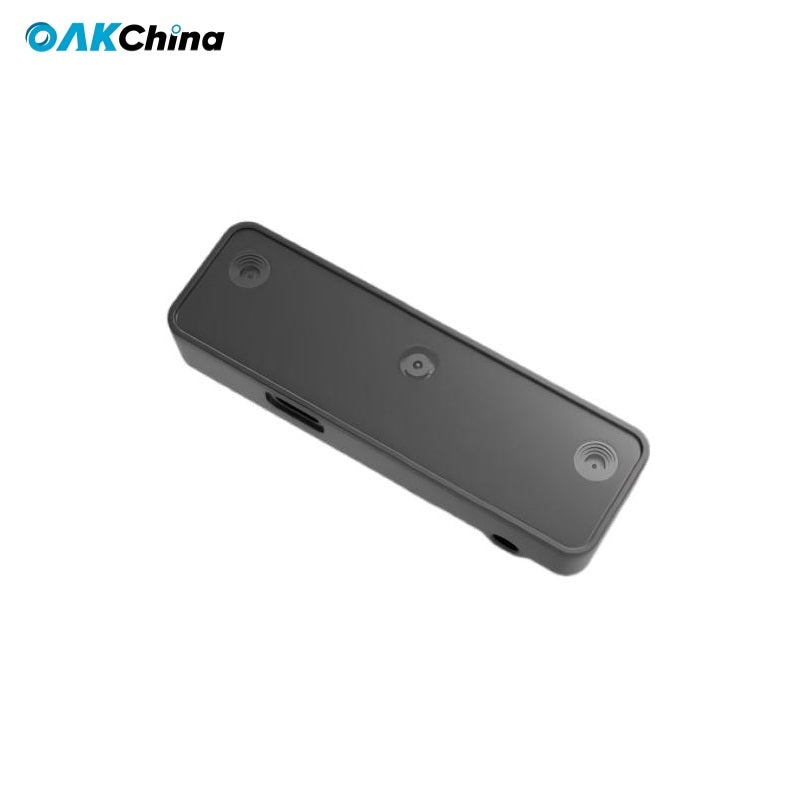

OAKChina OAK-D-Lite Camera
Regular price
$380.00
Unit price
OAKChina OAK-D-Lite Camera - OAK-D-Lite / FF is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
OAKChina OAK-D-Lite Camera
Regular price
$380.00
Unit price
OAKChina OAK-D-Lite Camera - OAK-D-Lite / FF is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | RGB Camera (AF) | RGB Camera (FF) | Stereo Camera |
|---|---|---|---|
| Image Sensor | IMX214 | IMX214 | OV7251 |
| DFOV / HFOV / VFOV | 81° D / 69° H / 54° V | 81° D / 69° H / 54° V | 86° D / 73° H / 58° V |
| Resolution | 13MP (4208 × 3120) | 13MP (4208 × 3120) | 480P (640 × 480) |
| Maximum Frame Rate | 35 FPS | 35 FPS | 120 FPS |
| Effective Focal Length (EFL) | 3.37 mm | 3.37 mm | 1.3 mm |
| Aperture (F.NO) | 2.2 ±5% | 2.2 ±5% | 2.0 ±5% |
| Focus Range | AF: 8cm - ∞ | FF: 50cm - ∞ | FF: 6.5cm - ∞ |
| Lens Size (Optical Format) | 1/3.1" | 1/3.1" | 1/7" |
| Pixel Size | 1.12 μm × 1.12 μm | 1.12 μm × 1.12 μm | 3 μm × 3 μm |
| Shutter Type | Rolling Shutter | Rolling Shutter | Global Shutter |
