NANGU | SKU:

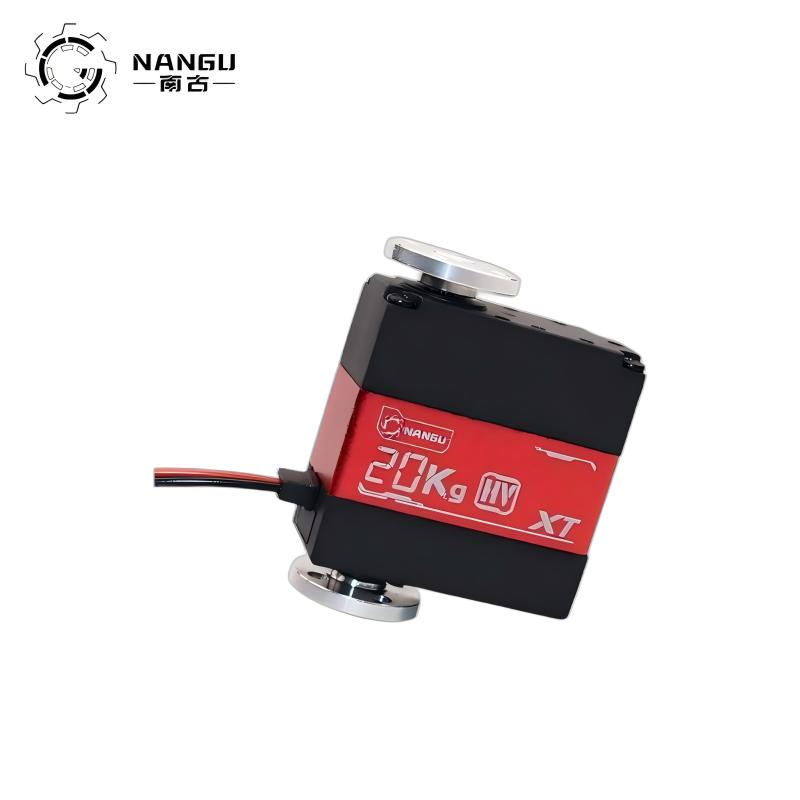

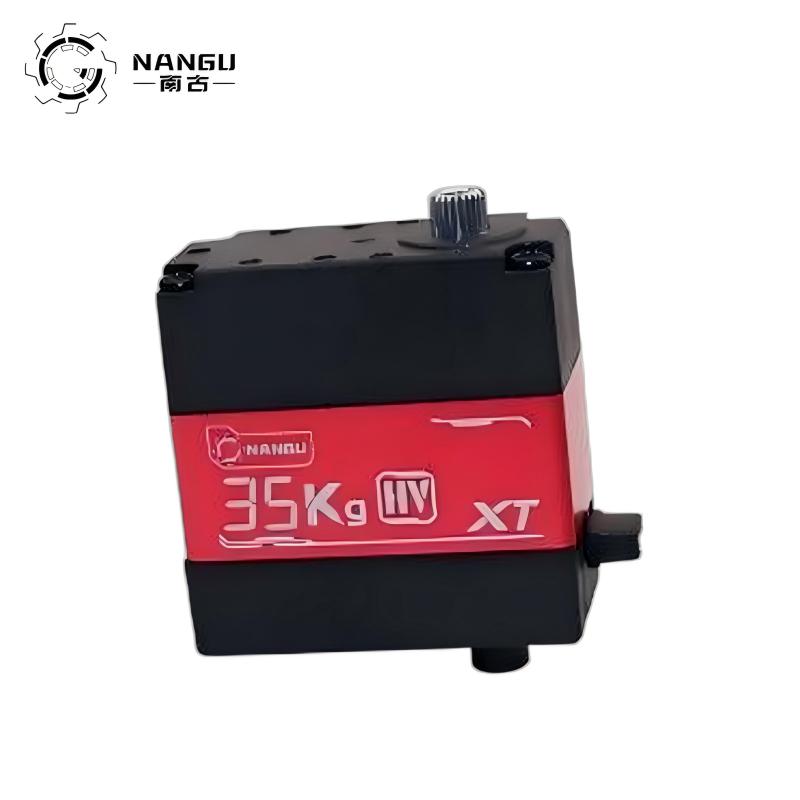

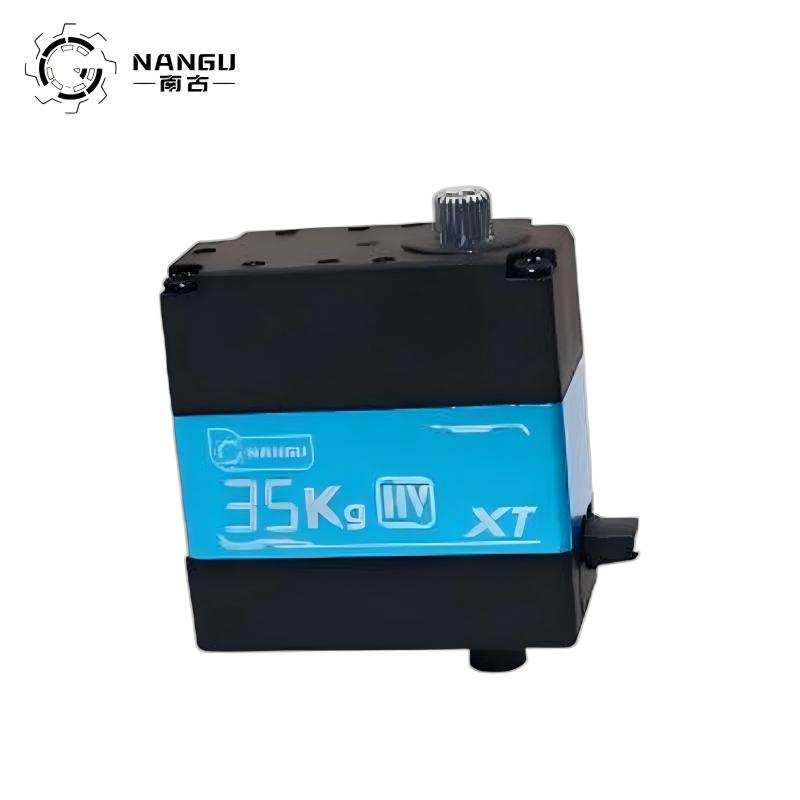

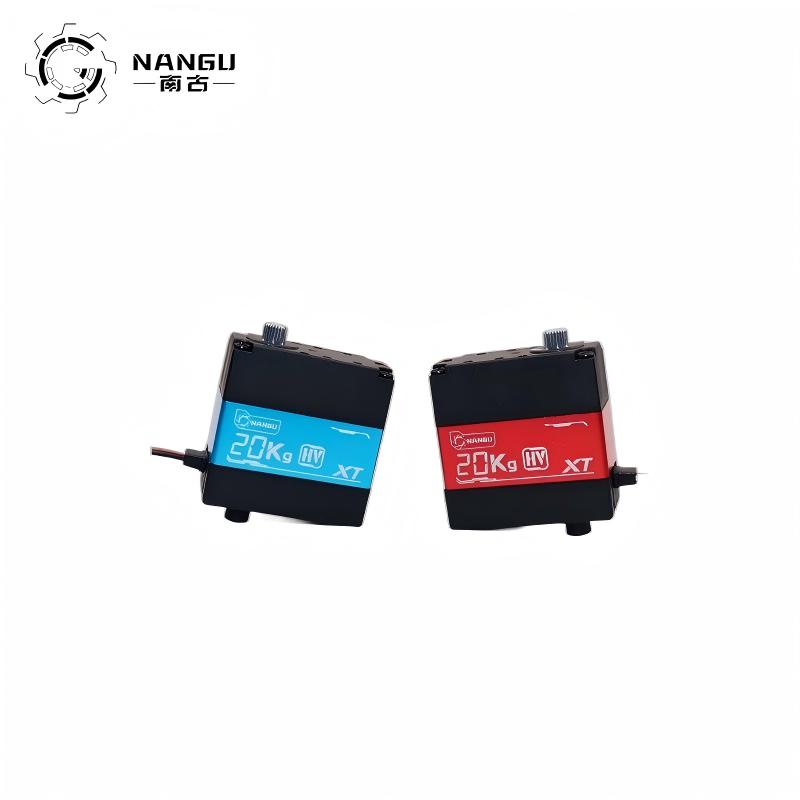

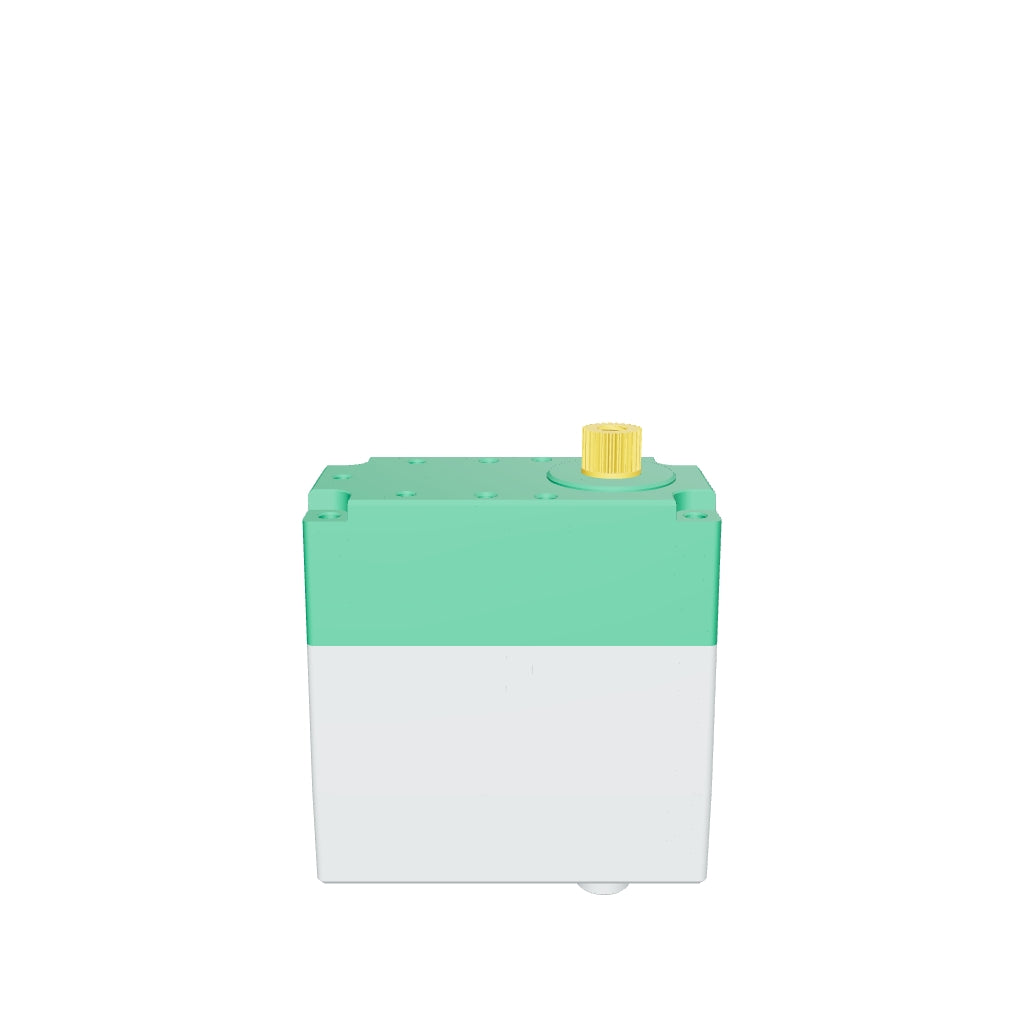

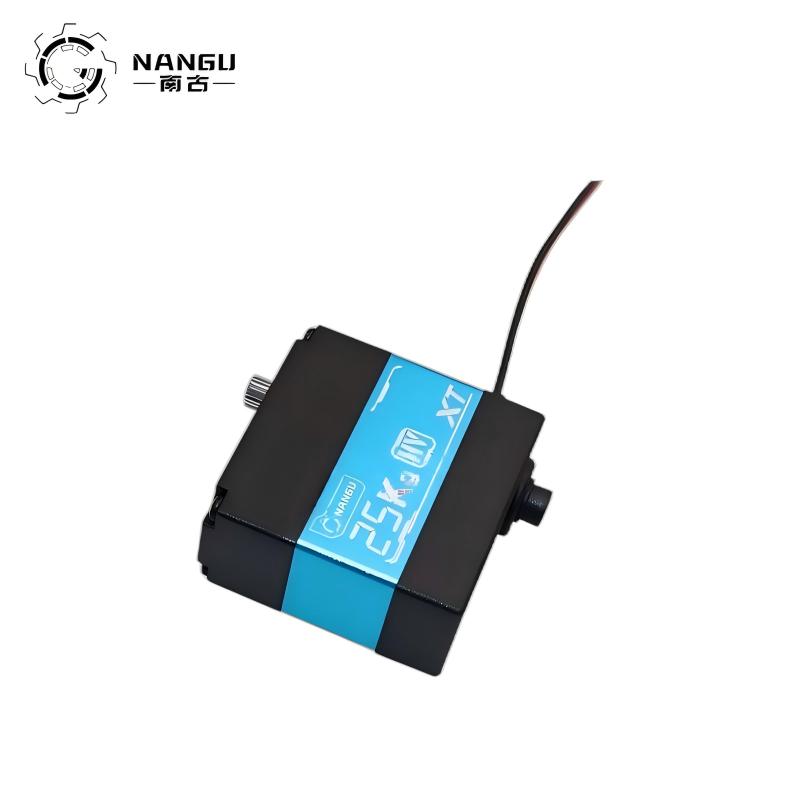

NANGU NG5020 Double-Axis Servo Motor
Regular price
$25.00
Unit price
NANGU NG5020 Double-Axis Servo Motor - Blue 20KG / 180° (Includes Metal Servo Disc) is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
NANGU NG5020 Double-Axis Servo Motor
Regular priceFrom
$25.00
Unit price
NANGU NG5020 Double-Axis Servo Motor - Blue 20KG / 180° (Includes Metal Servo Disc) is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | 5V | 6V | 7.4V | 8.4V |
|---|---|---|---|---|
| Semi-Metal 25KG (Low Speed) | ||||
| Speed / 60° (s) | 0.27 | 0.25 | 0.24 | 0.23 |
| No-load Current (mA) | 450 | 500 | 550 | 600 |
| Stall Torque (kg) | 25 | 27 | 28 | 29 |
| Stall Current (A) | 2.5 | 2.8 | 3.5 | 4.3 |
| Weight (g) | 57 | |||
| Semi-Metal 35KG (Low Speed) | ||||
| Speed / 60° (s) | 0.28 | 0.27 | 0.26 | 0.25 |
| No-load Current (mA) | 480 | 580 | 600 | 650 |
| Stall Torque (kg) | 35 | 36 | 37 | 37.5 |
| Stall Current (A) | 2.6 | 3 | 3.6 | 4.5 |
