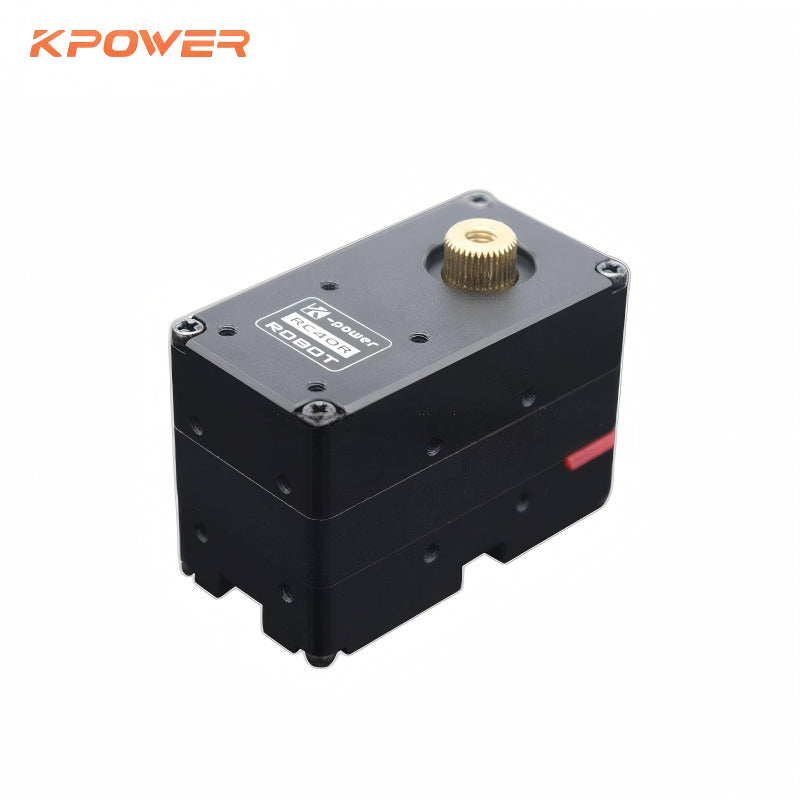

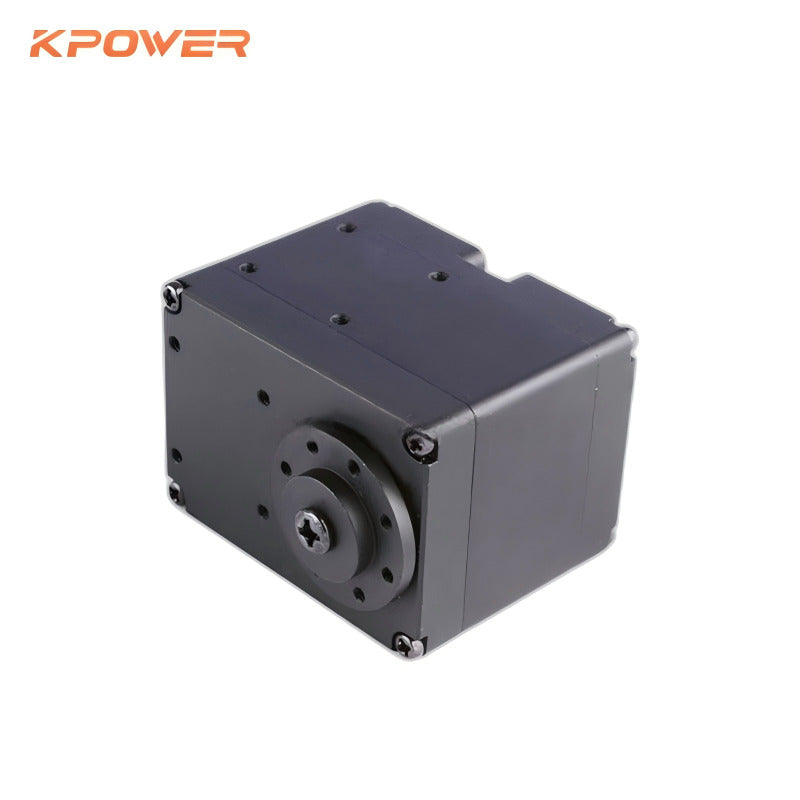

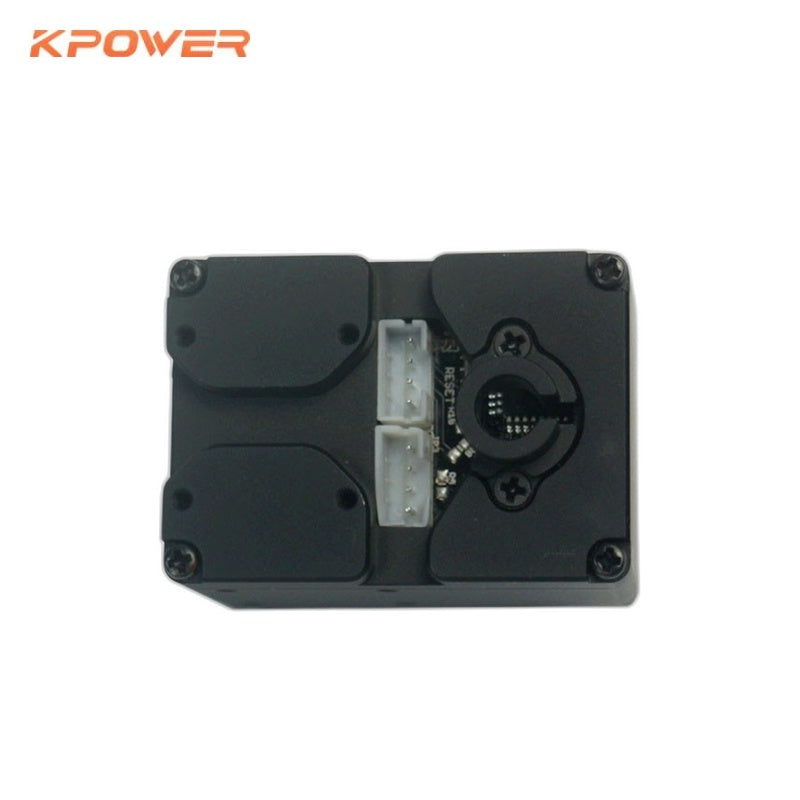

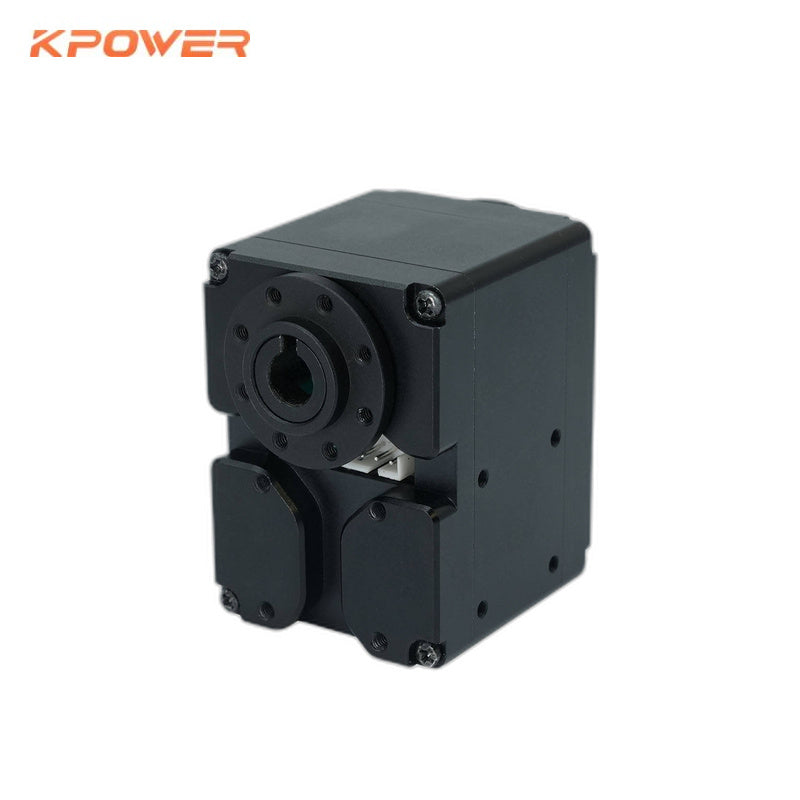

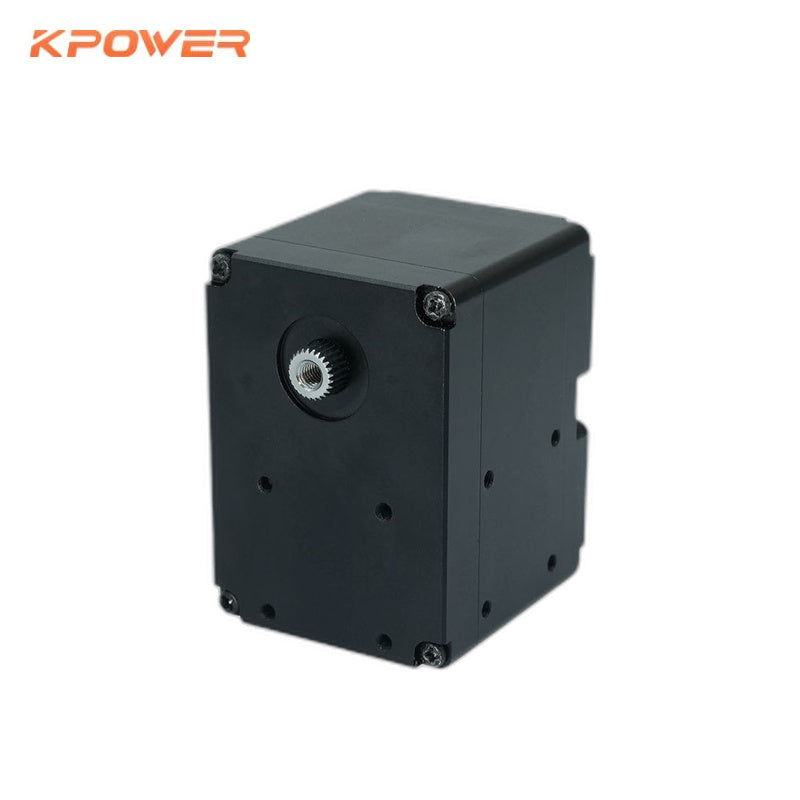

Kpower RC40R Servo Motor
Regular price
$200.00
Unit price
Kpower RC40R Servo Motor - RC40R is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Dimension | 45 × 32 × 35 mm |
| Weight | 68 g |
| Voltage Range | DC 9.0 ~ 14.8 V |
| Rated Voltage | 12 V |
| Stall Torque | 4.5 N·m (46 kg·cm) |
| No load Speed | 47.2 rpm (0.21 s/60°) |
| Motor Type | Coreless |
| Resolution | 0.35° |
| Running Degree | 0 ~ 360° |
| Mode | Servo / Wheel Mode (endless rotation) |
| Communication Protocol | RS485 (Up To 115200 baud rate) |
| NO.of Wire | 4Pin |
| Output Shaft | 8 mm, 35T |
| Feedback | Position, Speed, Load, Input Voltage, Temperature, etc. |
| Position Sensor | Magnetic encoder |
| ID | 0 ~ 254 |
| Case | CNC Aluminium Alloy |
| Gear | 7075 Aluminium Coated With Titanium |
| Note | Users can change the baud rate and ID on demand. High torque, versatile connections, with wire‑hidden slots. |
