Kpower | SKU:

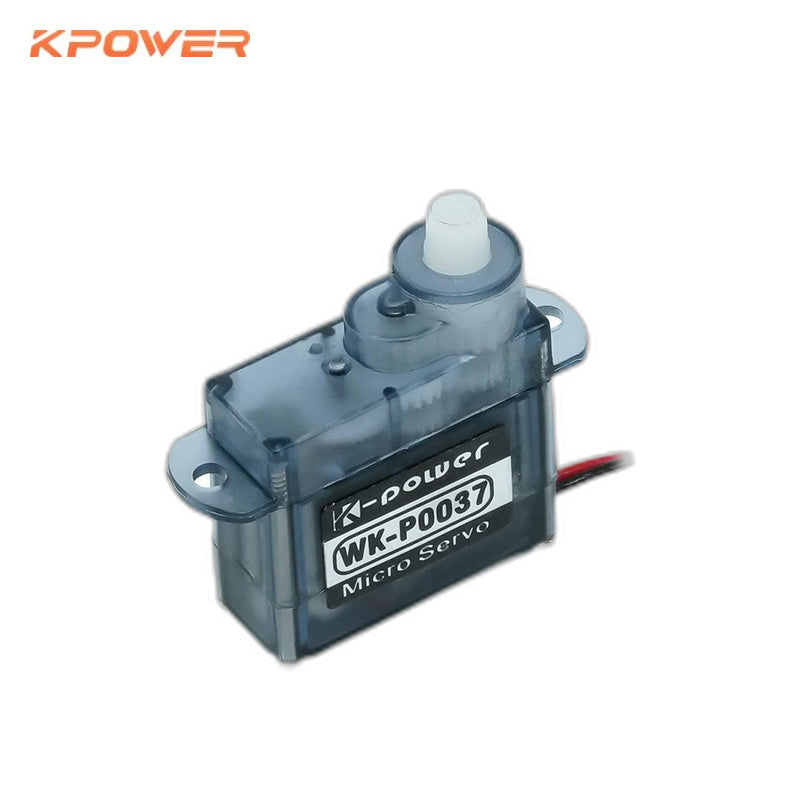

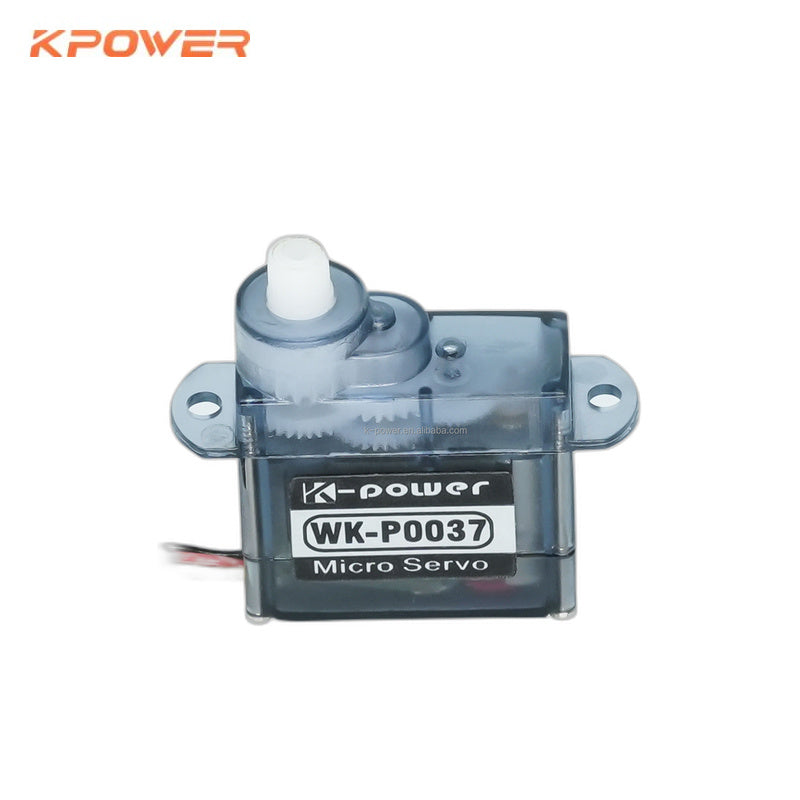

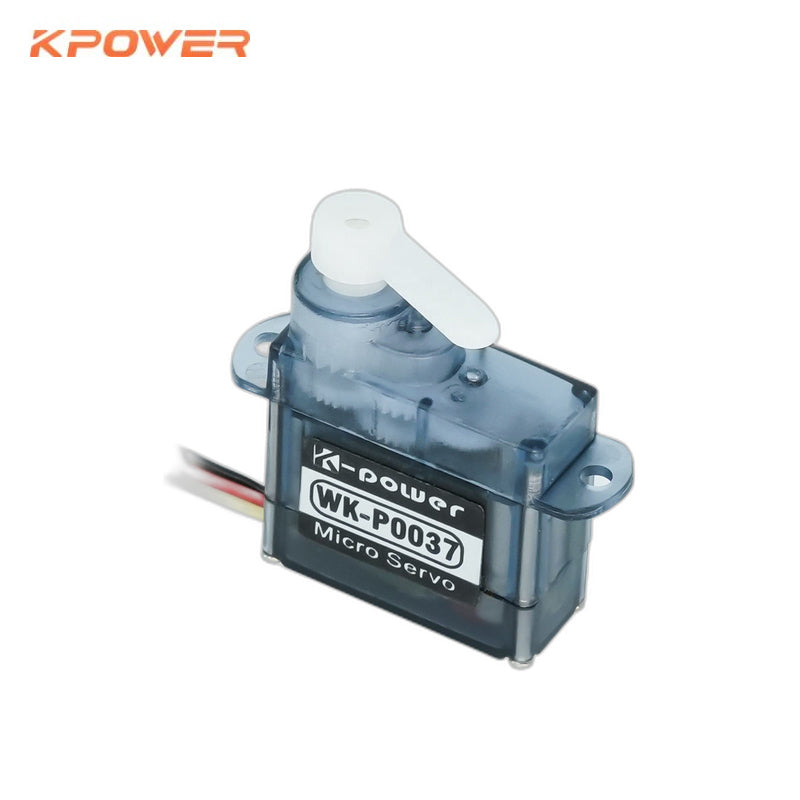

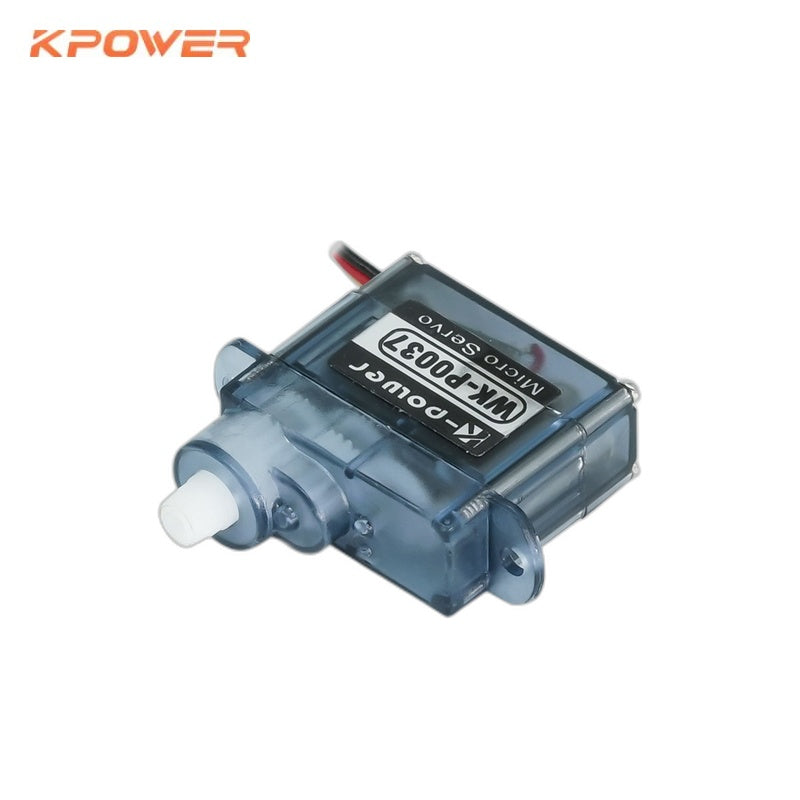

Kpower P0037 Servo Motor
Regular price
$25.00
Unit price
Kpower P0037 Servo Motor - P0037 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
Kpower P0037 Servo Motor
Regular price
$25.00
Unit price
Kpower P0037 Servo Motor - P0037 is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Model | P0037 tiny servo |
| Case Material | Plastic |
| Gear Material | POM |
| Weight | 3.7 g / 0.1 oz |
| Dimension | 19.8 × 8.2 × 22.2 mm / 0.78" × 0.32" × 0.87" |
| Operation Voltage | 4.8 ~ 6.0 V |
| Torque | 4.8V: 0.75 kg·cm (10 oz·in) 6.0V: 0.85 kg·cm (12 oz·in) |
| Speed | 4.8V: 0.08 sec/60° 6.0V: 0.07 sec/60° |
| Pulse Width | 1000 ~ 1500 μs |
| Dead Band Width | 2 μs |
| Interface Type | JR / FT / JST1.5 / JST2.0 / Other |
| Operating Temperature | -20 ~ 60 °C |
| Splining | 20T φ3.6 mm |
| Certification | CE & FCC |
| Application | RC Airplane |
| Service | Lifetime Warranty. Customized and OEM are available. If you have any other requirement, pls feel free to tell us. Thanks. |
