1 4
Kpower

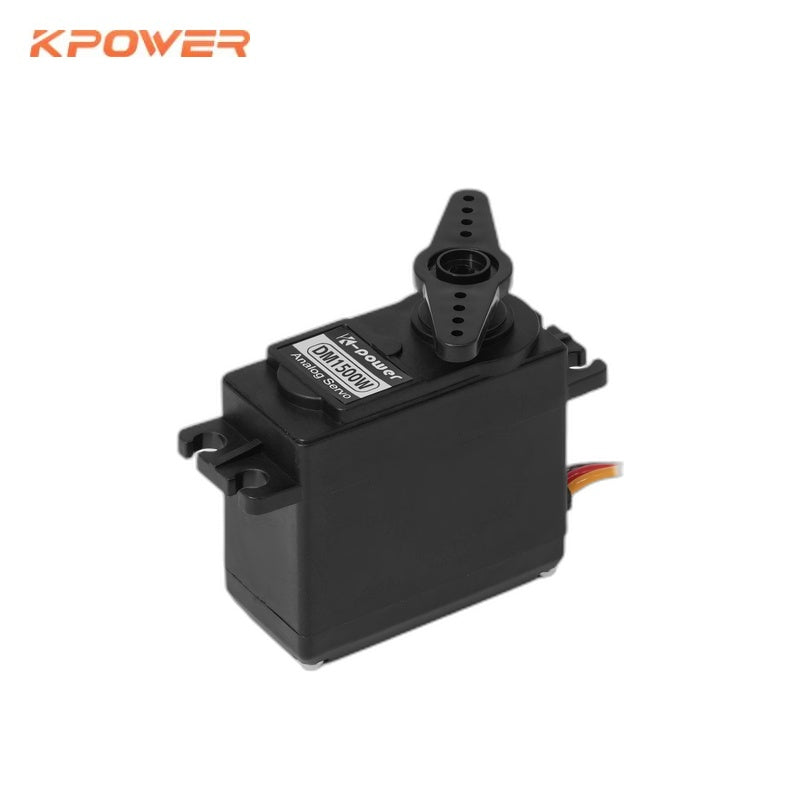

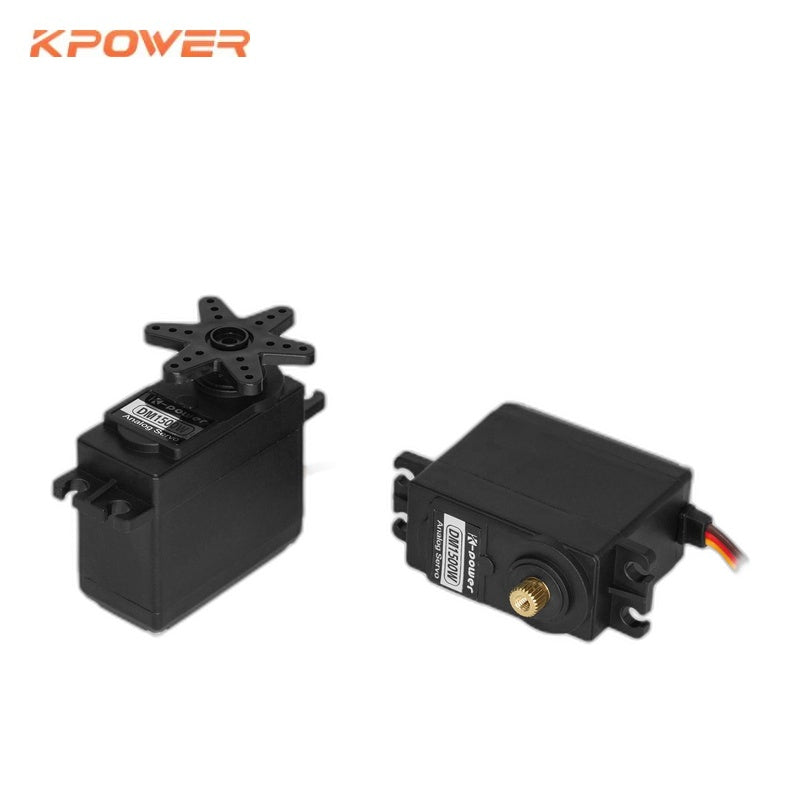

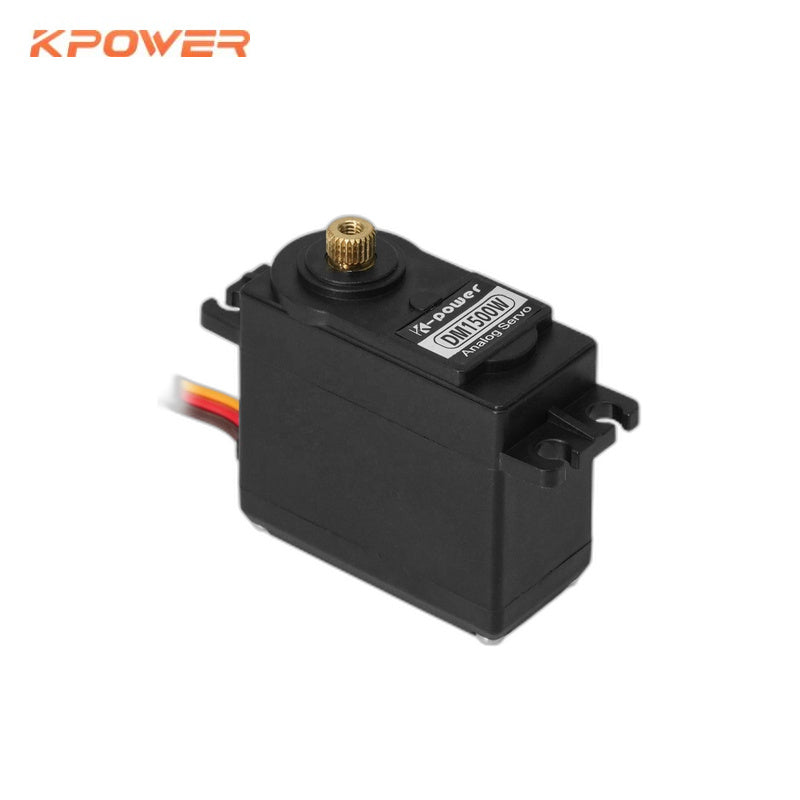

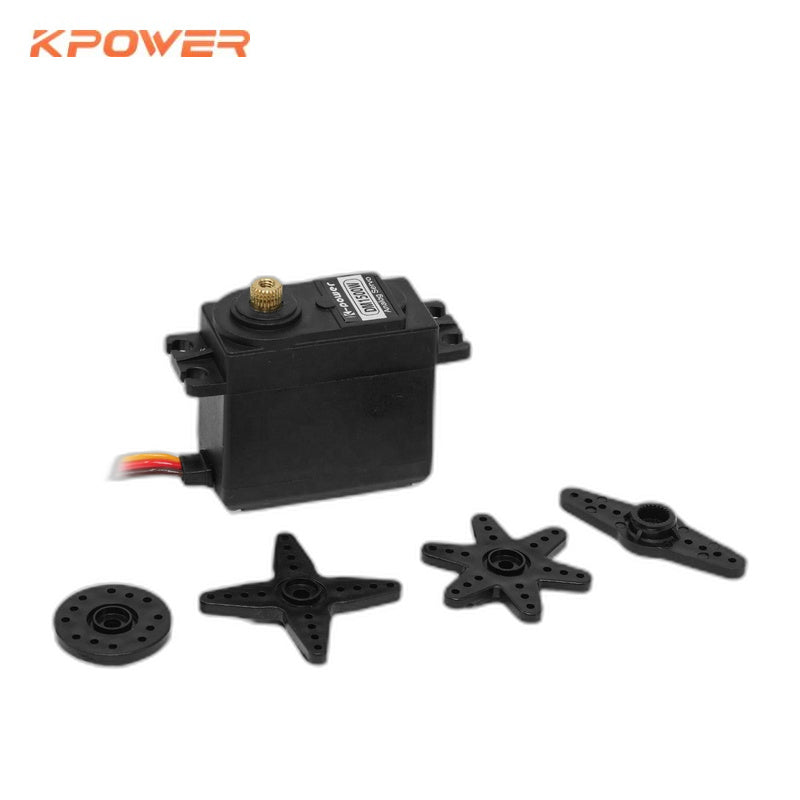

Kpower DM1500W Servo Motor

$25.00
Version

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information


Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value
Stall Torque 16.3 kg
Rated Torque 2.5 kg
No-load Speed 0.13 s/60°
Weight 60 g
Dimension 40.7 × 19.8 × 37.7 mm
Travel Angle Range 120°/180° (Customizable)
Operating Voltage 4.8 ~ 8.4 V
Horn Gear Spline 25T φ6 mm
Gear Material Metal
Motor DC Brushed
Protocol PWM
No-load Current 2500 mA
Position Sensor Potentiometer
Case Material Plastic
Ball Bearing 2BB
Working Frequency 50 ~ 333 Hz
Operating Temperature -10 ~ 50°C
IP Rating IP67
