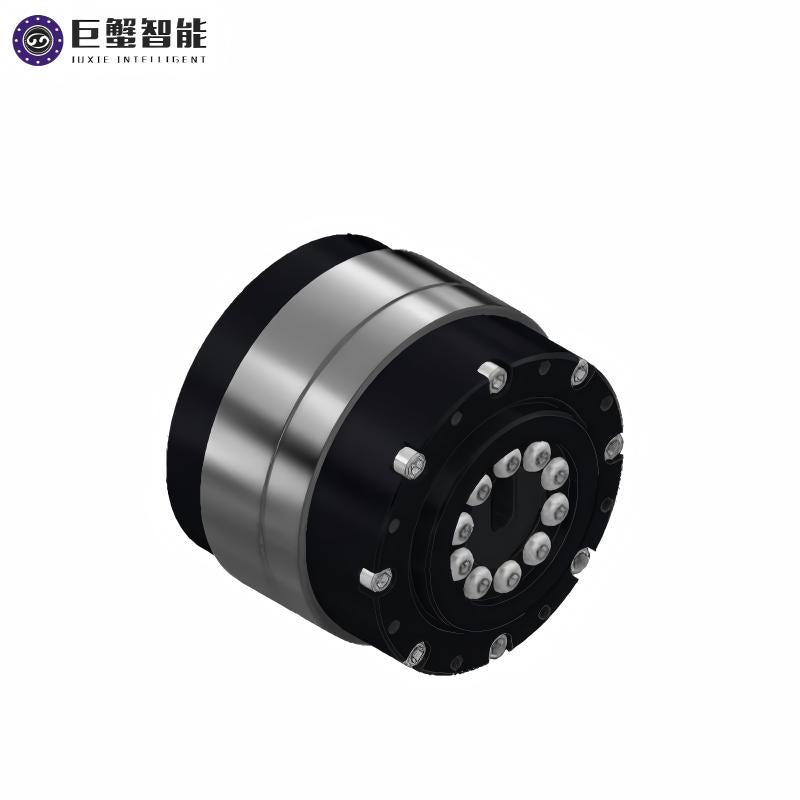

JUXIE INTELLIGENT CE-HM-R58 Series Motor
Regular price
$1,600.00
Unit price
JUXIE INTELLIGENT CE-HM-R58 Series Motor - CE-HM-R58 Motor (51:1) is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
JUXIE INTELLIGENT CE-HM-R58 Series Motor
Regular price
$1,600.00
Unit price
JUXIE INTELLIGENT CE-HM-R58 Series Motor - CE-HM-R58 Motor (51:1) is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value | Value |
|---|---|---|
| Configuration | 51:1 | 101:1 |
| Output Speed(RPM) | 60 | 30 |
| Rated Torque(Nm) | 10 | 20 |
| Peak Torque(Nm) | 25 | 45 |
| Backlash(Arcsec) | 15 | 15 |
| Rated Voltage(V) | 48 | 48 |
| Rated Power(W) | 95 | 95 |
| Rated Speed(RPM) | 3000 | 3000 |
| Rated Current(A) | 3.5 | 3.5 |
| Peak Current(A) | 10 | 10 |
| Éncoder |
Dual Encoders Single-turn Absolute Value: 19-bit per turn |
Dual Encoders Single-turn Absolute Value: 19-bit per turn |
| Driver |
Interface: EtherCAT/CAN Current Loop: 50KHz Speed Loop: 10KHz |
Interface: EtherCAT/CAN Current Loop: 50KHz Speed Loop: 10KHz |
| Overall Dimensions | R58* 52.1mm | R58* 52.1mm |
| Overall Weight | 0.5kg | 0.5kg |
| Typical Applications | Head, Wrist Joints, Elbow Joint | Head, Wrist Joints, Elbow Joint |
