DAMIAO | SKU:

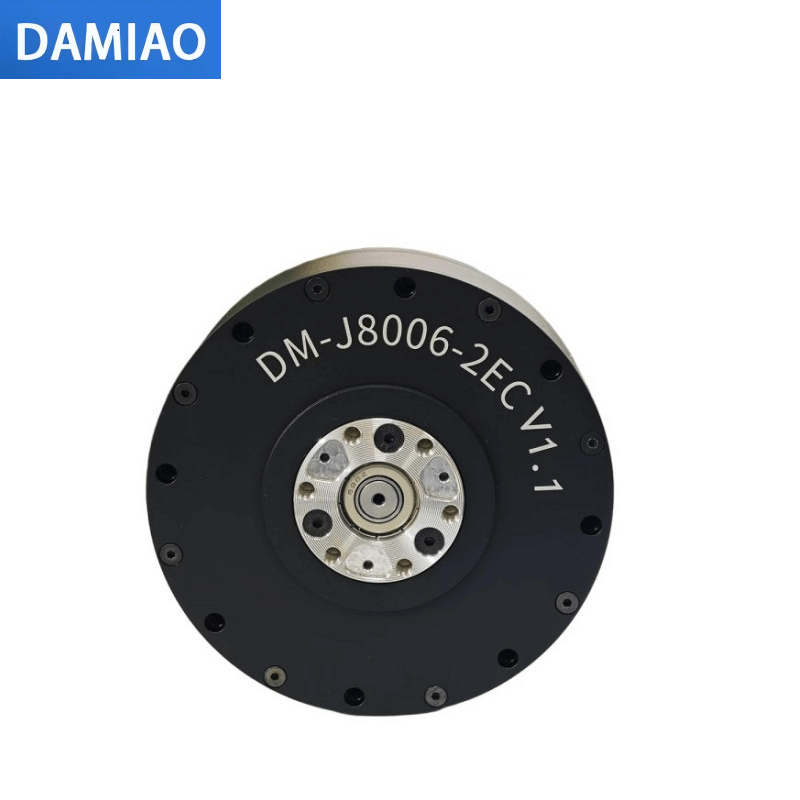

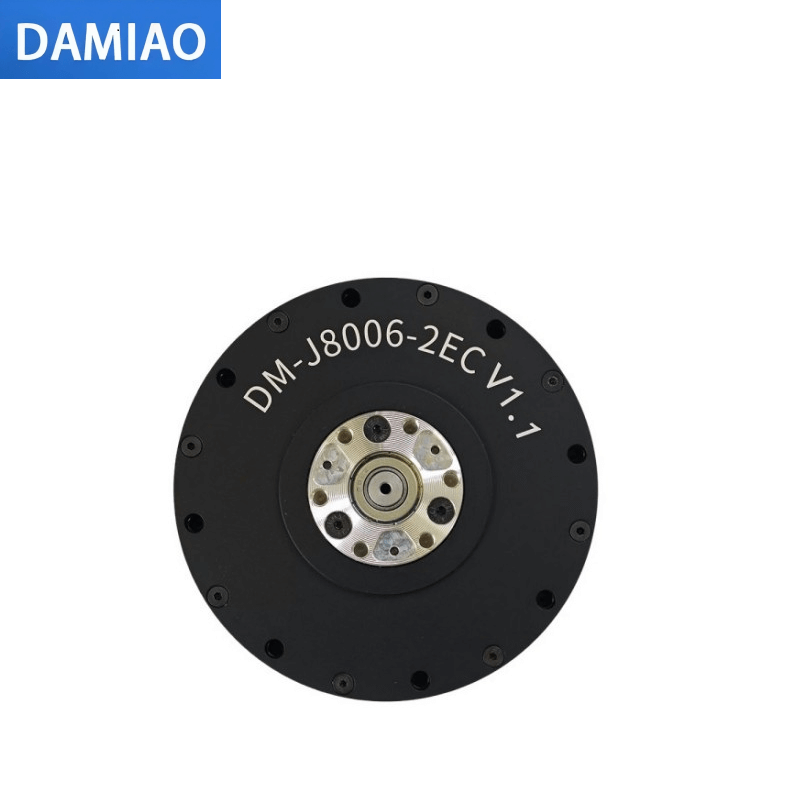

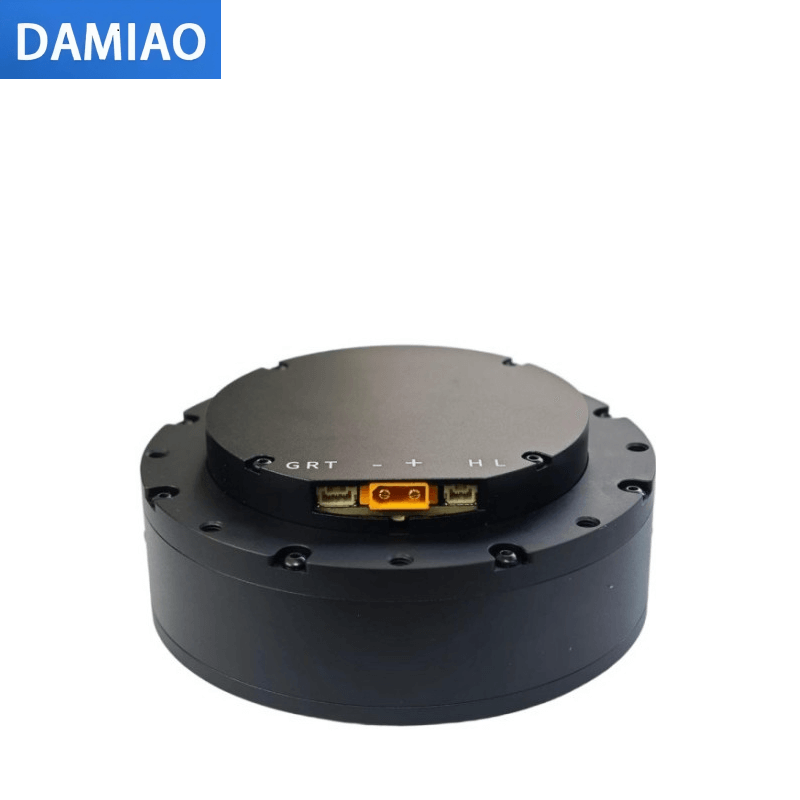

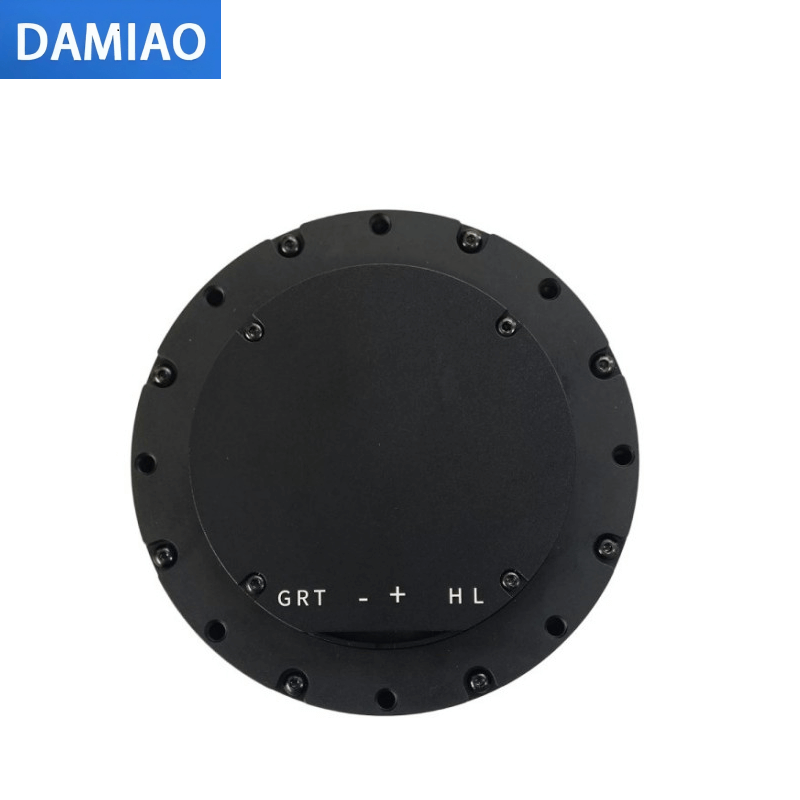

DAMIAO DM-J8006-2EC V1.1 Motor
Regular price
$210.00
Unit price
DAMIAO DM-J8006-2EC V1.1 Motor - Include Driver / NOT Include is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
DAMIAO DM-J8006-2EC V1.1 Motor
Regular priceFrom
$210.00
Unit price
DAMIAO DM-J8006-2EC V1.1 Motor - Include Driver / NOT Include is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Model |
DM-J8006-2EC V1.1
|
| Nominal Voltage | 24V (wide-voltage version, supporting power supply of 24V—48V) |
| Nominal Current | 9A |
| Peak Current | 21A |
| Nominal Torque | 8N.M |
| Peak Torque | 20N.M |
| Nominal Speed |
120RPM |
| Max. No-load Speed |
190RPM@24V 390RPM@24V |
| Reduction Ratio | 6:1 |
| Pole Pairs | 21 |
| Phase Inductance | 215μH |
| Phase Resistance | 0.4Ω |
| Outer Diameter | 96mm |
| Height | 40mm |
| Motor Weight | 559g |
| Encoder Resolution | 14Bit |
| Encoder Quantity | 2 |
| Encoder Type | Single-Turn Magnetic Encoder |
| Control Interface | CAN@1Mbps |
| Configuration Interface | UART@921600bps |
DAMIAO_DM_J8006_2EC_V1.1_Motor.stp
DM-J8006-2EC_User_Manual.pdf
USB_to_CANFD_Module_User_Manual_V1.0.pdf
DAMIAO DM-J8006-2EC Motor Instruction Manual (Wiki)
DAMIAO Host Computer User Manual (Wiki)
