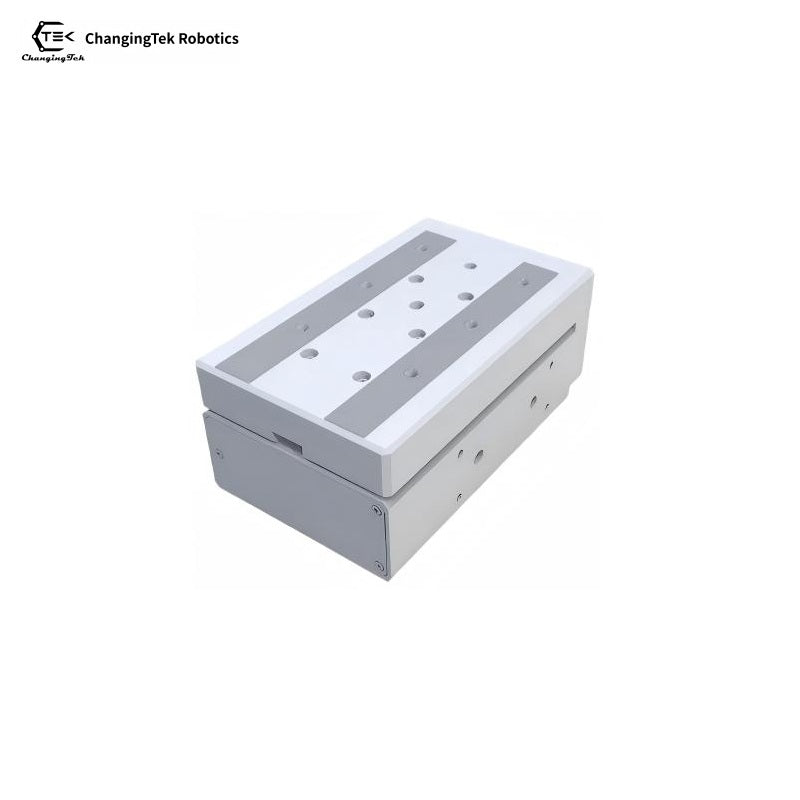

ChangingTek Robotics CTMS-28-W Integrated Actuator

$1,490.00
Version

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information


Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value
Actuation & Motion:
Sliding Table Model CTMS-28-W
Stroke 50 mm (customizable)
Lead 2 mm
Maximum Thrust Force 300 N
Maximum Speed 100 mm/s
Repeat Positioning Accuracy +/-0.02 mm
Force Repeatability +/-10%
Load Capacity:
Maximum Horizontal Load 6 kg
Maximum Vertical Load 0.5 kg
Electrical & Control:
Maximum Current 2 A
Operating Voltage 24 V
Programmable Parameters Position, Speed, Force
Feedback Parameters Position, Dimension, Torque
Communication Protocol Modbus RTU
Environmental:
Operating Environment 0~40 deg C , <=85%RH (non-condensing)
