ChangingTek Robotics

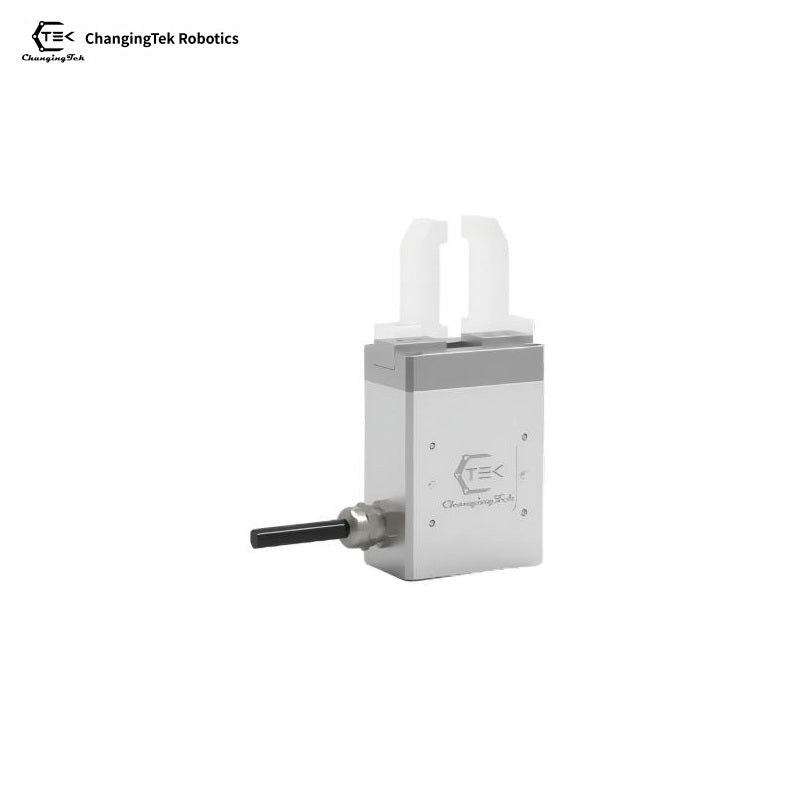

ChangingTek Robotics CTPM2F14S Gripper

$725.00
Version

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information


Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value
Actuation & Motion:
Drive Type Servo Drive
Max. Stroke 14 mm
Max. Gripping Force 18 N
Max. Gripping Speed 50 mm/s
Repeat Positioning Accuracy +/-0.02 mm
Load & Physical:
Max. Recommended Payload 0.35 kg
Self Weight 0.4 kg
Electrical & Control:
Peak Current 2 A
Operating Voltage 24 V
Programmable Parameters Position, Speed, Force
Feedback Parameters Position, Dimension, Speed, Force
Communication Protocol Modbus RTU (RS485), I/O (CAN, TCP/IP, EtherCAT, Profinet, etc. expandable)
Environmental:
Recommended Operating Environment (Temp. & Humidity) 0~40 deg C , 85%RH or less (No condensation)
