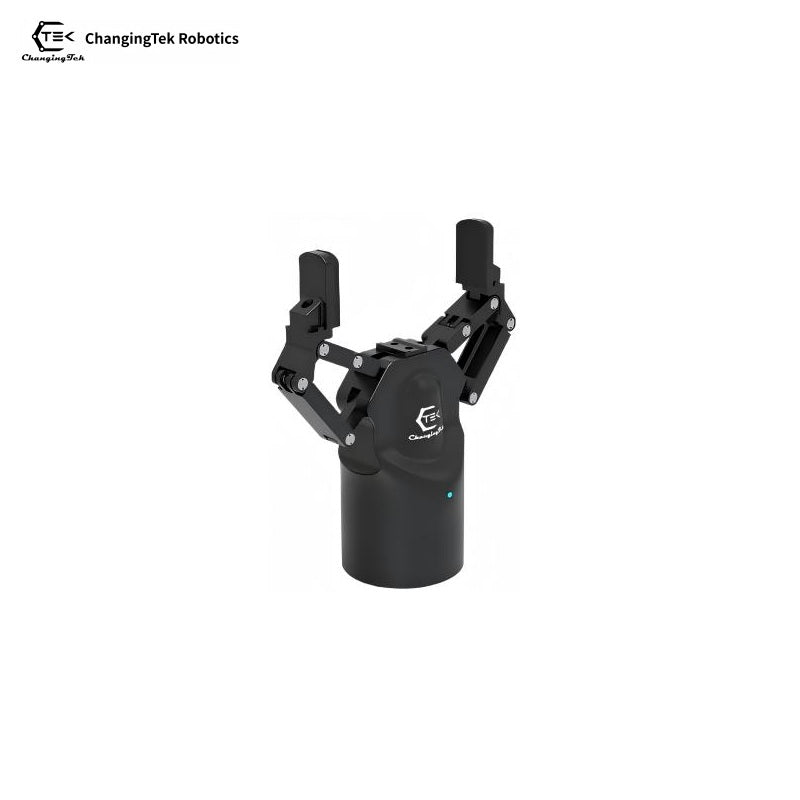

ChangingTek Robotics CTAG2F120S Gripper
Regular price
$2,900.00
Unit price
ChangingTek Robotics CTAG2F120S Gripper - CTAG2F120S is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
ChangingTek Robotics CTAG2F120S Gripper
Regular price
$2,900.00
Unit price
ChangingTek Robotics CTAG2F120S Gripper - CTAG2F120S is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Actuation & Motion: | |
| Drive Type | Motor-driven |
| Maximum Stroke | 120 mm |
| Maximum Gripping Force | 40 N |
| Gripping Speed | 85 mm/s |
| Repeat Positioning Accuracy | +/-0.03 mm |
| Electrical & Control: | |
| Maximum Current | 0.8 A |
| Operating Voltage | 24 V |
| Feedback Parameters | Position, Dimension, Torque |
| Communication Protocol | Modbus RTU (RS485), IO (Expandable to CAN, TCP/IP, EtherCAT, Profinet, etc.) |
| Physical: | |
| Self Weight | 1.1 kg |
| Environmental: | |
| Recommended Operating Environment (Temperature & Humidity) | 0~40 deg C , 85% RH or less (No condensation) |
