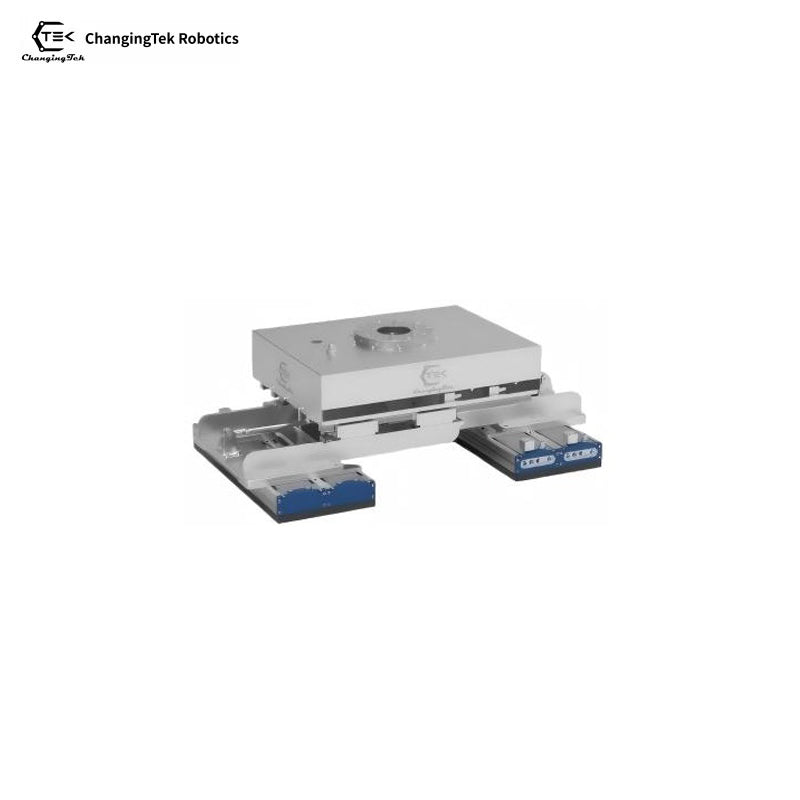

ChangingTek Robotics CTABX400 Gripper

$15,800.00
Version

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information


Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value
Vacuum & Suction:
Suction Force 820 x 4 N
Maximum Vacuum Degree 60%
Suction Hole Quantity 99 x 4 (pcs)
Sponge Thickness 20 mm
Drive & Operation:
Inlet Air Pressure >= 0.8 MPa
Air Supply Pressure 0.8 MPa
Air Consumption 270 x 4 L/min
Opening Stroke 400 mm
Communication Protocol I/O
Physical:
Self Weight 70 kg
Environmental:
Recommended Operating Environment 0~40 deg C , <=85% RH (Non-condensing)
