BWSENSING | SKU:

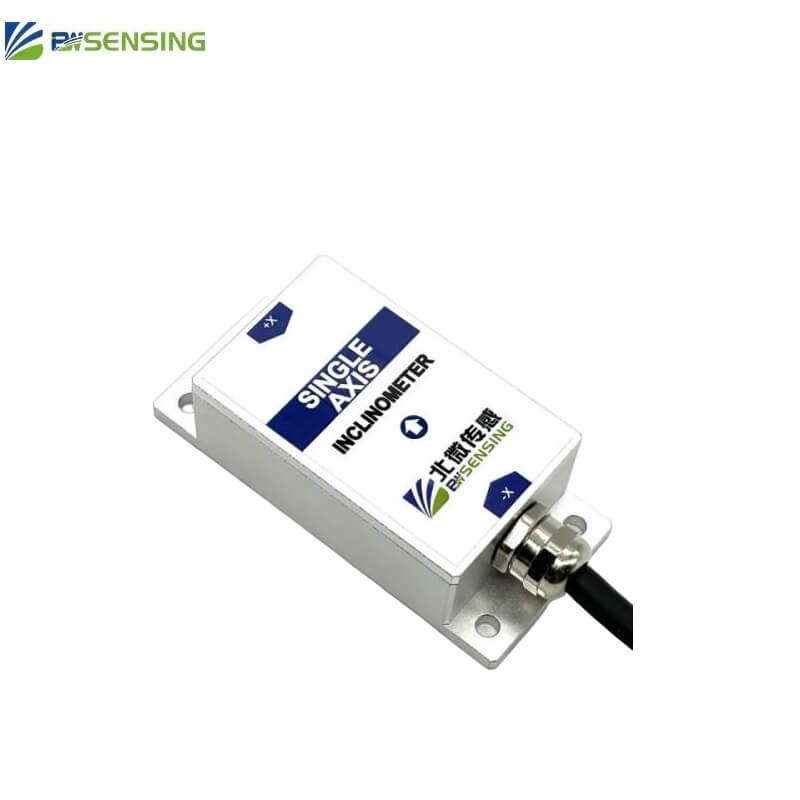

BWSENSING BWK218 Single-Axis Inclinometer Sensor
Regular price
$76.00
Unit price
Unavailable
BWSENSING BWK218 Single-Axis Inclinometer Sensor - BWK218 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
BWSENSING BWK218 Single-Axis Inclinometer Sensor
Regular price
$76.00
Unit price
Unavailable
BWSENSING BWK218 Single-Axis Inclinometer Sensor - BWK218 is backordered and will ship as soon as it is back in stock.
Product Information
Technical Specifications
| Parameter | Value |
|---|---|
| Model | BWK218 |
| Power supply | 12-35V |
| Operating current |
Min:20mA(35v supply voltage) Typical:50mA Max:60mA |
| Output load |
Max:500KΩ |
| Operating Temperature | -40°C~+85°C |
| Storage Temperature |
-55°C~+100℃ |
| Measuring range | 0~±180° |
| Measuring axis | X |
| Accuracy | Indoor 0.2° |
| Resolution | 0.02° |
| Zero temperature drift | ±0.01°/°C (-40°C~+85°C) |
| Frequency response | 100HZ |
| Zero currentoutput |
10mA(0-20) 12mA(4-20) 12mA(0-24) |
| Full-scale output current range |
4-20(0-20 optional) (0-24 optional)
|
| Average failure-freework | ≥ 100000 h |
| Electromagnetic compatibility | According to GBT17626 |
| Insulation resistance | ≥100MΩ |
| Shock resistance |
2000g,0.5ms,3times/axis |
| Weight |
230g |
| Connector |
Metal connector |
| Protection level |
IP67 |
| Shell material |
Magnesium alloy anodizing |
|
Installation
|
Four M4 screws |
