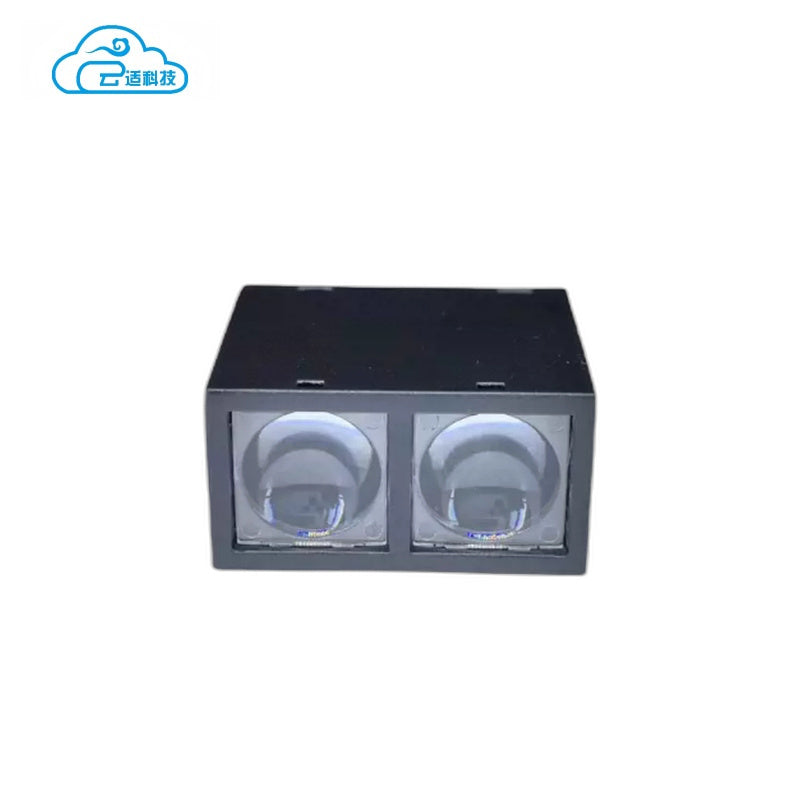

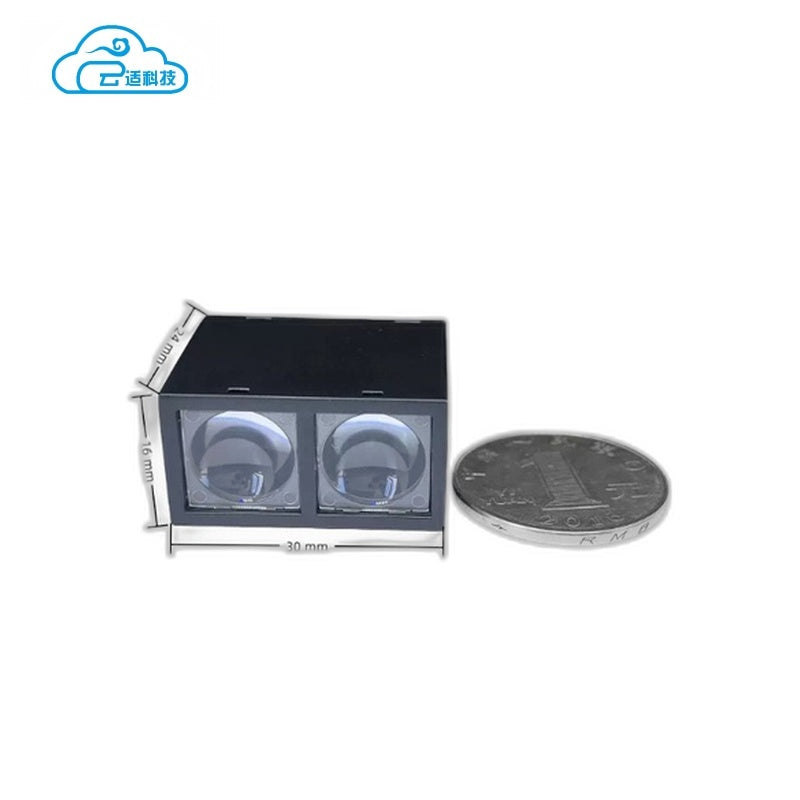

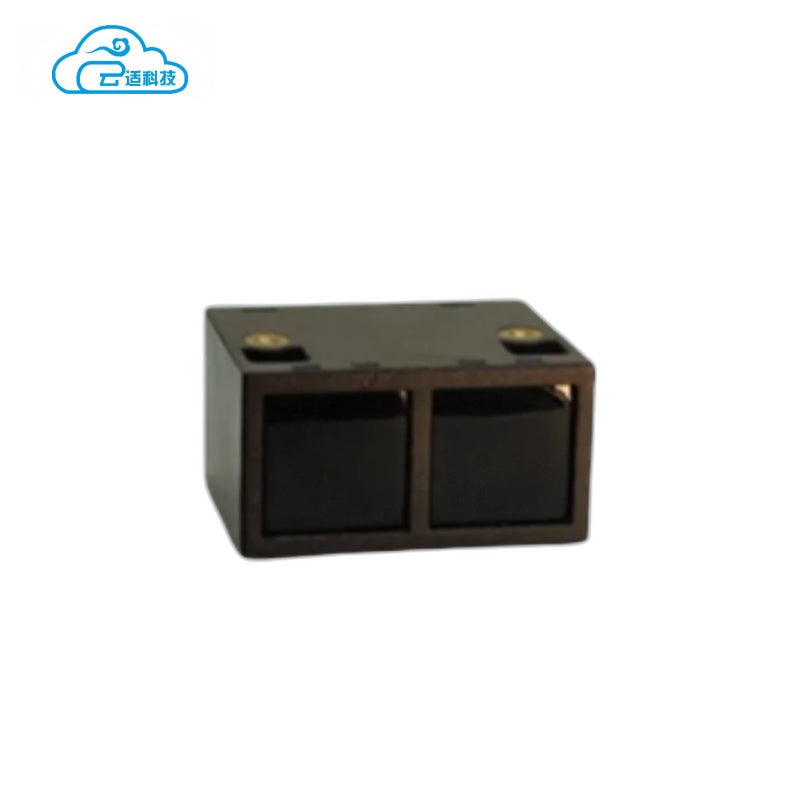

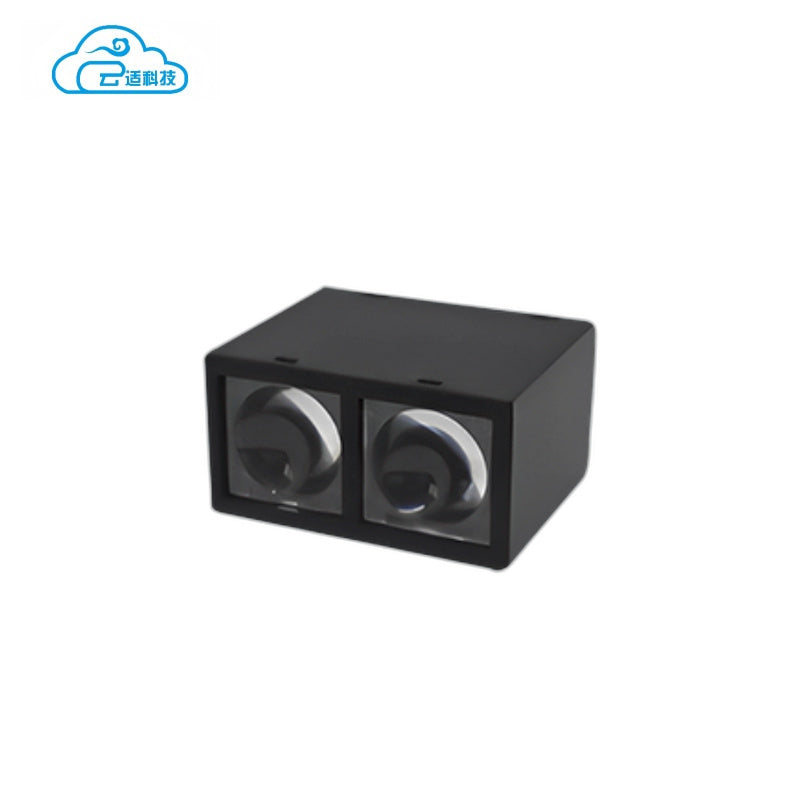

Yunshis MVR2EA ToF Ranging Module
Regular price
$35.00
Unit price
Yunshis MVR2EA ToF Ranging Module - MVR2EA+7pin+cable / TTL is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
Yunshis MVR2EA ToF Ranging Module
Regular priceFrom
$35.00
Unit price
Yunshis MVR2EA ToF Ranging Module - MVR2EA+7pin+cable / TTL is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Description | Min | Typical | Max | Unit | Remarks |
|---|---|---|---|---|---|---|
| VDD | Operating Voltage | 4.75 | 5 | 5.25 | V | |
| IDD | Operating Current | 40 | 200 | mA | ||
| WL | Operating Wavelength | 850 | nm | Infrared LED | ||
| D | Measuring Distance | 0.2* | 7 | m | Max range is for indoor environment, 90% reflective whiteboard | |
| F | Measuring Frequency | 10 | 50 | 200 | Hz | 10\20\50\100\200 Hz adjustable (auto-measurement) |
| FOV | Field of View | 0.7 | Degree | |||
| DSPOT | Spot Area (D = 1.0m distance) | 1.2x1.2 | cm | If the target object is smaller than this detection area, the measurement accuracy will be affected. Refer to note 7. | ||
| Spot Area (D = 5.0m distance) | 6x6 | cm | ||||
| Spot Area (D = 7.0m distance) | 8.5x8.5 | cm | ||||
| Acc | Accuracy | ±6 | cm | |||
| R | Resolution | 10 | mm | |||
| tINT | Optional Exposure Time | 10 | 205 | 1600 | µs | Default 205µs |
| ESD | ESD Protection Level | 2 | kV | Human Body Model | ||
| TA | Operating Temperature Range | -10 | 50 | °C | ||
| TSTO | Storage Temperature | -20 | 65 | °C | ||
| RH | Relative Humidity | 15 | 90 | % | Non-condensing environment | |
| W | Weight | 9 | g |
