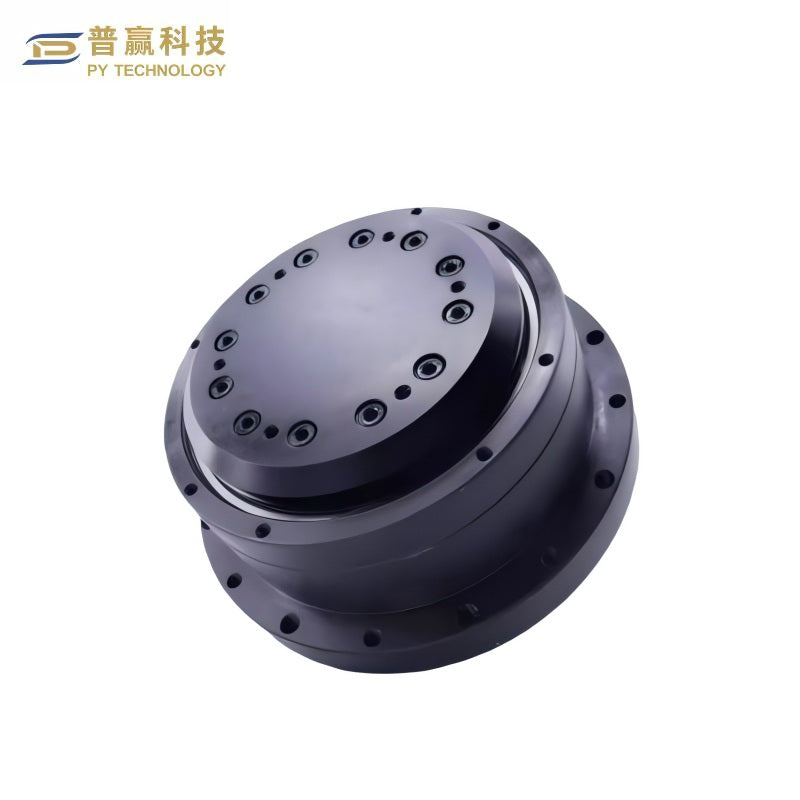

PY TECHNOLOGY WPR16-08P Planetary Reducer
Regular price
$165.00
Unit price
PY TECHNOLOGY WPR16-08P Planetary Reducer - WPR16-08P is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Model | WPR16-08P |
| Reduction Ratio | 16 |
| Backlash (arcmin) | 20 |
| Rated Torque at 2000 r/min (Nm) | 4 |
| Rated Input Speed (RPM) | 3000 |
| Permissible Peak Torque (Start/Stop) (Nm) | 9 |
| Noise （db） | 65dB (*4) |
| Max Input Speed (RPM) | 5000 |
| Operating Temperature (℃) | -15°~90° |
| Rated Torque (Nm) | 185 |
| Transmission Efficiency | ≥90% |
| Max Torque (Nm) | 335 |
| Service Life (h) | 20000 |
| Max Axial Force (N) | 2500 |
| Protection Class | IP54 |
| Max Radial Force (N) | 8000 |
| Weight (kg) | 5.5 |
