Leaderdrive | SKU:

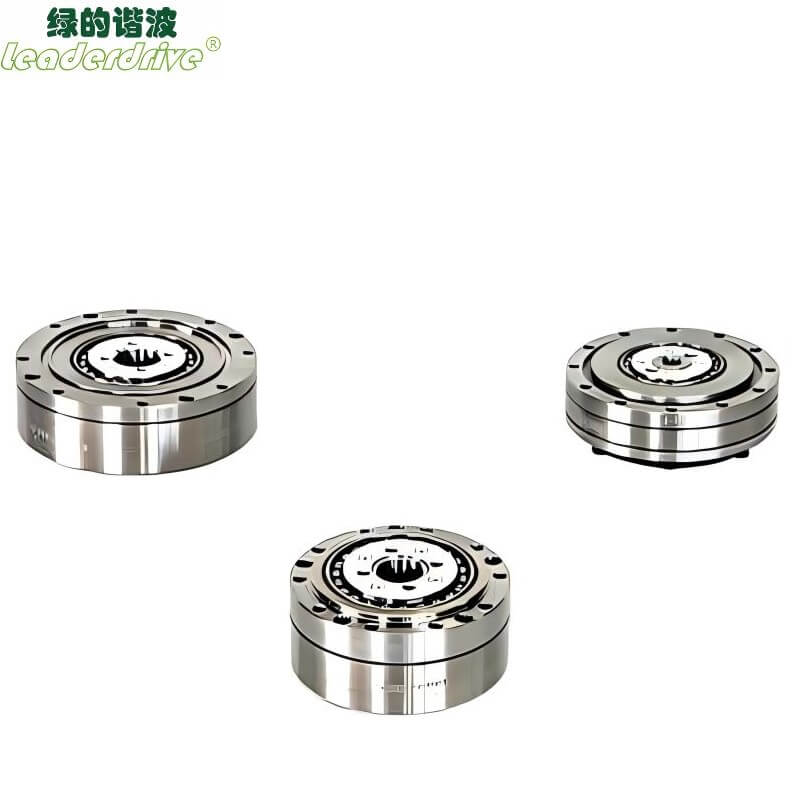

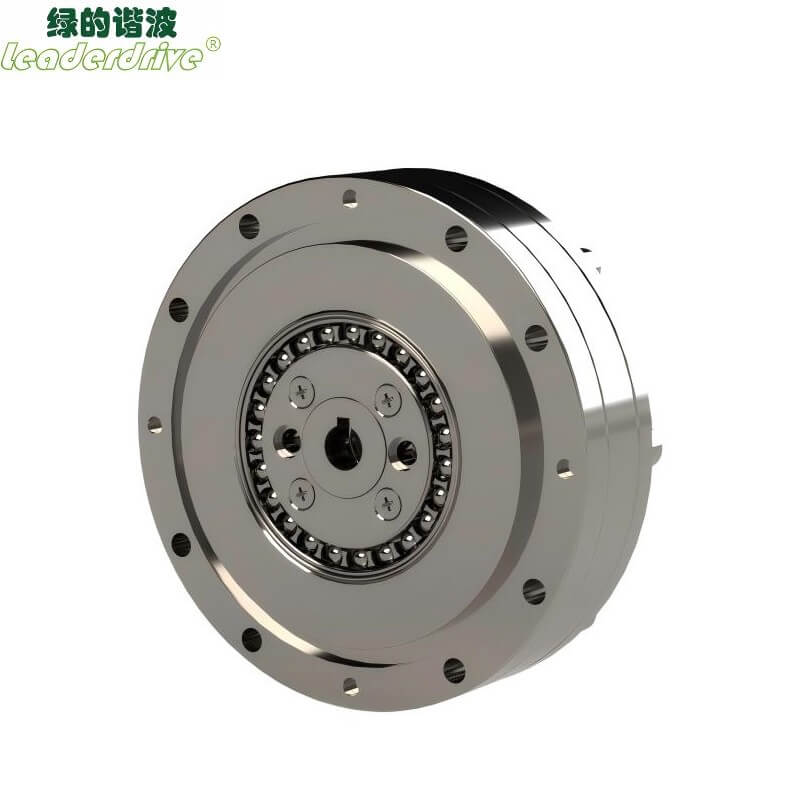

Leaderdrive LCD Strain Wave Gear
Regular price
$980.00
Unit price
Leaderdrive LCD Strain Wave Gear - LCD Series Strain Wave Gear / 14 / 50 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
Leaderdrive LCD Strain Wave Gear
Regular priceFrom
$980.00
Unit price
Leaderdrive LCD Strain Wave Gear - LCD Series Strain Wave Gear / 14 / 50 is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| LHS-I Series Parameter Table |
|---|
|
Item Model No |
Reduction Ratio |
Rated Torque at 2000 r/min (N.m) |
Allowable Peak Torque at Start and Stop (N.m) | Allowable Average Torque (N.m) | Allowable Maximun Mementary Torque (N.m) | Maximun Input Speed (r/min) | Allowable Average Input Speed (r/min) | Back Lash (Arcsc) |
Weight (Kg) |
Design Life (Hour) |
| 14 | 50 80 100 |
3.5 5.1 5.1 |
11.4 15 18 |
4.6 6.2 7.3 |
23 29 33 |
8000 | 3500 | ≤20 ≤20 ≤20 |
0.56 | 9000 10000 10000 |
| 17 | 50 80 100 |
10.4 14 15 |
22 29 35 |
17 21 26 |
46 54 67 |
7000 | 3500 | ≤20 ≤20 ≤20 |
0.48 | 9000 10000 10000 |
| 20 | 50 80 100 |
16 23 27 |
37 49 54 |
23 28 32 |
66 78 90 |
6000 | 3500 | ≤20 ≤20 ≤20 |
0.68 | 9000 10000 10000 |
| 25 | 50 80 100 120 |
26 42 45 45 |
66 91 104 111 |
36 62 71 71 |
121 157 175 187 |
5500 | 3500 | ≤20 ≤20 ≤20 ≤20 |
1.3 | 9000 10000 10000 10000 |
| 32 | 50 80 100 120 |
50 79 91 91 |
143 202 221 235 |
71 126 144 144 |
255 350 399 423 |
4500 | 3500 | ≤20 ≤20 ≤20 ≤20 |
2.5 | 9000 10000 10000 10000 |
| 40* | 50 100 160 |
91 176 196 |
267 378 430 |
130 247 300 |
456 665 727 |
4000 | 3000 | ≤20 ≤20 ≤20 |
3.8 | 9000 10000 10000 |
