Feetech | SKU:

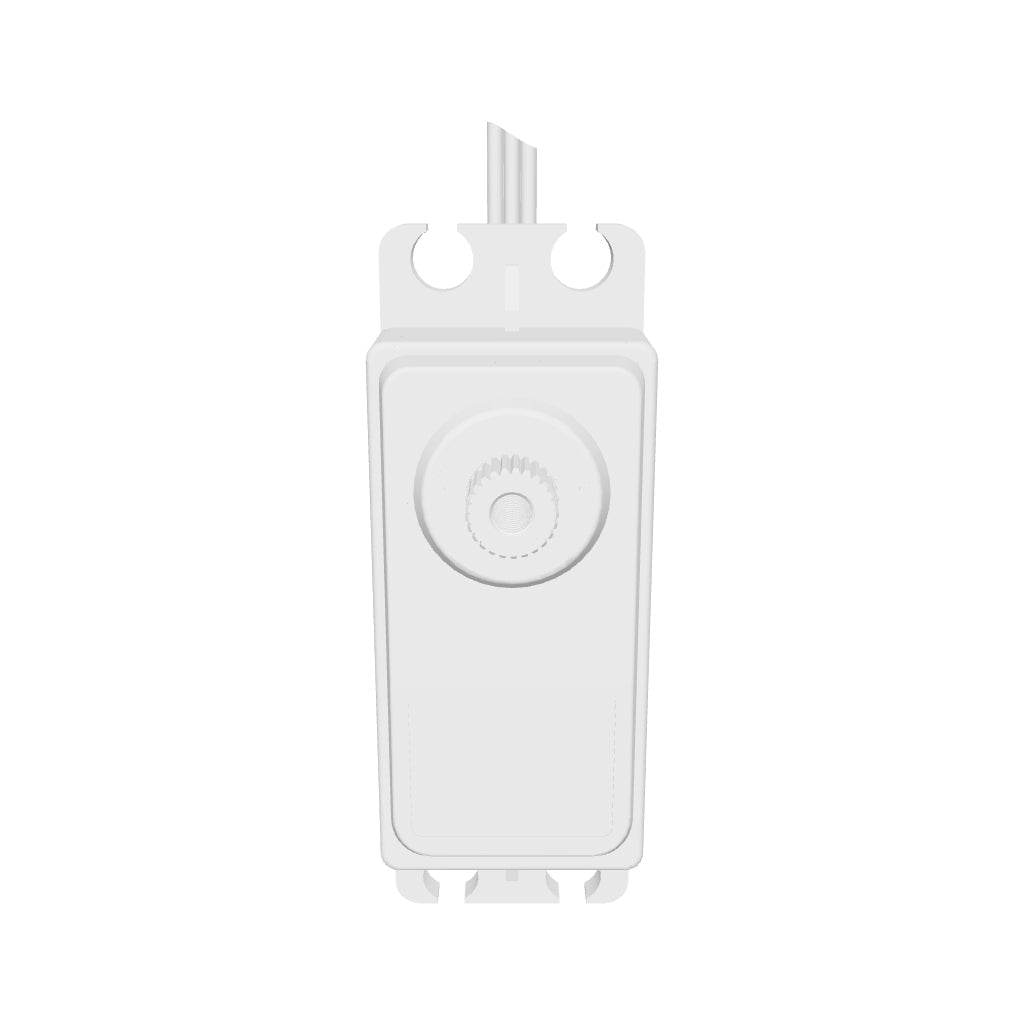

FEETECH FT7125 Servo Motor
Regular price
$25.00
Unit price
FEETECH FT7125 Servo Motor - FT-7125-C001 (7.4V25KG) is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
FEETECH FT7125 Servo Motor
Regular price
$25.00
Unit price
FEETECH FT7125 Servo Motor - FT-7125-C001 (7.4V25KG) is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter |
Value |
|---|---|
| Model | FT-7125-C001 |
| Product Name | 7.4V 25kg.cm180°舵机/7.4V 25KG 180 Degree Servo |
| Storage Temperature Range |
-20℃～80℃ |
| Operating Temperature Range | -10℃～60℃ |
| Size | A：40.16mm B：20.16mm C: 40.05mm |
| Weight | 64.5± 1g |
| Gear type | Steel |
| Limit angle |
NO limit |
| Bearing |
Ball bearings |
| Horn gear spline | 25T/5.9mm |
| Gear Ratio | 1/275 |
| Case | Aluminum |
| Connector wire | 30CM |
| Motor |
Core Motor |
| Operating Voltage Range | 4-8.4V |
| Idle current (stopped) | 6mA@8.4V |
| No load speed | 0.139sec/60°(58RPM)@8.4V |
| Runnig current(at no load) | 160mA@8.4V |
| Peak stall torque | 28.5kg.cm@8.4V |
| Rated torque | 9.5kg.cm@8.4V |
| Stall current | 3.4A@8.4V |
| Command signal | Pulse width modification |
| Control System Type | Digital comparator |
| Pulse width range | 500~2500 μ sec |
| Stop position | 1500 μ sec |
| Running degree | 180°± 5°(at 500→2500μsec |
| Dead bandwidth |
≤4 μ sec |
| Rotating direction | Counterclockwi se (1500→2500 μ sec) |
| Electronic Protection | Stall 8sec |
