ZeroErr

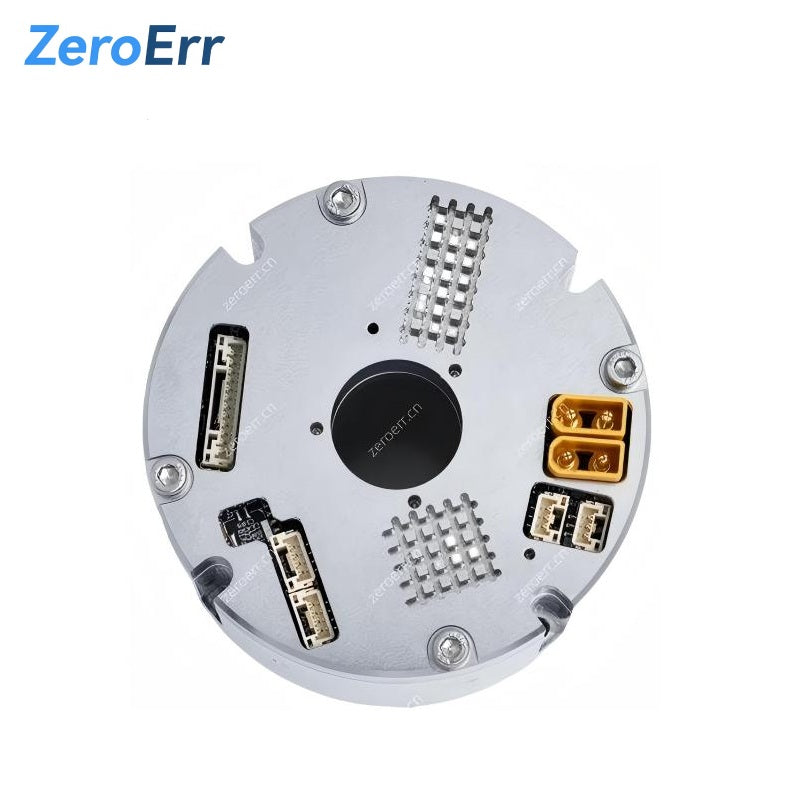

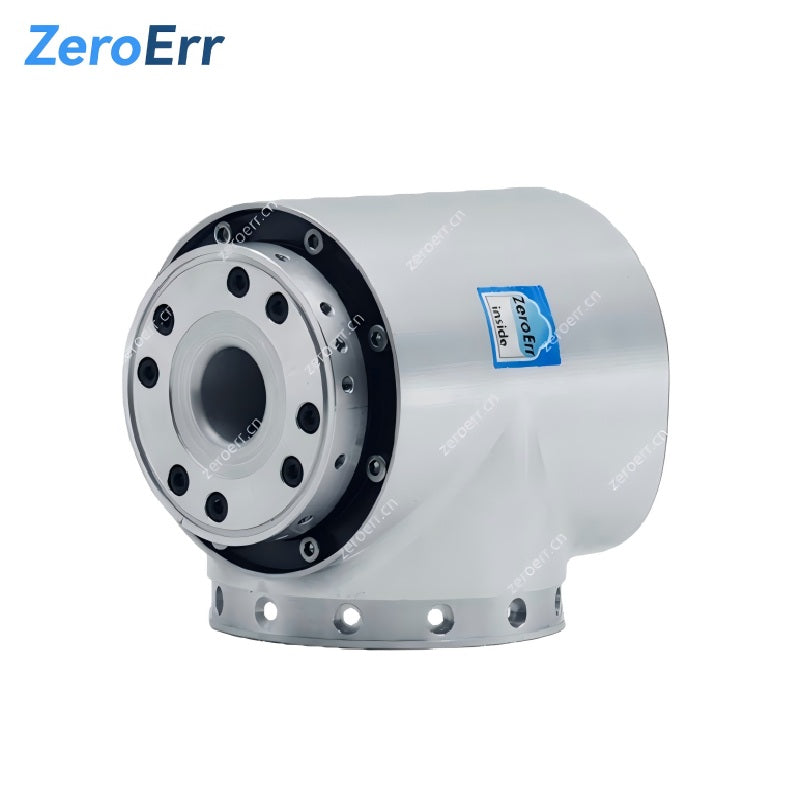

ZeroErr eRob 70 T Motor

$1,370.00

Version

eRob 70 T (CANopen With Torque Sensor) eRob 70 T (CANopen Without Torque Sensor) eRob 70 T (EtherCAT With Torque Sensor) eRob 70 T (EtherCAT Without Torque Sensor)

Reduction Ratio

50 80 100

Multi-loop Memory

Without Multi-loop Memory With Multi-loop Memory

Delivery and Shipping

We automatically select the most cost-effective carrier from China for each destination country
Shipping rates are dynamically calculated based on real-time quotes
Final rates may vary due to promotional offers or carrier adjustments

Application Scenarios

Humanoid Robots

Robotic Arms

Exoskeletons

Quadruped Robots

AGV Vehicles

ARU Robots

Technical Specifications

Parameter	Value (14-50)	Value (14-80)	Value (14-100)	Value (14-120)
Model / joint series	eRob70HXXT
Strain wave gear ratio	14-50	14-80	14-100	14-120
Peak torque for start/stop (Nm)	23	30	36	36
Permissible max. average load torque (Nm)	9	14	14	14
Rated torque (Nm)	7	10	10	10
Permissible max. momentary torque (Nm)	46	61	70	70
Max. output rotational speed (RPM)	60	37.5	30	25
Motor power (W)	100
Power supply voltage (V)	48V (±10%)
Power supply note	Please read carefully: "Why can't an ordinary switching power supply be used as the power supply for the module?" and "Joint Module Manual Chapter 3 eRob Input Power Instructions".
Output encoder resolution	19 Bit
Repeatability / absolute accuracy (arcsec)	±10 / ±45 arcsec
Communication bus	EtherCAT / CANopen
Outer diameter × length × through hole (mm)	73 × 99 × 18
Weight (kg)	1.24
Interface design	Fully differential interface, strong anti-interference; dual anti-loosening connectors, can be connected in series/parallel.
Brake	Friction damping brake
IP rating	IP65

eRob70T EtherCAT -3D.stp

eRob70 CANopen-3D.stp

eRob70T EtherCAT-Product_instalation_drawing.pdf

eRob70T CANopen-Product_instalation_drawing.pdf
