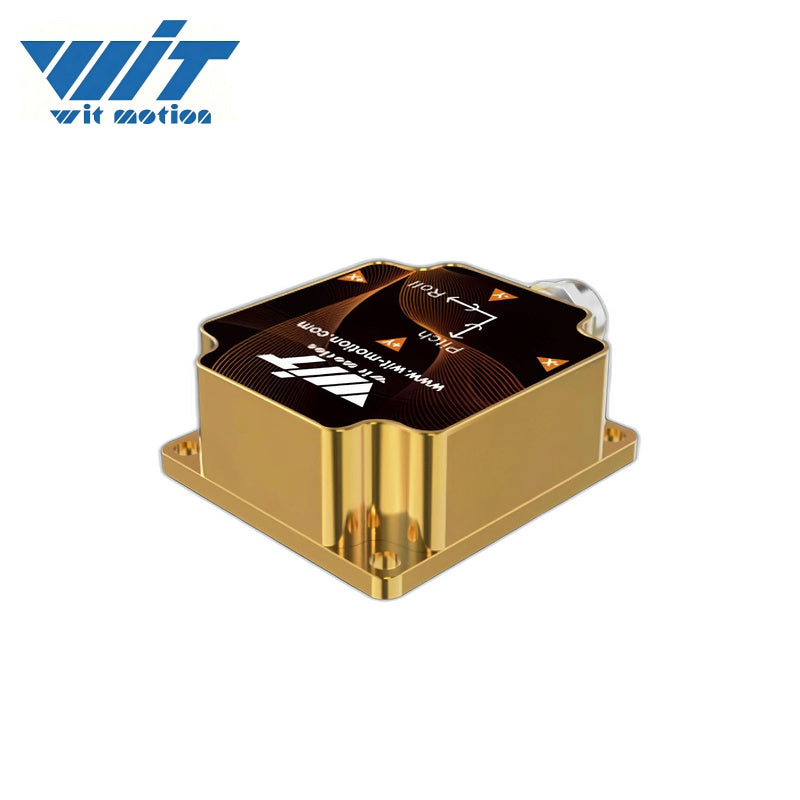

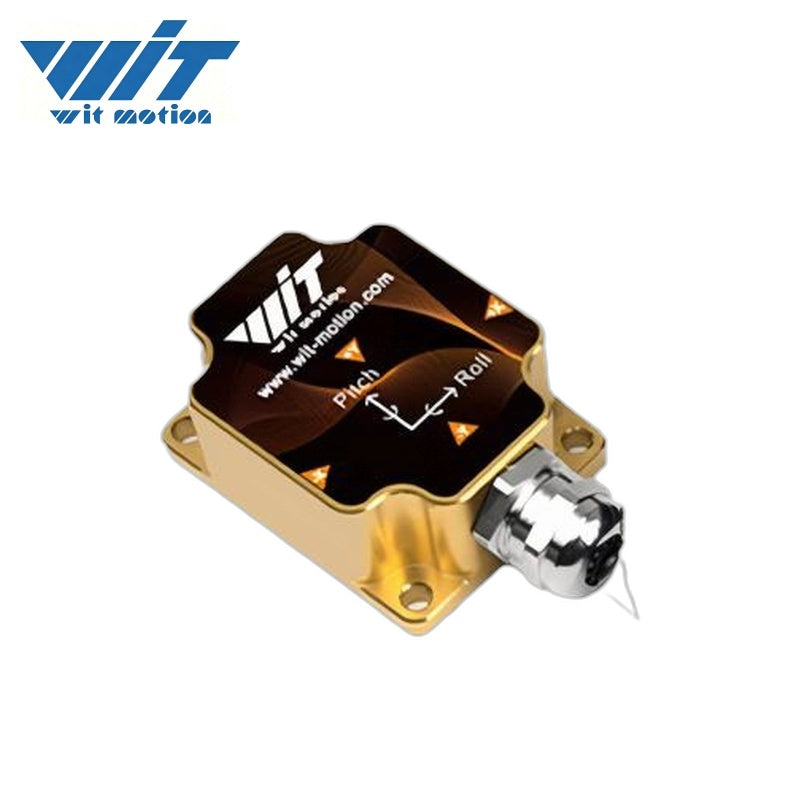

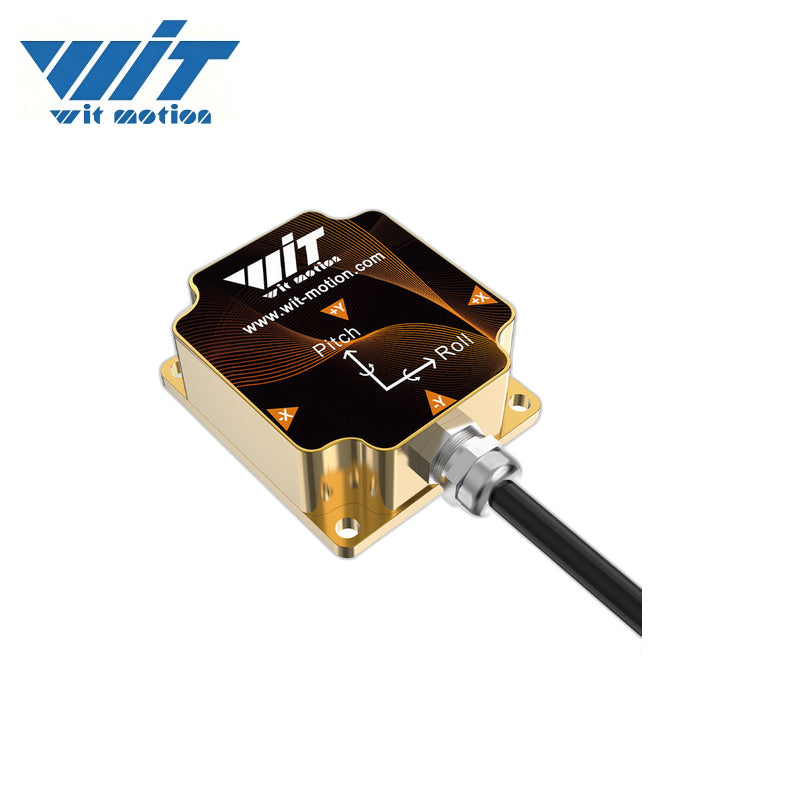

WitMotion HWT9053 Sensor

$690.00
Version

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information


Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value
Operating Temperature -40°C ~ +85°C
Storage Temperature -40°C ~ +100°C
Shock Resistance 20000g
Supply Voltage 9V ~ 36V (default 12V)
Operating Current (Active, 12V) 13mA
Power Consumption 156mW
Communication Interface UART: 4800~230400bps (default 9600)
CAN: 3k~1M (default 250k)
Output Content On-chip time, 3-axis Accel, 3-axis Gyro, 3-axis Magnetometer, 3-axis Angle
Output Rate 0.2Hz ~ 200Hz (default 10Hz)
Startup Time ≤ 1000ms
Range (Accelerometer) ±2g
Resolution (Accelerometer) 0.0005 (g/LSB)
Sampling Rate (Accelerometer) 2kHz
Static Zero Drift (Accelerometer) ±25 mg
Temp. Drift (Accelerometer) ±0.1 mg/°C
Bandwidth (Accelerometer) 5 ~ 256Hz
Bias Stability (Accelerometer, 10s smoothing) XY:3.5ug; Z:5ug
Bias Instability (Accelerometer, Allan) XY:1.5ug; Z:3ug
Range (Gyroscope) ±2000°/s
Resolution (Gyroscope) 0.061 (°/s)/LSB
Sampling Rate (Gyroscope) 1kHz
RMS Noise (Gyroscope) 0.028 ~ 0.07 (°/s)-rms
Static Zero Drift (Gyroscope) ±0.5 ~ 1°/s
Bandwidth (Gyroscope) 5 ~ 256Hz
Bias Stability (Gyroscope, 10s smoothing) 8°/h
Bias Instability (Gyroscope, Allan) 5°/h
Measurement Range (Magnetometer) ±400 µT
Linearity (±200µT) 0.6%
Resolution (Magnetometer) 13 nT/LSB
Range (Pitch/Roll) X: ±180°, Y: ±90°
Inclination Accuracy 0.001°
Resolution (Angle) 0.001°
Temp. Drift (Inclination) ±0.05°
Range (Yaw) Z: ±180°
Heading Accuracy (9‑axis, magnetometer calibrated, dynamic/static) 1° (in magnetically clean environment)
Heading Accuracy (6‑axis, static) 0.5° (dynamic integration error possible)
Resolution (Yaw) 0.0055°
