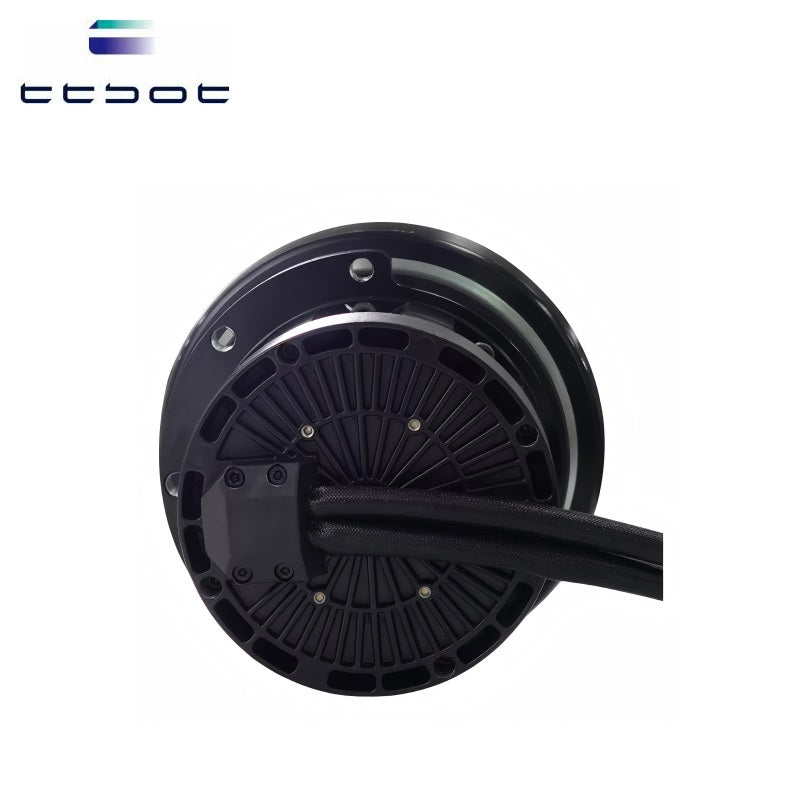

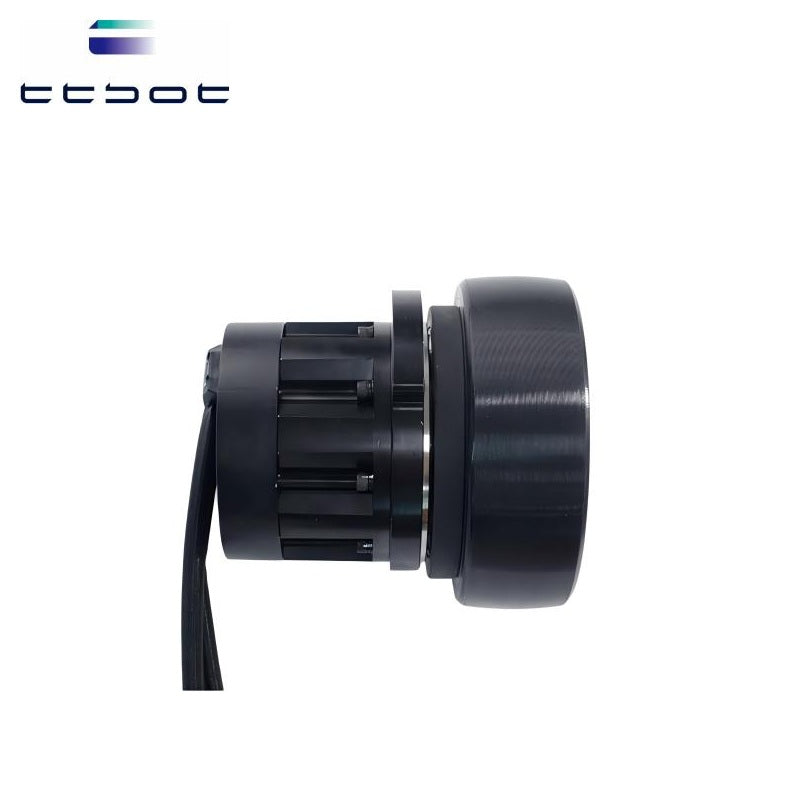

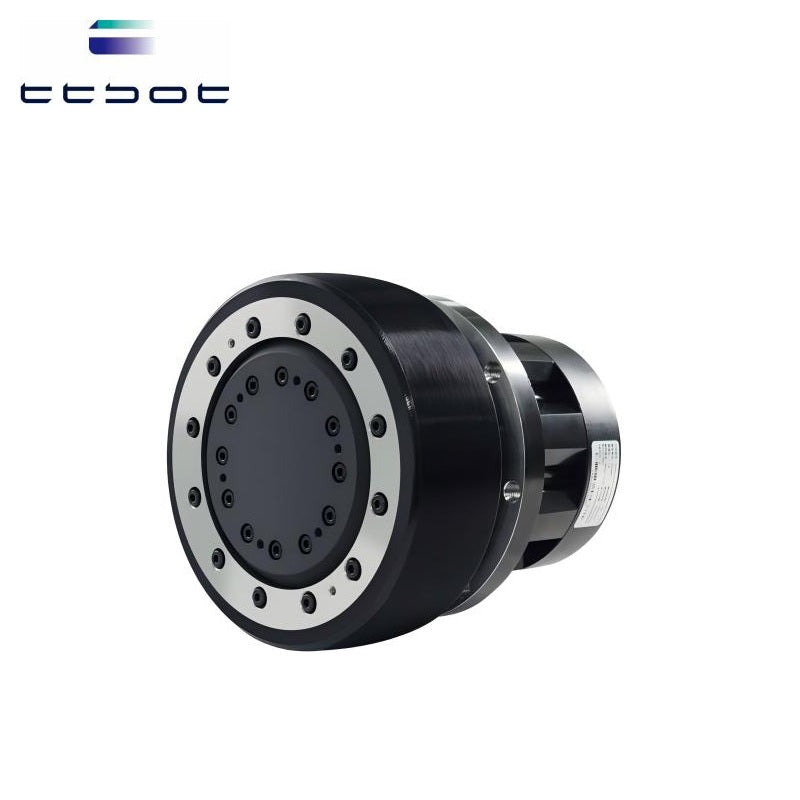

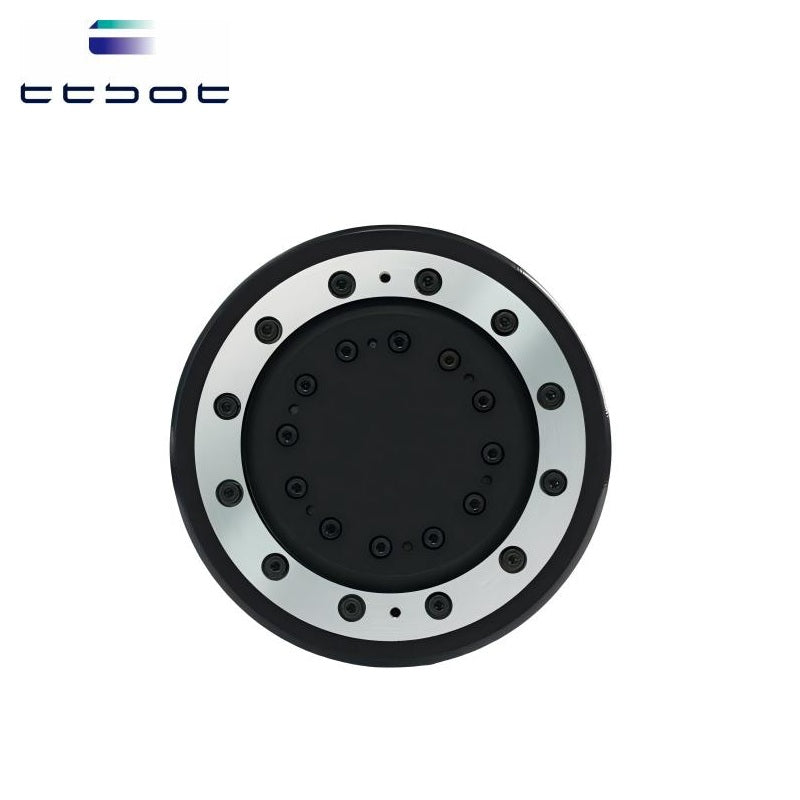

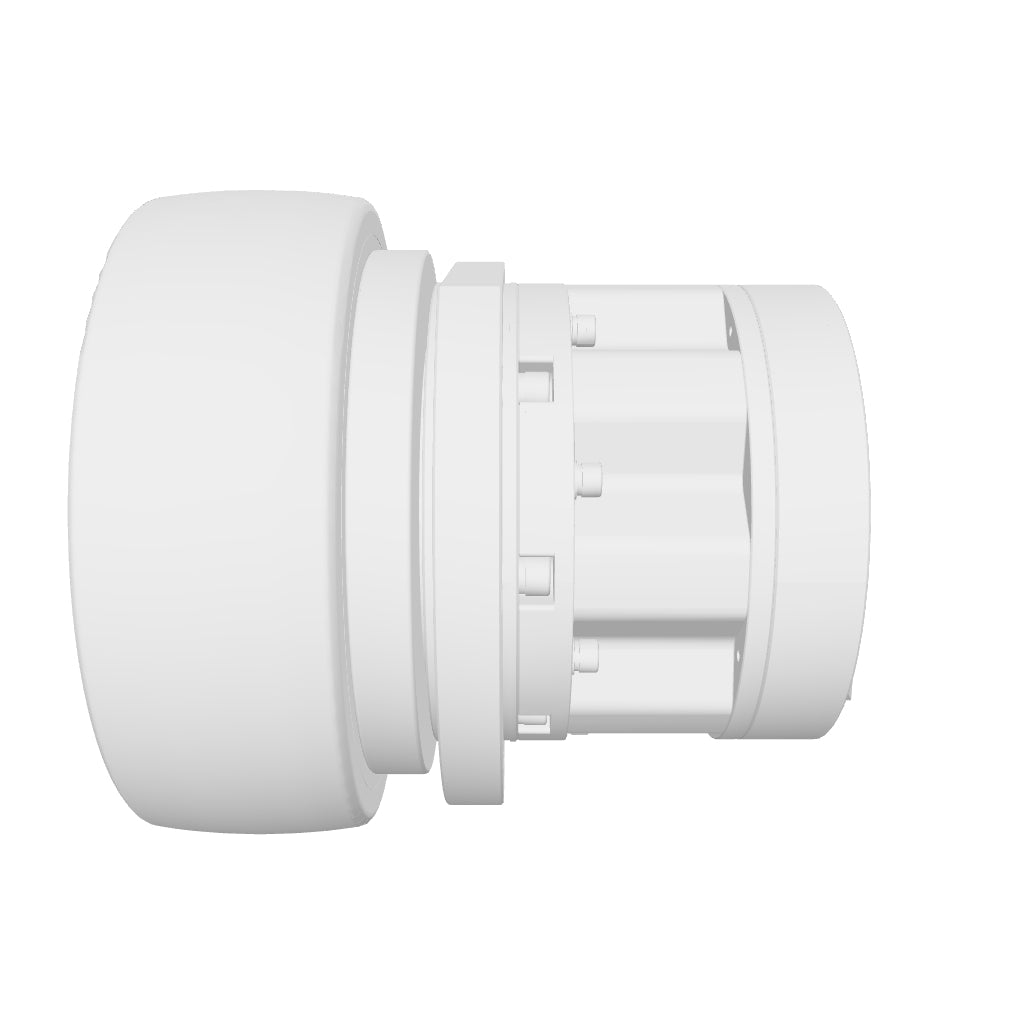

TTBOT LP6 Motor

$875.00

Version

LP6 LP6B

Delivery and Shipping

We automatically select the most cost-effective carrier from China for each destination country
Shipping rates are dynamically calculated based on real-time quotes
Final rates may vary due to promotional offers or carrier adjustments

Humanoid Robots

Robotic Arms

Exoskeletons

Quadruped Robots

AGV Vehicles

ARU Robots

Parameter	LP68	LP6
Module Model	LP68	LP6
Supply Voltage	48VDC	48VDC
Rated Torque	23N.m	23N.m
Starting Torque	40N.m	40N.m
Peak Torque	50N.m	50N.m
Rated Speed (Linear Speed)	156rpm(1.2m/s)	156rpm(1.2m/s)
Peak Speed (Linear Speed)	218rpm(1.7m/s)	218rpm(1.7m/s)
Communication	CAN	CAN
Encoder	15-bit single-turn absolute	15-bit single-turn absolute
Protection Grade	IP6X	IP6X
Operating Noise	≤65dBA(@1m 156rpm)	≤65dBA(@1m 156rpm)
Weight	8.6kg	8.3kg
Operating Temperature	0~40°C	0~40°C
Motor Rated Current	10.2Arms	10.2Arms
Motor Peak Current	30Arms	30Arms
Motor Rated Speed	2500rpm	2500rpm
Motor Rated Torque	1.4N.m	1.4N.m
Back EMF Constant	9.06Vrms/Krpm	9.06Vrms/Krpm
Torque Coefficient	0.15N.m/Arms	0.15N.m/Arms
Motor Rotor Inertia	1.23×10^-4kg.m²	1.23×10^-4kg.m²
Insulation Class	B	B
Reduction Ratio	1:16	1:16
Allowable Radial Load	8000N	8000N
Allowable Axial Load	2500N	2500N
Backlash	≤20arcmin	≤20arcmin
Brake Type	Electromagnetic friction disc	Electromagnetic friction disc
Brake Holding Torque	≥3.6N.m	≥3.6N.m
External Brake Release Voltage	48VDC(Max.5min)	48VDC(Max.5min)
Material	Polyurethane (Black)	Polyurethane (Black)
Wheel Diameter	152mm	152mm
Wheel Width	50mm	50mm
Antistatic Resistance	10^7-10^9 Ω	10^7-10^9 Ω
Cover Rubber Hardness	Shore A 85±3	Shore A 85±3
