TTBOT | SKU:

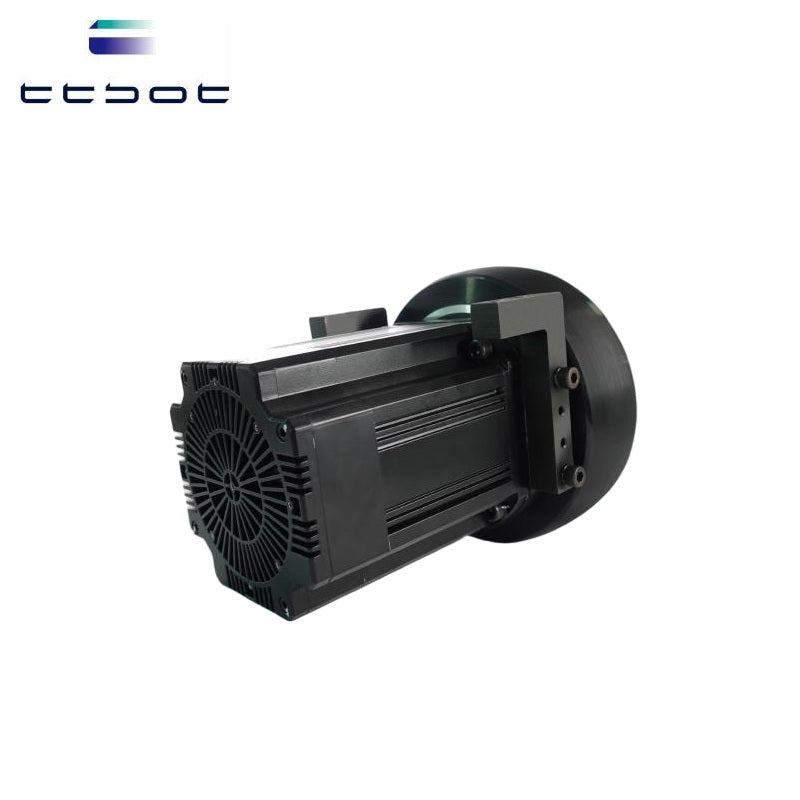

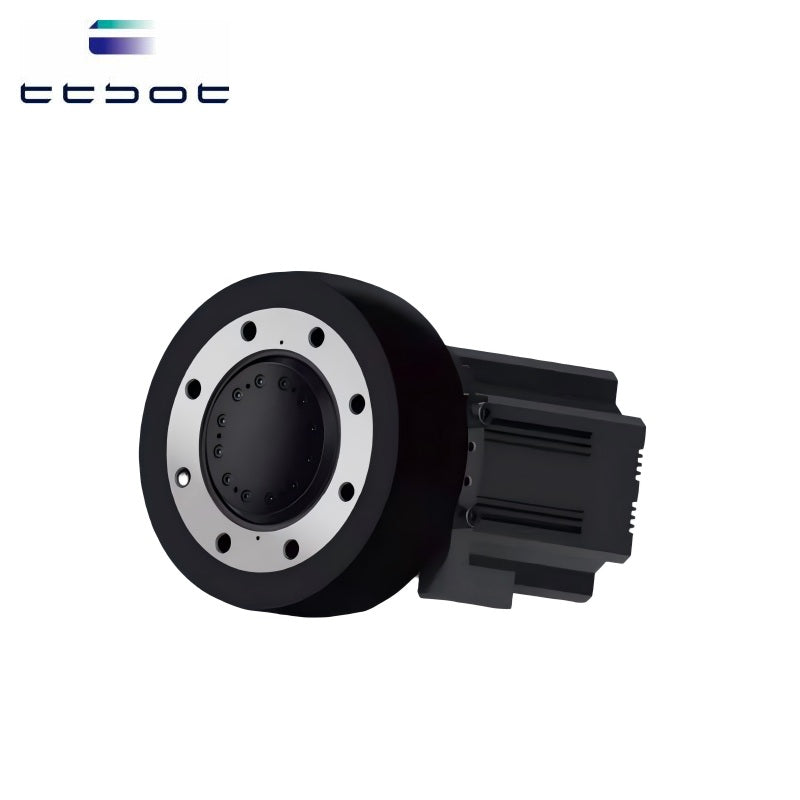

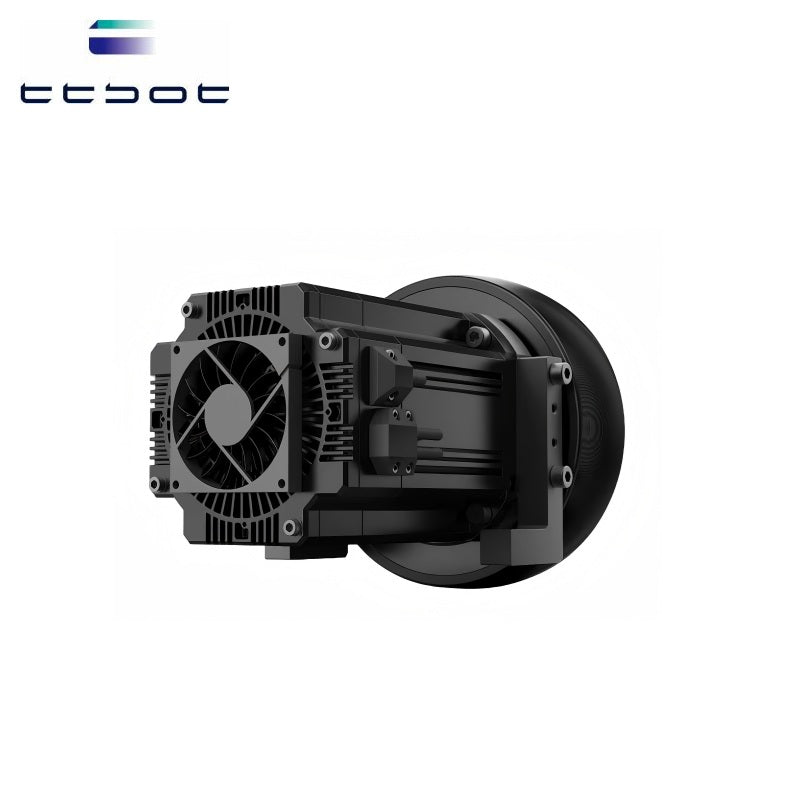

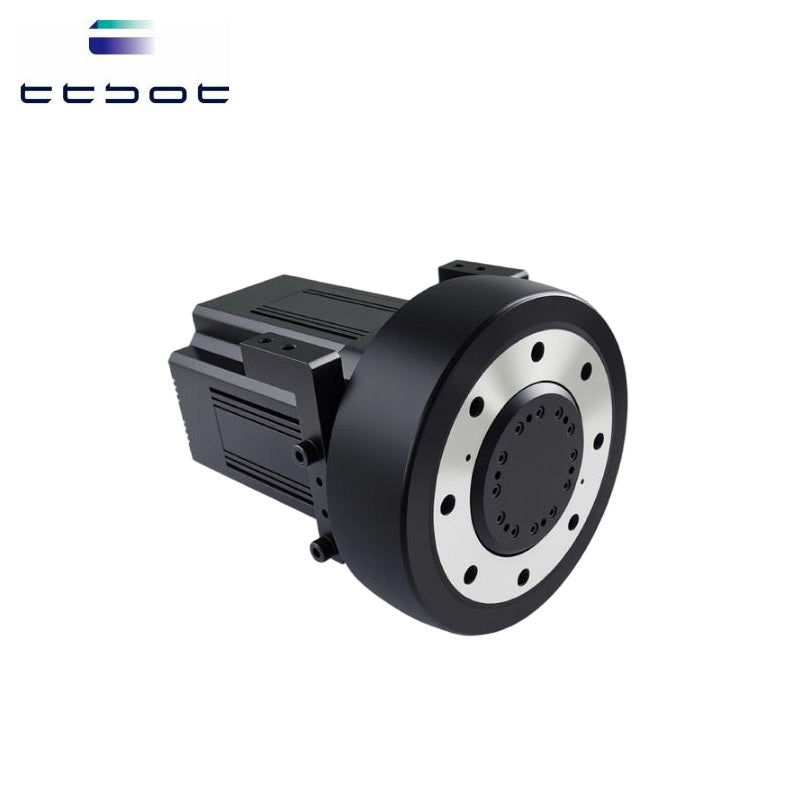

TTBOT HP8B Motor
Regular price
$1,160.00
Unit price
Unavailable
TTBOT HP8B Motor - HP8B is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
TTBOT HP8B Motor
Regular price
$1,160.00
Unit price
Unavailable
TTBOT HP8B Motor - HP8B is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Module Model | HP8B |
| Supply Voltage | 48VDC |
| Motor Power | 1580W |
| Rated Torque | 73N.m |
| Peak Torque | 190N.m |
| Rated Speed (Linear Speed) | 125.0rpm (1.3m/s) |
| Peak Speed (Linear Speed) | 187rpm (1.9m/s) |
| Communication | CAN |
| Encoder | 15-bit single-turn absolute |
| Protection Grade | IP54 |
| Operating Noise | ≤65dBA(@1m 125rpm) |
| Weight | 16.3kg |
| Operating Temperature | 0~40℃ |
| Rated Current | 46.33Arms |
| Peak Current | 90.40Arms |
| Reduction Ratio | 1:16 |
| Allowable Radial Load | 8000N |
| Allowable Axial Load | 2500N |
| Backlash | ≤20arcmin |
| Brake Type | Electromagnetic friction disc |
| Brake Holding Torque | ≥8.0N.m |
| External Brake Voltage | 48VDC (Max.5min) |
| Material | Polyurethane (Black) |
| Wheel Diameter | 200mm |
| Wheel Width | 60mm |
| Antistatic Resistance | 10^7-10^9 Ω |
| Cover Rubber Hardness | Shore A 95±3 |
