SENSING | SKU:

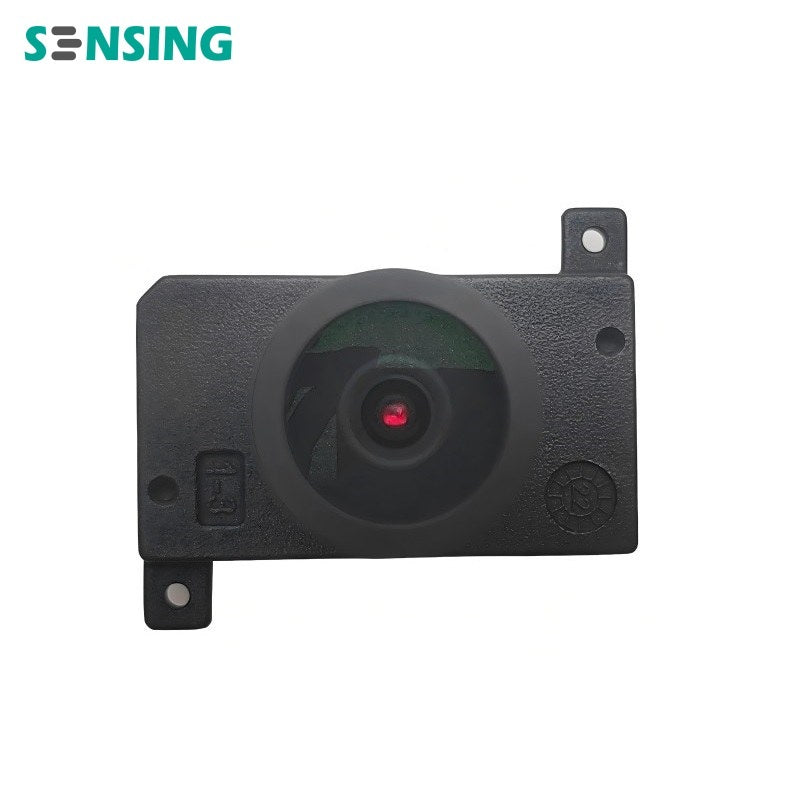

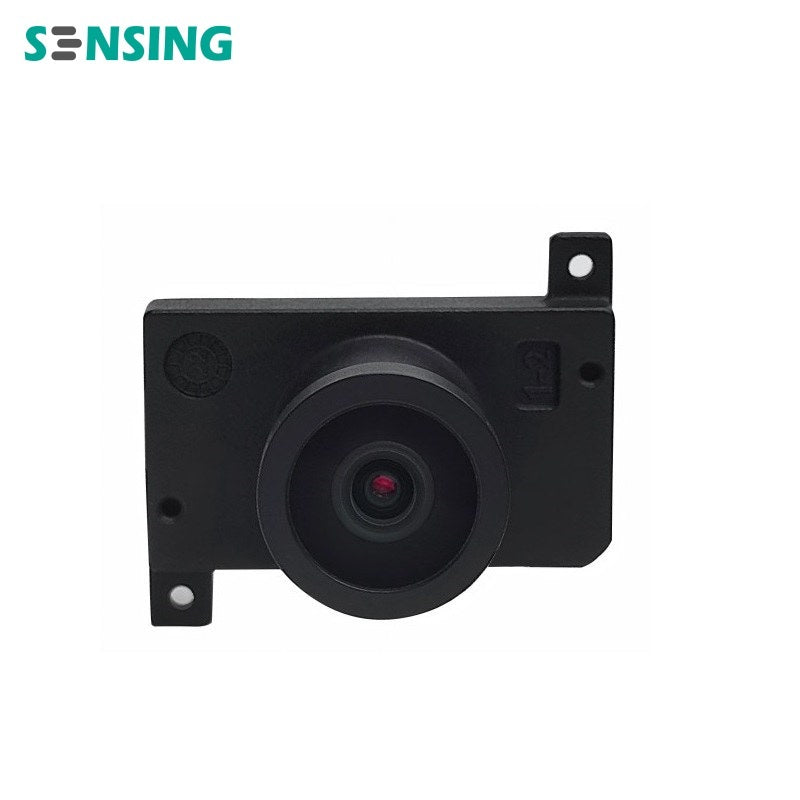

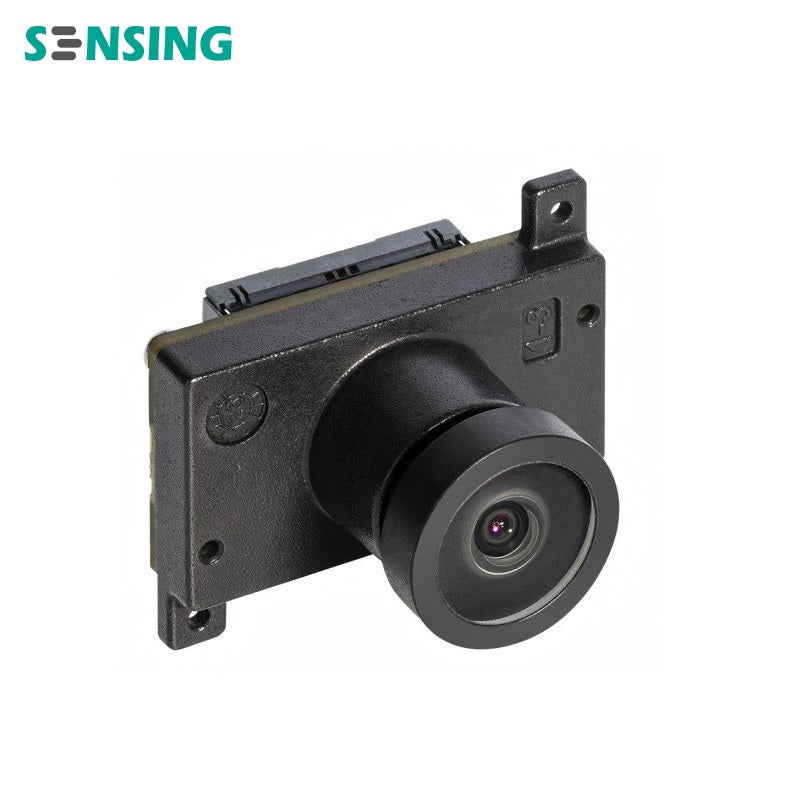

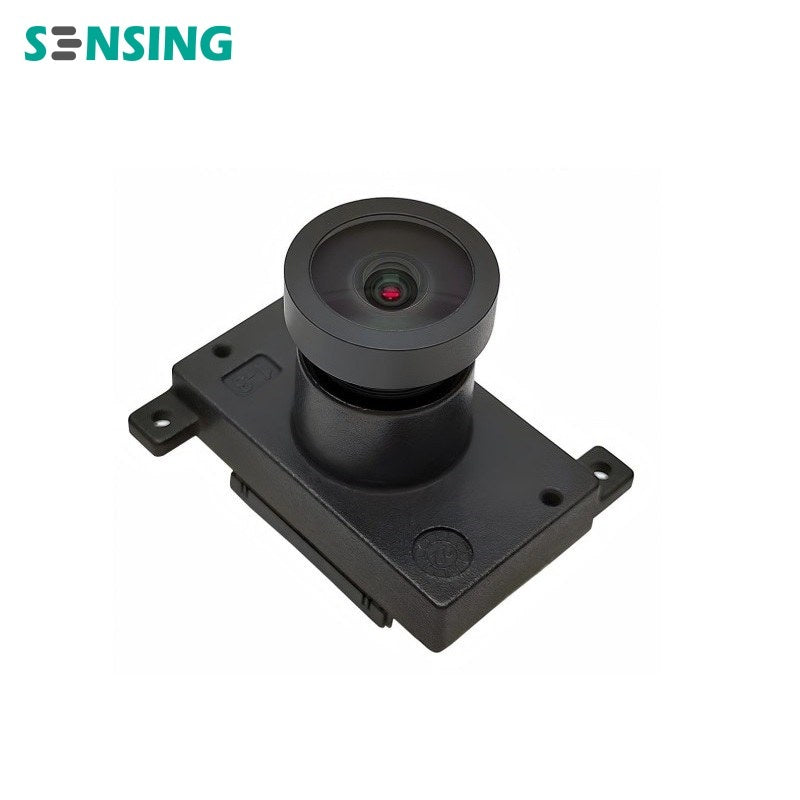

SENSING SG3-ISX031C-MIPI Camera
Regular price
$249.00
Unit price
SENSING SG3-ISX031C-MIPI Camera - SG3-ISX031C-MIPI-H30X / 15PIN & 22PIN (Free gift) is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
SENSING SG3-ISX031C-MIPI Camera
Regular price
$249.00
Unit price
SENSING SG3-ISX031C-MIPI Camera - SG3-ISX031C-MIPI-H30X / 15PIN & 22PIN (Free gift) is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Model | SG3-ISX031C-MIPI-HXXX |
| Resolution | 1920H*1536V |
| Support Platorm | Jetson AGX Thor & Orin |
| Frame Rate | max 60fps |
| Sensor | SONY 2.95MP ISX031 RGGB |
| ISP | Built-in |
| Output data | MIPI/YUV422-8bit |
| Sensor Type | Rolling Shutter |
| Operating temp.range | -20°C～+75°C |
| Dimensions | 20mm*35mm*16.2mm |
| FOV | HFOV 30°/60.35°/100.4°/196° |
| Weight | <50g |
