RoboSense | SKU:

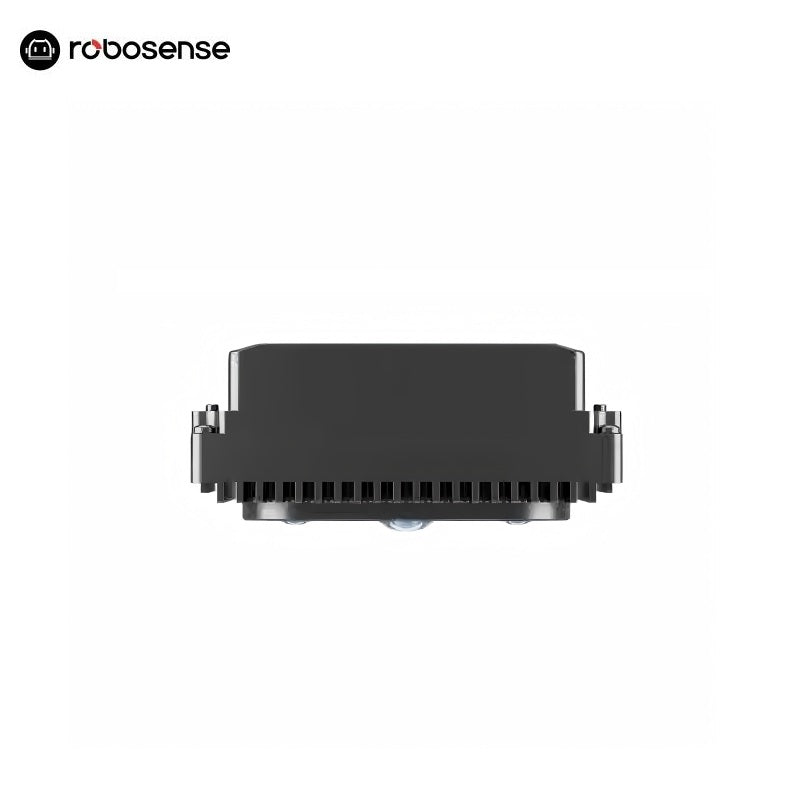

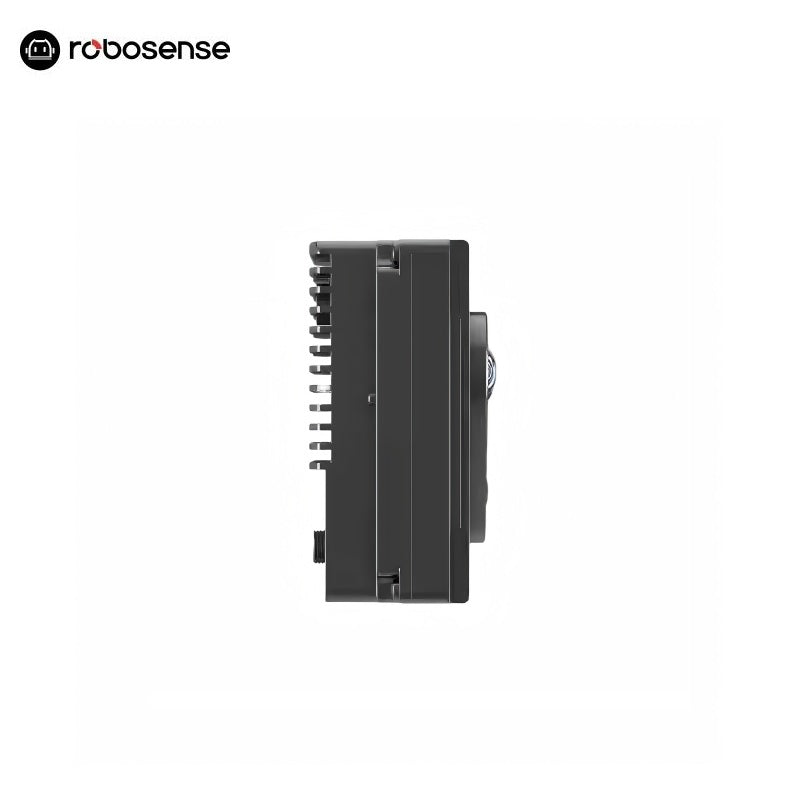

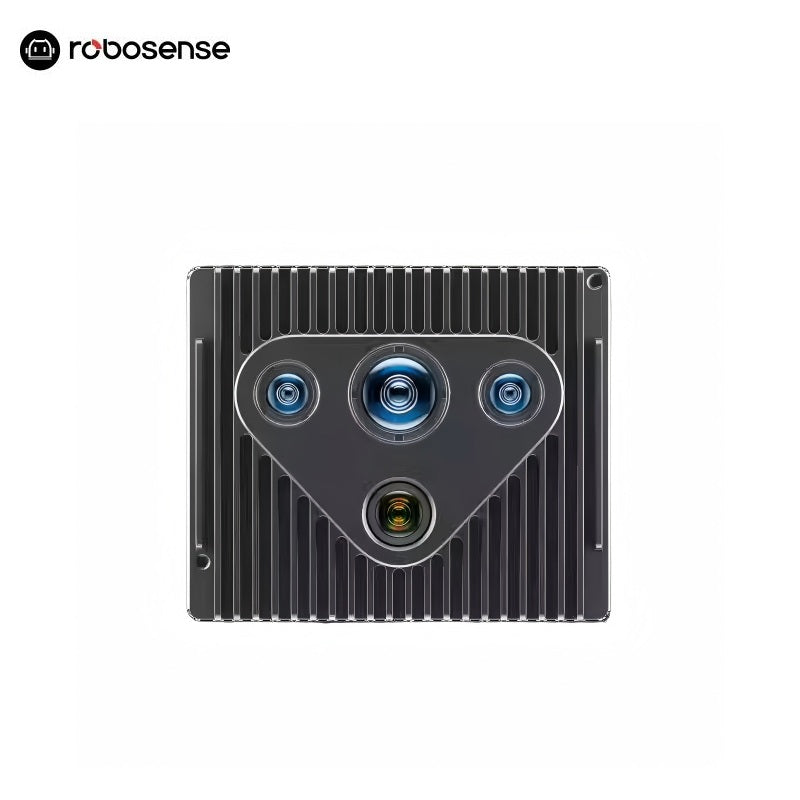

RoboSense AC1 Camera
Regular price
$2,800.00
Unit price
Unavailable
RoboSense AC1 Camera - AC1 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
RoboSense AC1 Camera
Regular price
$2,800.00
Unit price
Unavailable
RoboSense AC1 Camera - AC1 is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Ranging Capability (Depth) | 20m@10%,100kLux* |
| Accuracy (Depth) | 3cm@1σ |
| Blind Zone (Depth) | ≤0.2m |
| FOV (Depth) | 120°×60° |
| Resolution (Depth) | ~0.625°×0.625° |
| Frame Rate (Depth) | 10Hz |
| FOV (RGB) | 144°×78° |
| Resolution (RGB) | RGB 1920×1080 @30Hz |
| Shutter (RGB) | Rolling Shutter |
| IMU Model | TDK IIM 42652 |
| Dimensions | 135×80×40mm |
| Power Consumption | 11W (typical) |
| Interface | USB3.0 |
| Power Supply | 12V |
| Operating Temperature | -20℃~+60℃ |
