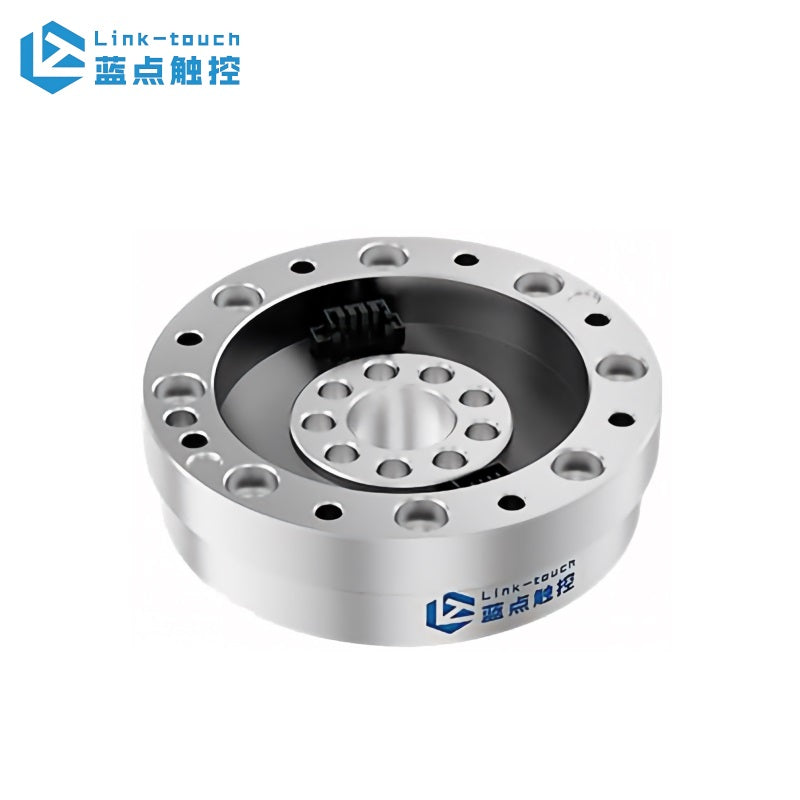

Link-touch LD Series Joint Torque Sensor

$2,140.00
Version

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information


Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Performance Parameters LD-25 LD-60 LD-110 LD-210 LD-400 LD-800 LD-1200 LD-1400
Rated Capacity 25 Nm 60 Nm 110 Nm 210 Nm 400 Nm 800 Nm 1200 Nm 1400 Nm
Resolution 0.001 Nm 0.001 Nm 0.01 Nm 0.01 Nm 0.05 Nm 0.1 Nm 0.5 Nm 1 Nm
Accuracy 0.3 %FS 0.3 %FS 0.3 %FS 0.3 %FS 0.3 %FS 0.3 %FS 0.3 %FS 0.3 %FS
Overload Capacity 300 %FS 300 %FS 300 %FS 300 %FS 300 %FS 300 %FS 300 %FS 300 %FS
Communication Interface 0-5V Analog Signal 0-5V Analog Signal 0-5V Analog Signal 0-5V Analog Signal 0-5V Analog Signal 0-5V Analog Signal 0-5V Analog Signal 0-5V Analog Signal
Protection Rating IP65 IP65 IP65 IP65 IP65 IP65 IP65 IP65
Supply Voltage 5 V 5 V 5 V 5 V 5 V 5 V 5 V 5 V
Repeatability Accuracy 0.1 %FS 0.1 %FS 0.1 %FS 0.1 %FS 0.1 %FS 0.1 %FS 0.1 %FS 0.1 %FS
Combined Accuracy 0.1 %FS 0.1 %FS 0.1 %FS 0.1 %FS 0.1 %FS 0.1 %FS 0.1 %FS 0.1 %FS
Dimensions Φ53 × H15 mm Φ64 × H26 mm Φ74 × H23 mm Φ103 × H24 mm Φ133 × H30 mm Φ145 × H36 mm Φ216 × H28 mm Φ170 × H15 mm
Weight 70 g 80 g 115 g 175 g 320 g 450 g 934 g 601 g
Operating Temperature -20 to 80 °C -20 to 80 °C -20 to 80 °C -20 to 80 °C -20 to 80 °C -20 to 80 °C -20 to 80 °C -20 to 80 °C
Material Aviation Aluminum Alloy Aviation Aluminum Alloy Aviation Aluminum Alloy Aviation Aluminum Alloy Aviation Aluminum Alloy Aviation Aluminum Alloy Aviation Aluminum Alloy Aviation Aluminum Alloy


Link-touch Joint Torque Sensor LD-Drawing.pdf
