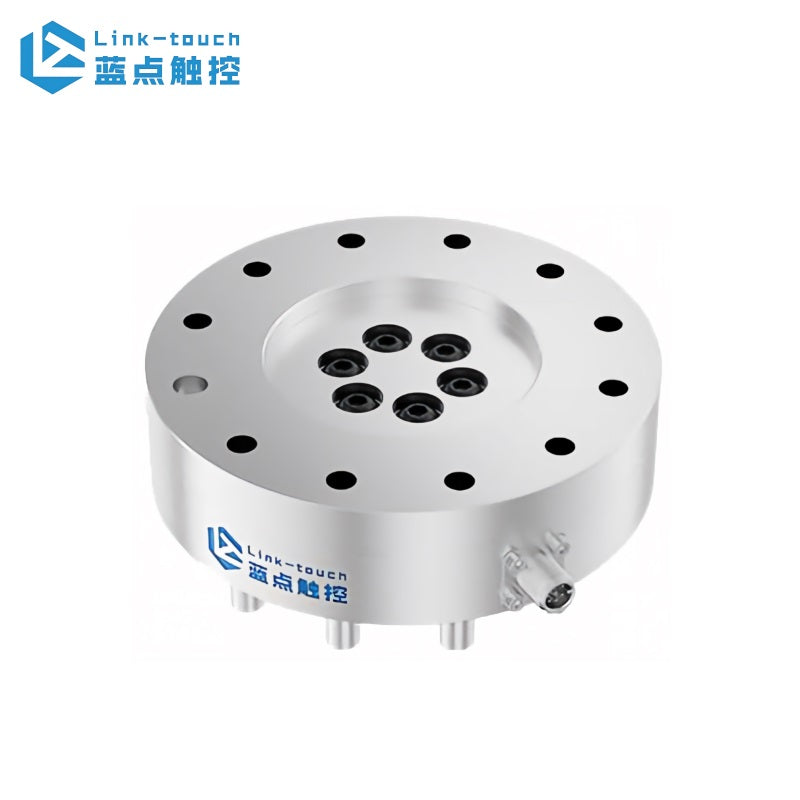

Link-touch LB150 Six-Dimension Force Sensor

$2,750.00
Version
Industrial Load
Communication Interface

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information


Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Performance Parameters Industrial Low Load Industrial High Load
Rated Load (Fx, Fy) 1800 N 3200 N
Rated Load (Fz) 3600 N 6400 N
Rated Load (Mx, My, Mz) 300 Nm 800 Nm
Resolution (Fx, Fy) 2 N 5 N
Resolution (Fz) 5 N 10 N
Resolution (Mx, My, Mz) 0.5 Nm 1 Nm
Accuracy 2.5 %FS 3 %FS
Overload Capacity 300 %FS 200 %FS
Communication Interface RS485/EtherCAT/Ethernet RS485/EtherCAT/Ethernet
Protection Rating IP65 (Customizable IP67) IP65 (Customizable IP67)
Supply Voltage DC 9-36 V DC 9-36 V
Power Consumption 2 W 2 W
Repeatability Accuracy 0.5 %FS 0.5 %FS
Combined Accuracy 3 %FS 5 %FS
Dimensions Φ150 × H40 mm Φ150 × H40 mm
Weight 3650 g 3650 g
Operating Temperature -20 to 80 °C -20 to 80 °C
Material High-Strength Stainless Steel High-Strength Stainless Steel


Link-touch Six-Dimension Force Sensor LB150-Drawing.pdf
