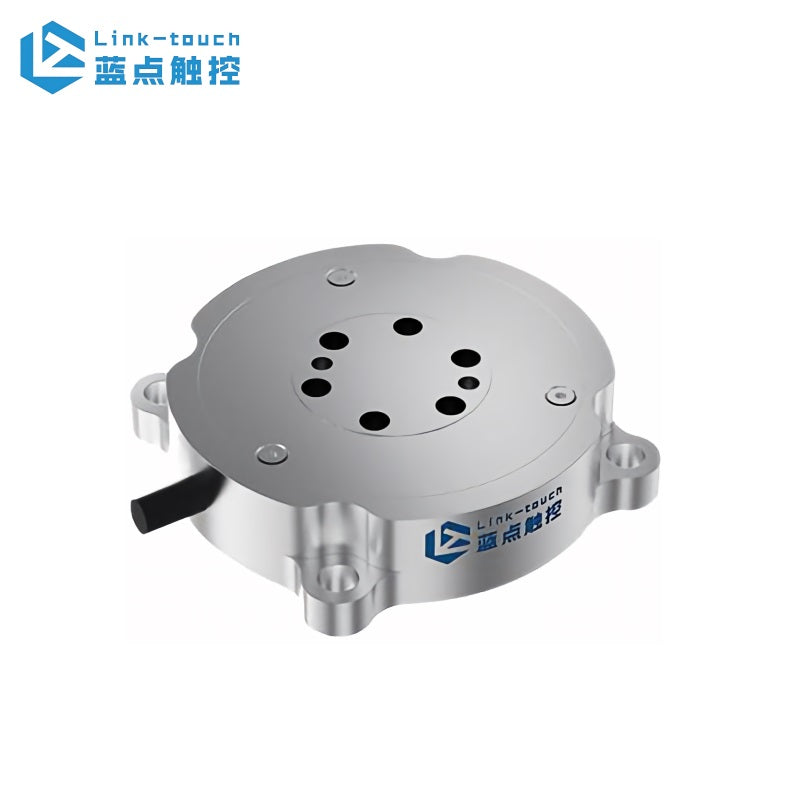

Link-touch LA77 Six-axis Force Sensor

$2,388.00
Version
Rated Load
Communication Interface

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information


Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Performance Parameters LA77 LA77  LA77
Rated Load (Fx, Fy) 1000 N 1600 N 2000 N
Rated Load (Fz) 2000 N 3000 N 4000 N
Rated Load (Mx, My, Mz) 60 Nm 60 Nm 120 Nm
Resolution (Fx, Fy) 0.5 N 0.5 N 0.5 N
Resolution (Fz) 0.8 N 0.8 N 0.8 N
Resolution (Mx, My, Mz) 0.021 Nm 0.05 Nm 0.05 Nm
Accuracy 0.3 %FS 0.3 %FS 0.3 %FS
Overload Capacity 5x 5x 5x
Sampling Frequency 1000 Hz 1000 Hz 1000 Hz
Communication Interface

Ethercat/CAN/RS422/

RS485/Modbus/Ethernet

Ethercat/CAN/RS422/

RS485/Modbus/Ethernet

Ethercat/CAN/RS422/

RS485/Modbus/Ethernet
Protection Rating IP65 (Customizable IP67) IP65 (Customizable IP67) IP65 (Customizable IP67)
Supply Voltage DC 48V DC 48V DC 48V
Power Consumption ≤ 2 W ≤ 2 W ≤ 2 W
Repeatability Accuracy 0.1 %FS 0.1 %FS 0.1 %FS
Combined Accuracy * 0.2 %FS 0.2 %FS 0.2 %FS
Dimensions Φ77 × H14 mm Φ77 × H14 mm Φ77 × H14 mm
Weight 280 g 280 g 280 g
Operating Temperature -10 to 80 °C -10 to 80 °C -10 to 80 °C
Material High-Strength Stainless Steel High-Strength Stainless Steel High-Strength Stainless Steel


Link-touch Six-axis Force LA77 Sensor-Drawing.pdf
