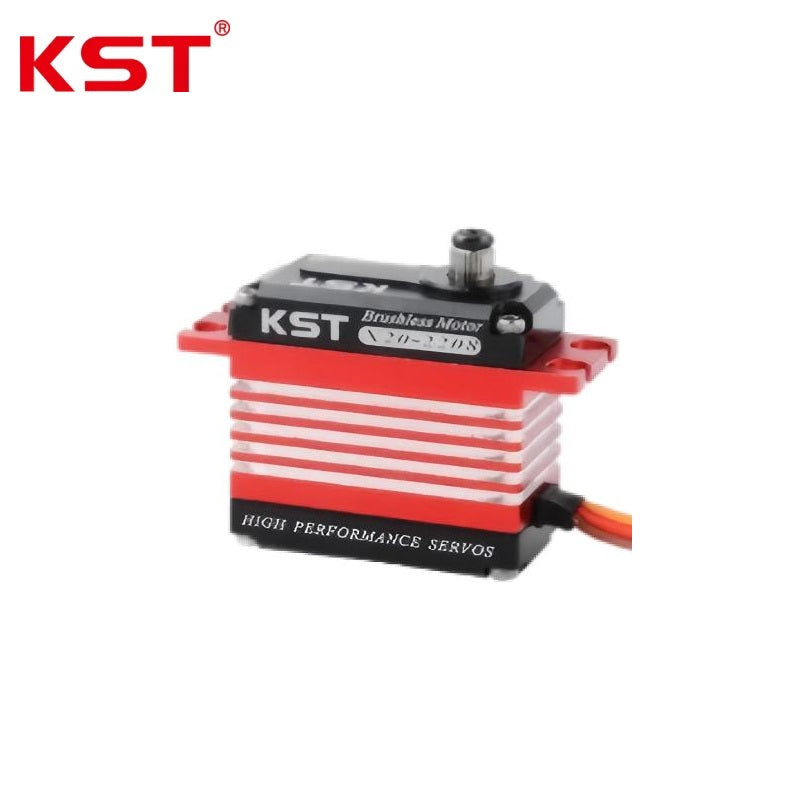

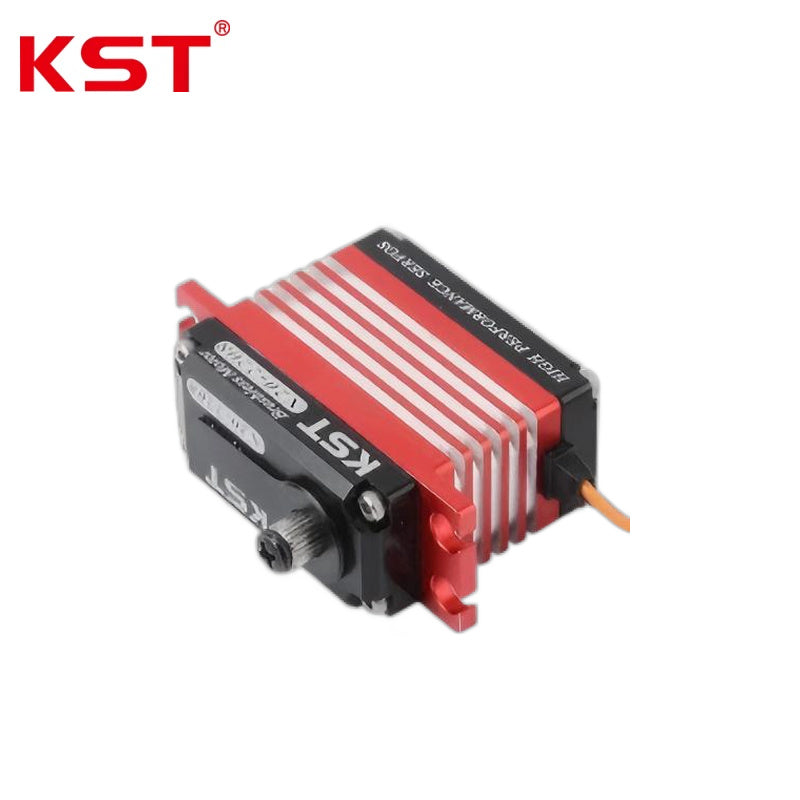

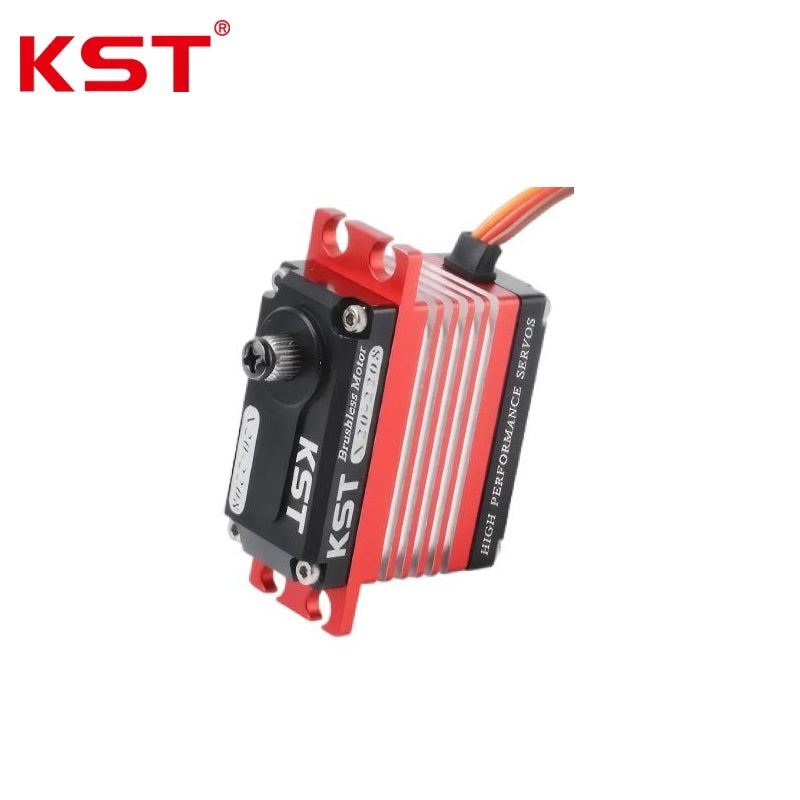

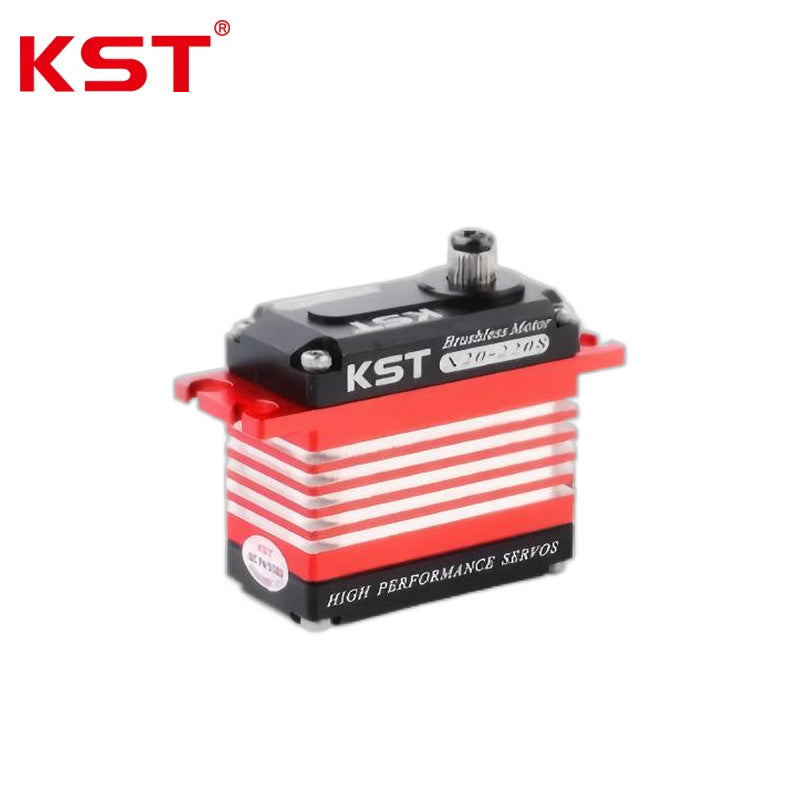

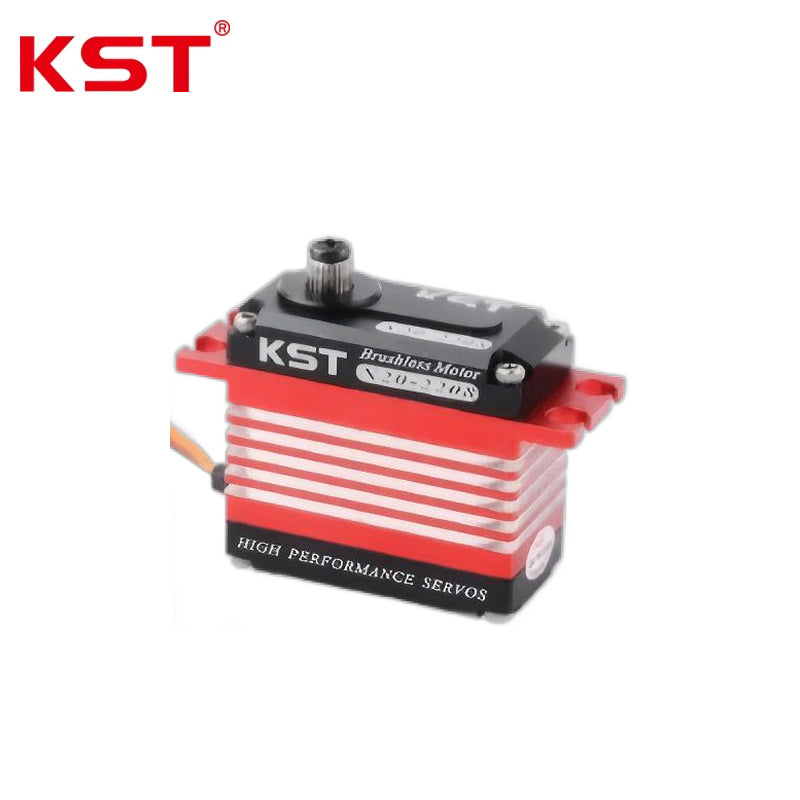

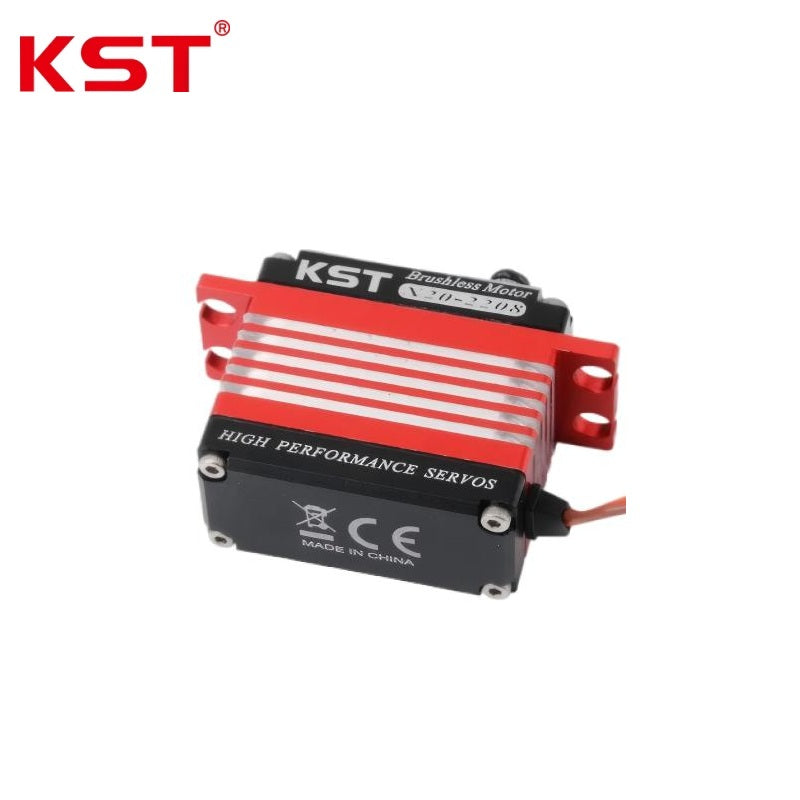

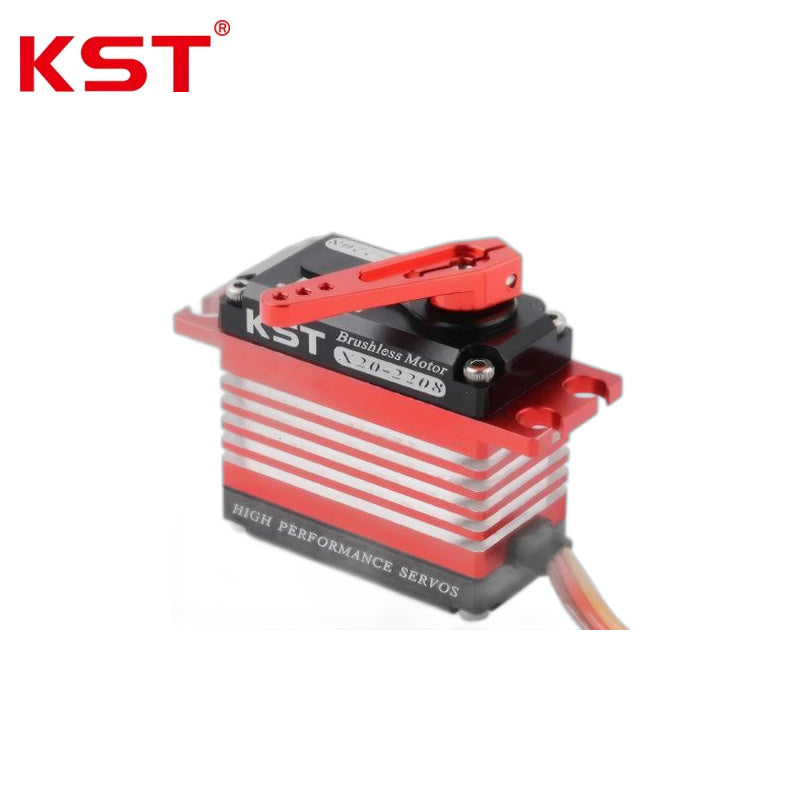

KST X20-2208 Servo Motor

$149.99

Version

X20-2208

Delivery and Shipping

We automatically select the most cost-effective carrier from China for each destination country
Shipping rates are dynamically calculated based on real-time quotes
Final rates may vary due to promotional offers or carrier adjustments

Humanoid Robots

Robotic Arms

Exoskeletons

Quadruped Robots

AGV Vehicles

ARU Robots

Parameter	Value
Performance & Electrical Ratings:
Rated Voltage	DC 7.4V
Operating Voltage Range	DC 6.0V - 8.4V
Stall Torque	1.8 N.m @ 6.0V; 2.2 N.m @ 7.4V; 2.5 N.m @ 8.4V
Operating Speed (60deg Rotation)	0.09 sec @ 6.0V; 0.08 sec @ 7.4V; 0.07 sec @ 8.4V
Working Frequency	1520 us / 333 Hz
Control Specifications:
Default Travel Angle	+/-50deg (100deg Total Rotation)
Control Signal Voltage (TTL Level)	HIGH: Min. 3.3V, Max. 5.0V; LOW: Min. 0.0V, Max. 1.5V
Control Pulse Width Range	900 us - 2100 us
Calibration Pulse (-50 / 0 / +50 deg)	1000 us / 1500 us / 2000 us
Internal Characteristics:
Motor Type	Brushless DC Motor (BLDC)
Gear Material	Hardened Steel
Position Feedback Device	Potentiometer
Ball Bearing Quantity	6 BB
Physical & Environmental:
Housing Material	Aluminum Alloy
Housing Dimensions	40 mm x 20 mm x 40 mm +/- 0.2 mm
Weight	72 g +/- 10%
Operating Temperature Range	-10 deg C - +65 deg C
