KST

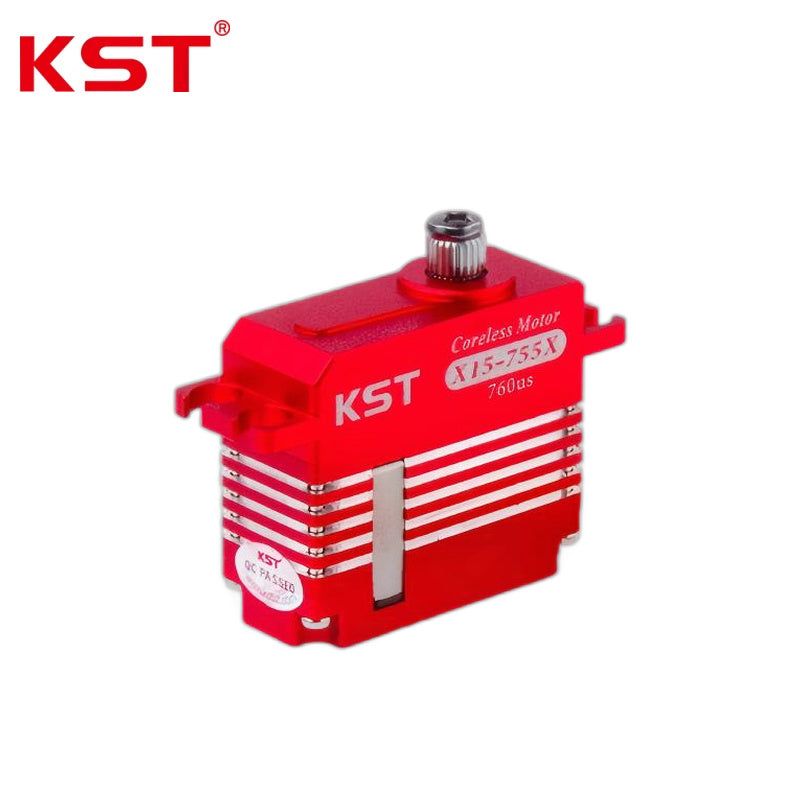

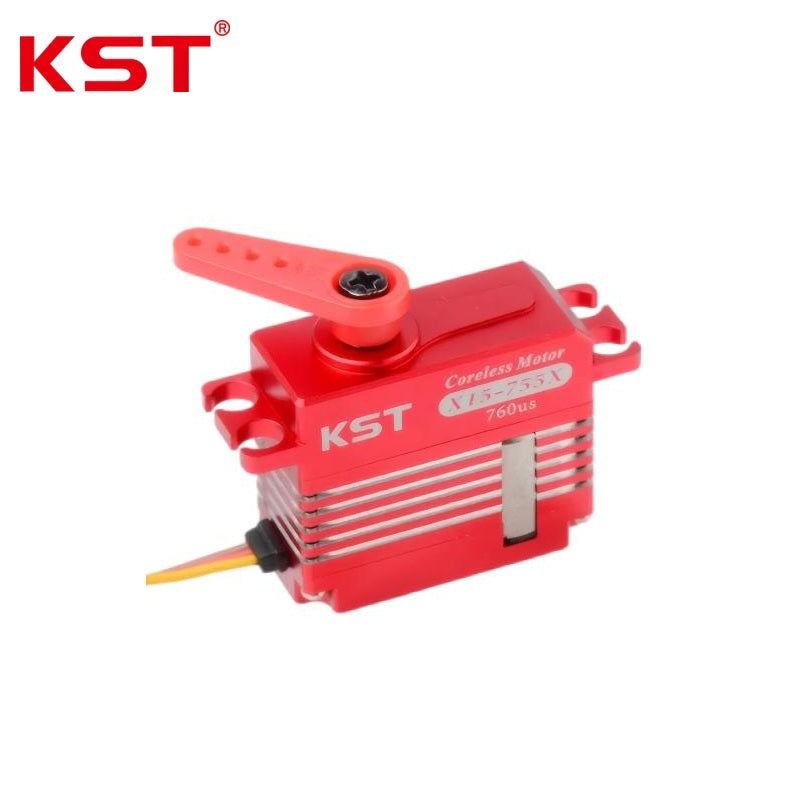

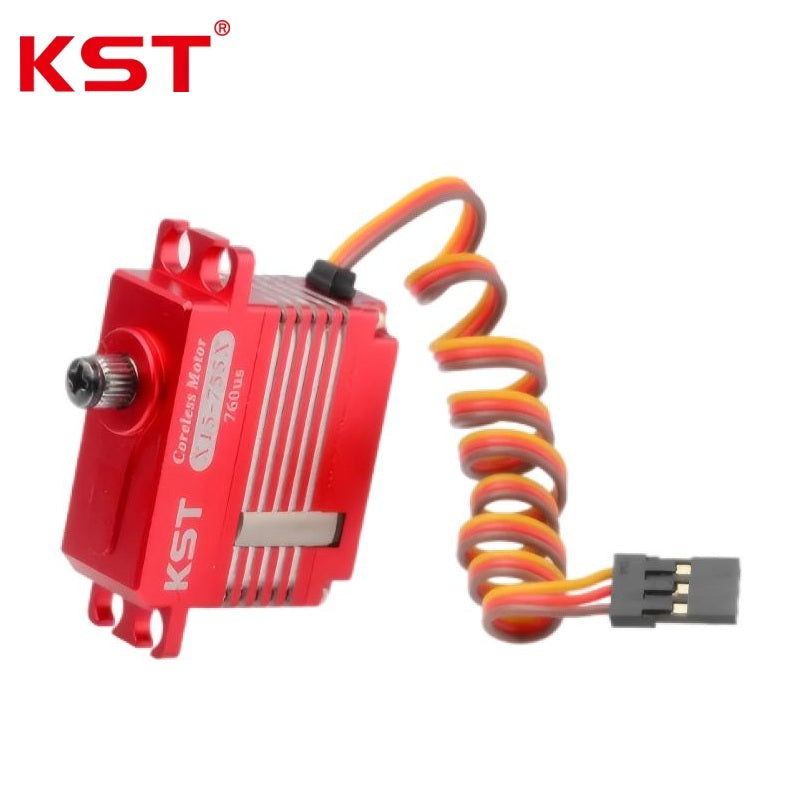

KST X15-755X Servo Motor

$89.99
Version

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information


Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value
Performance & Electrical Ratings:
Rated Voltage DC 7.4 V
Operating Voltage Range DC 6.0 V - 8.4 V
Torque 7.2 kgf.cm @ 6.0 V; 9.0 kgf.cm @ 7.4 V; 10.2 kgf.cm @ 8.4 V
Speed (60deg Rotation Time) 0.06 sec @ 6.0 V; 0.05 sec @ 7.4 V; 0.04 sec @ 8.4 V
Working Frequency 760 us / 560 Hz
Control Specifications:
Control Signal Voltage HIGH: 3.3 V - 5.0 V; LOW: 0.0 V - 1.5 V
Control Pulse Width 900 us - 2100 us
Internal Characteristics:
Motor Type Coreless DC Motor
Gear Set Material Hardened Steel
Position Sensor Potentiometer
Physical & Environmental:
Housing Material Aluminum Alloy
Housing Dimensions 35.5 mm x 15 mm x 32.5 mm +/- 0.2 mm
Weight 40 g +/- 10%
Operating Temperature Range -10 deg C - +65 deg C
