KST

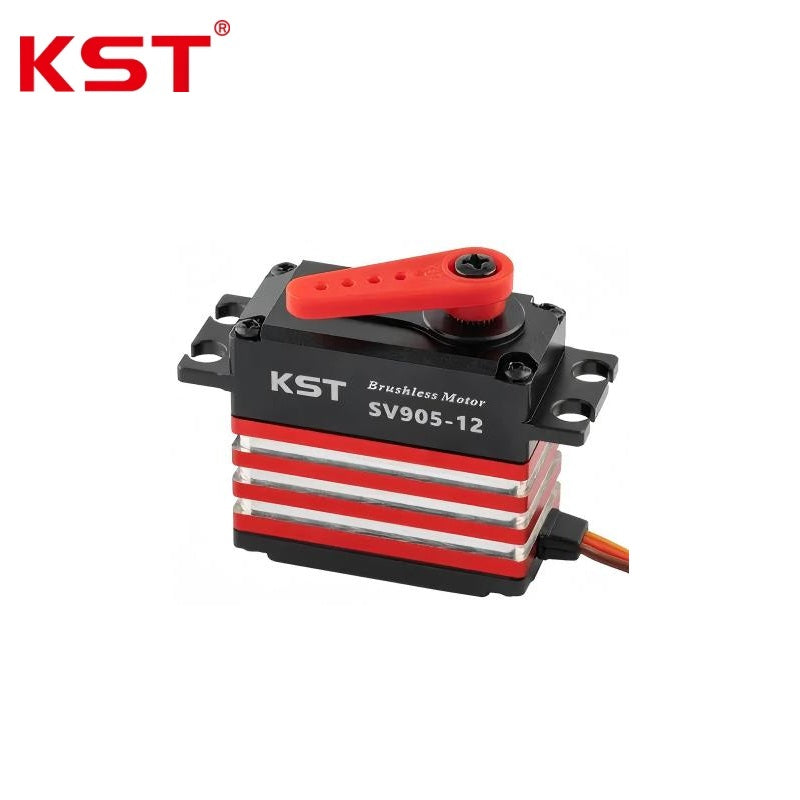

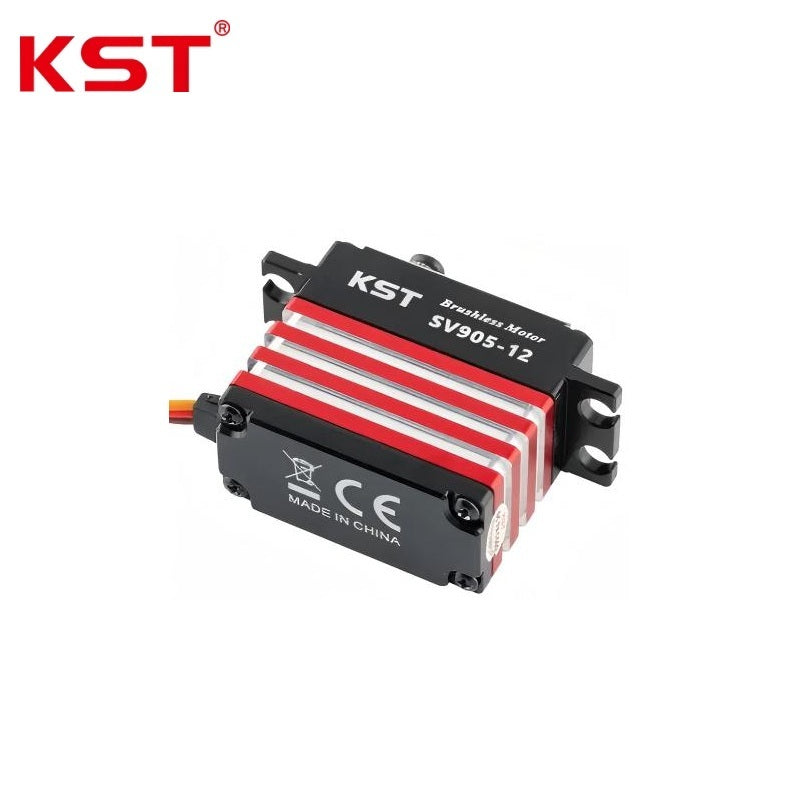

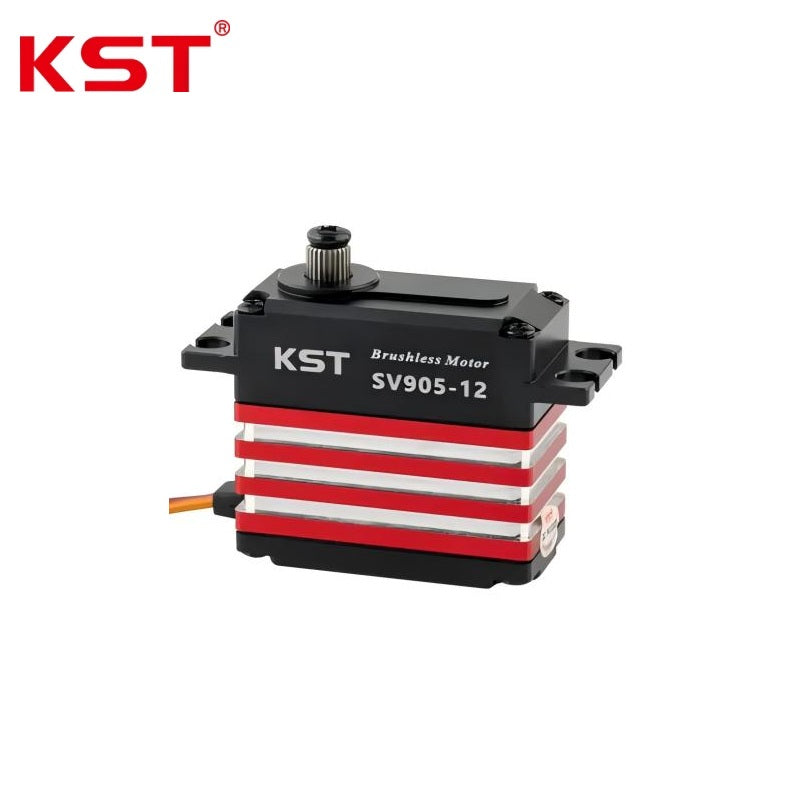

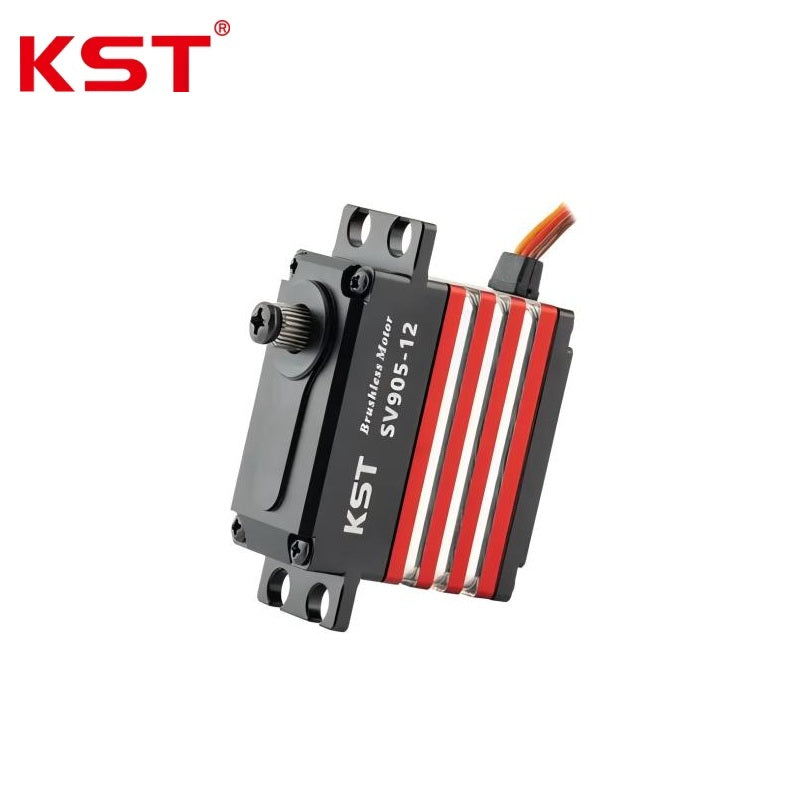

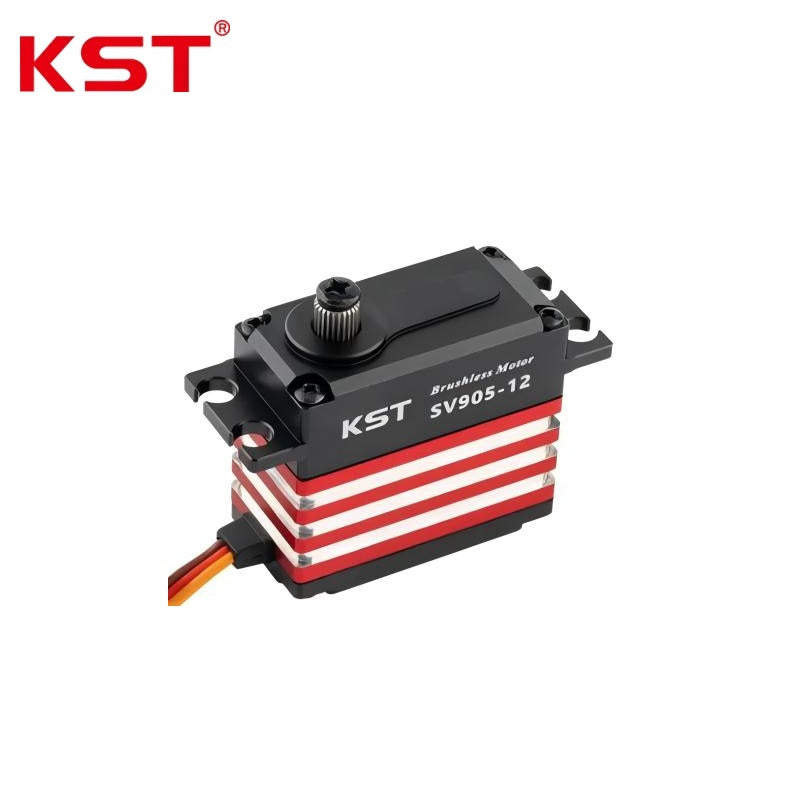

KST SV905-12 Servo Motor

$89.99
Version

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information


Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value
Performance & Electrical Ratings:
Rated Voltage DC12V
Operating Voltage Range DC8.0V ~ DC13.0V
Output Torque 13.0Kgf.cm @ 8.4V; 16.0Kgf.cm @ 12V; 17.0Kgf.cm @ 13V
Rotational Speed (Time for 60deg rotation) 0.060sec/60deg @ 8.4V; 0.045sec/60deg @ 12V; 0.040sec/60deg @ 13V
Control Specifications
Working Frequency 760us / 560Hz
TTL Signal Voltage Level High Level: Min.3.3V ~ Max.5.0V; Low Level: Min.0.0V ~ Max.1.5V
Control Pulse Width 450us ~ 1050us
Internal Characteristics:
Driving Motor Type Brushless DC Motor
Transmission Gear Material Hardened Steel
Position Feedback Sensor Potentiometer
Ball Bearing Quantity 2 BB (2pcs Ball Bearings)
Physical & Environmental:
Operating Ambient Temperature Range -20deg C ~ +65deg C
Housing Material Aluminum Alloy
Overall Housing Dimension 40.5x20x38 mm +/-0.2mm
Net Weight 70g +/-10%
