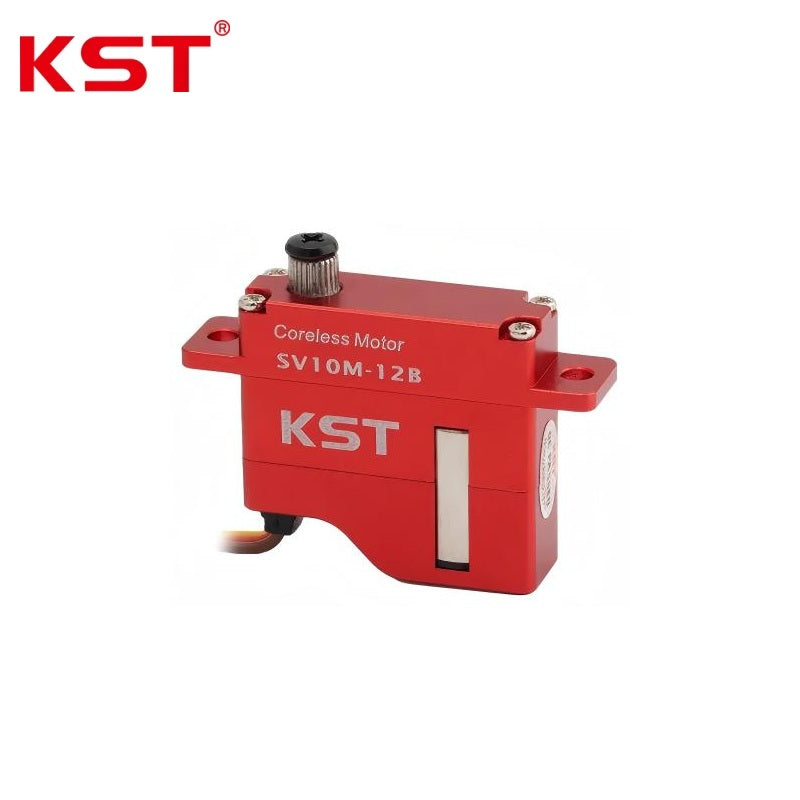

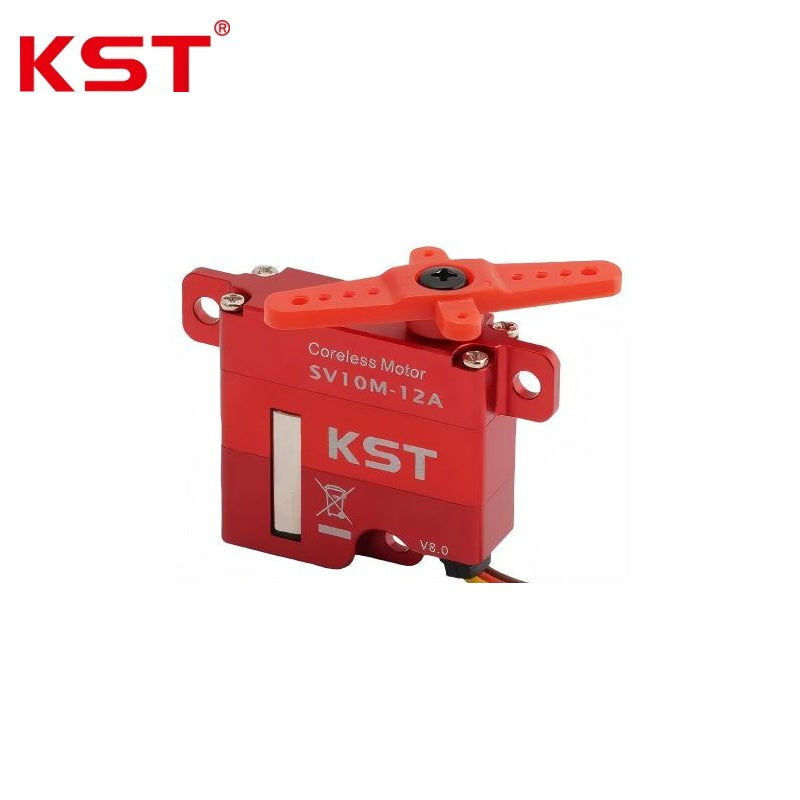

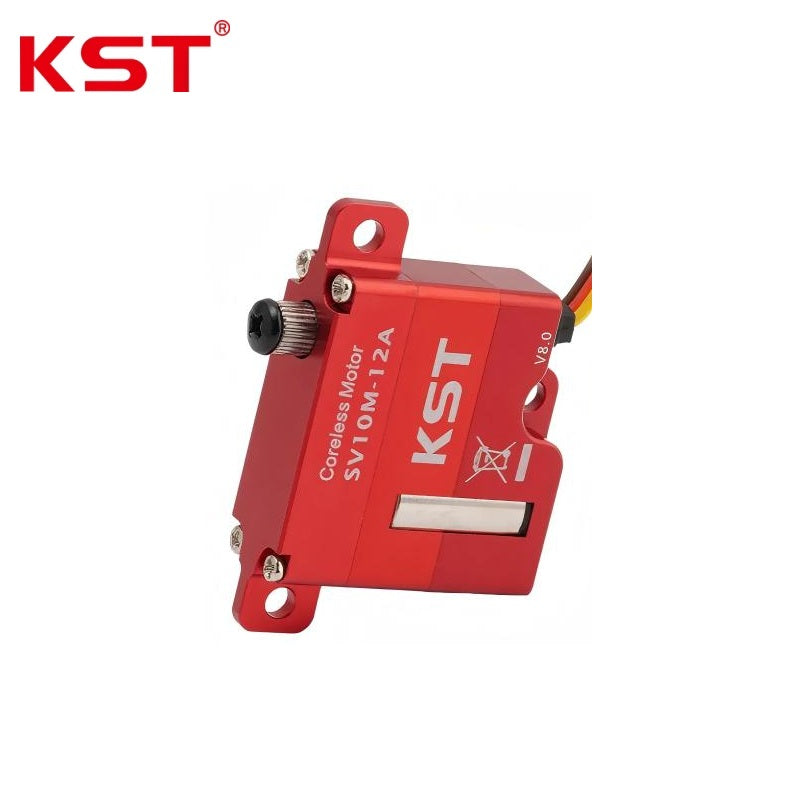

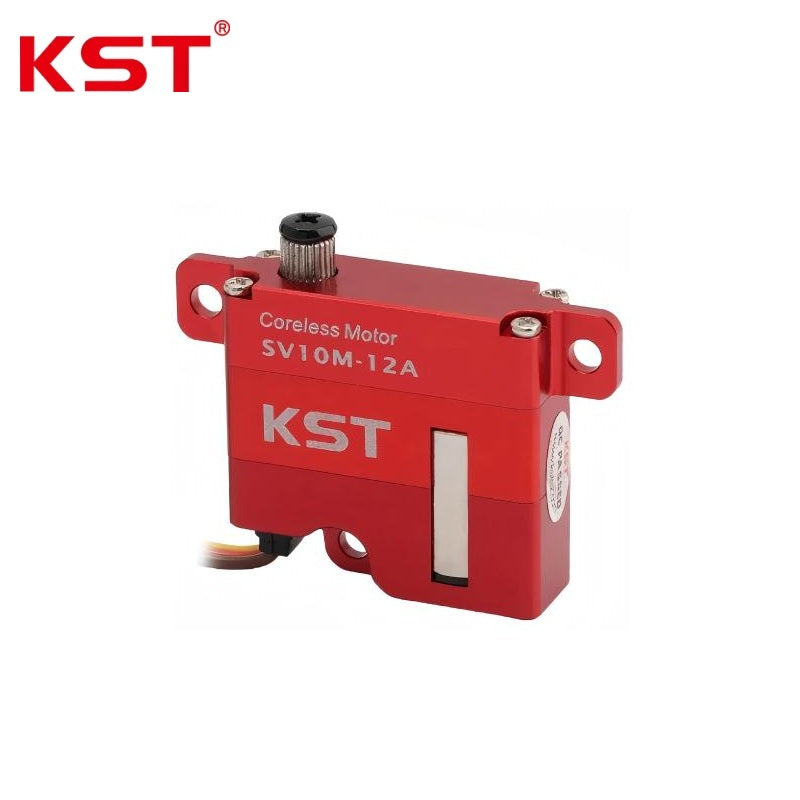

KST SV10M-12 Servo Motor
Regular price
$47.99
Unit price
KST SV10M-12 Servo Motor - SV10M-12A is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
KST SV10M-12 Servo Motor
Regular price
$47.99
Unit price
KST SV10M-12 Servo Motor - SV10M-12A is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Performance & Electrical Ratings: | |
| Rated Voltage | DC12.0V |
| Operating Voltage Range | DC8.4V~12.0V |
| Output Torque | 6.5Kgf.cm@8.40V; 8.0Kgf.cm@12.0V; 9.0Kgf.cm@13.0V |
| Rotational Speed (60deg rotation time) | 0.15sec/60deg@8.40V; 0.12sec/60deg@12.0V; 0.11sec/60deg@13.0V |
| Control Specifications: | |
| Working Control Pulse Parameter | 1520us/333Hz |
| Default Mechanical Travel Angle | +/-60deg, total travel angle: 120deg |
| Control Signal Level Voltage | HIGH level: Min.3.3V, Max.5.0V; LOW level: Min.0.0V, Max.1.5V |
| Total Valid Control Pulse Width Range | 900us~2100us |
| Position Mapping Pulse Width (-50deg/0deg/+50deg) | 1000us(-50deg)/1500us(0deg)/2000us(+50deg) |
| Internal Characteristics: | |
| Soft Start Function | Programmable |
| Programmable Configuration | Yes |
| Driving Motor Type | Coreless DC Motor |
| Reduction Gear Material | Hardened Steel |
| Position Feedback Sensor | Potentiometer |
| Physical & Environmental: | |
| Operating Ambient Temperature | -10deg C ~ +65deg C |
| Housing Material | Aluminum Alloy |
| Overall Housing Dimension | 30mmx10mmx28mm+/-0.2mm |
| Net Weight | 20g+/-10% |
