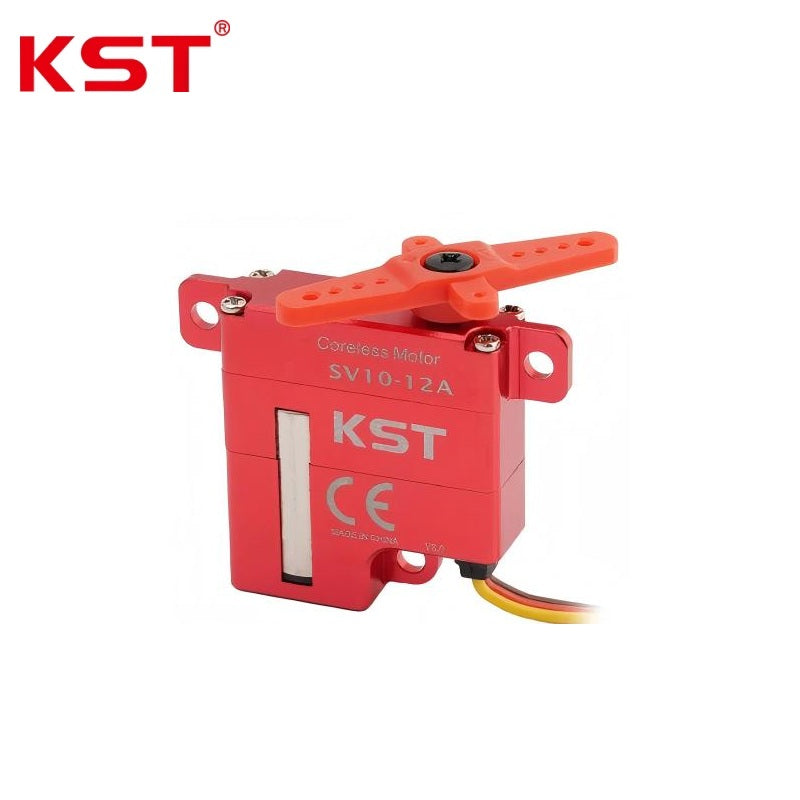

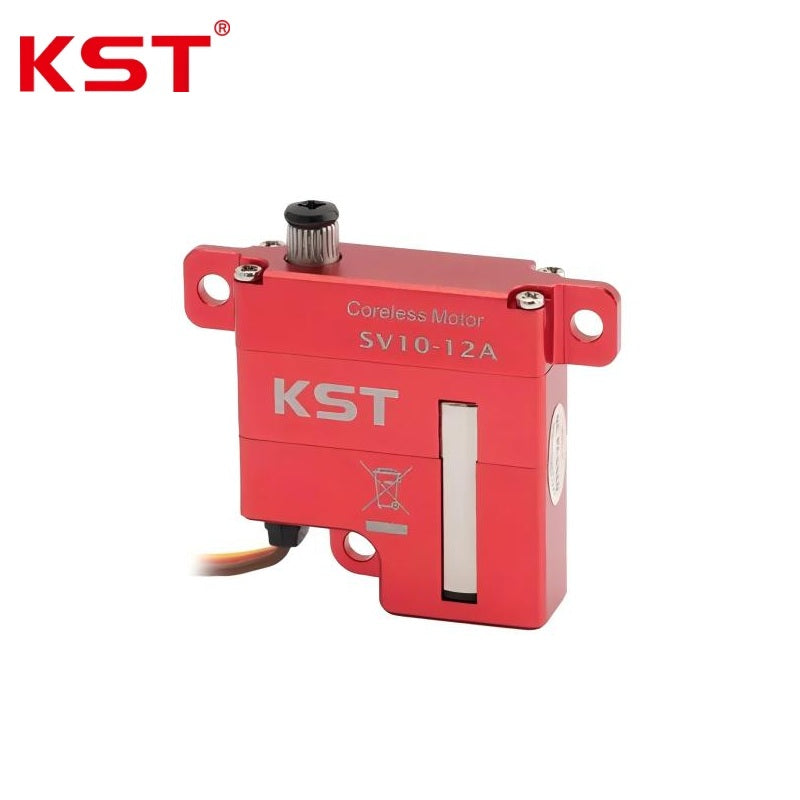

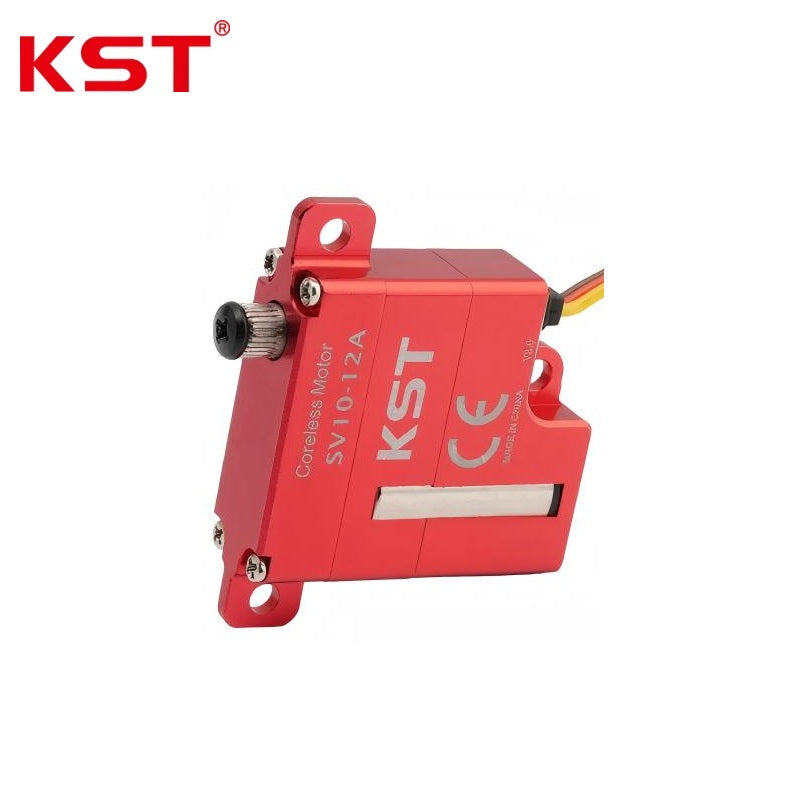

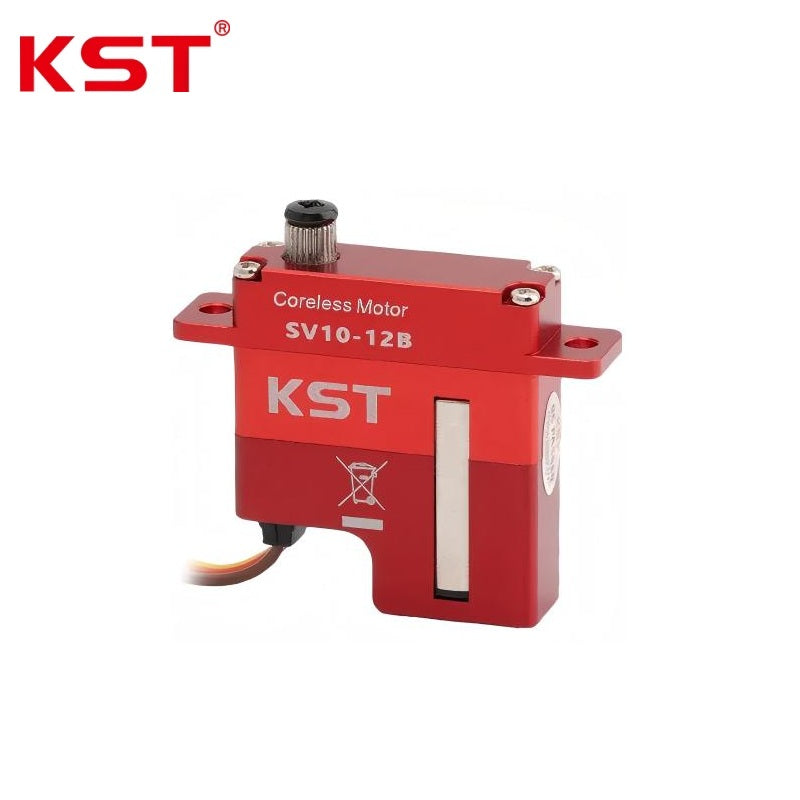

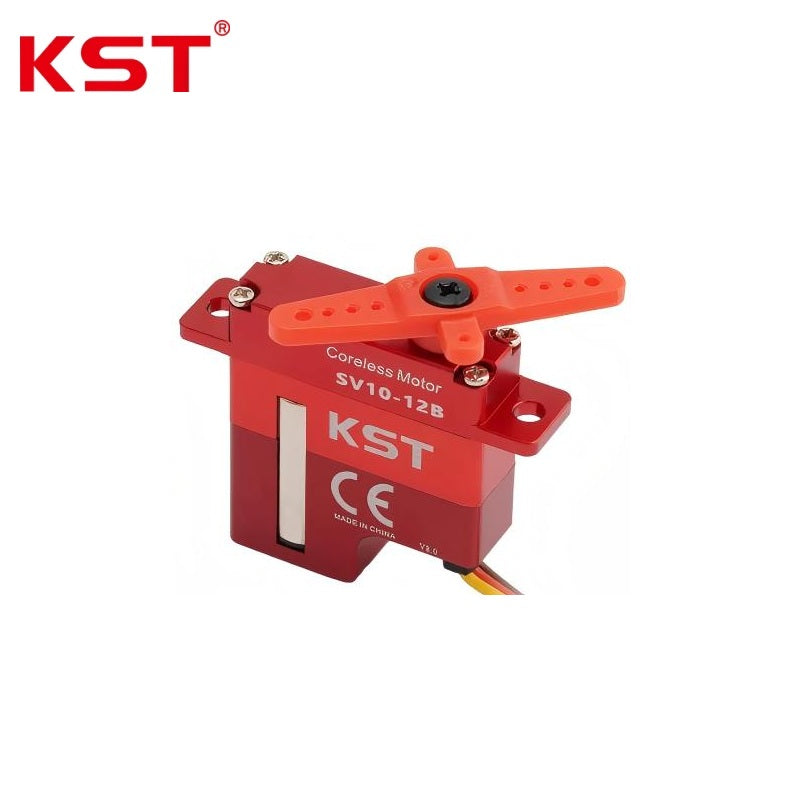

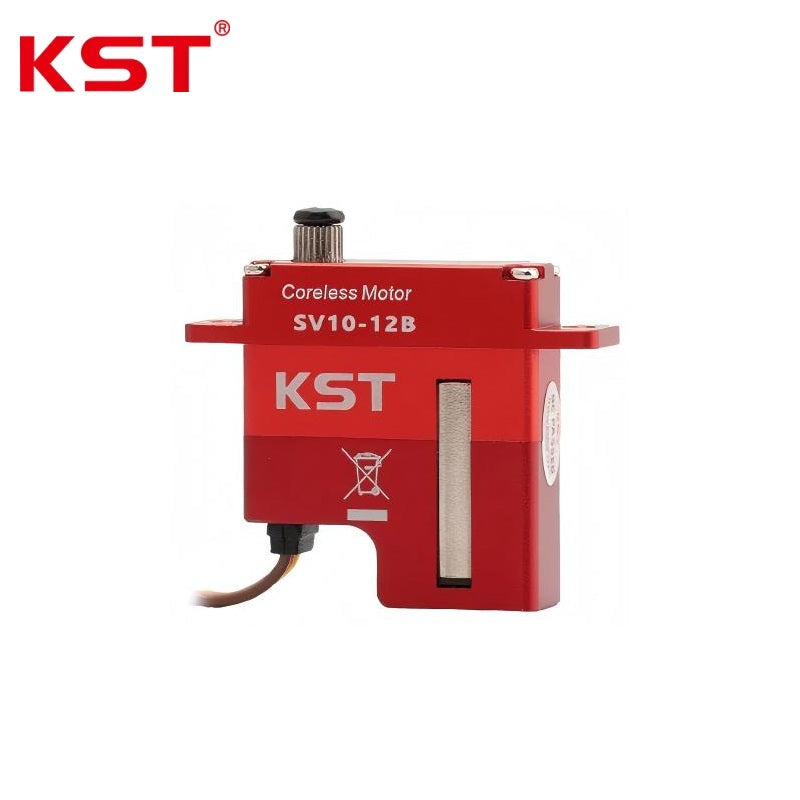

KST SV10-12 Servo Motor
Regular price
$49.99
Unit price
KST SV10-12 Servo Motor - SV10-12A is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
KST SV10-12 Servo Motor
Regular price
$49.99
Unit price
KST SV10-12 Servo Motor - SV10-12A is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Performance & Electrical Ratings: | |
| Rated Voltage | DC12.0V |
| Operating Voltage Range | DC8.40V ~ 13.0V |
| Output Torque | 11.0Kgf.cm @8.40V; 13.0Kgf.cm @12.0V; 14.0Kgf.cm @13.0V |
| Rotational Speed | 0.15sec/60deg @8.40V; 0.11sec/60deg @12.0V; 0.10sec/60deg @13.0V |
| Control Specifications: | |
| Operating Frequency | 1520us / 333Hz |
| Default Mechanical Travel Angle | +/-60deg (Total travel angle: 120deg) |
| Control Signal Level Voltage | High level: Min.3.3V, Max.5.0V; Low level: Min.0.0V, Max.1.5V |
| Total Valid Control Pulse Width | 900us ~ 2100us |
| Calibrated Pulse Width Corresponding to Position (-50deg/0deg/+50deg) | 1000us(-50deg) / 1500us(0deg) / 2000us(+50deg) |
| Internal Characteristics: | |
| Soft-start Feature | Programmable |
| Function Programmability | Yes |
| Prime Motor Type | Coreless DC Motor |
| Gear Set Material | Hardened Steel |
| Position Detection Sensor | Potentiometer |
| Physical & Environmental: | |
| Operating Ambient Temperature Range | -10deg C ~ +65deg C |
| Housing Material | Aluminum Alloy |
| Housing Overall Dimension | 30x10x33.5mm+/-0.2mm |
| Net Weight | 25g+/-10% |
