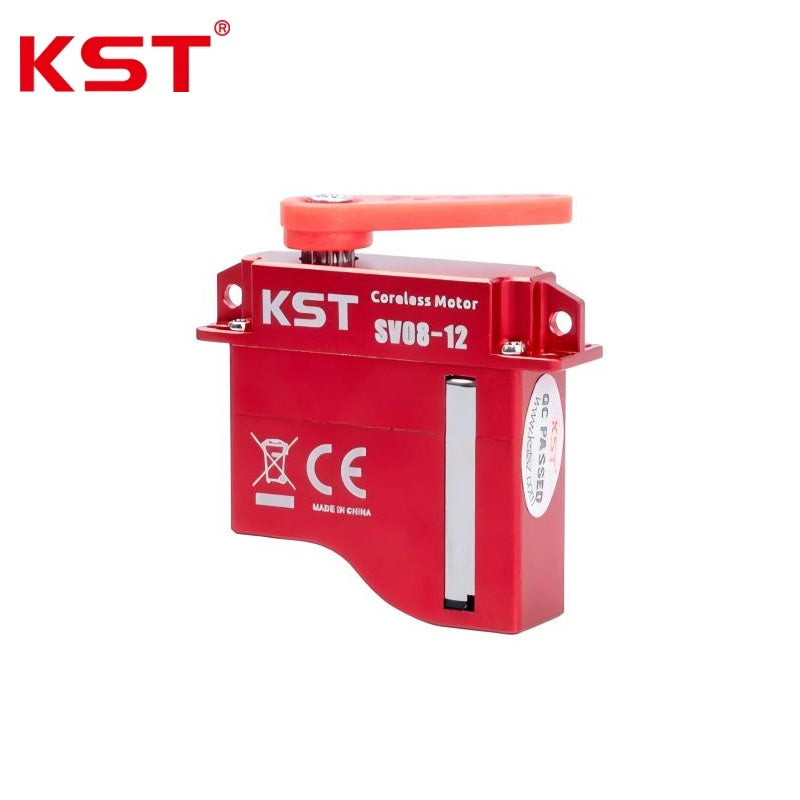

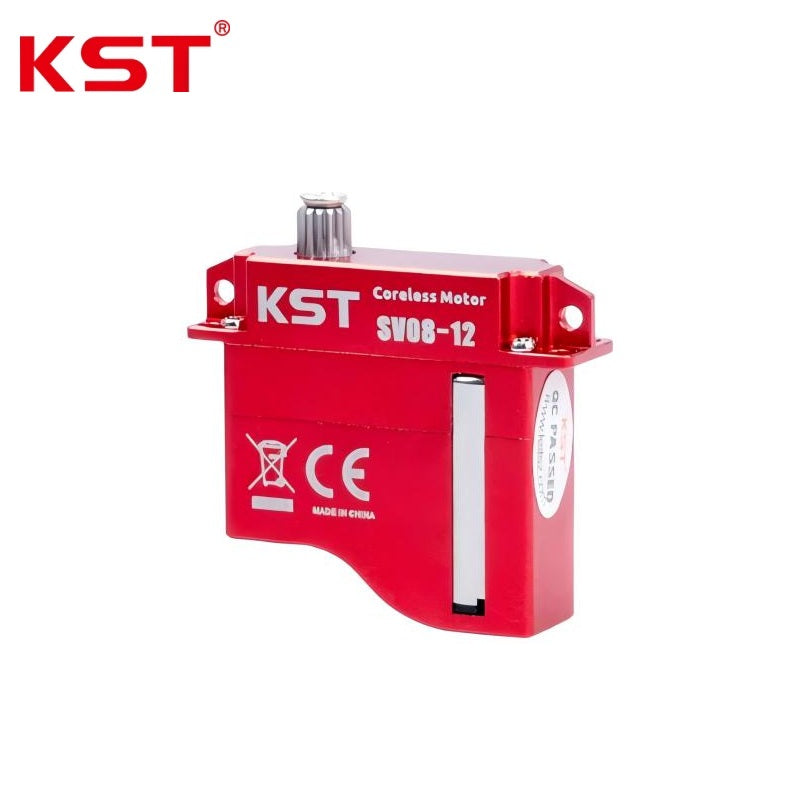

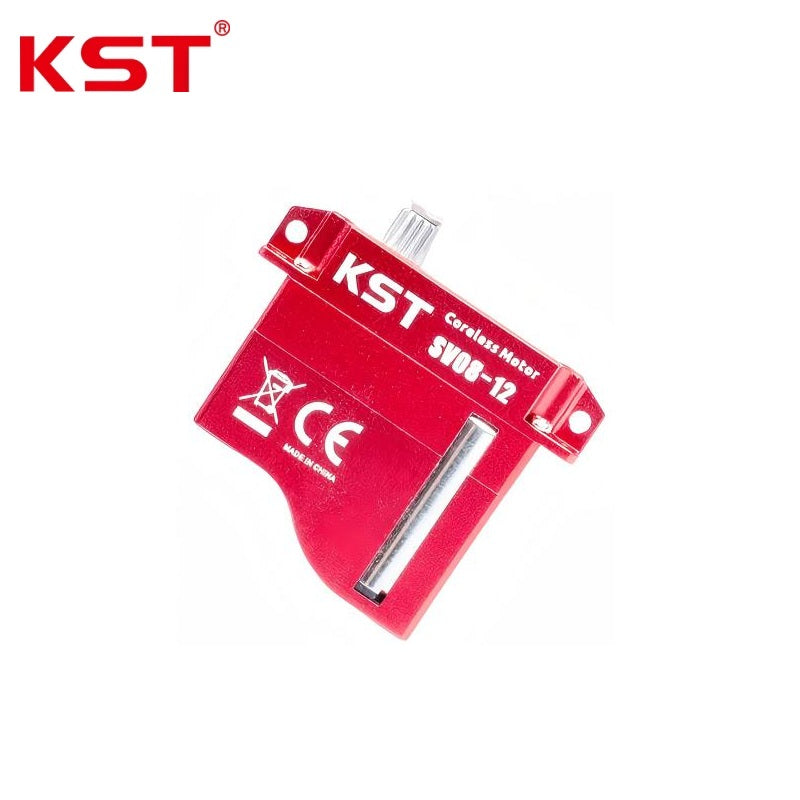

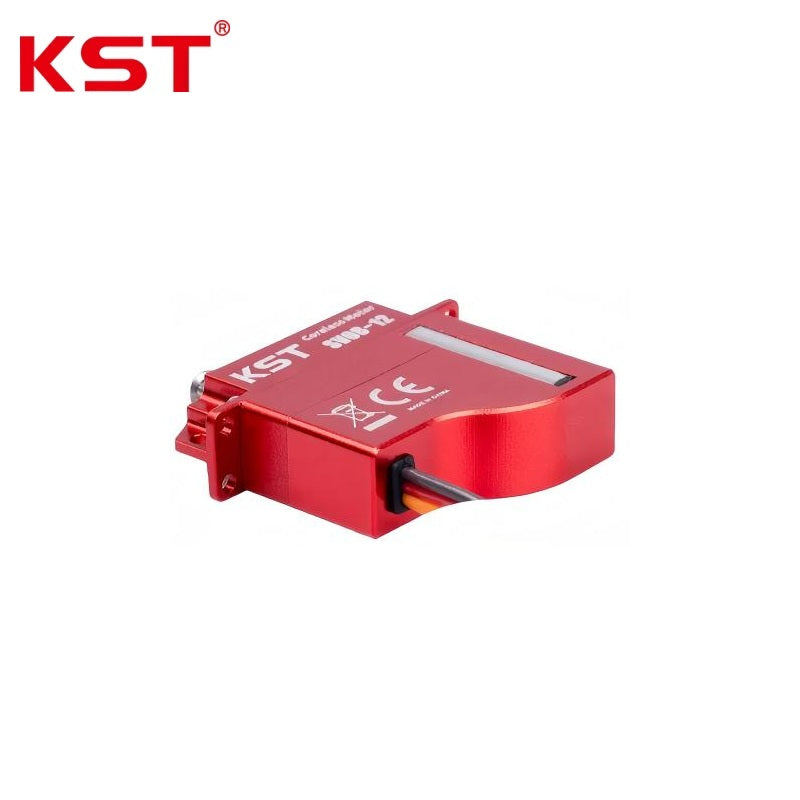

KST SV08-12 Servo Motor

$59.99

Version

SV08-12

Delivery and Shipping

We automatically select the most cost-effective carrier from China for each destination country
Shipping rates are dynamically calculated based on real-time quotes
Final rates may vary due to promotional offers or carrier adjustments

Humanoid Robots

Robotic Arms

Exoskeletons

Quadruped Robots

AGV Vehicles

ARU Robots

Parameter	Value
Performance & Electrical Ratings:
Rated Voltage	DC 12.0 V
Operating Voltage Range	DC 8.40 V - 13.0 V
Stall Torque	5.00 kgf.cm @ 8.40 V; 7.00 kgf.cm @ 12.0 V; 8.00 kgf.cm @ 13.0 V
No-load Speed (60deg Rotation)	0.15 sec @ 8.40 V; 0.10 sec @ 12.0 V; 0.09 sec @ 13.0 V
Start Current	1.18 A @ 12.0 V
Rated Torque	2.0 kgf.cm @ 12.0 V
Rated Current	0.35 A @ 12.0 V
Rated Speed	0.13 sec/60deg @ 12.0 V
Working Frequency	1520 us / 333 Hz
Control Specifications:
Default Travel Angle	+/-60 deg (Total 120 deg)
Control Signal Voltage Level	HIGH: 3.3-5.0 V (min./max.); LOW: 0.0-1.5 V (min./max.)
Control Pulse Width Range	900 us - 2100 us
Calibrated Pulse Width for Position	-60 deg: 1000 us; 0 deg: 1500 us; +60 deg: 2000 us
Soft Start Function / Programmable Capability	Programmable / Yes
Internal Characteristics:
Motor Type	Coreless DC Motor
Gear Train Material	Hardened Steel Gears
Position Feedback Sensor	Potentiometer
Ball Bearing Configuration	2 BB (Double Ball Bearings)
Physical & Environmental:
Housing Material	Aluminum Alloy
Housing Dimensions	23.5 x 8 x 25.25 mm +/- 0.2 mm
Weight	11 g +/- 10%
Operating Temperature Range	-10 deg C ~ +65 deg C
