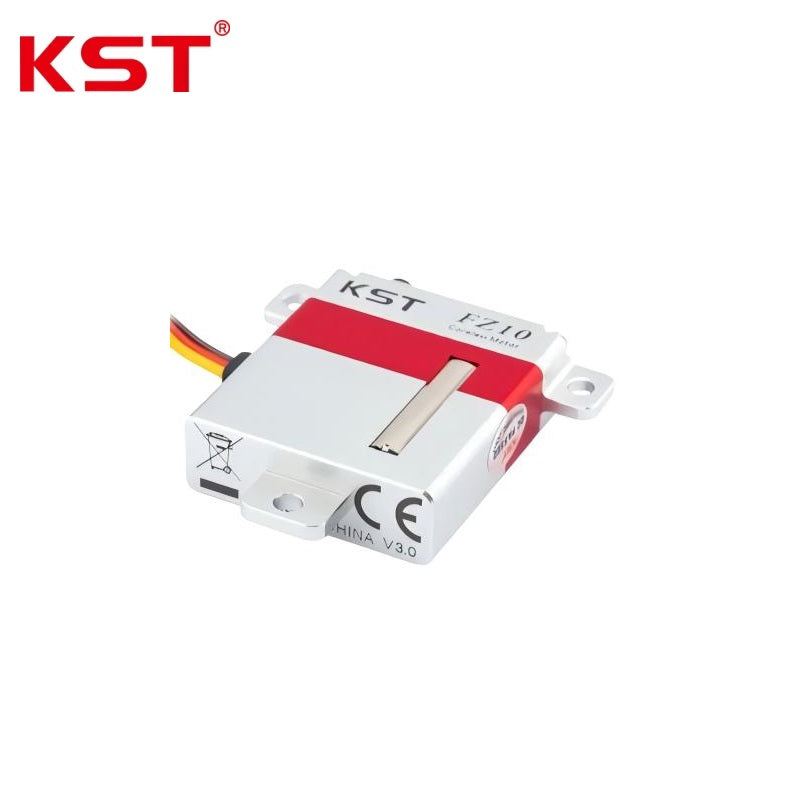

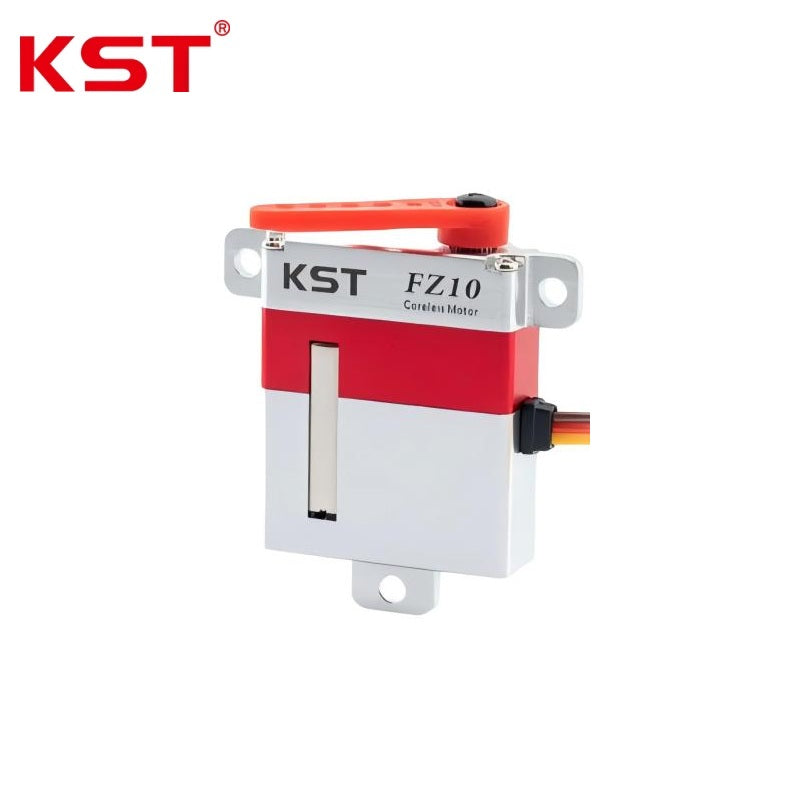

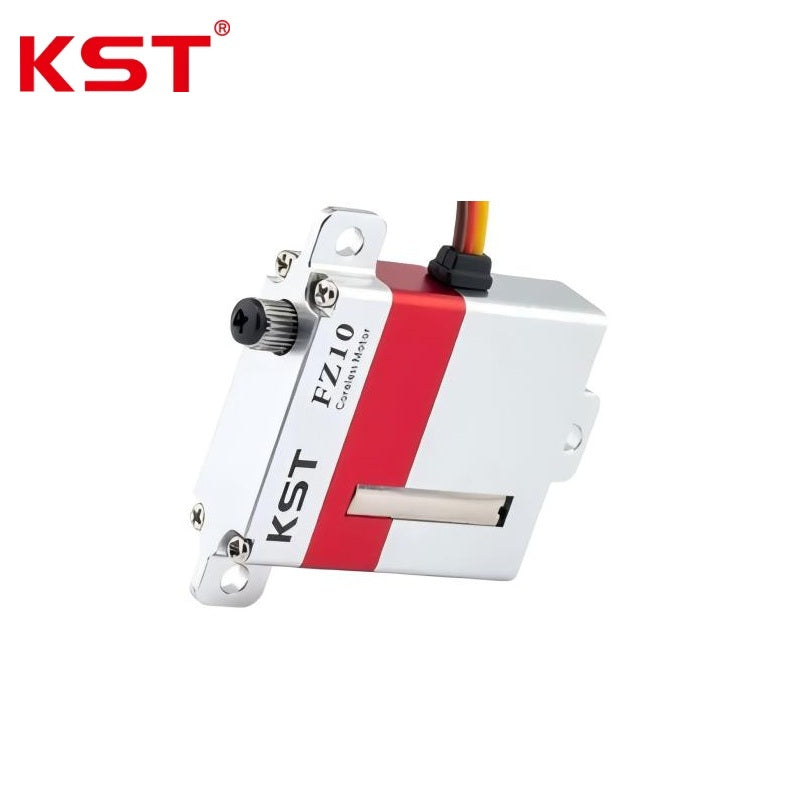

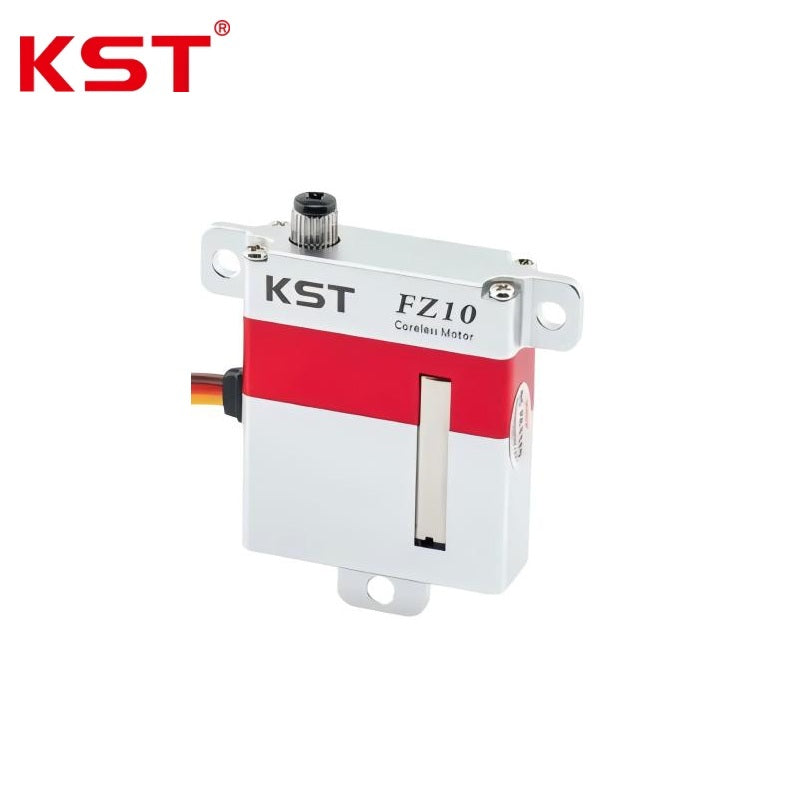

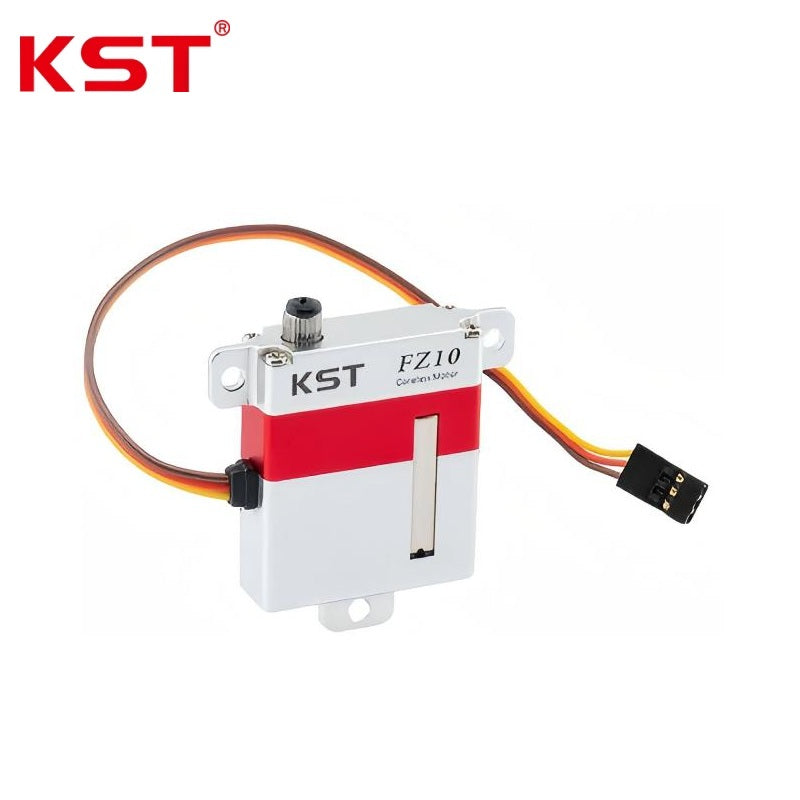

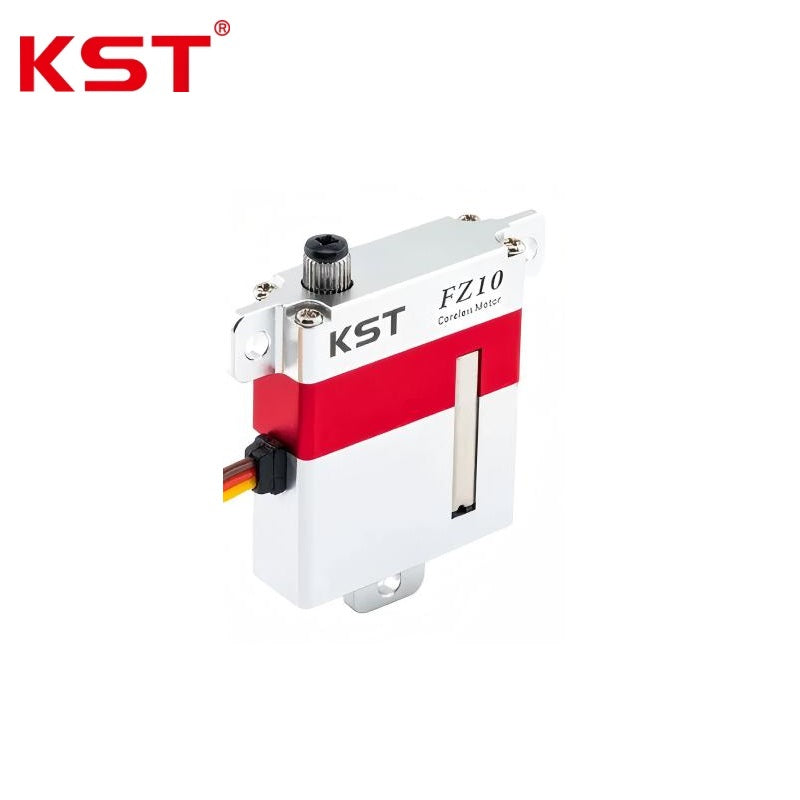

KST FZ10 Servo Motor
Regular price
$79.99
Unit price
KST FZ10 Servo Motor - FZ10 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
KST FZ10 Servo Motor
Regular price
$79.99
Unit price
KST FZ10 Servo Motor - FZ10 is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Performance & Electrical Ratings: | |
| Rated Voltage | DC 7.4V |
| Voltage Range | DC 4.8V - 8.4V |
| Torque | 6.2 kgf.cm @ 4.8V; 7.5 kgf.cm @ 6.0V; 9.5 kgf.cm @ 7.4V; 10.8 kgf.cm @ 8.4V |
| Operating Speed (60deg Rotation) | 0.16 sec @ 4.8V; 0.14 sec @ 6.0V; 0.12 sec @ 7.4V; 0.10 sec @ 8.4V |
| Operating Frequency | 1520 us / 333 Hz |
| Control Specifications: | |
| Default Travel Angle | +/-50 deg (100 deg Total) |
| Signal Voltage | HIGH: min. 3.3V, max. 5.0V; LOW: min. 0.0V, max. 1.5V |
| Pulse Width Range | 900 us - 2100 us |
| Pulse Lengths for Position | 1000 us / 1500 us / 2000 us (corresponding to -50 deg / 0 deg / +50 deg) |
| Soft Start / Programmable Support | Programmable / Yes |
| Internal Characteristics: | |
| Motor Type | Coreless DC Motor |
| Gear Set Material | Hardened Steel |
| Position Sensor | Potentiometer |
| Physical & Environmental: | |
| Case Material | Aluminum Alloy |
| Case Dimensions | 30 mm x 10 mm x 35.5 mm +/- 0.2 mm |
| Weight | 28 g +/- 10% |
| Operating Temperature Range | -10 deg C ~ +65 deg C |
